ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Supra 3.0L Turbo (87-92) (TS2-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Supra 3.0L Turbo (87-92) (TS2-XTR4)

TS2-XTR4

In stock

$875.00 USD
$1,080.00 USD $875.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Toyota Supra 3.0L Turbo (87-92) is a high-performance clutch assembly designed for racing and aggressive driving applications. This kit combines ACT's Xtreme pressure plate with a ceramic 4-pad rigid race disc, delivering exceptional clamp load and durability. The Xtreme pressure plate features an exclusive diaphragm design that reduces deflection and increases holding capacity, while all diaphragms undergo a four-stage heat-treating process to ensure maximum performance and longevity. The rigid race disc is engineered for high torque capacity and consistent engagement, making it ideal for demanding track conditions. Constructed with precision and high-quality materials, this clutch kit provides reliable power transfer and improved response for competitive driving.

Designed for 1987-1992 Toyota Supra models equipped with a 3.0L turbocharged engine, this clutch kit is a direct replacement for stock components. It is suitable for street, track, and race use, offering increased holding power and heat resistance under extreme conditions. The kit is a bolt-on upgrade that does not require modifications, ensuring straightforward installation. It includes all necessary components for a complete clutch replacement, providing a robust solution for high-performance driving. This clutch kit is optimized for applications demanding maximum durability and consistent performance during spirited driving or racing events.

Overview

1987-1992 Toyota Supra 3.0L Turbo Xtreme Race Clutch Kit by ACT

This kit features ACT's Xtreme pressure plate paired with their ceramic 4-pad rigid race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 630 ft/lbs
  • Torque Capacity (% Over OE): 109%

Applications

  • 1987 - 1992 Toyota Supra 3.0L Turbo

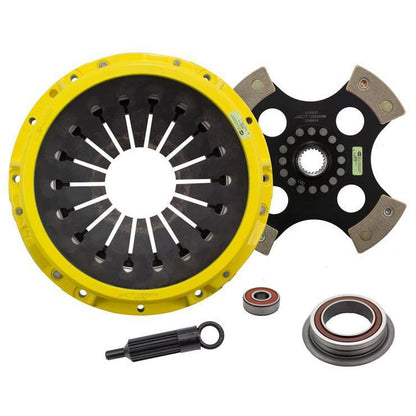

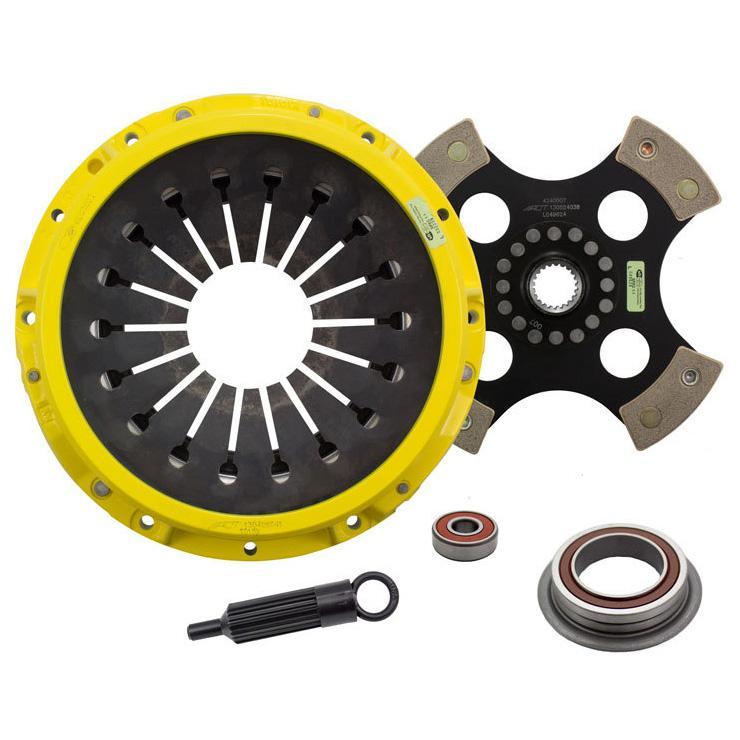

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Rigid 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
