ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Supra 3.0L Turbo (87-92) (TS2-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Toyota Supra 3.0L Turbo (87-92) (TS2-XTG4)

TS2-XTG4

Out of stock

$940.00 USD
$1,160.00 USD $940.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Toyota Supra 3.0L Turbo (1987-1992) is a high-performance clutch assembly designed for racing and aggressive driving applications. It features ACT's Xtreme pressure plate, which utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The kit includes a ceramic 4-pad sprung race disc, engineered for durability and consistent engagement under demanding conditions. The pressure plate is heat-treated through a four-stage process, ensuring maximum strength and heat resistance. Precision cover stampings provide added rigidity and consistency, making this clutch kit ideal for high-stress environments.

This clutch kit is specifically designed for 1987-1992 Toyota Supra models equipped with a 3.0L turbocharged engine. It offers a direct bolt-on upgrade for stock clutch systems, providing improved holding capacity and performance for street and track use. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Suitable for racing, spirited driving, or high-performance street applications, this clutch enhances power transfer and durability, making it an excellent choice for enthusiasts seeking maximum performance from their Supra.

Overview

1987-1992 Toyota Supra 3.0L Turbo Xtreme Race Clutch Kit by ACT

This kit features ACT's Xtreme pressure plate paired with their ceramic 4-pad sprung race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 630 ft/lbs
  • Torque Capacity (% Over OE): 109%

Applications

  • 1987 - 1992 Toyota Supra 3.0L Turbo

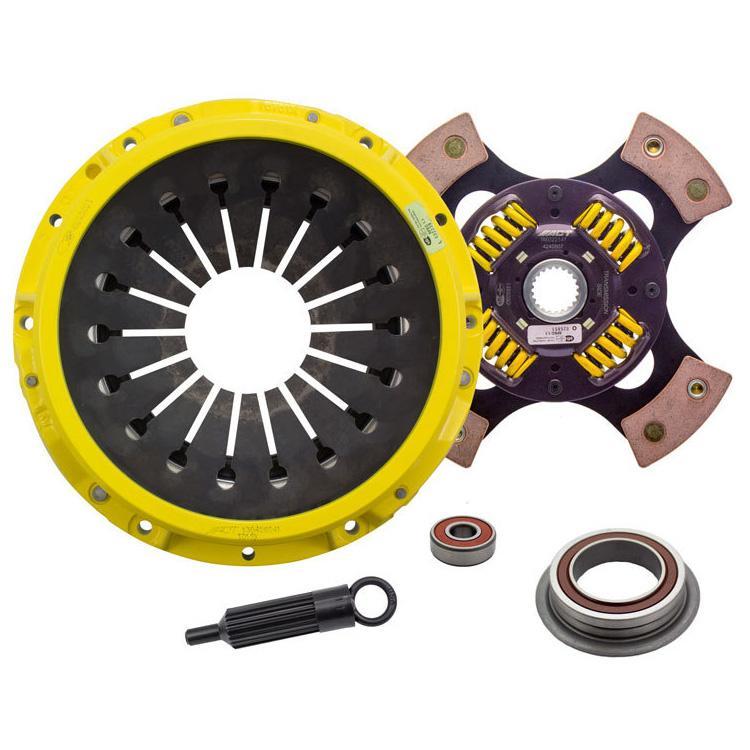

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
