ACT Xtreme Race Sprung Clutch Kit | Toyota Supra / Lexus SC300 (88-97) (TS3-XTG4)

ACT Xtreme Race Sprung Clutch Kit | Toyota Supra / Lexus SC300 (88-97) (TS3-XTG4)

TS3-XTG4

Out of stock

$637.00 USD
$786.00 USD $637.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Xtreme Race Sprung Clutch Kit for Toyota Supra and Lexus SC300 from 1988 to 1997 is a high-performance clutch solution designed for demanding driving conditions. This kit combines ACT's Xtreme pressure plate with a ceramic 4-pad sprung race disc, offering exceptional holding capacity and durability. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process to ensure maximum performance and reliability. The kit's components are engineered with precision cover stampings, providing rigidity and consistency during operation, making it ideal for race, street, or spirited driving applications. The ceramic 4-pad sprung disc enhances heat resistance and provides smooth engagement for aggressive driving styles.

Designed specifically for 1988-1997 Toyota Supra and 1992-1997 Lexus SC300 models equipped with a 3.0L non-turbo engine, this clutch kit serves as a direct replacement upgrade for stock units. It is suitable for vehicles used in high-performance street driving, track days, or racing environments where increased clamping force and durability are essential. The kit is a bolt-on installation, requiring no modifications, and includes all necessary components for a straightforward upgrade. Its robust construction ensures reliable performance under high torque loads, making it an excellent choice for enthusiasts seeking improved clutch engagement and longevity in their performance builds.

Overview

1988-1997 Supra / 1992-1997 SC300 3.0L (Non-Turbo) Xtreme Race Clutch Kit by ACT

This kit features ACT's Xtreme pressure plate paired with their ceramic 4-pad sprung race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 450 ft/lbs
  • Torque Capacity (% Over OE): 107%

Applications

  • 1988 - 1992 Toyota Supra 3.0L 7M-GE
  • 1993 - 1997 Toyota Supra 3.0L 2JZ-GE
  • 1992 - 1997 Lexus SC300 3.0L 2JZ-GE

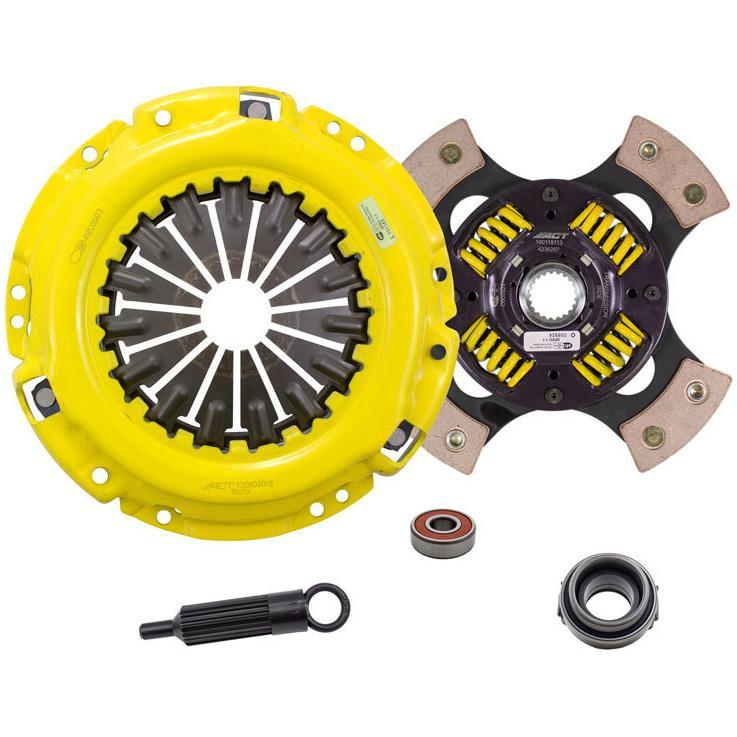

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
