ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Supra (93-98) 3.0L Twin Turbo (TS4-XTG6)

ACT Extreme Race Sprung 6 Pad Clutch Kit | Toyota Supra (93-98) 3.0L Twin Turbo (TS4-XTG6)

TS4-XTG6

Out of stock

$1,059.00 USD
$1,307.00 USD $1,059.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 6 Pad Clutch Kit for the Toyota Supra (93-98) 3.0L Twin Turbo is a high-performance clutch system designed for racing and aggressive driving applications. This kit combines ACT's Xtreme pressure plate with a ceramic 6-pad sprung race disc, providing exceptional clamp load and durability. The pressure plate features an exclusive diaphragm design that enhances performance by reducing deflection and increasing clamp force, while all diaphragms undergo a four-stage heat-treating process for maximum strength and heat resistance. The precision cover stampings ensure rigidity and consistency, making this clutch kit suitable for demanding track conditions and high-power setups. Its construction emphasizes reliability, heat tolerance, and long-lasting performance, ideal for enthusiasts seeking a race-ready upgrade.

Designed specifically for 1993-1998 Toyota Supra models equipped with the 3.0L twin-turbo engine, this clutch kit serves as a direct replacement for stock components. It is engineered to handle increased power levels and aggressive driving styles, making it suitable for street, track, or drag racing use. The kit includes the pressure plate and ceramic 6-pad sprung race disc, ensuring a straightforward installation that maintains proper engagement and pedal feel. Compatibility is optimized for Supra chassis codes from that era, and the clutch is intended for drivers who demand maximum performance and durability under high-stress conditions. This setup provides a reliable, high-performance upgrade for serious enthusiasts and racers.

Overview

1993-1998 Toyota Supra 3.0L Twin Turbo Xtreme Race Clutch Kit by ACT

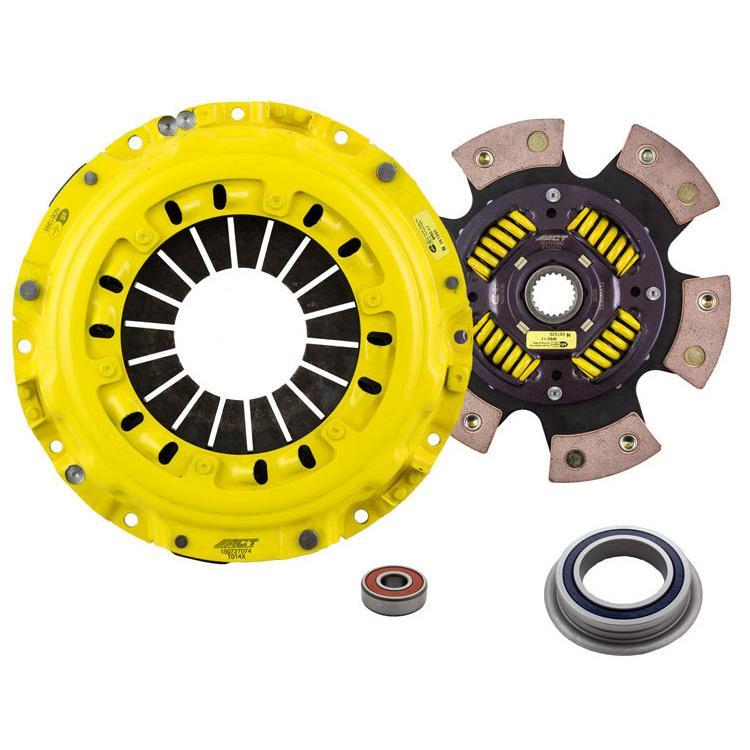

This kit features ACT's Xtreme pressure plate paired with their ceramic 6-pad sprung race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 821 ft/lbs
  • Torque Capacity (% Over OE): 107%

Please Note: Must be used with ACT flywheel for proper clearance (flywheel not included).

Applications

  • 1993 - 1998 Toyota Supra 3.0L Twin Turbo
  • Requires ACT flywheel for proper clearance

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Sprung 6-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
