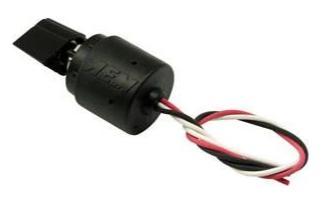

AEM Universal 12 Position Trim Pot (30-2056)

12 Position Trim Pot

The Universal 12 Position Trim Pot is for use on virutally any Engine Management System. It can be used in conjunction with AEM's Programmable Engine Management Systems to adjust a number of trims, including ignition timing, fuel, boost, etc.

Features

• 12 Position Trim Pot Performance Specifications:
• Total Resistance: 14.3K©
• Cycles Minimum: 10,000
• Positions: 12
• Degree Rotation: 330
• Mounting: 3/8" Hole
• Jam Nut: 1/2" Hex
• Knob Set Screw: 1/16" Allen
• Supply Current: 5 Vdc
• Output: Download Chart
• Elec. Termination: Overmold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)

Applications

• Universal

What's In The Box?

• 12 Position Trim Pot with Flying Lead
• 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11
• Blue/Red/Black AEM Logo Knob Decals
• Blue/Red/Black Colored Knob Decals* the flying lead has a weatherproof overmold and 12 inch insulated wires that are color coded in black, white and red.

Warranty

• Manufacturer Standard Warranty
