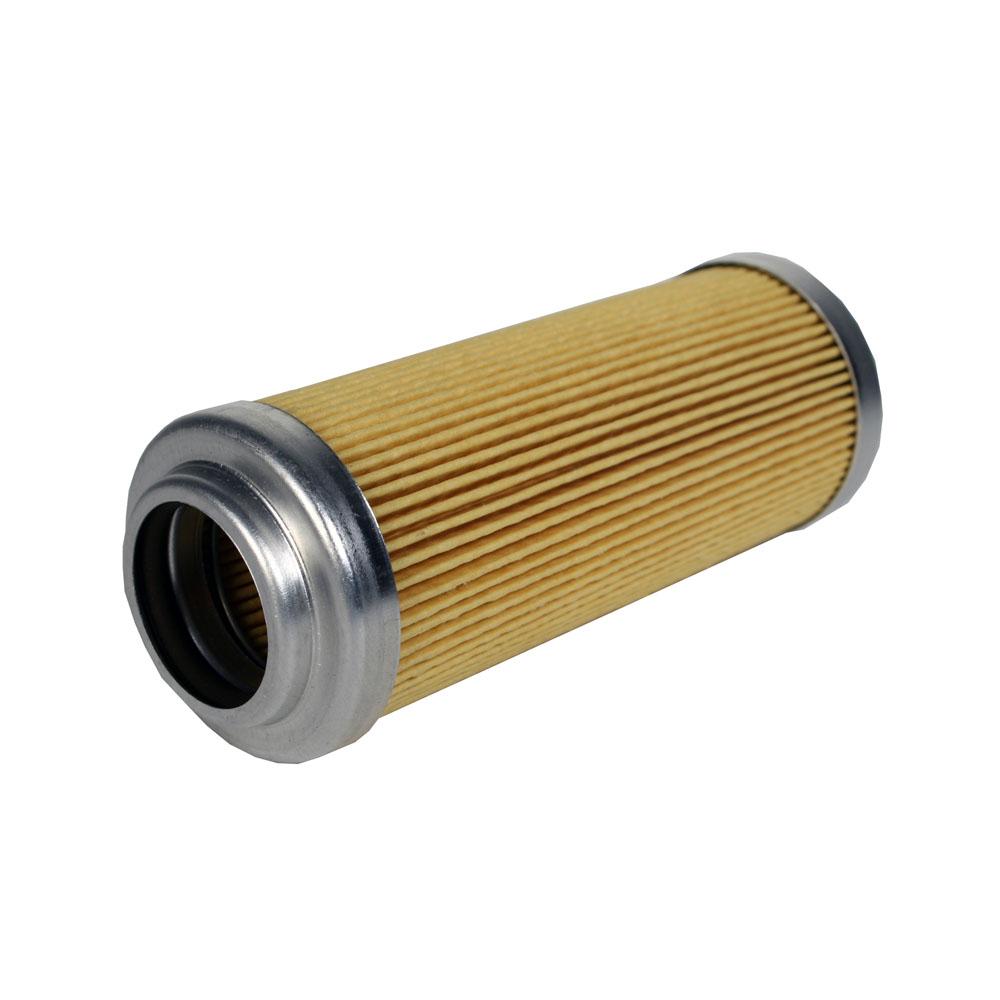

10-M Cellulose Element: ORB-12 Filter Housings by Aeromotive Inc.

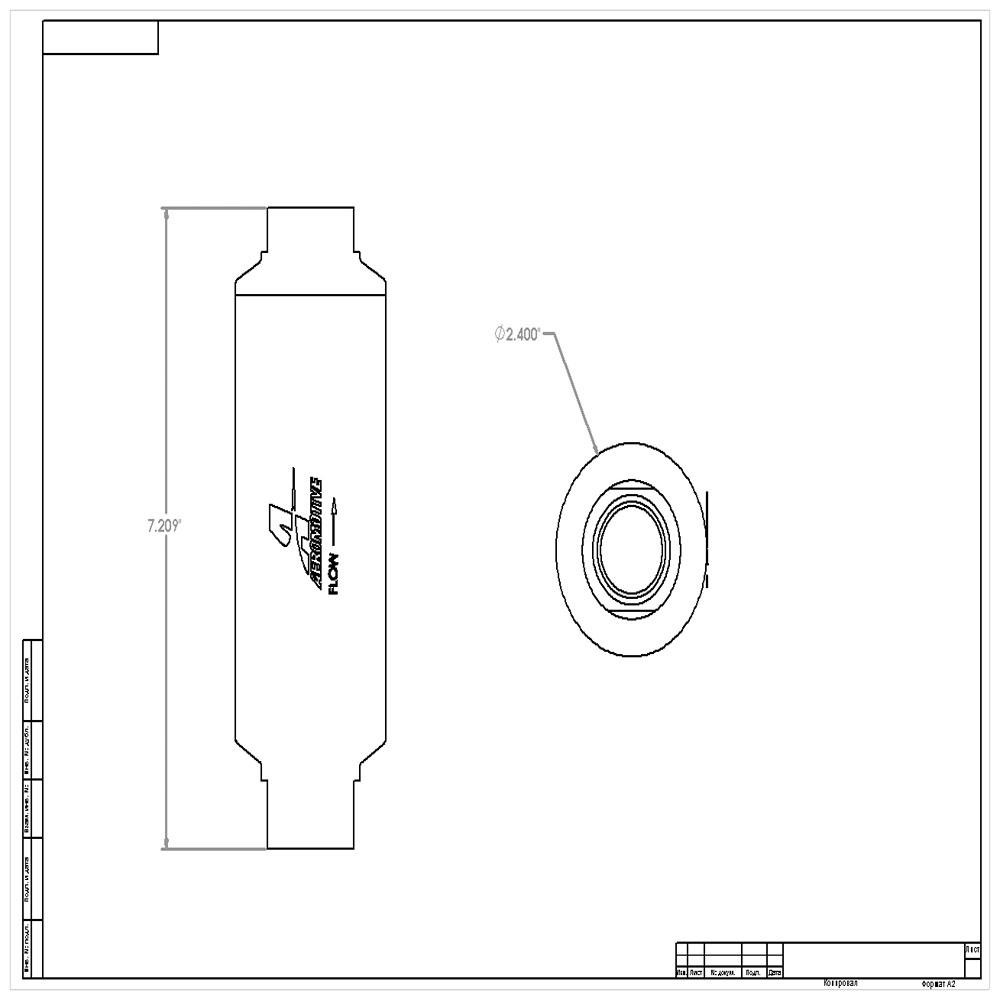

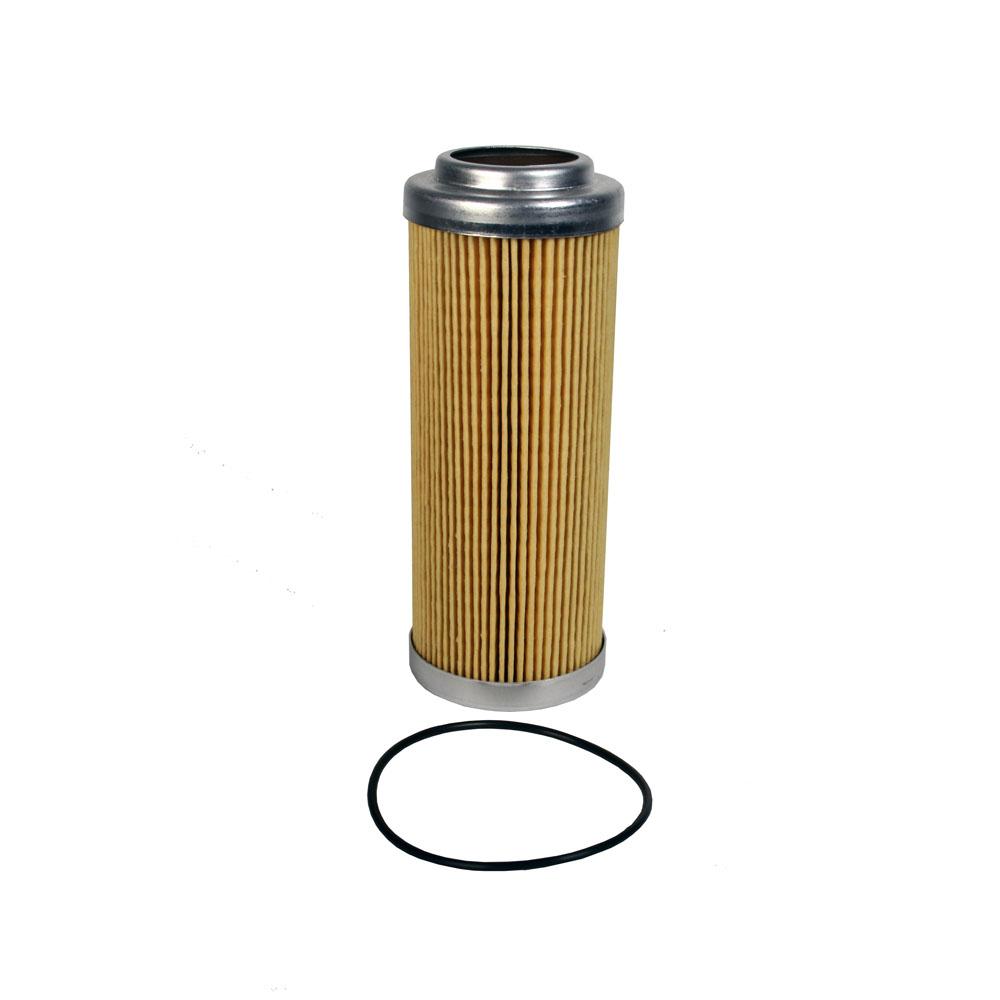

Service element for Aeromotive Billet, in-line filters Fits all 2-1/2″ OD x 7″ long ORB-12 filter housings. Includes new housing o-ring to reseal the filter assembly.
Commonly the most overlooked component in a fuel system, filter neglect can be the most costly. If not cleaned or replaced regularly, filter elements can become clogged resulting in reduced fuel flow, engine performance and ultimately, fuel pump or even worse, engine damage. By simply replacing and/or cleaning your filter elements regularly, you can avoid costly repairs to your fuel system and ensure peak engine performance.
Aeromotive recommends annual inspection and service of filter elements. This includes replacing 10-micron fabric elements and cleaning or replacing 100-micron stainless steel elements. Severe duty applications or newly installed systems may require more frequent maintenance.
Features
Direct Replacement Filter Element For Filter P/N’s: P/N 12310 , P/N 12311 , P/N 12360.
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
Not recommended for alcohol fuels including ethanol and methanol.
Over 90-sq. inches of element surface area supports extreme flow while providing good service life.
Flow capacity of up to 400 GPH (6.66 GPM) with less than 1-PSI pressure drop.
Supports up to 4,000 Flywheel HP, Forced Induction, on gasoline.
Ideal for gasoline, EFI engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
Popular for demanding gasoline, carbureted engine applications using Aeromotive A2000, A3000 and the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
