10-M Microglass Element: ORB-10 Filter Housings by Aeromotive Inc.

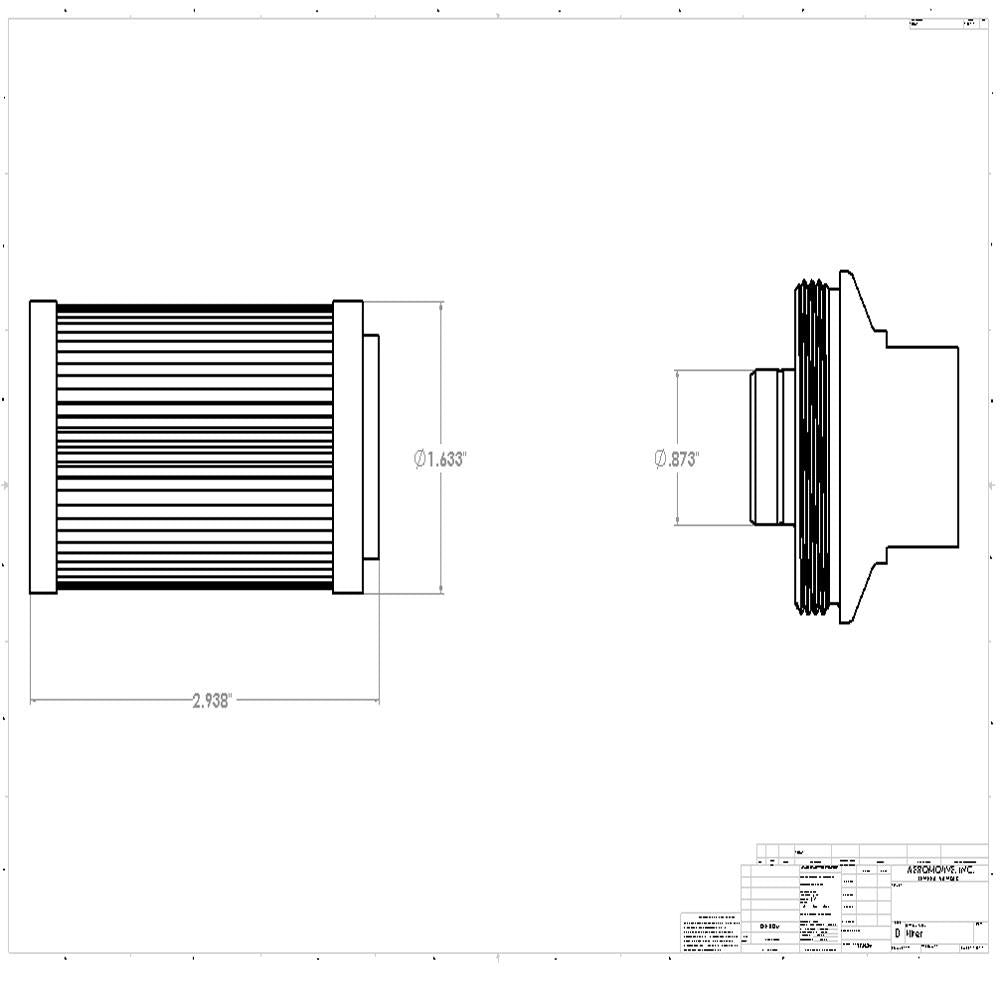

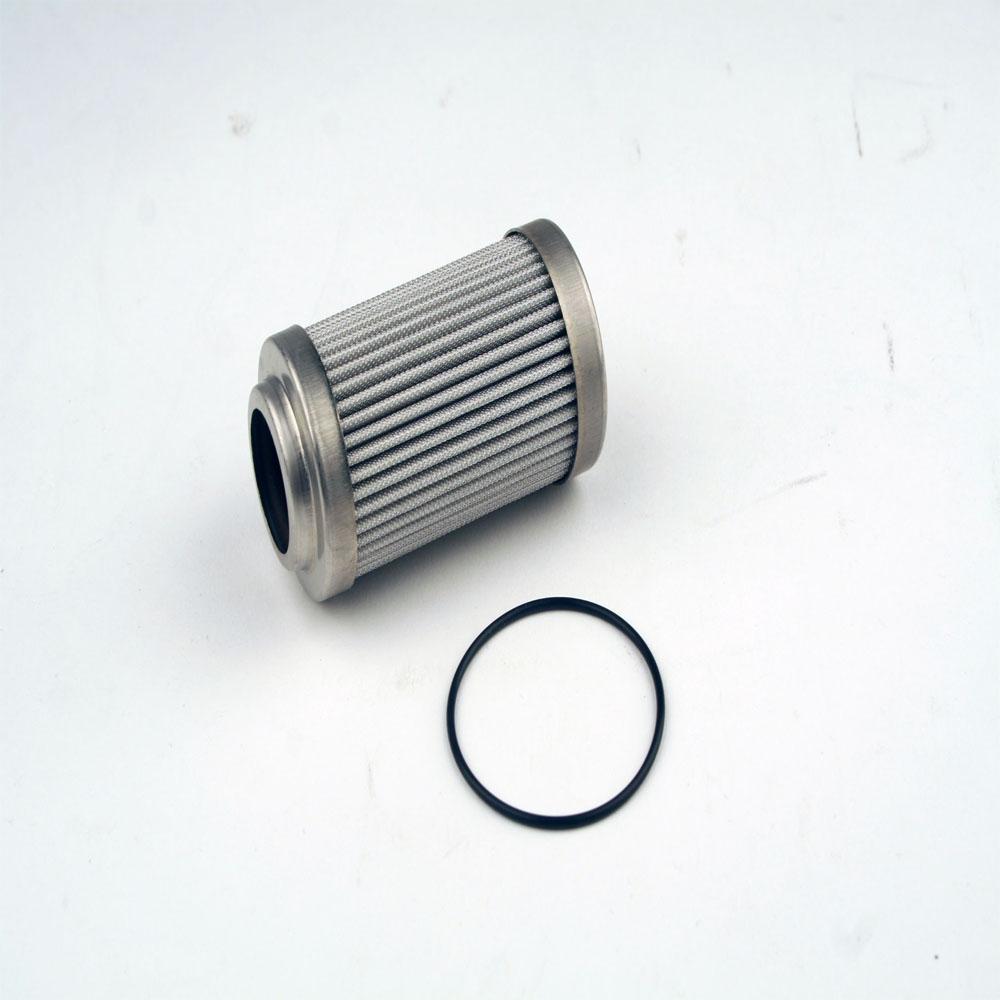

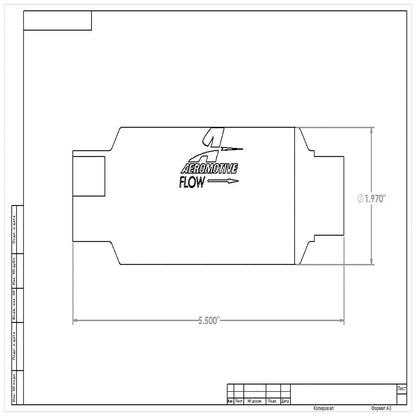

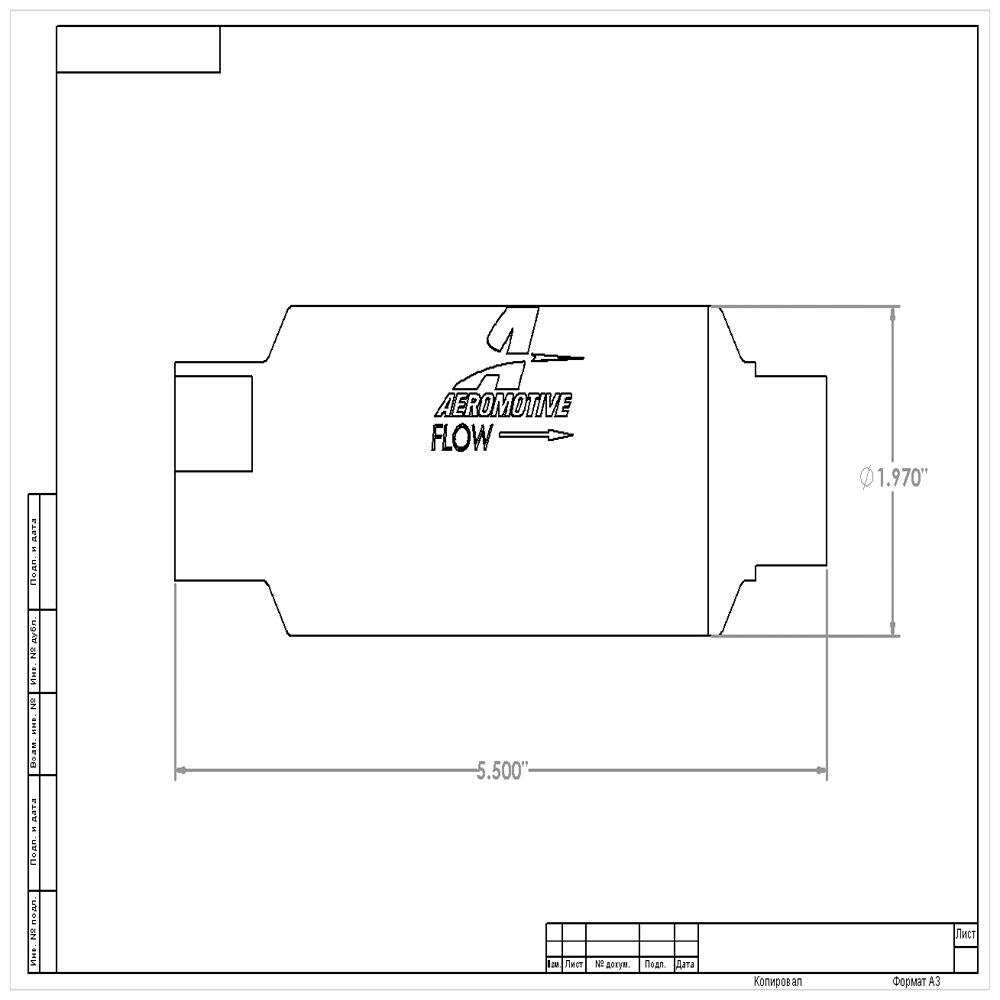

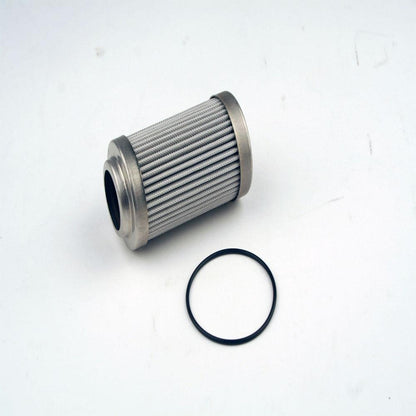

Service element for Aeromotive Billet, in-line filtersFits all 2″ OD x 5-1/2″ long ORB-10 filter housings. Includes new housing o-ring to reseal the filter assembly.
Direct Replacement Filter Element For Filter P/N’s: P/N 12340 , P/N 12346 , P/N 12350 P/N 12345 , P/N 12375 , P/N 12385.
Features
Approved for use in alcohol fuels including ethanol and methanol.
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
Over 60-sq. inches of element surface area supports extreme flow while providing good service life.
Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop.
Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline.
Supports up to 1,400 Flywheel HP, Forced Induction on Ethanol.
Ideal for gasoline and ethanol burning EFI engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
Popular for demanding gasoline and ethanol carbureted engine applications using Aeromotive A2000, A3000 and the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
Please Note: This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
