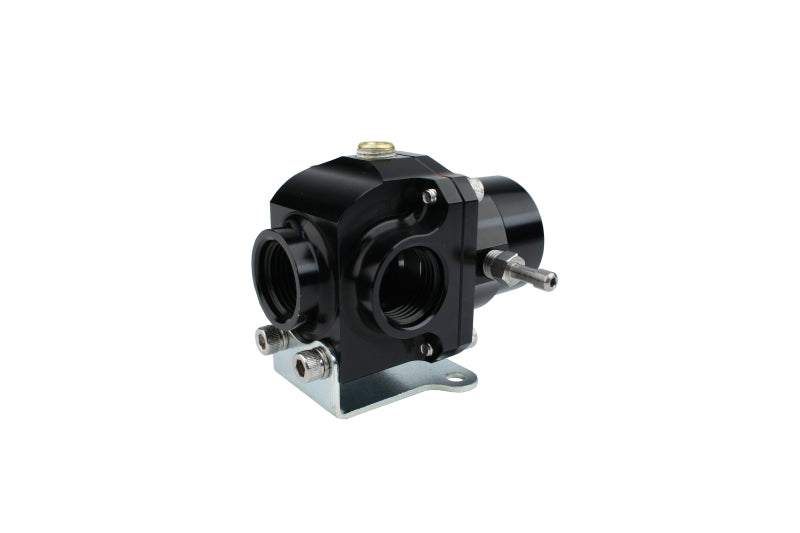

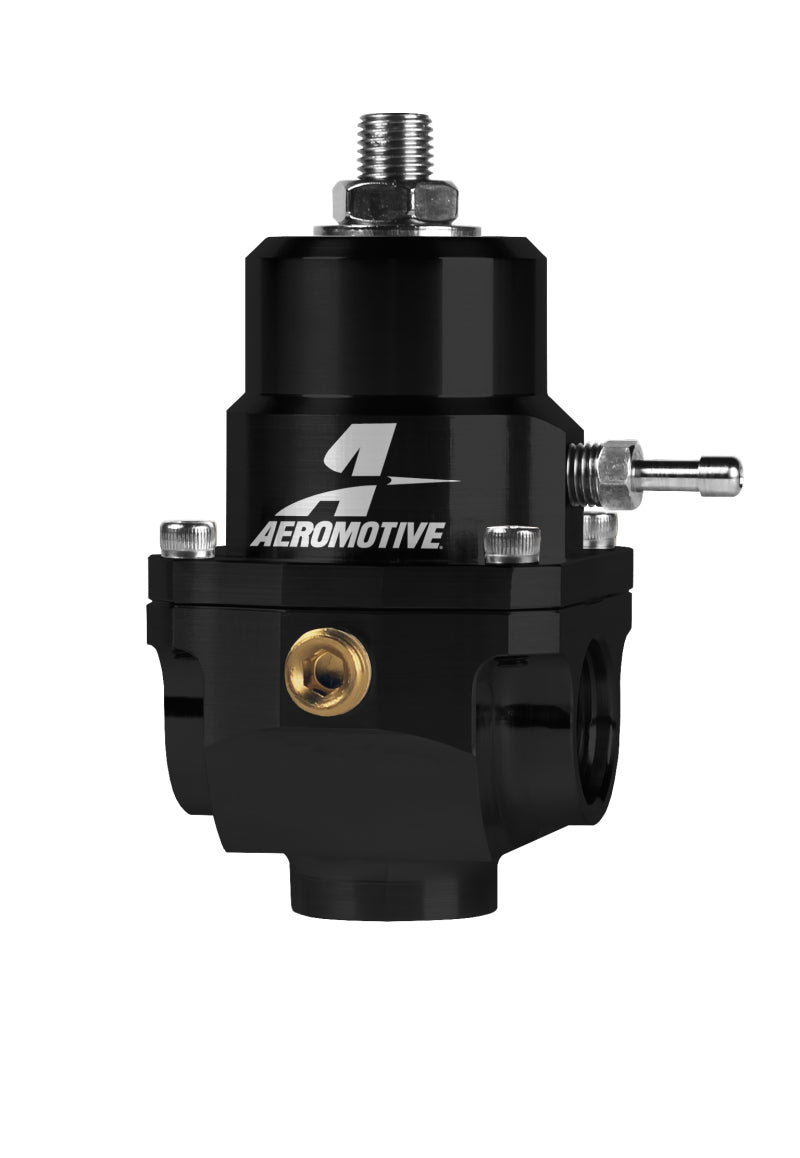

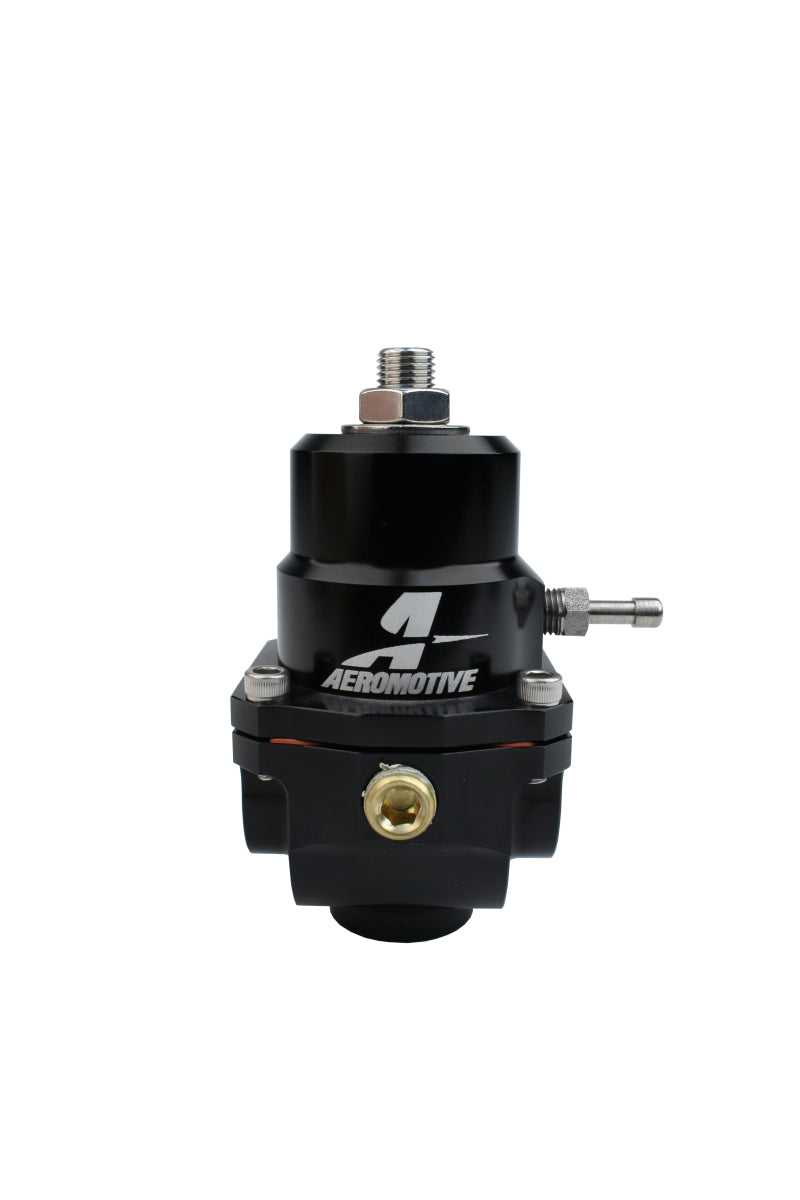

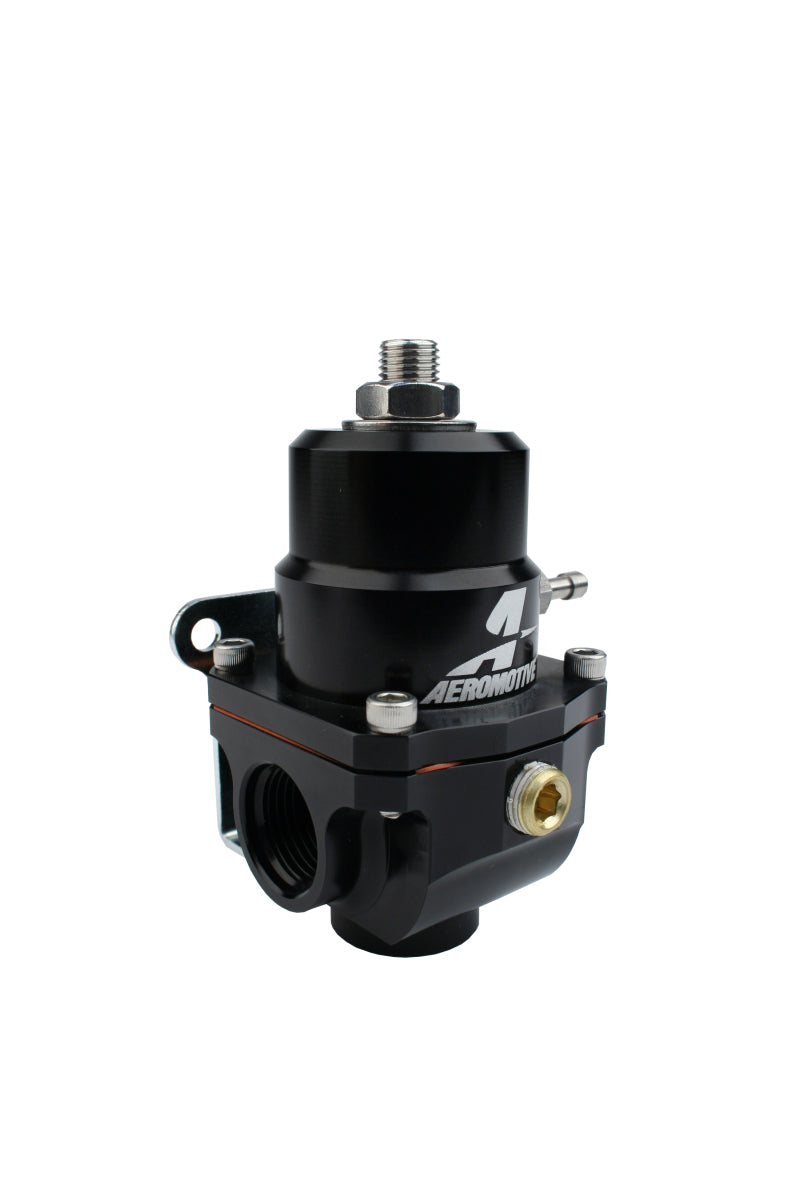

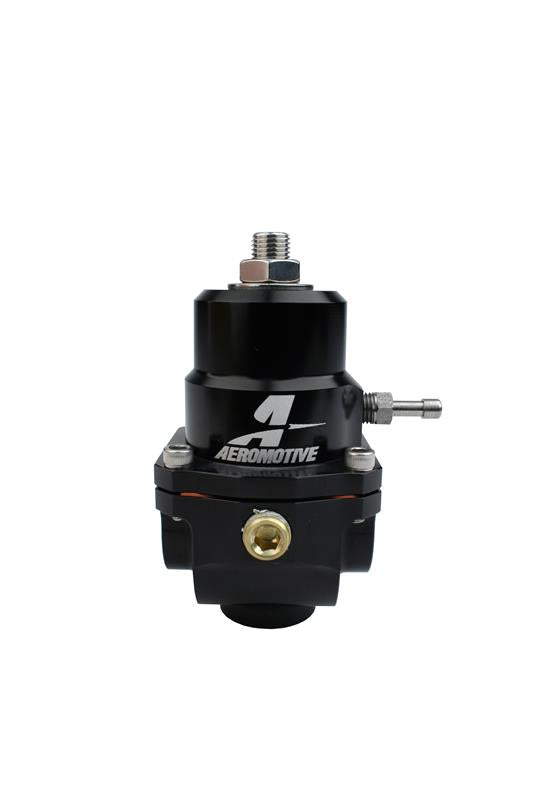

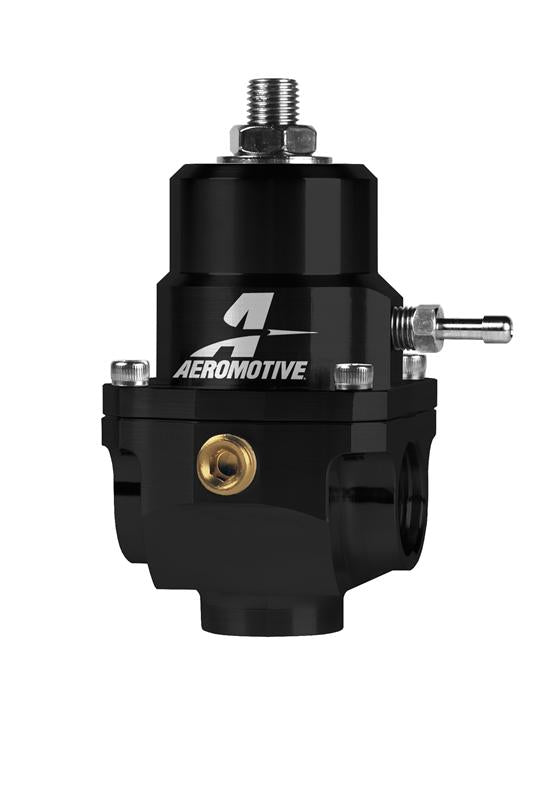

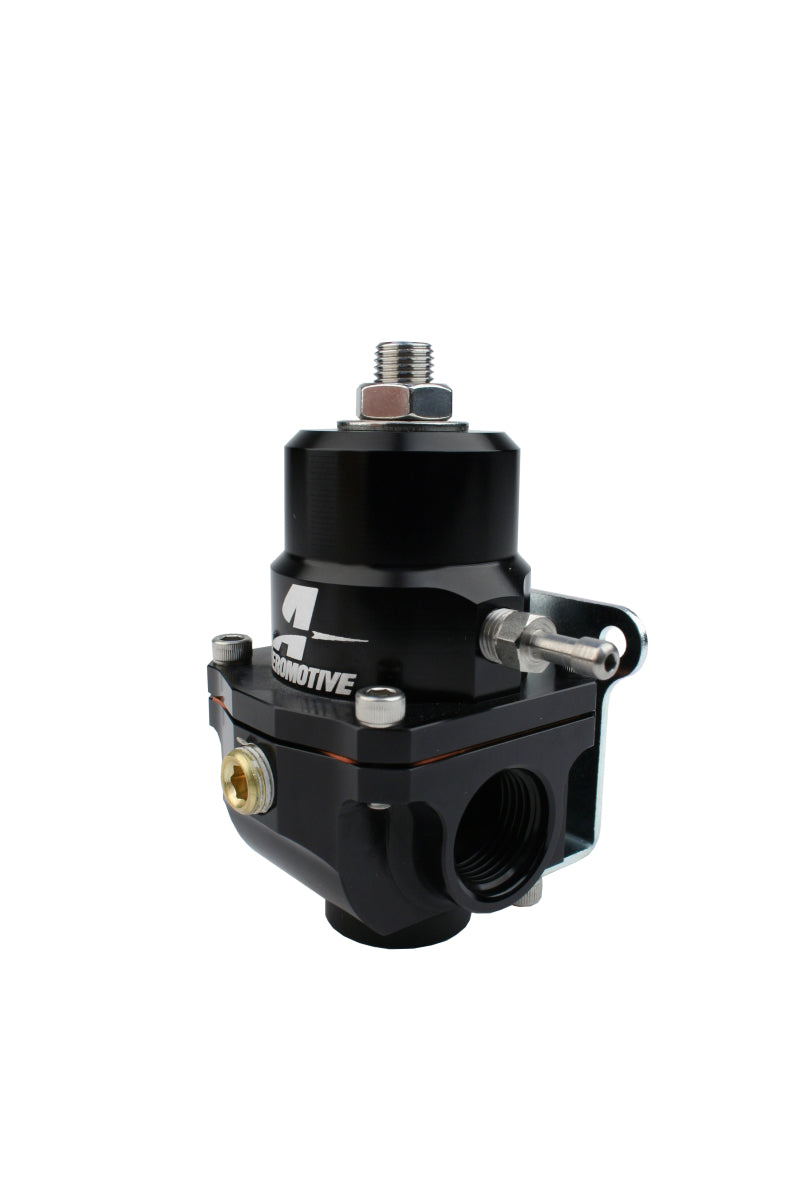

Aeromotive Adjustable Regulator - 35-75PSI - .188 Valve - (2) -08 Inlets/-08 Return

Aeromotive Adjustable Regulator - 35-75PSI - .188 Valve - (2) -08 Inlets/-08 Return

13303

In stock

$281.64 USD
$312.93 USD $281.64 USD
Special Discounts May Apply at Checkout Sold out

The Aeromotive Adjustable Regulator is a high-performance fuel pressure regulator designed for versatile tuning applications. It features a base fuel pressure adjustable from 35 to 75 PSI, with a .188 valve and dual -8AN ORB inlet/outlet ports, along with a -8 return port. The regulator's design incorporates larger inlet, outlet, and return ports to support increased flow capacity, while reducing overall size and weight by 33% compared to previous models. It includes a 1/8 NPT gauge port, a 1/16 NPT boost port, and a 0.188 bypass with matching spring and poppet, making it suitable for forced induction setups. Constructed for durability and precision, it is compatible with gasoline, ethanol, and alcohol fuels, and handles up to 150 GPH with an AN-08 return line.

Designed for use with various fuel systems, this regulator is compatible with Aeromotive pumps up to the A1000 model. It is ideal for performance street, track, and forced induction applications, providing reliable pressure regulation and tuning flexibility. The regulator replaces original internals with conversion kits (Part #'s 13013, 13014, and 13015), allowing customization of internal characteristics. Its robust construction and multiple ports make it a direct replacement and upgrade for existing fuel systems, ensuring optimal flow and pressure control for a wide range of high-performance vehicles. Mounting bracket included for easy installation.

Overview

Replace original X1 Series regulator internals with the conversion kit of your choice (Part #'s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics. While versatility is one of the X1's greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator). The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and bypass seat, the X1 delivers all of the performance and features you expect from an application specific bypass regulator, regardless of what you decide to do with you r induction system tomorrow. Above and beyond the expected performance, you still have the amenities like a 1/8 NPT gauge port and 1:1 ratio boost reference port for forced induction applications. Base fuel pressure adjustable from 35-75 PSI. Vacuum/boost reference capability. 1:1 rising rate for forced induction engines. Gasoline, ethanol, and alcohol compatible. (2) ORB-08 inlet/outlet ports on the sides. (1) ORB-08 return port on the bottom. (1) 1/8 NPT Gauge port with plug. 1/16 NPT Boost port with 5/32 hose barb. 0.188 bypass with matching spring and poppet. Handles up to 150 GPH with AN-08 return line. Suitable for any Aeromotive pump up to A1000. Mounting bracket included.
