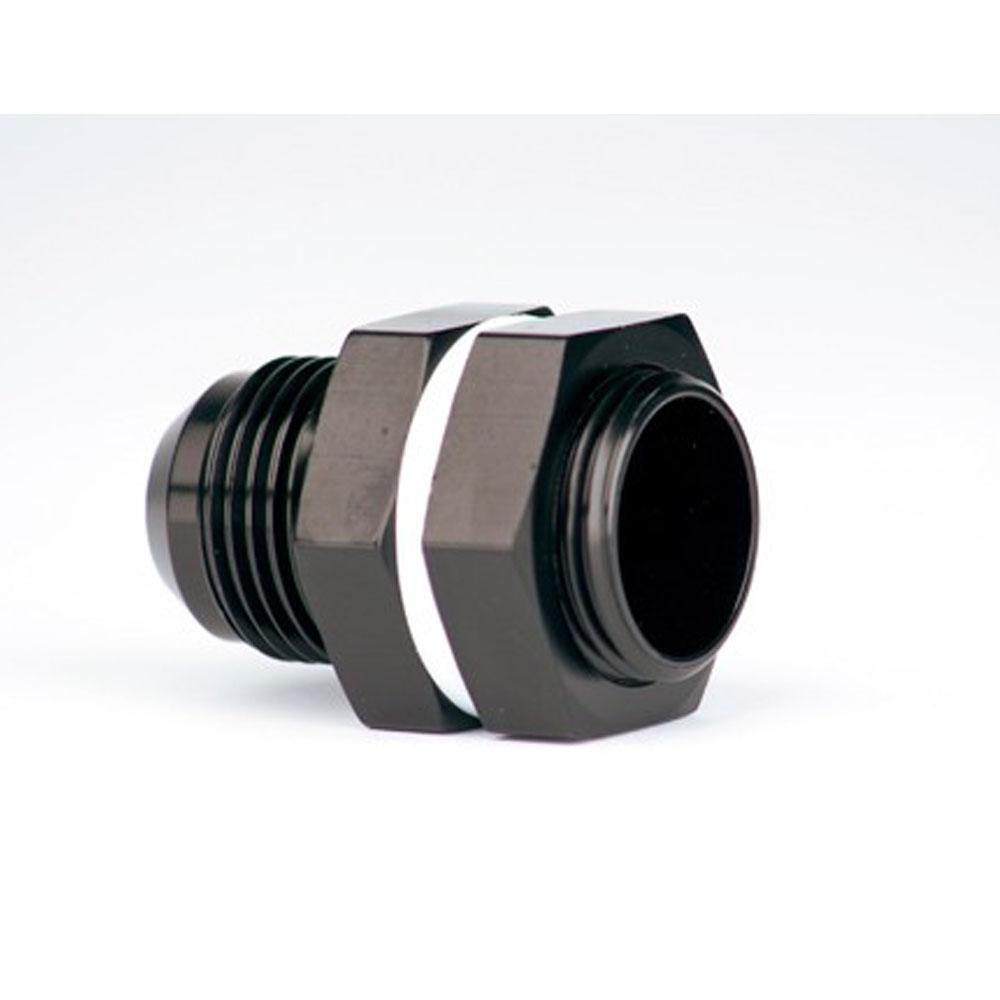

Aeromotive AN-12 Fuel Cell Bulkhead Fitting

Universal AN-12 Fuel Cell Bulkhead Fitting for Performance Fuel Systems

Part #: 15647

Overview

The Aeromotive AN-12 Fuel Cell Bulkhead Fitting is a high-quality component designed for enthusiasts and professionals who demand reliable and efficient fuel system connections. Whether you're building a custom fuel cell setup for racing, off-road adventures, or high-performance street applications, this bulkhead fitting ensures a secure, leak-free seal while maintaining optimal fuel flow. Crafted with precision and durability in mind, it is an essential part of any custom fuel delivery system that prioritizes safety and performance.

Engineered for universal fitment, this bulkhead fitting is compatible with a wide range of fuel cell tanks and fuel system configurations. Its robust construction and superior materials make it suitable for use with gasoline and alcohol-based fuels, providing versatility for various racing and performance applications. If you're looking to upgrade your fuel system with a component that offers both precision and durability, the Aeromotive AN-12 Bulkhead Fitting is an excellent choice.

Key Features

The Aeromotive AN-12 Fuel Cell Bulkhead Fitting boasts several advanced features that set it apart from standard fittings:

• Premium Materials: Constructed from 6061 T6 aircraft-grade aluminum, this fitting offers exceptional strength, corrosion resistance, and lightweight performance, ensuring long-lasting durability in demanding environments.
• Precision CNC Machining: Each fitting is CNC-machined for a perfect, precise fit that guarantees a positive seal and consistent fuel flow, reducing the risk of leaks or pressure drops.
• Type II Bright Dip Anodized Finish: The anodized black finish not only enhances the aesthetic appeal but also provides an additional layer of corrosion resistance, making it suitable for both indoor and outdoor applications.
• Universal Compatibility: Designed to fit AN-12 (3/4"-16) ports, this bulkhead fitting is compatible with a wide range of fuel system components, including fuel cells, pumps, and lines.
• Positive Sealing: The fitting features high-quality sealing surfaces that ensure a leak-free connection, even under high pressure or vibration conditions.
• Versatile Fuel Compatibility: Fully compatible with gasoline and alcohol-based fuels, making it suitable for a variety of racing, off-road, and street performance setups.
• Easy Installation: Designed for straightforward installation, this bulkhead fitting can be easily integrated into your existing fuel system without the need for specialized tools or modifications.

Construction & Design

The Aeromotive AN-12 Fuel Cell Bulkhead Fitting is meticulously CNC-machined from aircraft-grade aluminum, ensuring precise dimensions and a high-quality finish. Its one-piece construction eliminates weak points and potential leak paths, providing a reliable connection for your fuel system. The Type II bright dip black anodized coating not only enhances durability but also offers a sleek, professional appearance that complements high-performance setups. The fitting's design emphasizes ease of installation and maintenance, with smooth threads and sealing surfaces that facilitate a secure, leak-proof connection.

Installation & Fitment

The Aeromotive AN-12 Fuel Cell Bulkhead Fitting is designed for easy, bolt-on installation. It threads directly into compatible fuel cells or tanks with an AN-12 port, providing a secure and leak-free seal. No cutting, drilling, or special tools are required beyond standard hand tools. This fitting is suitable for both professional and DIY installations, making it a versatile choice for custom fuel system builds or upgrades. Ensure that all connections are tightened to manufacturer specifications to maintain optimal sealing and performance.

• Compatible with AN-12 (3/4"-16) ports
• Requires standard hand tools for installation
• No cutting or drilling needed for proper fitment
• Suitable for gasoline and alcohol-based fuels

What's Included

• 1 x AN-12 Fuel Cell Bulkhead Fitting
• Sealing washers and hardware (if applicable)

Ideal For

• Race cars and high-performance street vehicles
• Custom fuel cell installations
• Off-road vehicles requiring durable fuel fittings
• Enthusiasts seeking reliable fuel system components
