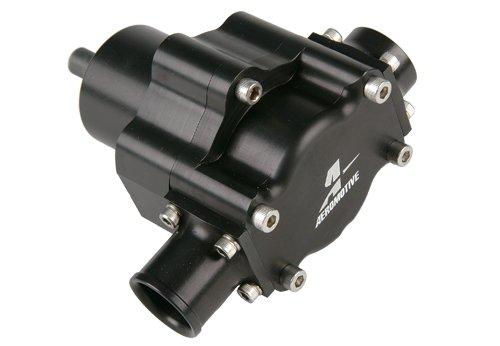

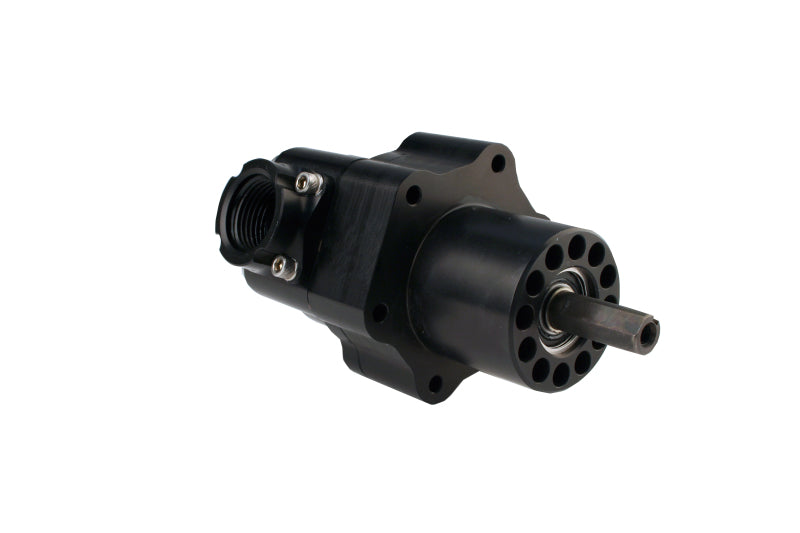

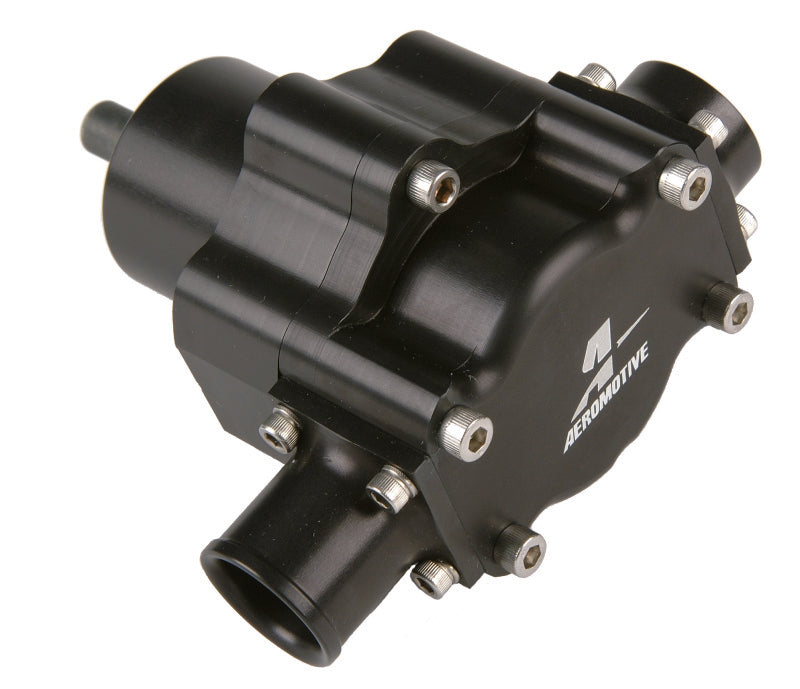

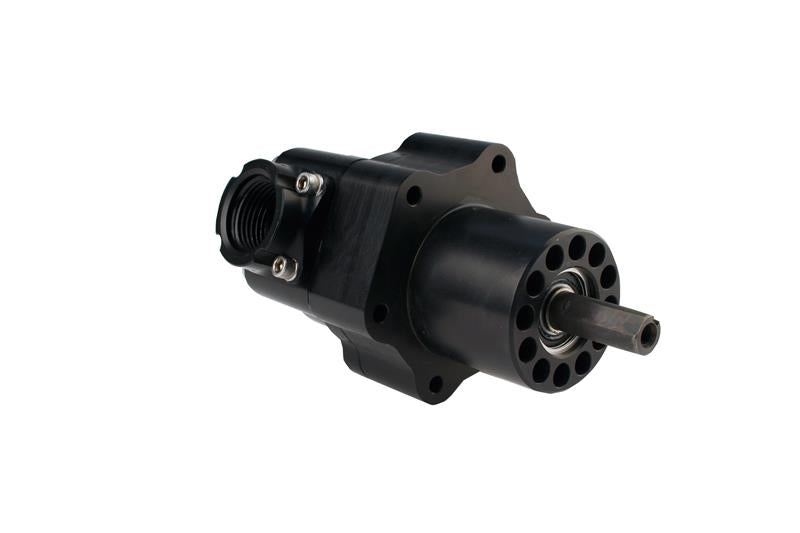

Aeromotive Atomic Belt Drive Fuel Pump

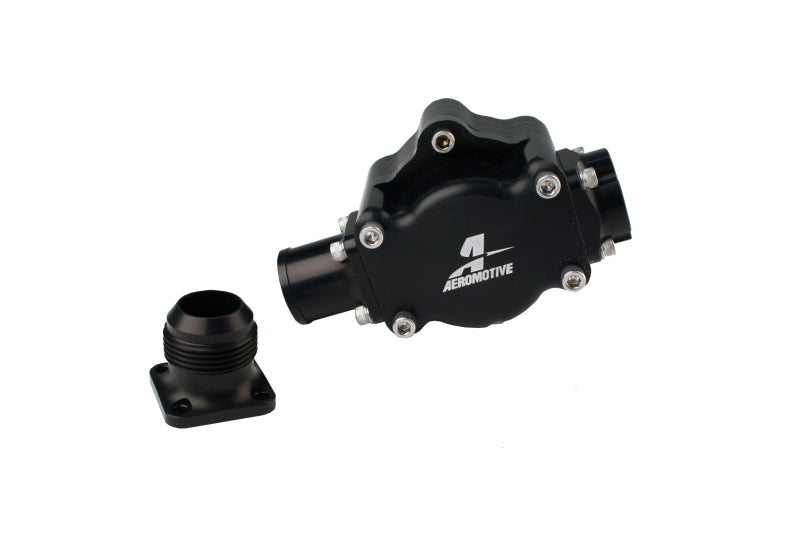

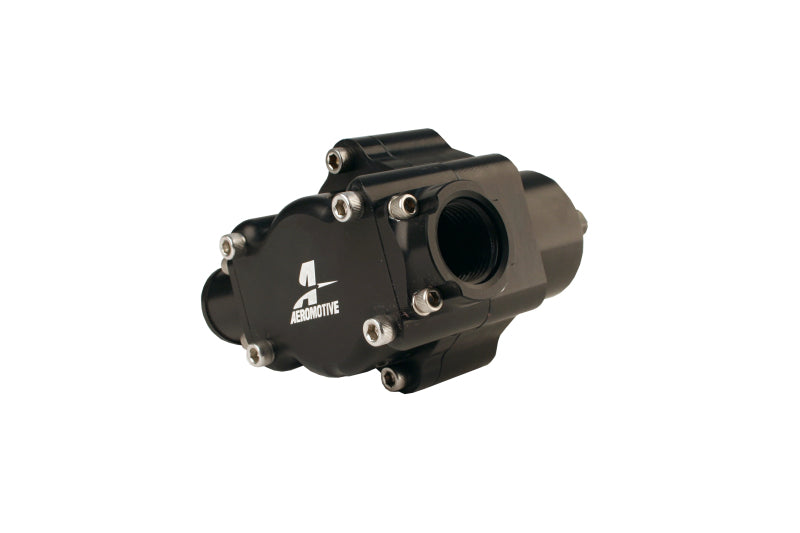

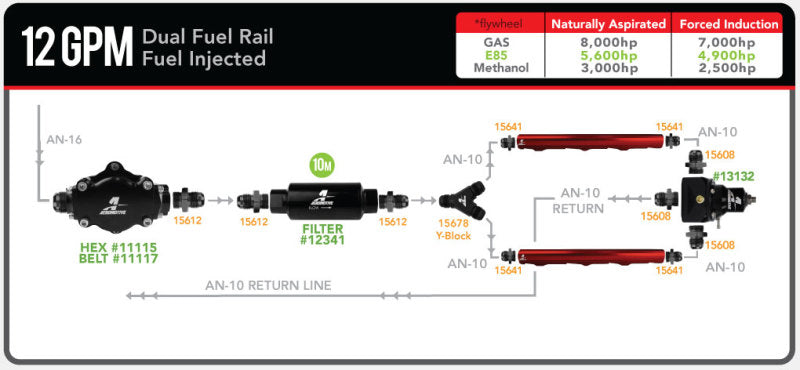

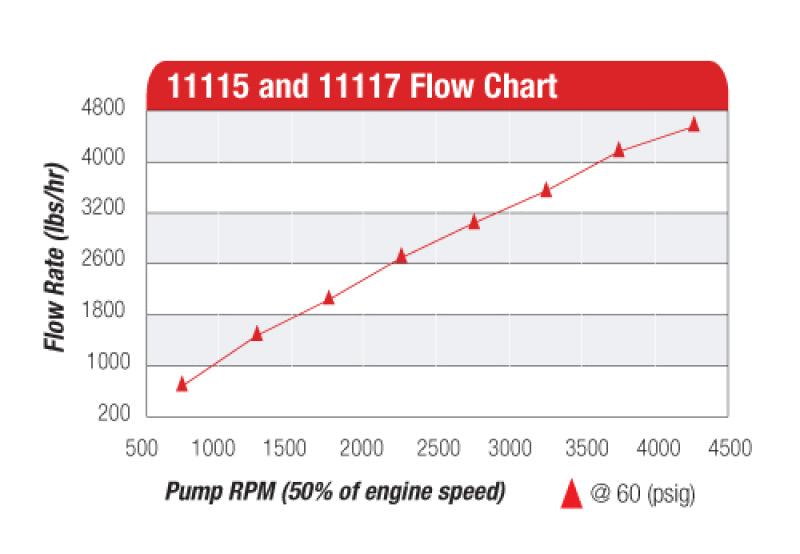

The Aeromotive Atomic Belt Drive Fuel Pump is a high-performance mechanical fuel pump designed for serious EFI and carbureted engines. It features a 12 GPM flow rate, capable of supporting up to 5,000 horsepower on gasoline and 2,500 horsepower on methanol. Constructed with a Gerotor pumping mechanism, it offers high efficiency and durability. The pump body is made from Type III hard coat anodized CNC-machined 6061 T6 aircraft aluminum, ensuring toughness and resistance to harsh conditions. It is driven by a pulley and cog drive belt, allowing it to be powered directly from the engine's crankshaft, making it suitable for both high and low-pressure applications. The pump includes inlet fittings with 1.25-inch barb and AN-16 male connections, along with an ORB-12 female outlet port, providing versatile installation options. EFI setups may require high-flow bypass regulators, which are sold separately.

This belt drive fuel pump is designed for installation in high-performance automotive applications, including race and street vehicles with EFI or carbureted fuel systems. It is compatible with a wide range of engines and chassis, provided the drive pulley and belt system are properly configured. Suitable for use in engines requiring substantial fuel flow, it is ideal for applications demanding reliable, high-capacity fuel delivery. Installation involves mounting the pump to the engine or chassis, with the belt driven directly from the crankshaft. The kit does not include the mounting bracket, which is sold separately. This pump provides a robust, efficient solution for fueling high-horsepower engines in demanding performance environments.
