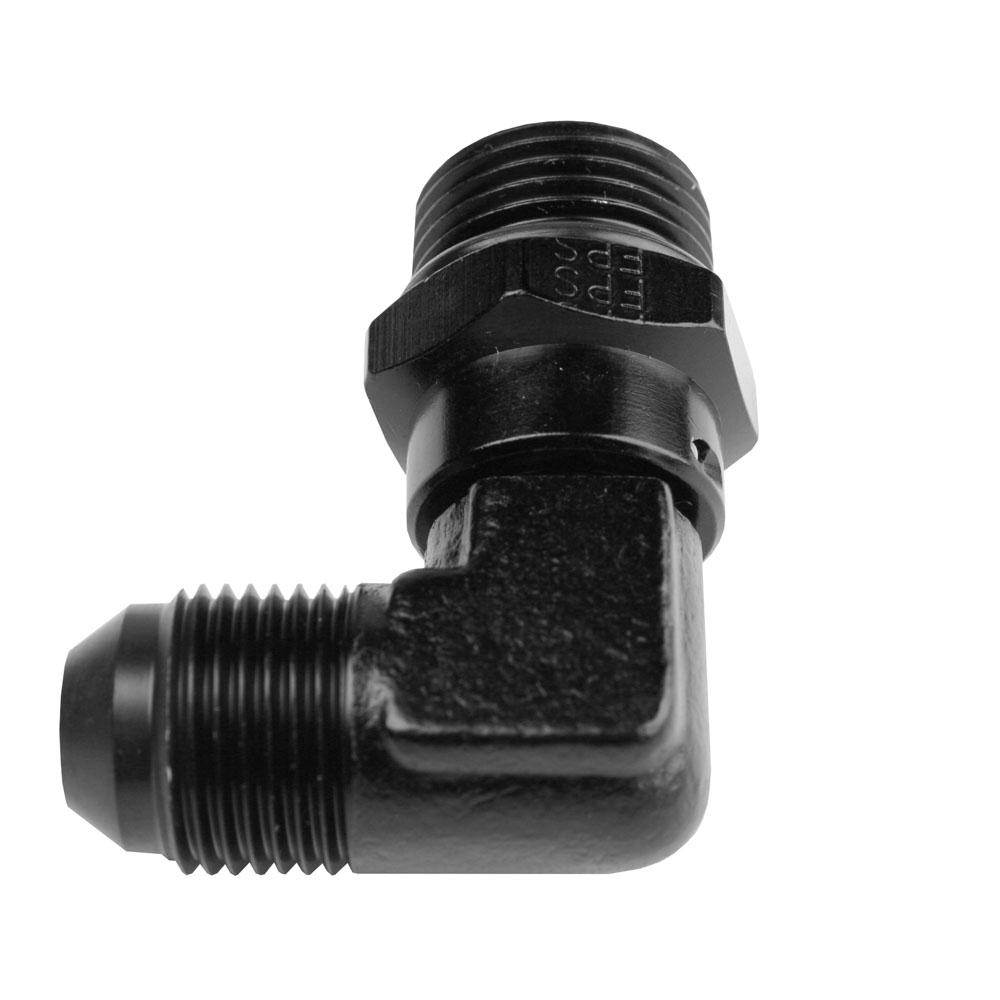

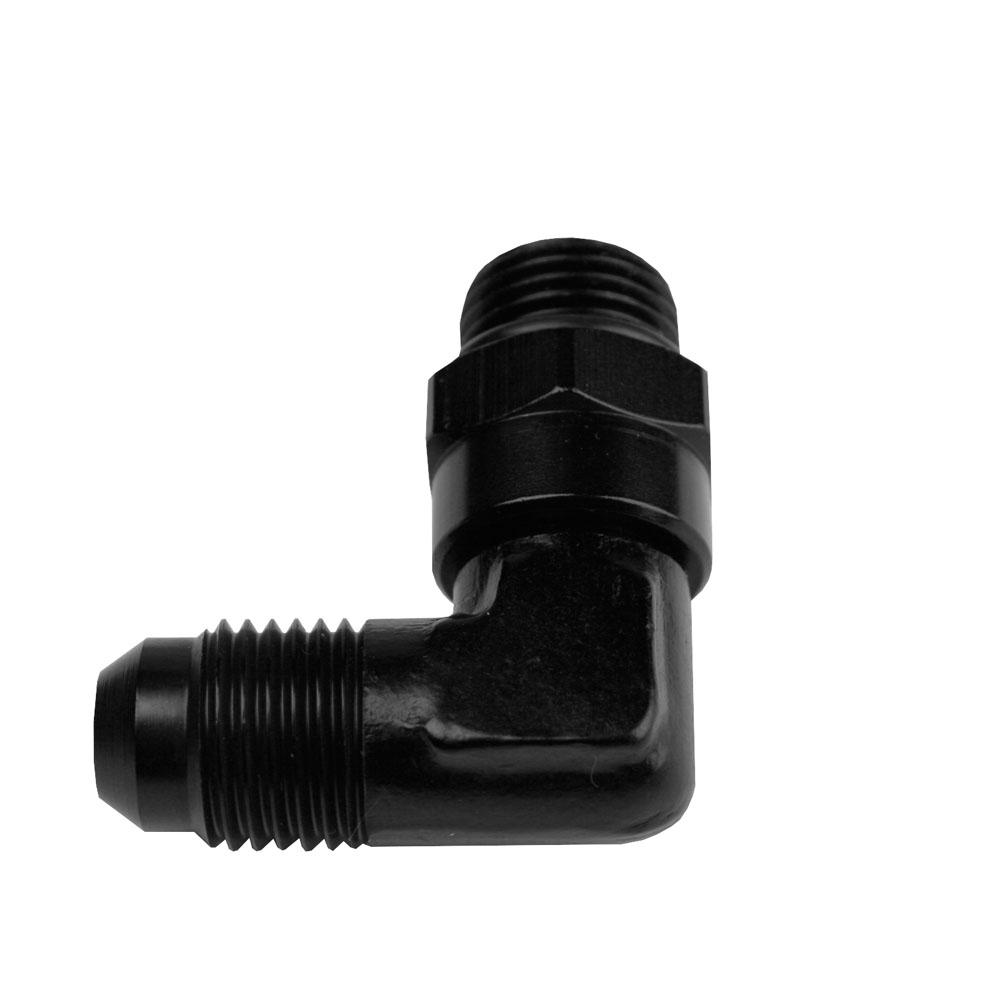

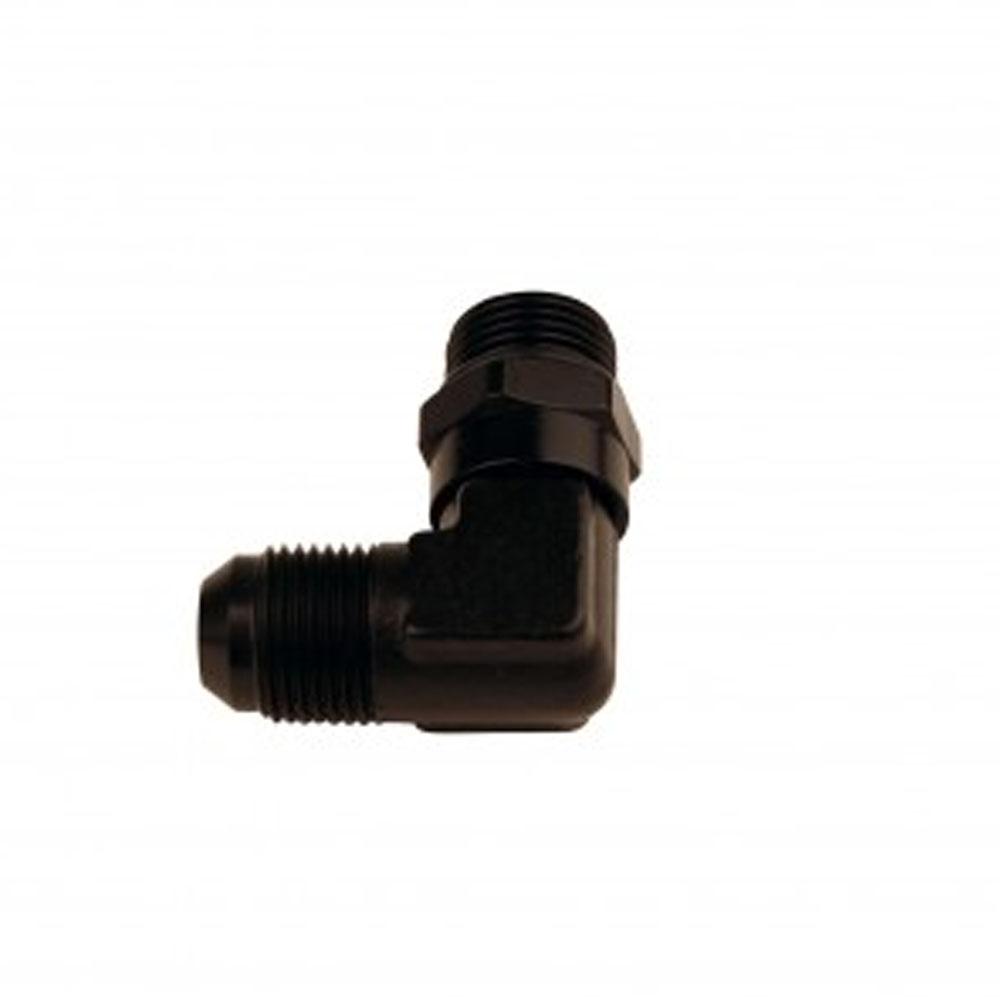

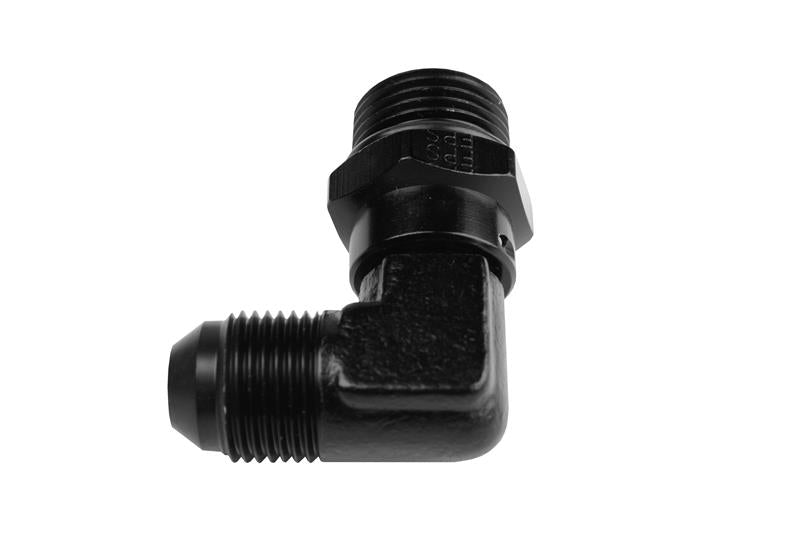

Aeromotive Direct Port Fitting AN-06 ORB to AN-06/08/10 Flare (15689/90/91)
Aeromotive Direct Port Fitting AN-06 ORB to AN-06/08/10 Flare (15689/90/91)
SKU:15689
In stock
Couldn't load pickup availability
The Aeromotive Direct Port Fitting AN-06 ORB to AN-06/08/10 Flare is a high-quality, precision-engineered component designed for reliable fuel system connections. This universal fitment fitting allows seamless adaptation between AN-06 ORB ports and AN-06, AN-08, or AN-10 flare fittings, making it ideal for custom fuel delivery setups, fuel line upgrades, or replacement applications. Constructed with durable materials to ensure leak-free performance, it provides optimal fuel flow and secure connections under demanding conditions. Its robust design caters to both professional and enthusiast applications, ensuring long-lasting performance and compatibility with various fuel system components.
This fitting is suitable for a wide range of vehicles and custom builds requiring AN-06 ORB to flare connections. It is compatible with fuel systems that utilize AN-06, AN-08, or AN-10 flare fittings, making it versatile for performance, racing, or high-performance street use. Installation involves simple, direct threading to existing fuel lines or fittings, offering a reliable upgrade or replacement. The kit includes the necessary fittings for secure attachment, ensuring a leak-proof connection. Ideal for custom fuel systems, this fitting provides a durable and precise solution for maintaining optimal fuel flow and system integrity.
Share
Overview
Overview
Aeromotive Direct Port Fitting AN-06 ORB to AN-06/08/10 Flare
Part #: 15689
Overview
The Aeromotive Direct Port Fitting AN-06 ORB to AN-06/08/10 Flare is a high-quality, precision-engineered component designed for enthusiasts and professionals who demand reliable fuel system connections. Whether you're building a custom fuel delivery setup, upgrading your fuel lines, or replacing worn fittings, this adapter ensures a secure, leak-free connection with optimal fuel flow. Made by Aeromotive Inc., a trusted name in performance fuel system components, this fitting is ideal for race cars, street performance builds, and off-road applications where durability and precision are paramount.
Designed to withstand the rigors of high-performance environments, this fitting helps support consistent fuel delivery, reducing the risk of leaks or pressure drops. Its universal compatibility makes it suitable for a wide range of fuel system configurations, providing a versatile solution for custom fuel plumbing projects.
Key Features
The Aeromotive Direct Port Fitting features advanced construction and design elements that set it apart from standard fittings:
- Material Excellence: Crafted from 6061 T6 aircraft-grade aluminum, this fitting offers exceptional strength, corrosion resistance, and lightweight durability, ensuring long-lasting performance in demanding conditions.
- Precision Machining: CNC-machined for a perfect fit and optimal flow characteristics, minimizing turbulence and pressure loss within your fuel system.
- Anodized Finish: The Type II bright dip black anodized coating provides an attractive, corrosion-resistant surface that maintains its appearance over time, even in harsh environments.
- Universal Compatibility: Designed to connect AN-06 ORB to AN-06, AN-08, or AN-10 flare fittings, making it adaptable to various fuel system configurations and components.
- Positive Sealing: Ensures a leak-proof connection with reliable sealing properties, critical for maintaining fuel system integrity and safety.
- Fuel Compatibility: Fully compatible with gasoline and alcohol-based fuels, making it suitable for a wide range of performance applications.
- Ease of Installation: CNC-machined threads and smooth surfaces facilitate straightforward assembly and disassembly, saving time during installation or maintenance.
Construction & Design
This fitting is meticulously CNC-machined from aircraft-grade aluminum, ensuring precise dimensions and a high-quality finish. The anodized Type II bright dip black coating not only enhances durability but also provides an attractive appearance that resists corrosion and wear. Its design features a robust construction capable of handling high fuel pressures and aggressive environments, making it a reliable choice for performance and racing applications. The compact, lightweight profile allows for flexible routing within tight engine bays or custom fuel setups, while the fully compatible threading ensures a secure, positive seal every time.
Installation & Fitment
The Aeromotive Direct Port Fitting is designed for easy, bolt-on installation. It features CNC-machined threads that thread directly into compatible AN-06 ORB ports and flare fittings, providing a secure and leak-free connection. No additional adapters or modifications are typically required, making it suitable for both professional installations and DIY enthusiasts. Always ensure proper torque specifications are followed to maintain sealing integrity. This fitting is compatible with a wide range of fuel system components and does not require any cutting, drilling, or tuning.
- Simply thread the fitting into your existing AN-06 ORB port and connect to your flare fitting of choice.
- Ensure all connections are tightened to the manufacturer’s recommended torque for optimal sealing.
What's Included
- 1 x Aeromotive AN-06 ORB to AN-06/08/10 Flare Direct Port Fitting
Ideal For
- Performance enthusiasts building custom fuel systems
- Race cars requiring reliable, high-flow fittings
- Street performance vehicles upgrading fuel plumbing
- Off-road vehicles exposed to harsh environments
