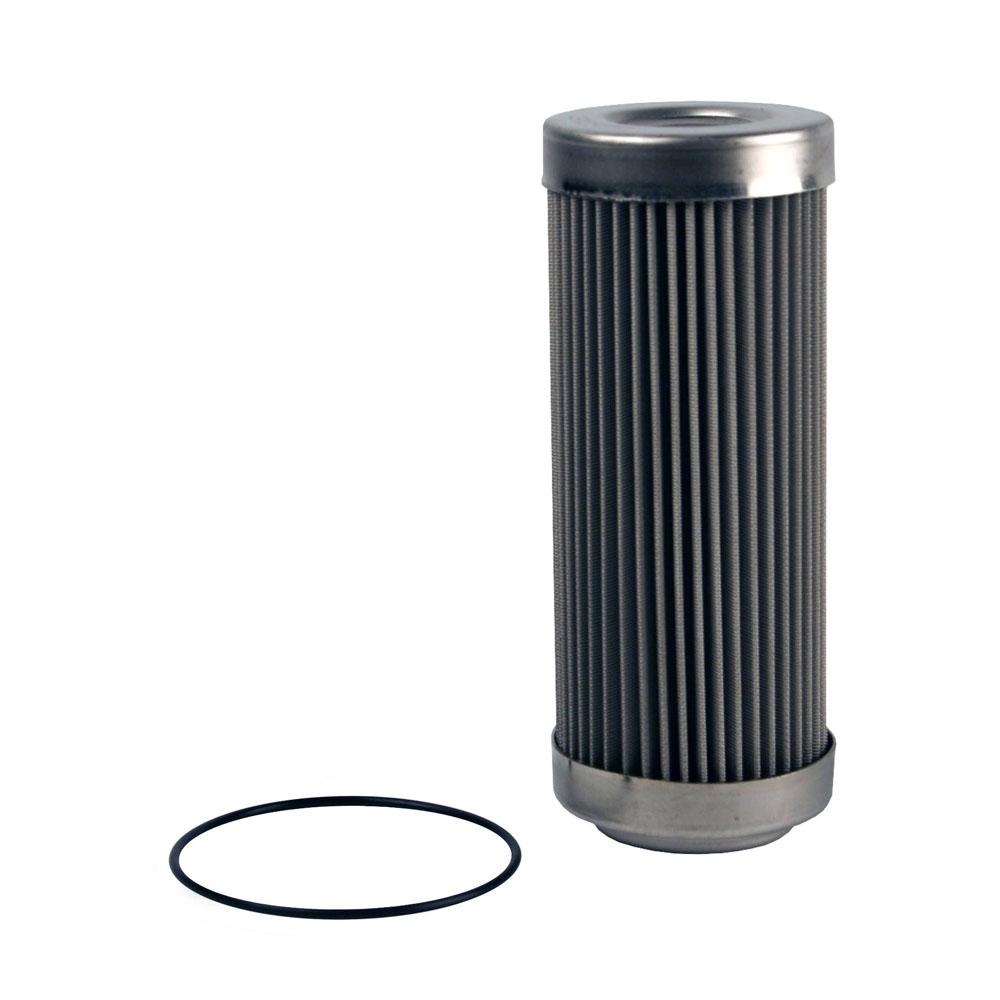

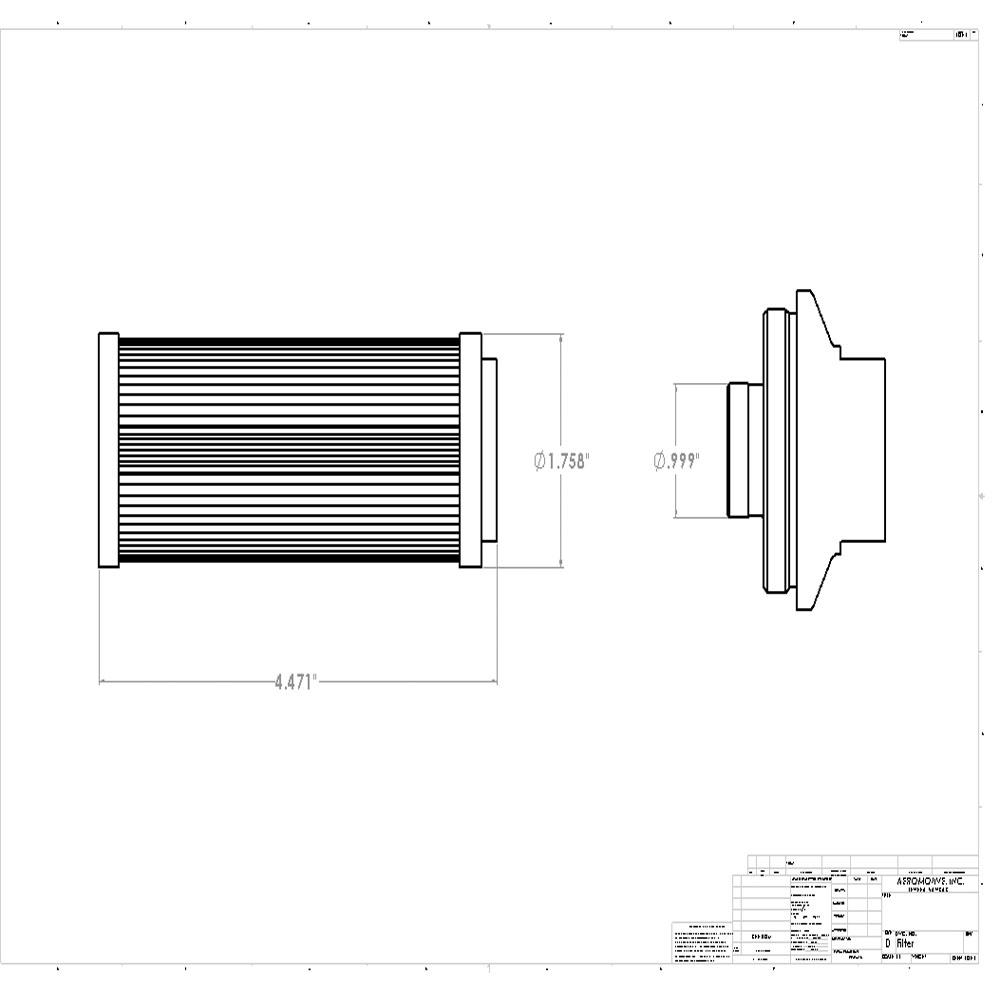

40-m Stainless Element: ORB-12 Filter Housings by Aeromotive Inc.

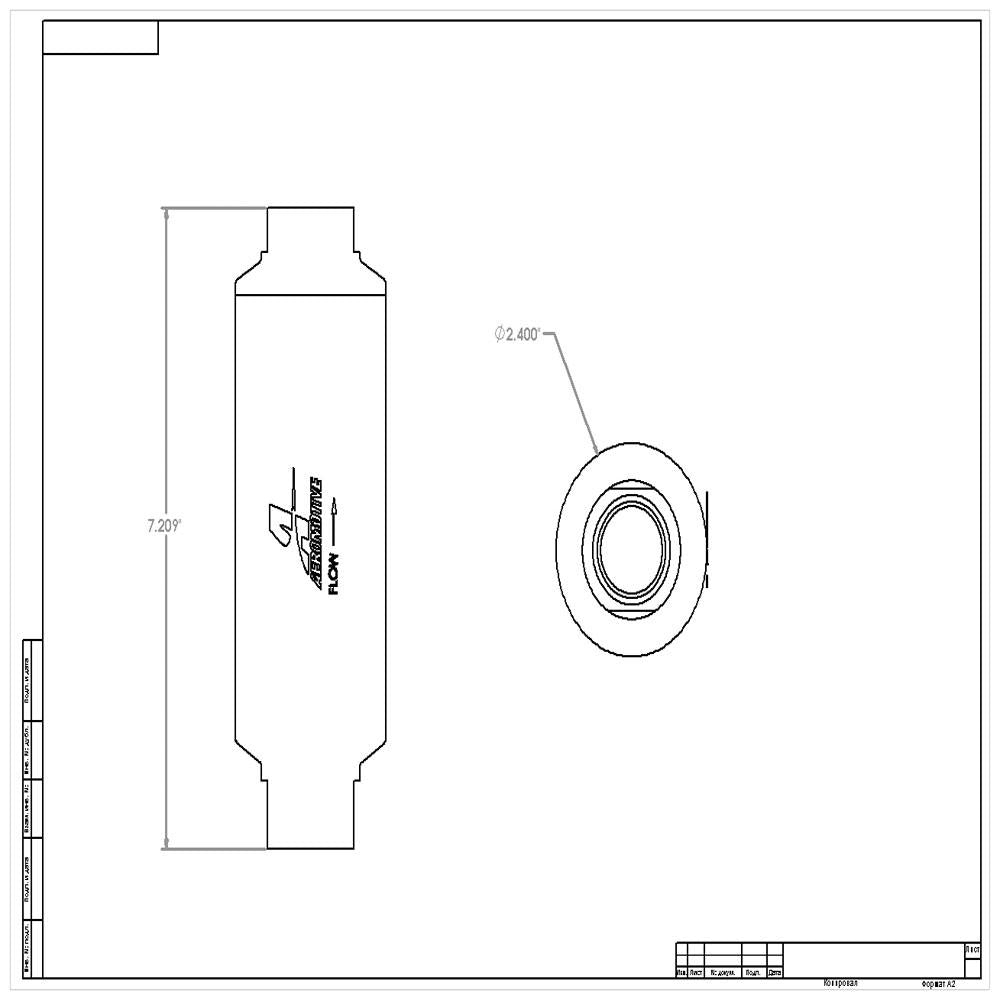

Service element for Aeromotive Billet, in-line filters Fits all 2-1/2″ OD x 7″ long ORB-12 filter housings. Includes new housing o-ring to reseal the filter assembly.
Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol based fuels. Recommended for all medium to large electric pumps and all mechanical pumps, belt or hex drive, 6 – Series pumps up to 32-GPM Spur Gear pumps.
Features
Direct Replacement Filter Element For Filter P/N’s: P/N 12342 , P/N 12343
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
Approved for use in alcohol fuels including ethanol and methanol.
Over 60-sq. inches of element surface area supports high flow while providing good service life.
Flow capacity of up to 900 GPH (15.0 GPM) with less than 1-PSI pressure drop.
Supports up to 8,300 Flywheel HP, Forced Induction, on gasoline.
Supports up to 6,000 Flywheel HP, Forced Induction on Ethanol.
Supports up to 2,800 Flywheel HP, Forced Induction on Methanol.
Ideal as a post pump filter with gasoline, ethanol and methanol burning engines using medium to large electric pumps and 6 and 12 Series (belt and hex driven) mechanical fuel pumps.
