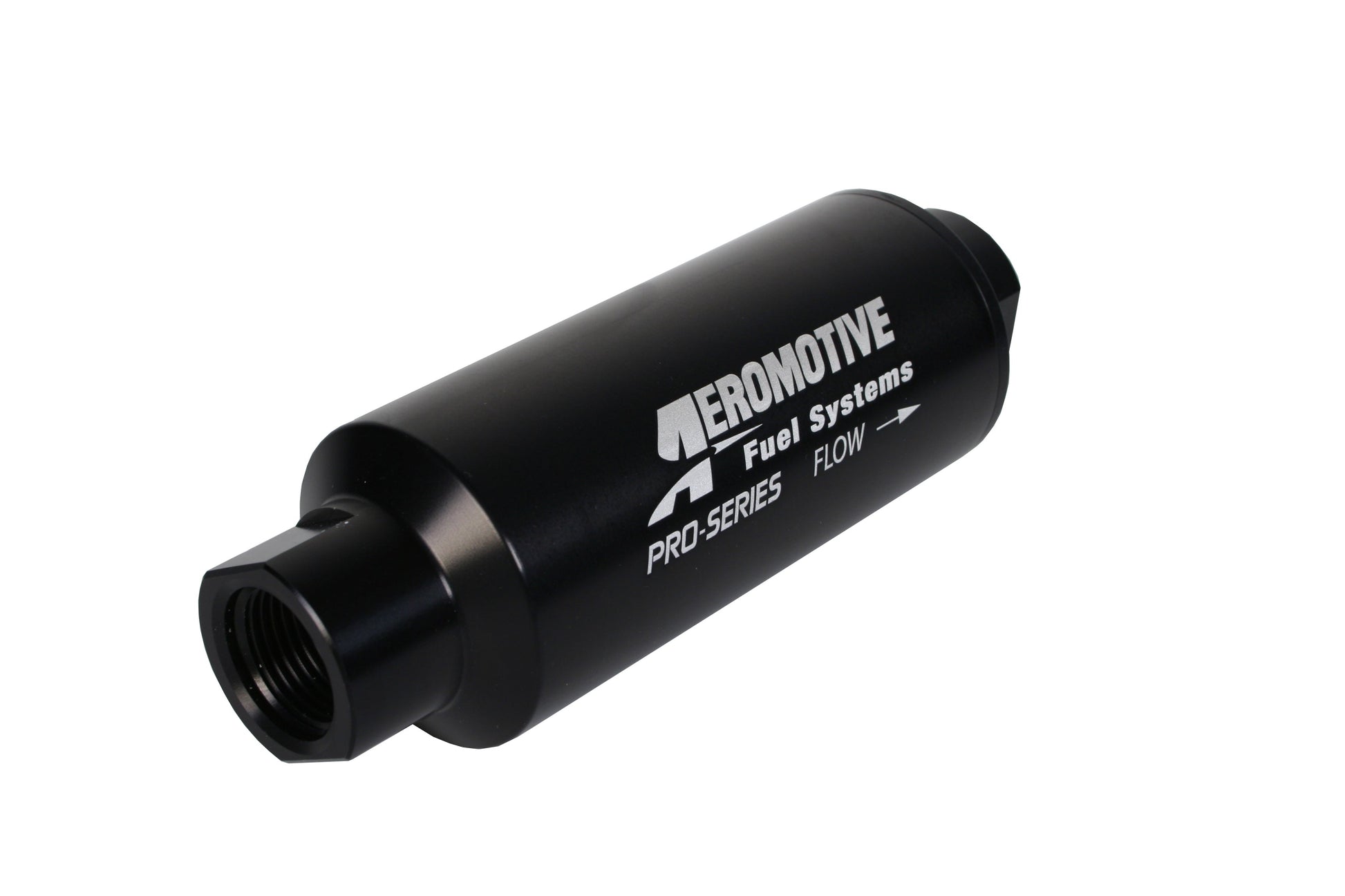

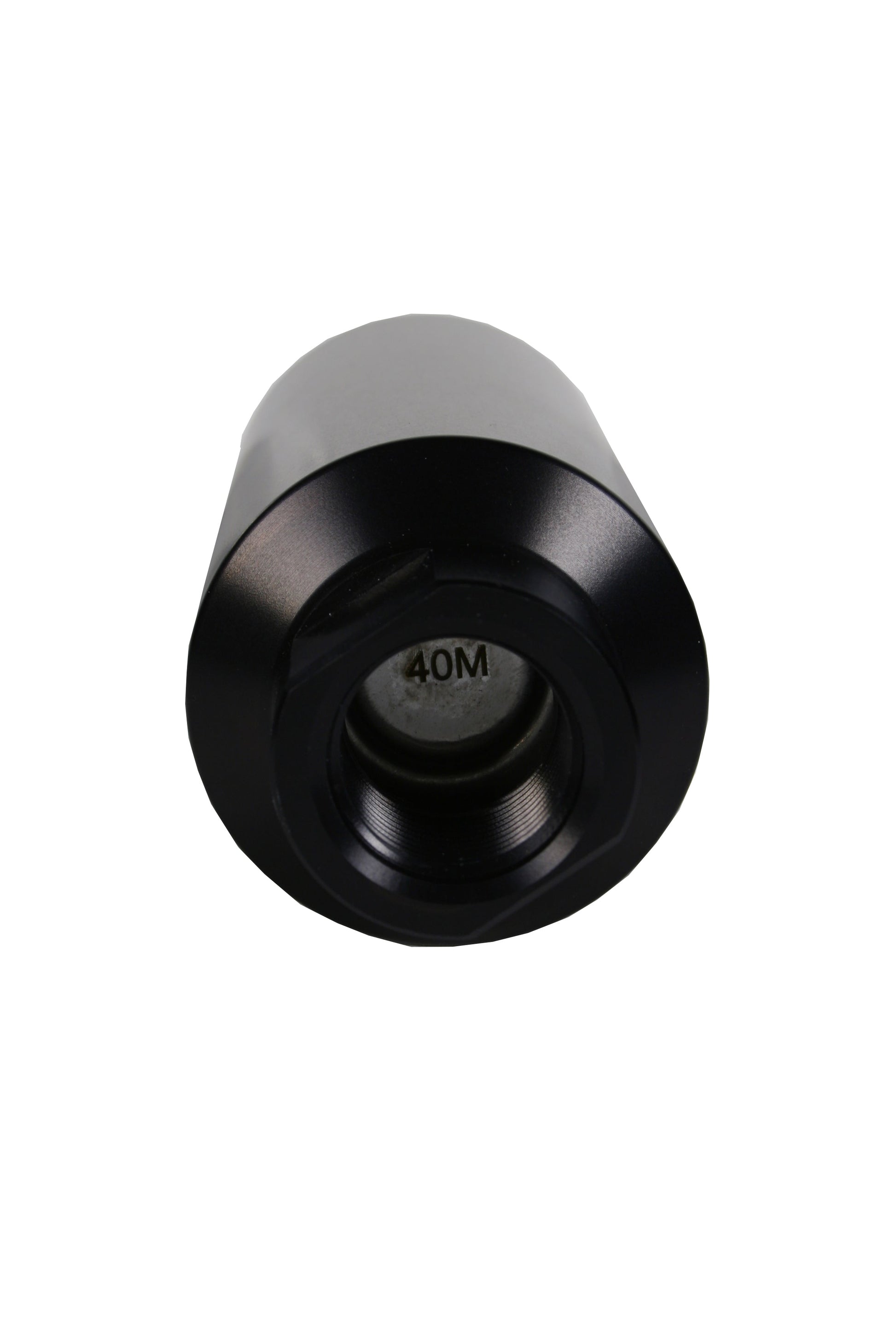

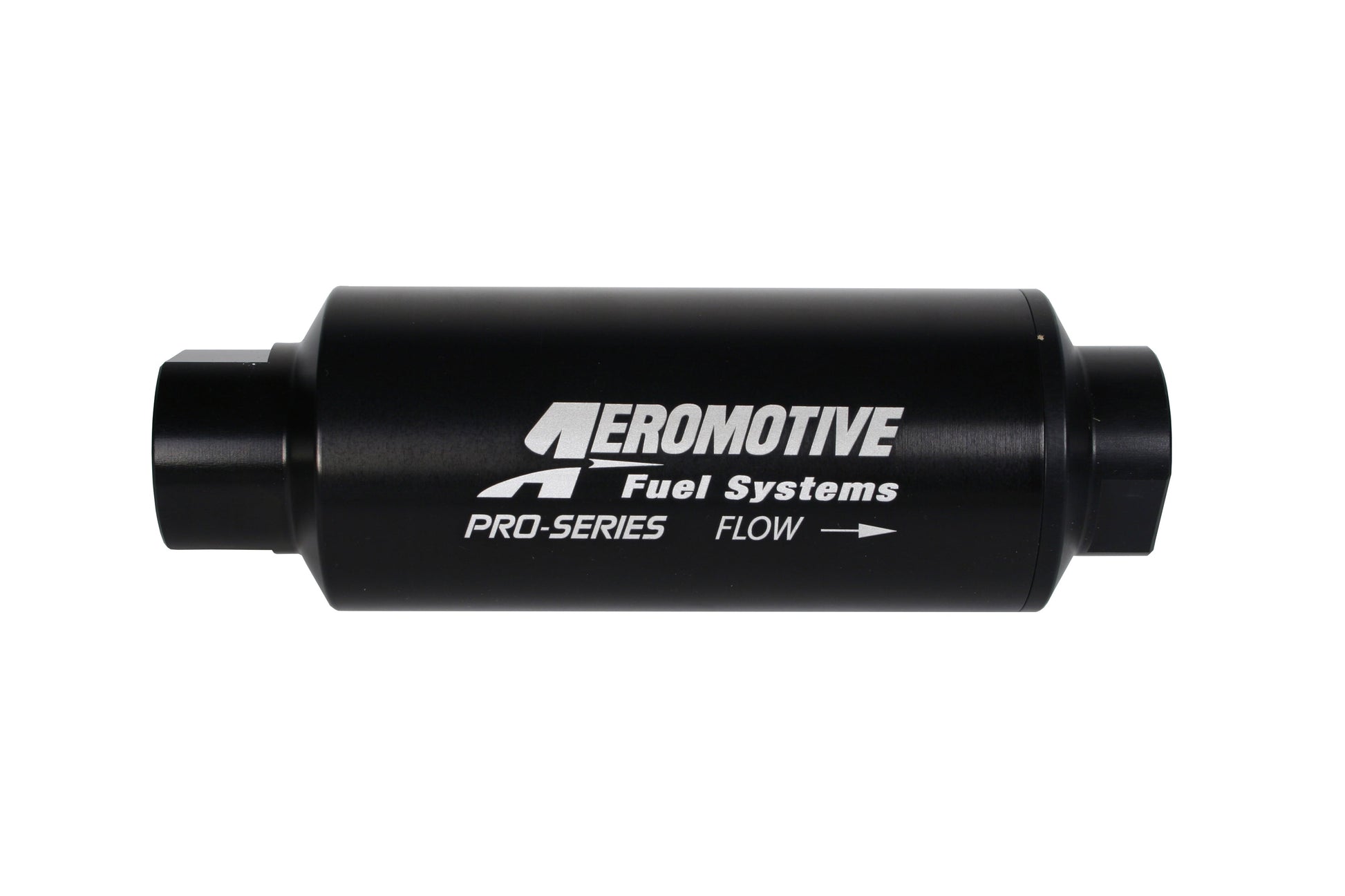

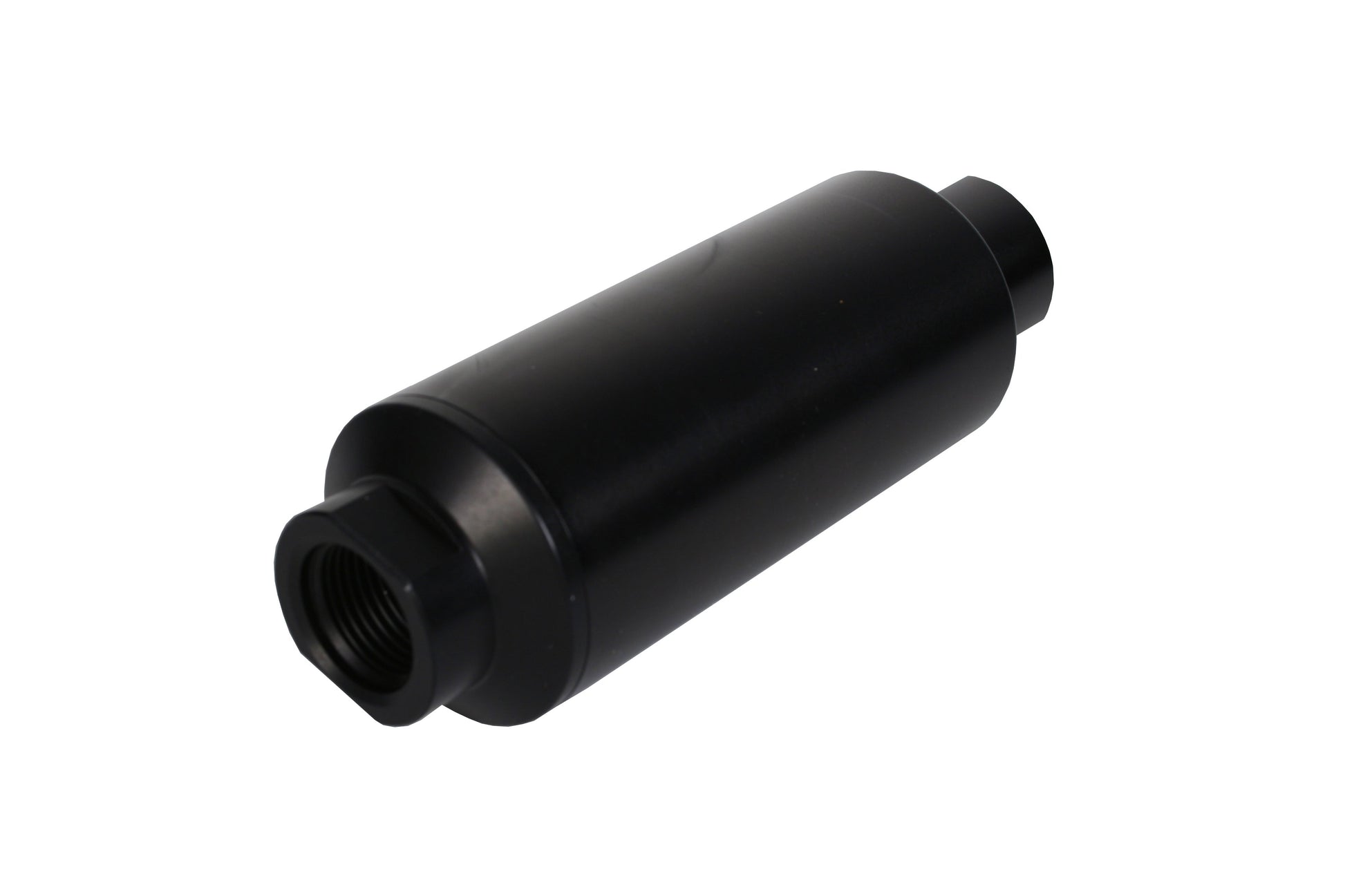

Aeromotive Fuel System 40M Pro Series AN-12 Stainless Filter - 12342
Aeromotive Fuel System 40M Pro Series AN-12 Stainless Filter - 12342
SKU:12342
In stock
Couldn't load pickup availability
The Aeromotive 40M Pro Series AN-12 Stainless Filter is a high-performance fuel filtration component designed to protect fuel systems from contaminants. Featuring a 40-micron microglass element, this filter effectively captures debris and particulates from gas and alcohol fuels, ensuring optimal fuel quality. Constructed with stainless steel and engineered for minimal restriction, it provides reliable flow rates suitable for engines producing over 200 horsepower up to 3,000+ horsepower. The filter's durable machining and finish reflect Aeromotive's commitment to quality, making it a dependable choice for performance applications. Its primary function is to prevent fuel system damage and maintain consistent fuel delivery, which is critical for high-performance and racing engines.
This filter assembly is compatible with a wide range of vehicles requiring AN-12 fittings, making it suitable for various race and street setups. It is designed for easy installation and maintenance, serving as an essential upgrade or replacement in fuel systems demanding high flow and filtration efficiency. The filter is ideal for use in fuel systems that operate with gas or alcohol-based fuels, providing an inexpensive yet effective insurance policy for engine longevity and performance. Suitable for custom builds, race cars, and high-performance street vehicles, this filter ensures clean fuel delivery under demanding conditions.
Share
Overview
Overview
Specifications:
| California Proposition 65 | WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Clamps Included | No |
| Color | Silver |
| 1924 | Female |
| 1925 | Female |
| Filter Element Included | Yes |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Color | Silver |

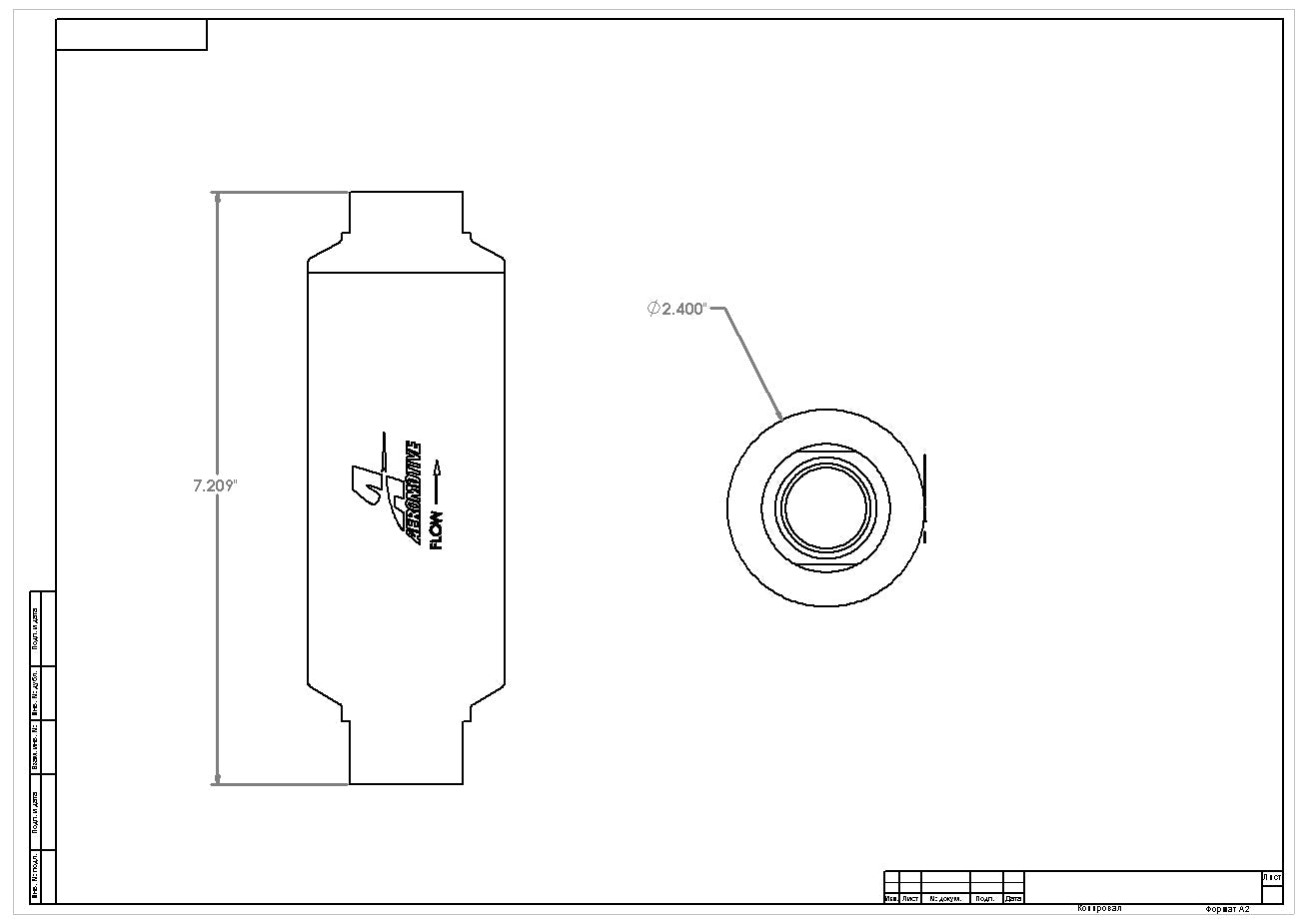

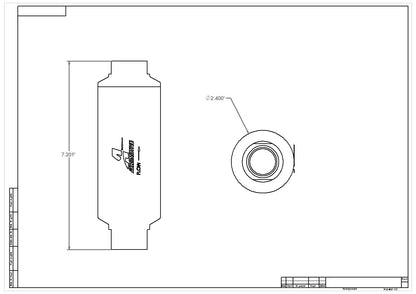

| Filter Housing Diameter | 2.5 |
| Filter Housing Finish | Anodized |
| Filter Housing Length | 7 |
| Filter Housing Material | Billet Aluminum |
| 592 | AN-12 |
| Fittings Included | No |
| Flow Rate | 2000 |
| Fuel Filter Style | Inline |
| Fuel Type | All Fuels |
| 353 | Yes |
| 357 | Aluminum |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-12 |
| Inlet Quantity | 1 |
| Inlet Size | AN-12 |
| 14 | 7 |
| Maximum Fuel Pressure (psi) | 70 |
| 524 | 40 |
| Mounting Bracket Included | No |
| 90 | External |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-12 |
| Outlet Quantity | 1 |
| Outlet Size | AN-12 |
| Outside Diameter | 2.5 |
| Outside Diameter (In) | 2.5 |
| Overall Length | 7 |
| Overall Length (In) | 7 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov |
| Prop 65 - Short Label | P65_Warning_Chromium.jpg |
| Prop 65 Flag | Yes |
| Quantity | Sold individually. |
| 33 | Straight |
| Smallest Particle Filtered | 40 microns |
| Title | Aeromotive 40M Pro Series AN-12 Stainless Filter |
| 3145 | Universal |
| Description_SHO | Fuel Filter |
| Description_INV | Aeromotive Filter |
| Description_ASC | In-Line filter; Filter, In-line, Pro-series, AN-12, 40 Micron Stainless steel element, Nickel Chrome Finish |
| Description_DES | 40M Pro Series AN-12 Stainless Filter |
| Description_EXT | Filter, In-Line, 40-m Stainless Mesh Element, ORB-12 Port, Black Hardcoat Pro-Series, 2-1/2" OD. |
| Description_MKT | AN-12 40-micron microglass element. Designed for use with gas and alcohol fuels. An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, and the impeccable machining and finish you've come to expect from all Aeromotive components. |
