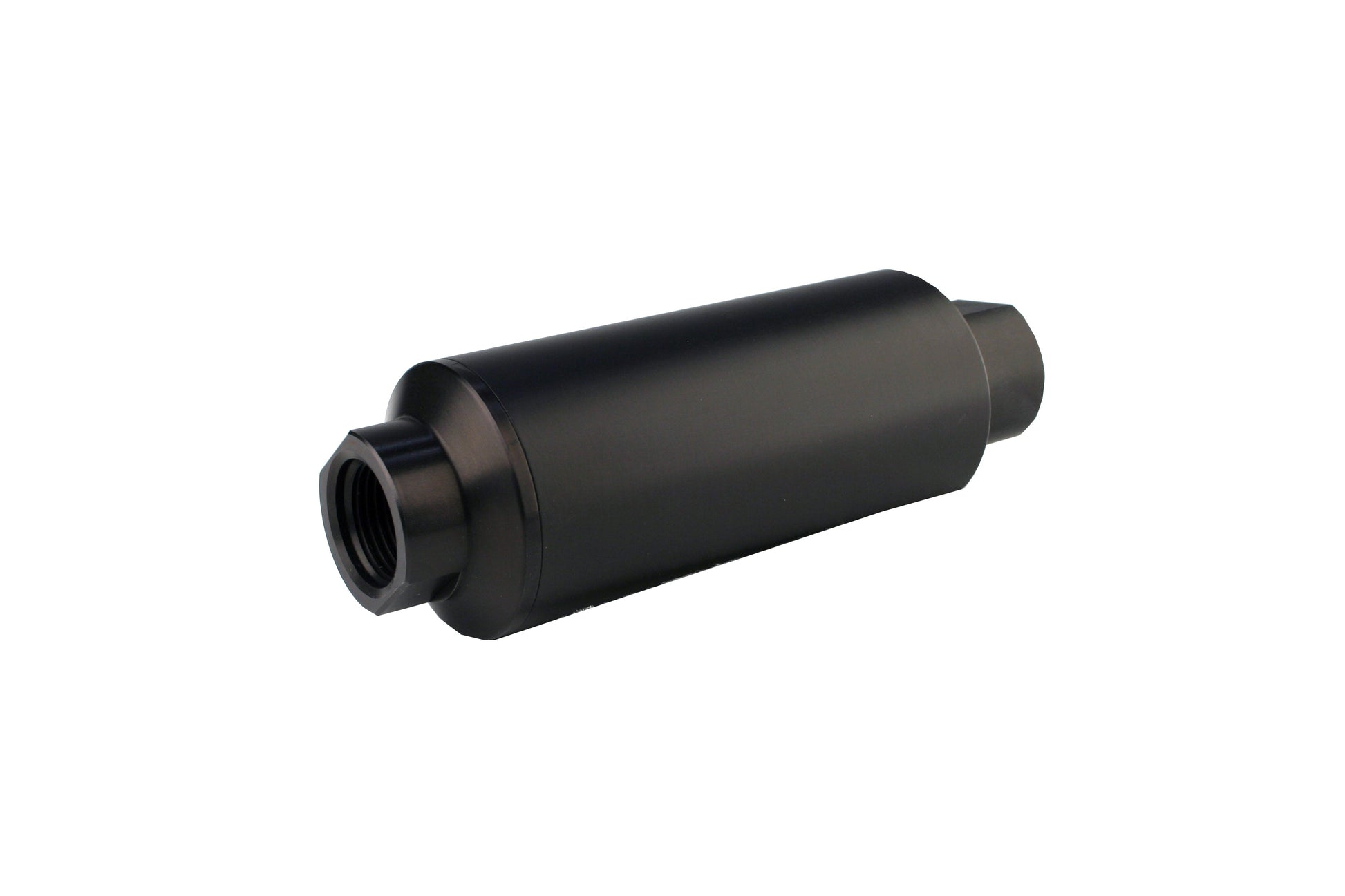

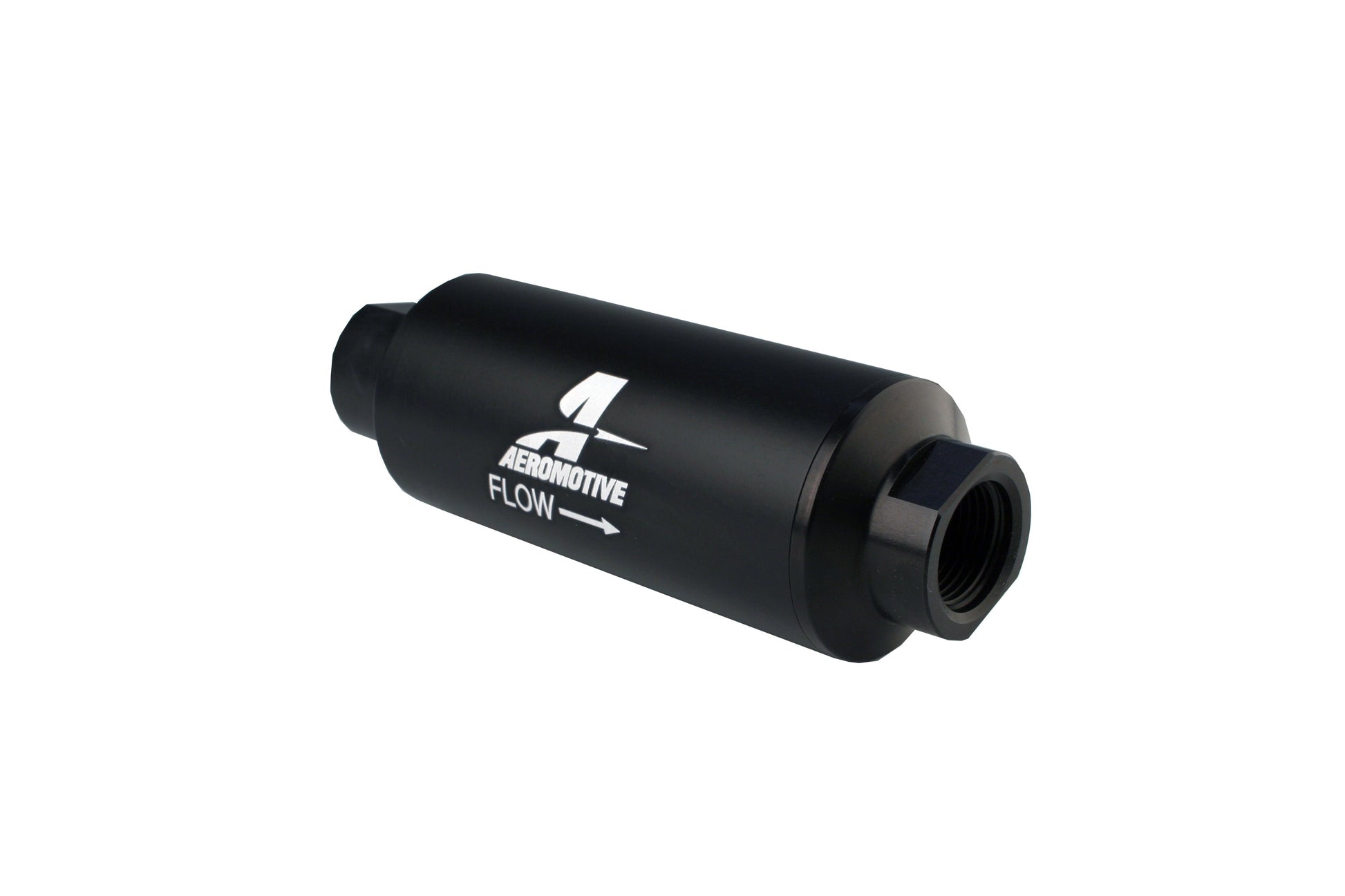

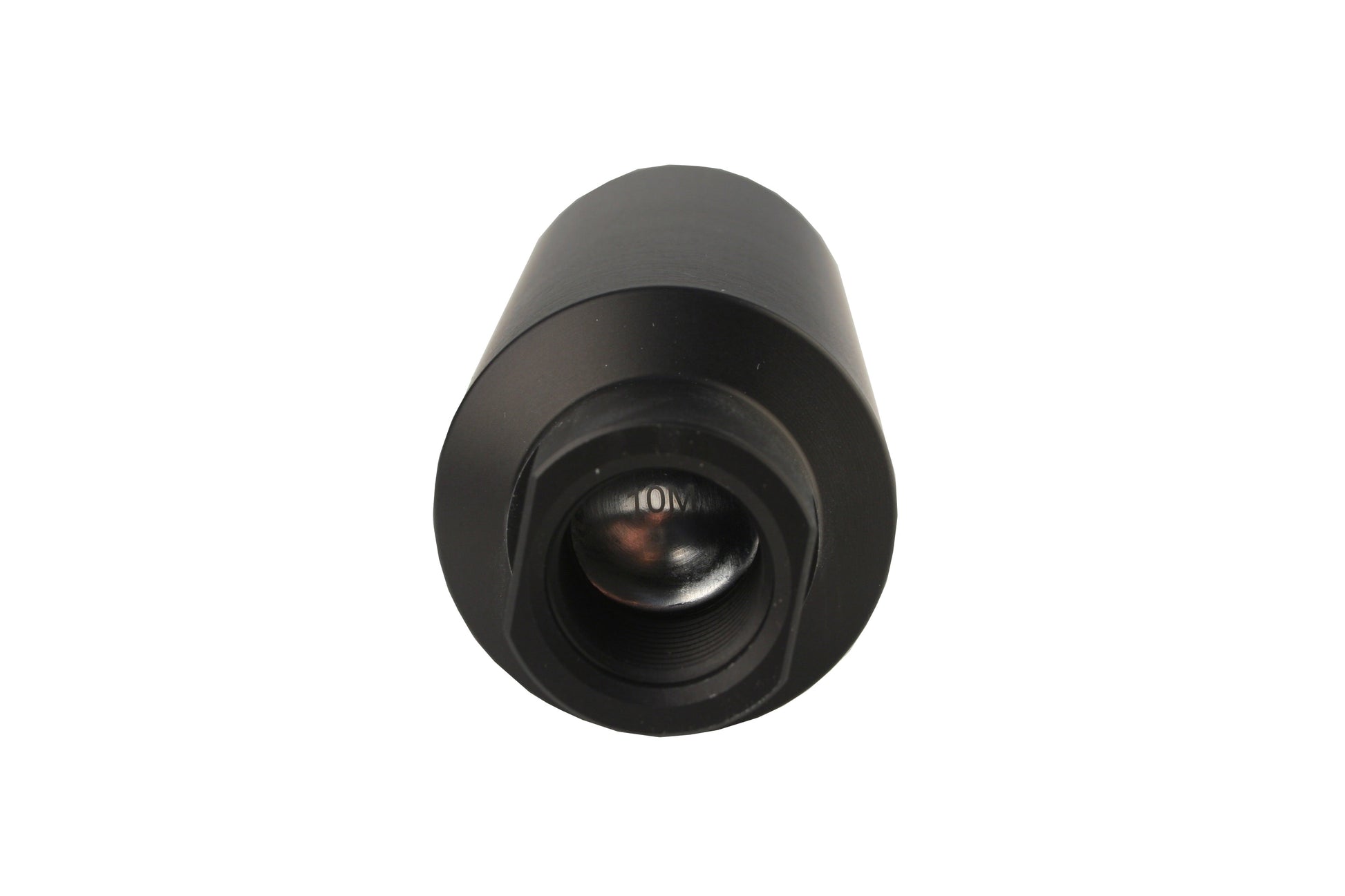

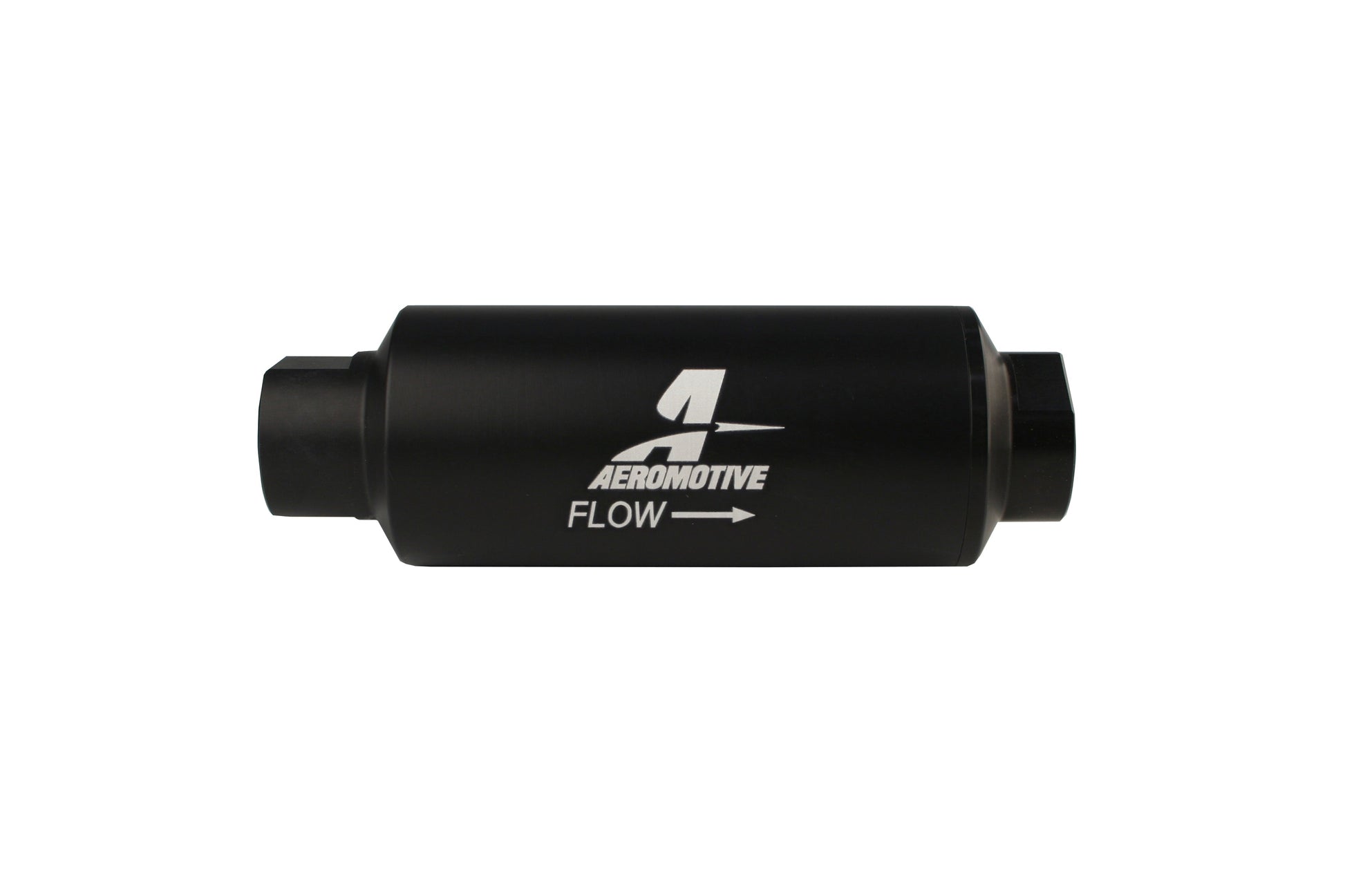

Aeromotive Fuel System Marine Outlet, ORB-12 Fuel Filter - 12311

High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. Pro-Series filters feature an indestructible electroless nickel finish. 7 long x 2.5 diameter.

Specifications:

California Proposition 65	WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Clamps Included	No
Color	Black
1924	Female
1925	Female
Filter Element Included	Yes
Filter Element Material	Cellulose
Filter Housing Color	Black
Filter Housing Diameter	2.5
Filter Housing Finish	Anodized
Filter Housing Length	7
Filter Housing Material	Billet Aluminum
592	AN-12
Fittings Included	No
Flow Rate	2000
Fuel Filter Style	Inline
Fuel Type	Gas / Diesel
353	Yes
357	Aluminum
Inlet Attachment	Female Thread
Inlet Outside Diameter	AN-12
Inlet Quantity	1
Inlet Size	AN-12
14	7
Maximum Fuel Pressure (psi)	70
524	10
Mounting Bracket Included	No
90	External
Outlet Attachment	Female Thread
Outlet Outside Diameter	AN-12
Outlet Quantity	1
Outlet Size	AN-12
Outside Diameter	2.5
Outside Diameter (In)	2.5
Overall Length	7
Overall Length (In)	7
Prop 65 (C, R or CR)	CR
Prop 65 - Long Label	WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Prop 65 - Short Label	P65_Warning_Chromium.jpg
Prop 65 Flag	Yes
Quantity	Sold individually.
33	Straight
Smallest Particle Filtered	10 microns
Title	Aeromotive Marine Outlet, ORB-12 Fuel Filter
3145	Universal
Description_SHO	Fuel Filter
Description_INV	Aeromotive Filter
Description_ASC	Pro Series fuel filter; marine line filter; indestructible electoless nickel finish
Description_DES	Marine Outlet, ORB-12 Fuel Filter
Description_EXT	Filter, In-Line, 10-m Fabric Element, ORB-12 Port, Black Hard-Coat, Marine, 2-1/2" OD.
Description_MKT	High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. Pro-Series filters feature an indestructible electroless nickel finish. 7 long x 2.5 diameter.
