Aeromotive Fuel System ORB-10 Shutoff Valve Fuel Filter - 12331

Aeromotive Fuel System ORB-10 Shutoff Valve Fuel Filter - 12331

12331

In stock

$344.95 USD
$390.95 USD $344.95 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Aeromotive ORB-10 Shutoff Valve Fuel Filter is a high-performance fuel system component designed to simplify filter maintenance and improve fuel management. Constructed with 100 micron stainless steel elements, this filter provides coarse filtration and is cleanable for long-term durability. Its shutoff valve feature allows for easy replacement of filter elements with minimal fuel loss, eliminating the need to drain the fuel tank during service. Ideal for racing, high-performance applications, or custom fuel setups, this filter enhances reliability and convenience in fuel system operation.

Designed for use between the fuel cell or sumped tank and the fuel pump inlet, the Aeromotive ORB-10 Fuel Filter features ORB-10 ports compatible with various fuel system configurations. It is recommended for use in setups where quick filter servicing is essential, such as in race cars or modified vehicles. The kit includes the filter element and shutoff valve, providing a straightforward bolt-on upgrade or replacement. Suitable for a range of performance vehicles, this filter ensures clean fuel delivery and simplifies maintenance in demanding driving environments.

Overview

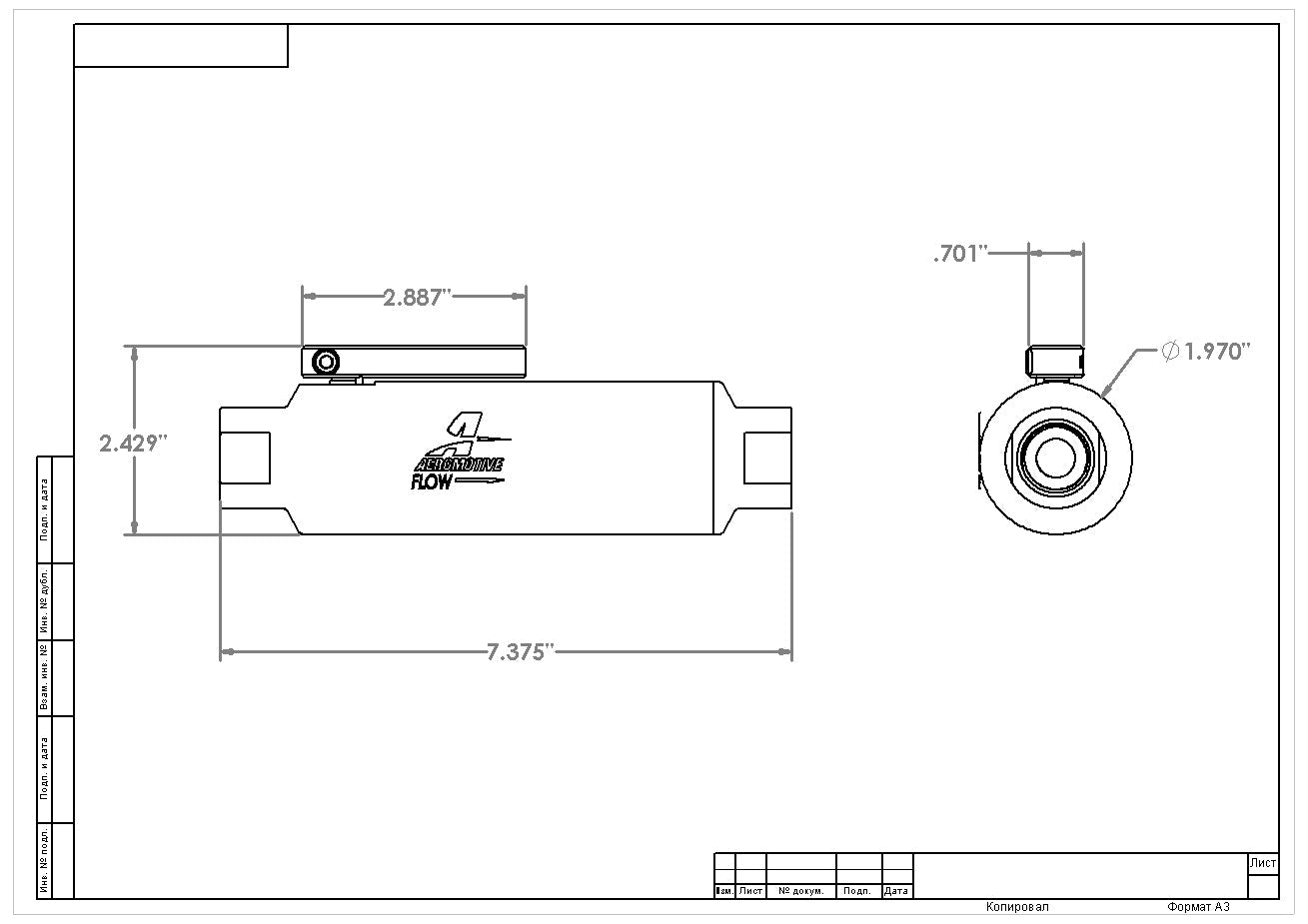

Ever take a fuel bath when changing your filter We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet. ORB-10 ports. 100 micron stainless steel (coarse) cleanable element. Dimensions: 7.38 long x 2 diameter. Proprietary stainless steel shutoff valve design. Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle. Perfect for pre-pump filtration.

Specifications:

Description_SHO Fuel Filter
Description_INV Aeromotive Filter
Description_ASC shutoff valve fuel filter; proprietary stainless steel shutoff valve design; 100-micron stainless steel element; Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle; 7.375" long x 2" diameter
Description_DES ORB-10 Shutoff Valve Fuel Filter
Description_EXT Filter w/ Shutoff Valve, 100-m Stainless Mesh element, In-Line, ORB-10 Port, Bright-Dip Black, 2" OD.
Description_MKT Ever take a fuel bath when changing your filter We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet. ORB-10 ports. 100 micron stainless steel (coarse) cleanable element. Dimensions: 7.38 long x 2 diameter. Proprietary stainless steel shutoff valve design. Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle. Perfect for pre-pump filtration.
