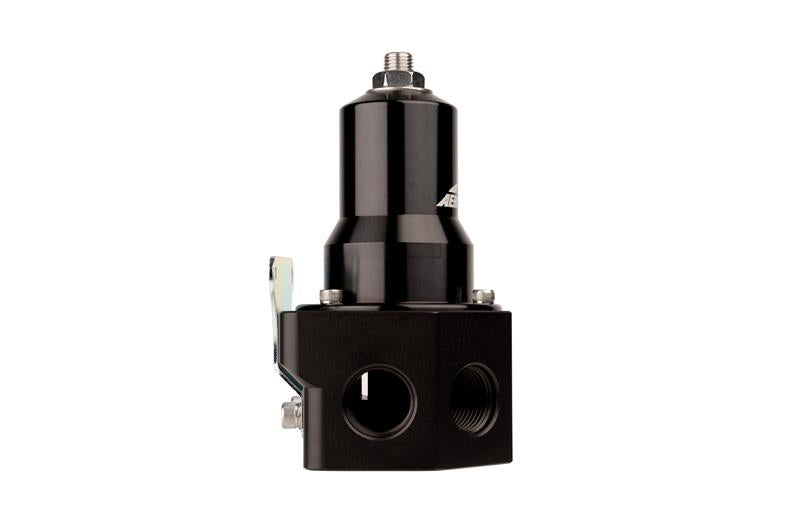

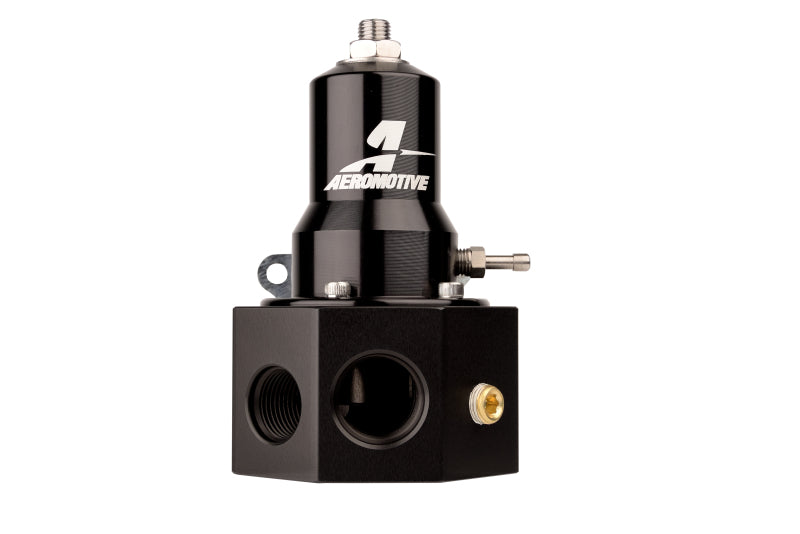

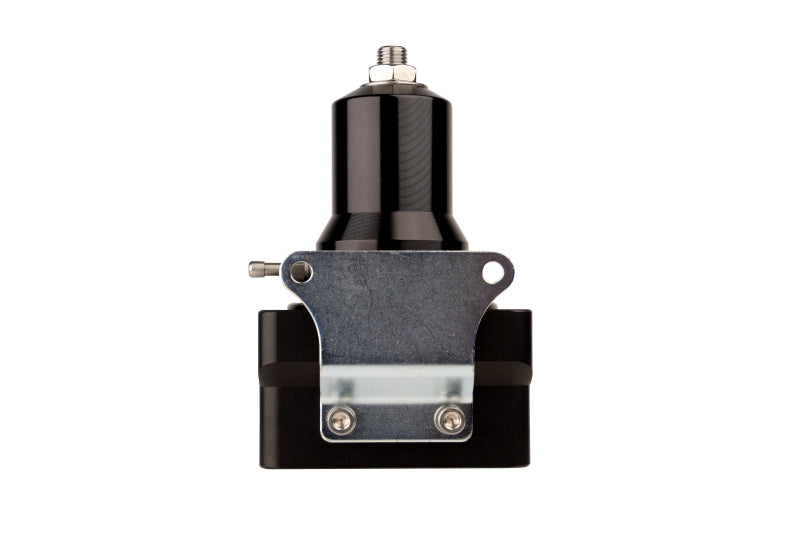

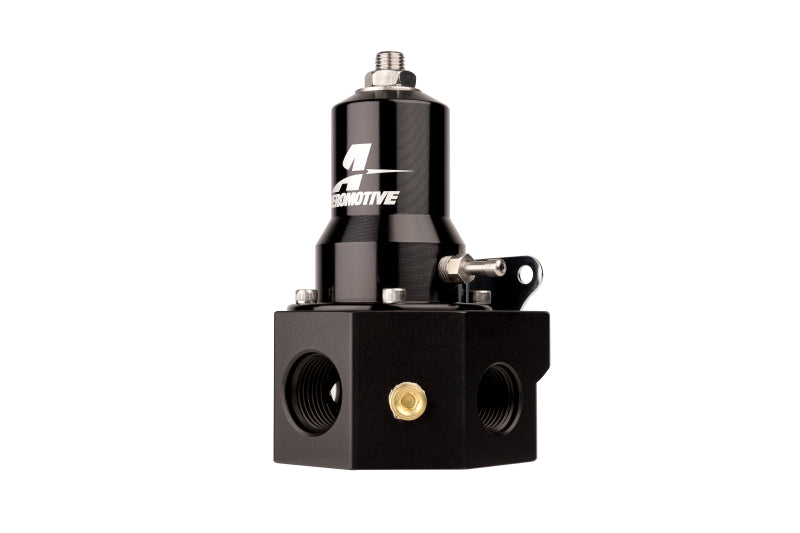

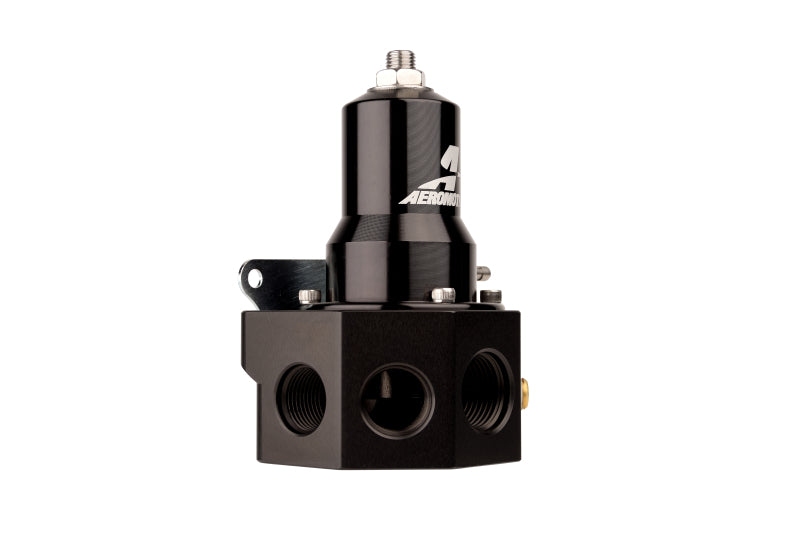

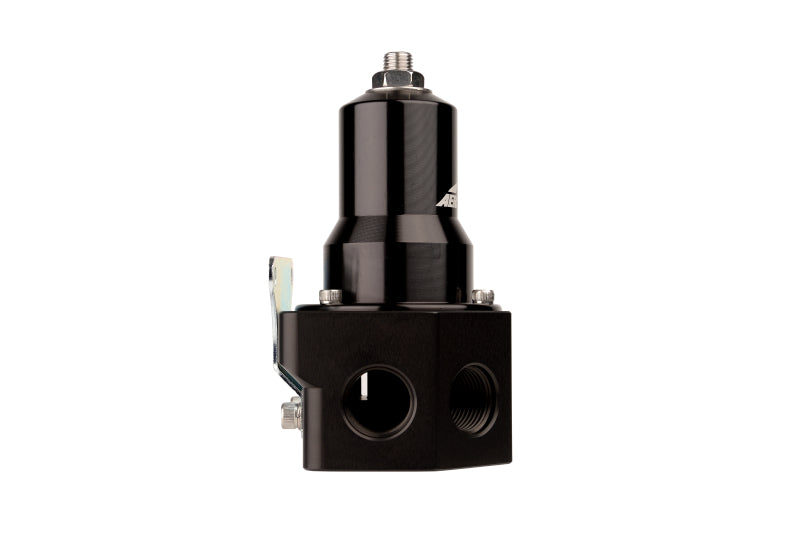

Aeromotive Pro-Series EFI Boost Reference Regulator

Aeromotive Pro-Series EFI Boost Reference Regulator

13110

In stock

$496.33 USD
$496.33 USD $496.33 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Aeromotive Pro-Series EFI Boost Reference Regulator is a high-performance fuel pressure regulator designed for serious EFI applications. Capable of supporting up to 2000 horsepower, it provides precise control of fuel pressure for high horsepower engines. Key features include adjustable base pressure from 30-75 PSI with the standard spring, and 75-125 PSI with the optional spring. It is ideal for use with Aeromotive’s Brushless 3.5 and 5.0 electric pumps, as well as 6-GPM mechanical pumps, offering versatility for high-volume, high-pressure fuel delivery. Constructed with a virtually indestructible electroless nickel-plated body and a black anodized cap, it ensures durability under demanding conditions. Auxiliary ports facilitate nitrous, pressure gauges, and transducer connections, while vacuum/boost reference is provided on a 1:1 ratio. The regulator includes boost line adapters, flare fittings, and port plugs to support various installation setups.

Designed for high-performance EFI systems, this regulator is suitable for a wide range of vehicles requiring precise fuel management. It fits applications where high horsepower, high volume, and high pressure fuel delivery are essential, making it perfect for race cars, street performance builds, and custom setups. Installation involves connecting the included boost line adapters, flare fittings, and ports, with compatibility for rubber or braided lines. The regulator’s robust construction and adjustable features make it a reliable upgrade for serious enthusiasts seeking consistent fuel pressure control. It is compatible with engines requiring up to 2000 HP, supporting both standard and high-pressure pump configurations for optimal performance.

Overview

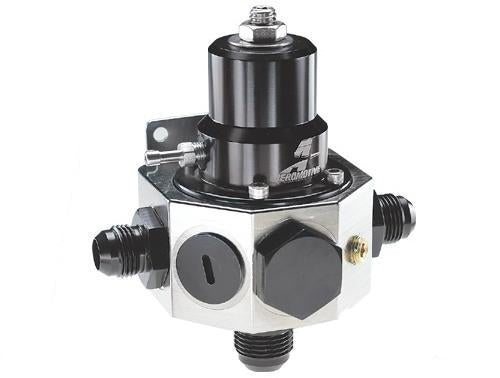

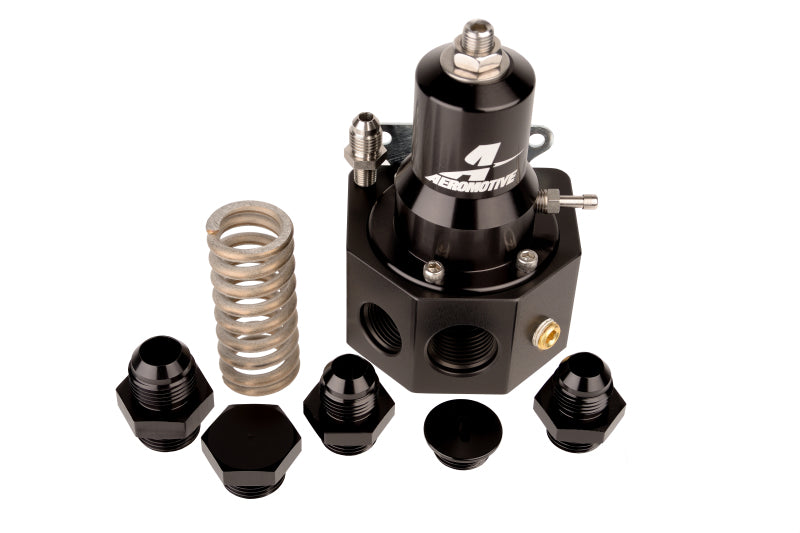

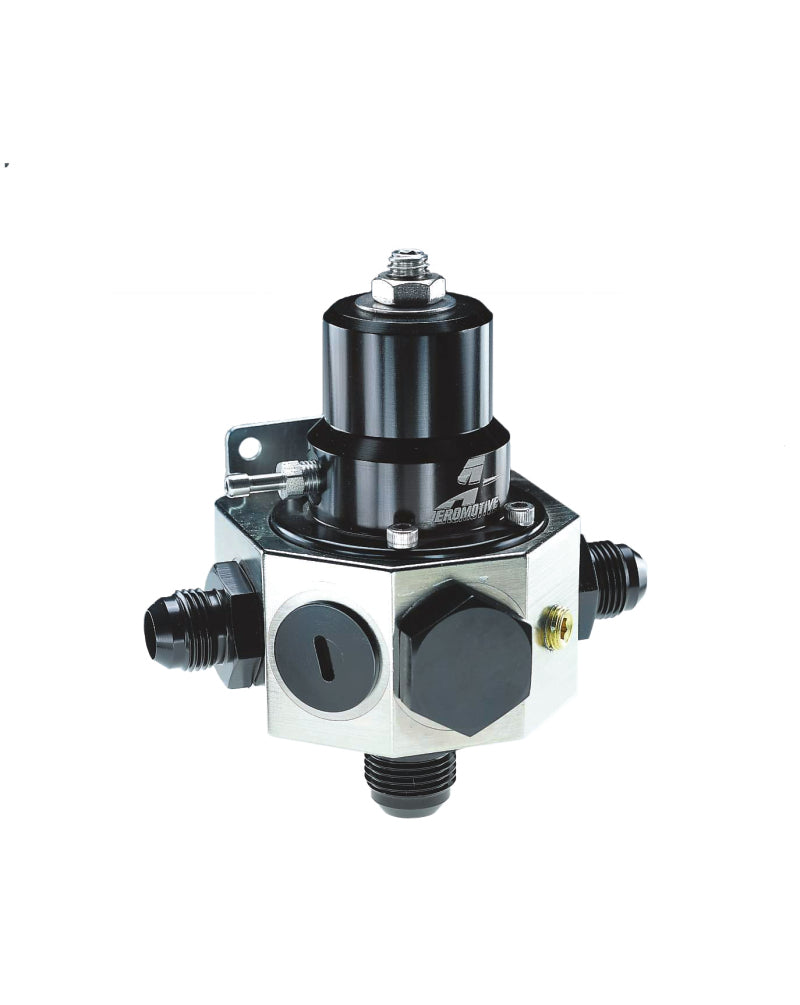

The tuner s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery, the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (Prevents blow-off in high boost application s). Dedicated 1/8 NPT port. Includes Aeromotive's radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. (1) ORB-10 return port with AN-10 flare adapter port plugs included. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.
