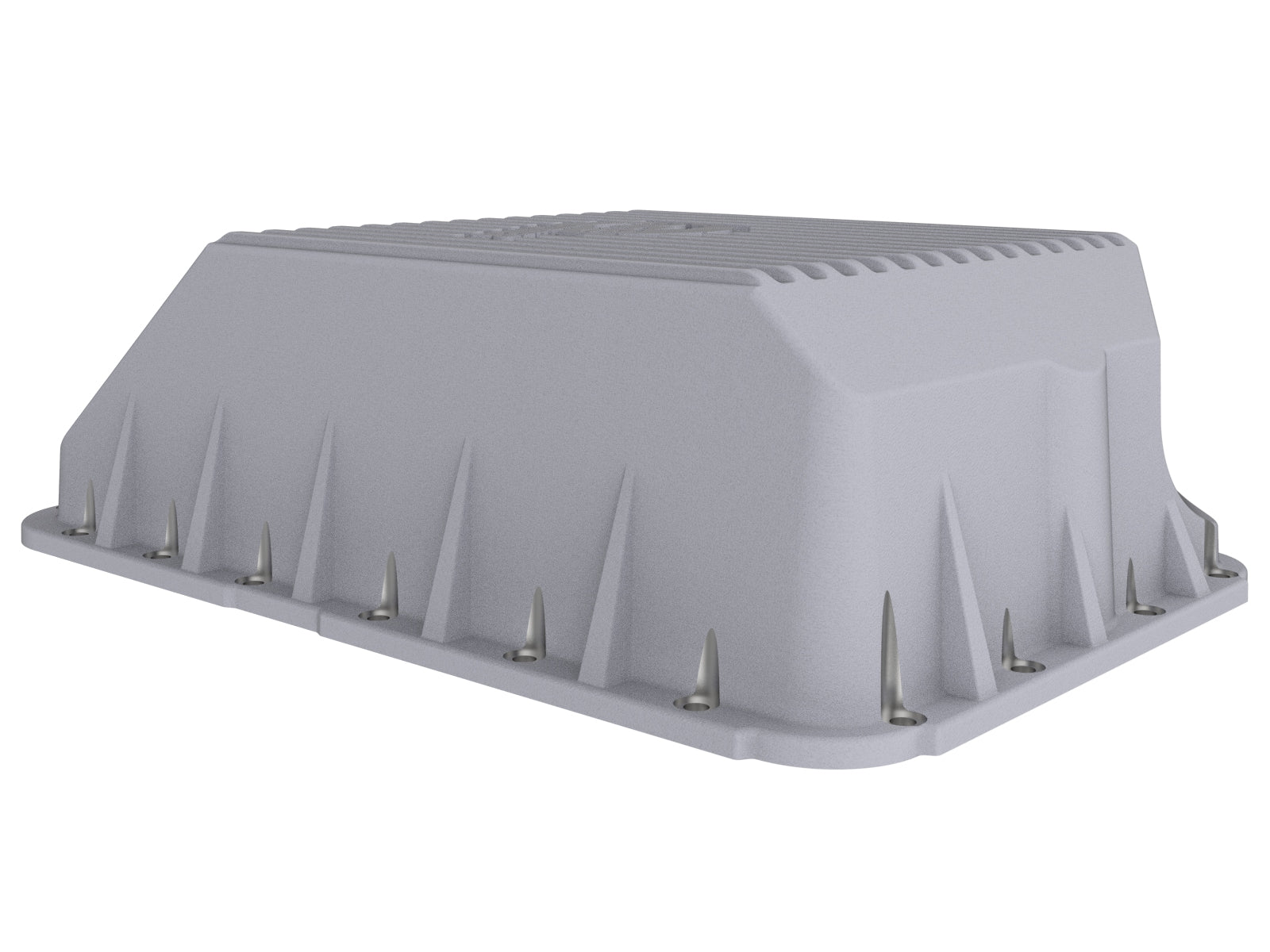

aFe Transmission Pan

Fitment Summary

Designed specifically for Ford diesel trucks from 2003 to 2010 equipped with V8 6.0L or 6.4L engines, this transmission pan enhances your vehicle’s transmission cooling and capacity.

Part #: 46-70120-1

Overview

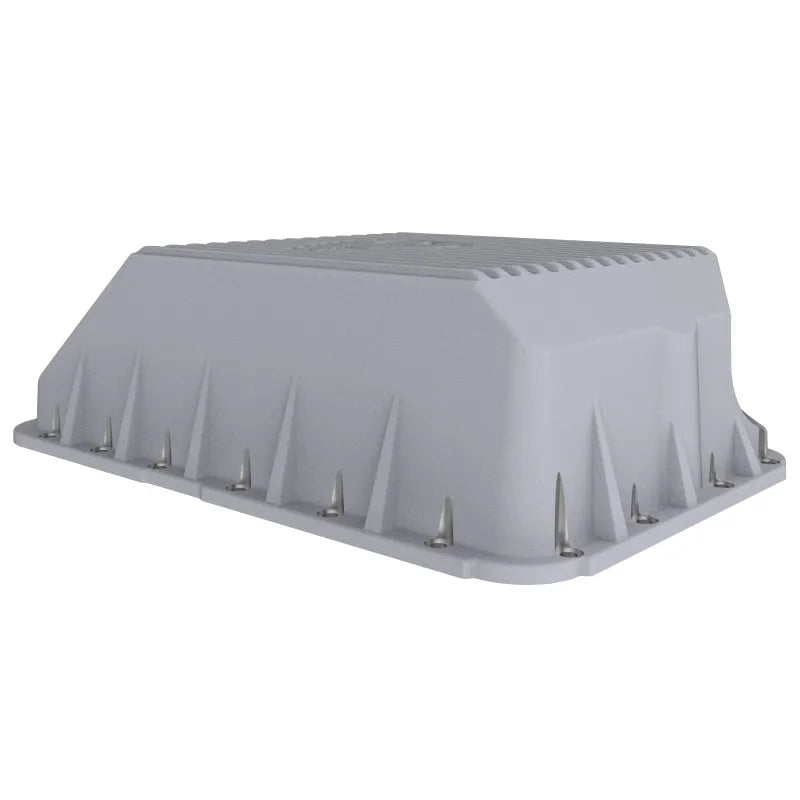

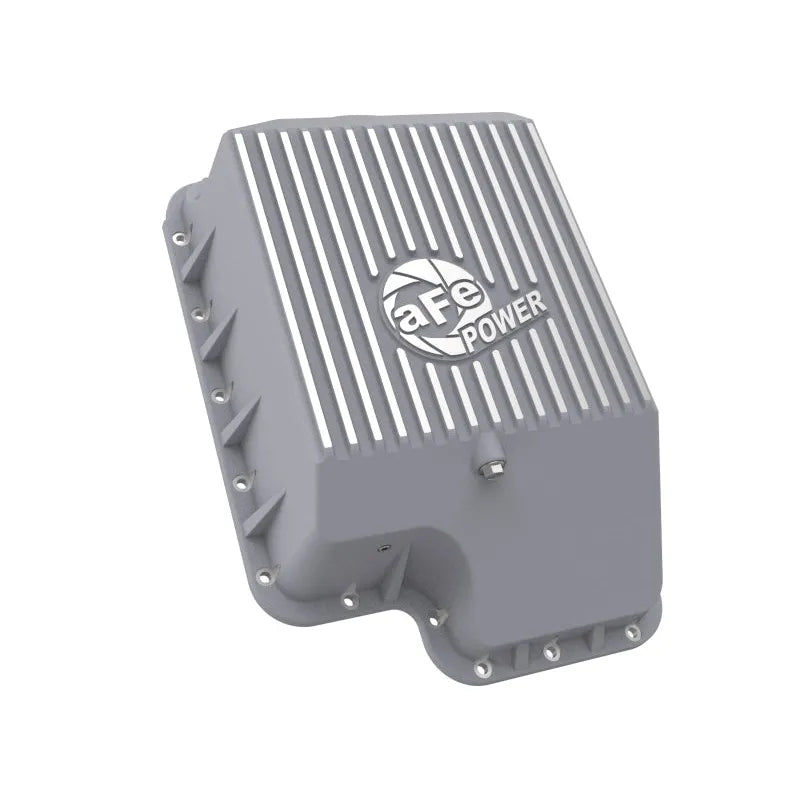

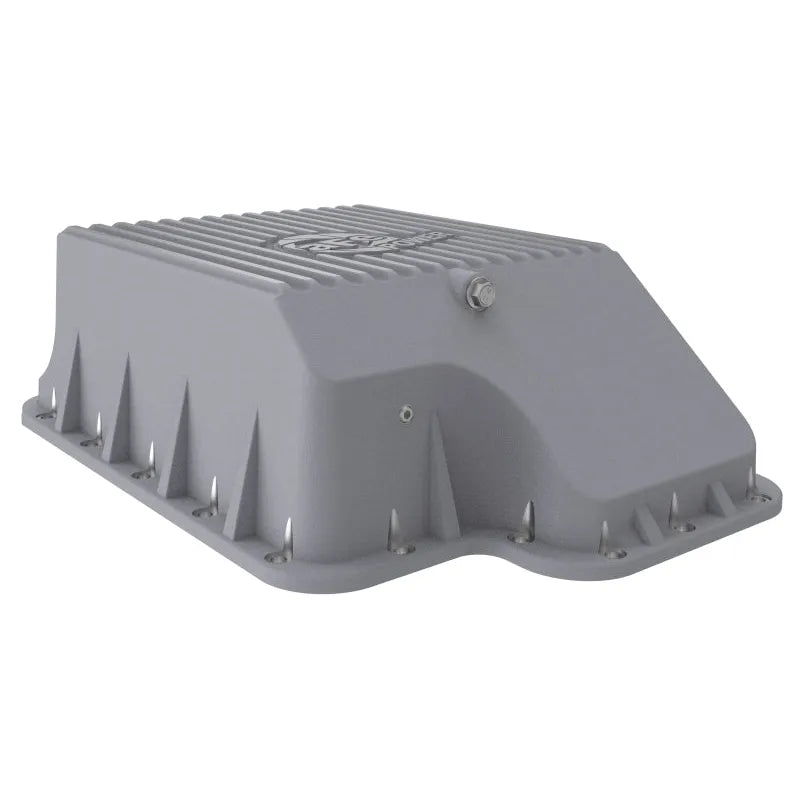

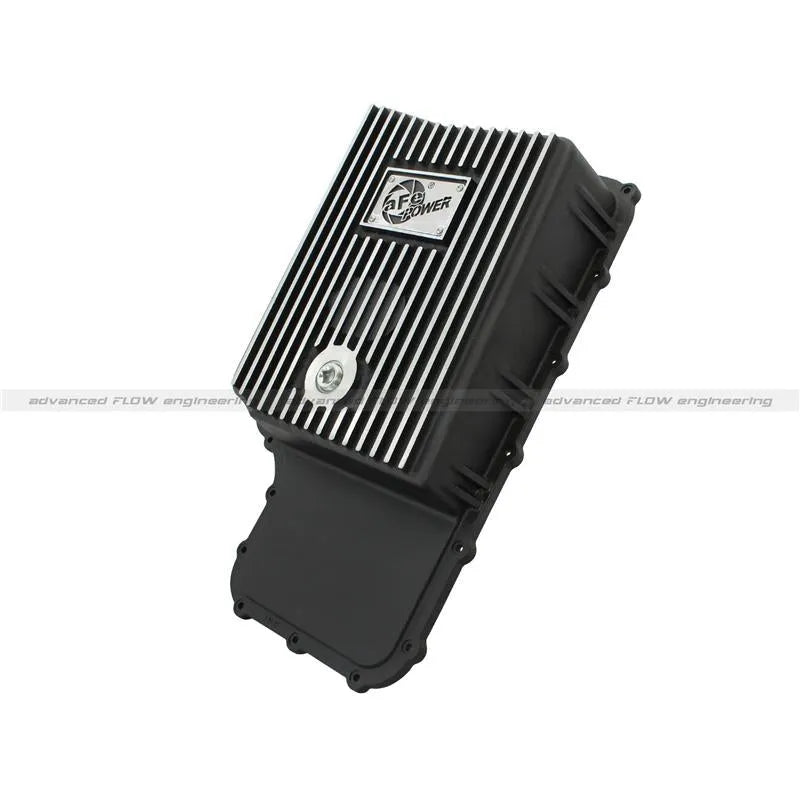

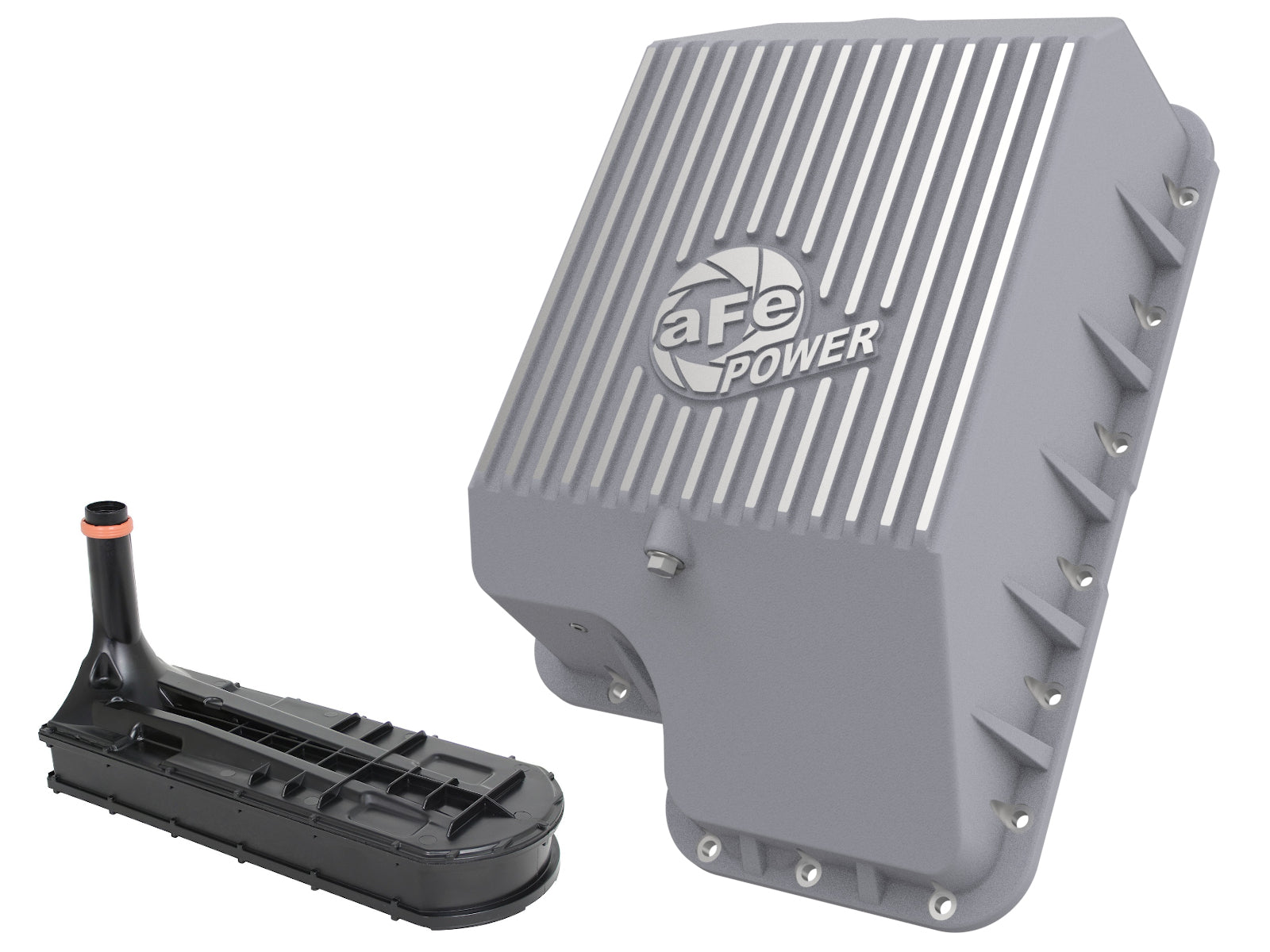

The aFe POWER Street Series deep transmission pan is engineered to improve the performance and longevity of your truck’s transmission. Crafted from durable die-cast A380 aluminum, this pan features reinforced ribs for added strength and heat resistance. Its increased capacity allows for 7-1/2 quarts more fluid than the stock pan, providing better lubrication and cooling under demanding conditions. The inclusion of a magnetic drain plug helps capture metal debris, promoting cleaner transmission fluid and extended component life. Additionally, a 1/8" NPT port is integrated for easy installation of a temperature sensor, enabling real-time monitoring of transmission temperature for optimal performance. This transmission pan is ideal for truck owners seeking to enhance their vehicle’s durability, cooling efficiency, and fluid capacity, especially during towing or heavy-duty use. Its robust construction and thoughtful design support the demanding needs of diesel-powered trucks, ensuring reliable operation and reduced maintenance intervals.

Key Features

This transmission pan combines functional design with practical benefits, making it a valuable upgrade for your Ford diesel truck.

• Constructed from high-quality die-cast A380 aluminum for durability and heat dissipation
• Reinforced ribs provide structural strength and resistance to warping
• Additional capacity adds 7-1/2 quarts of fluid, improving cooling and lubrication

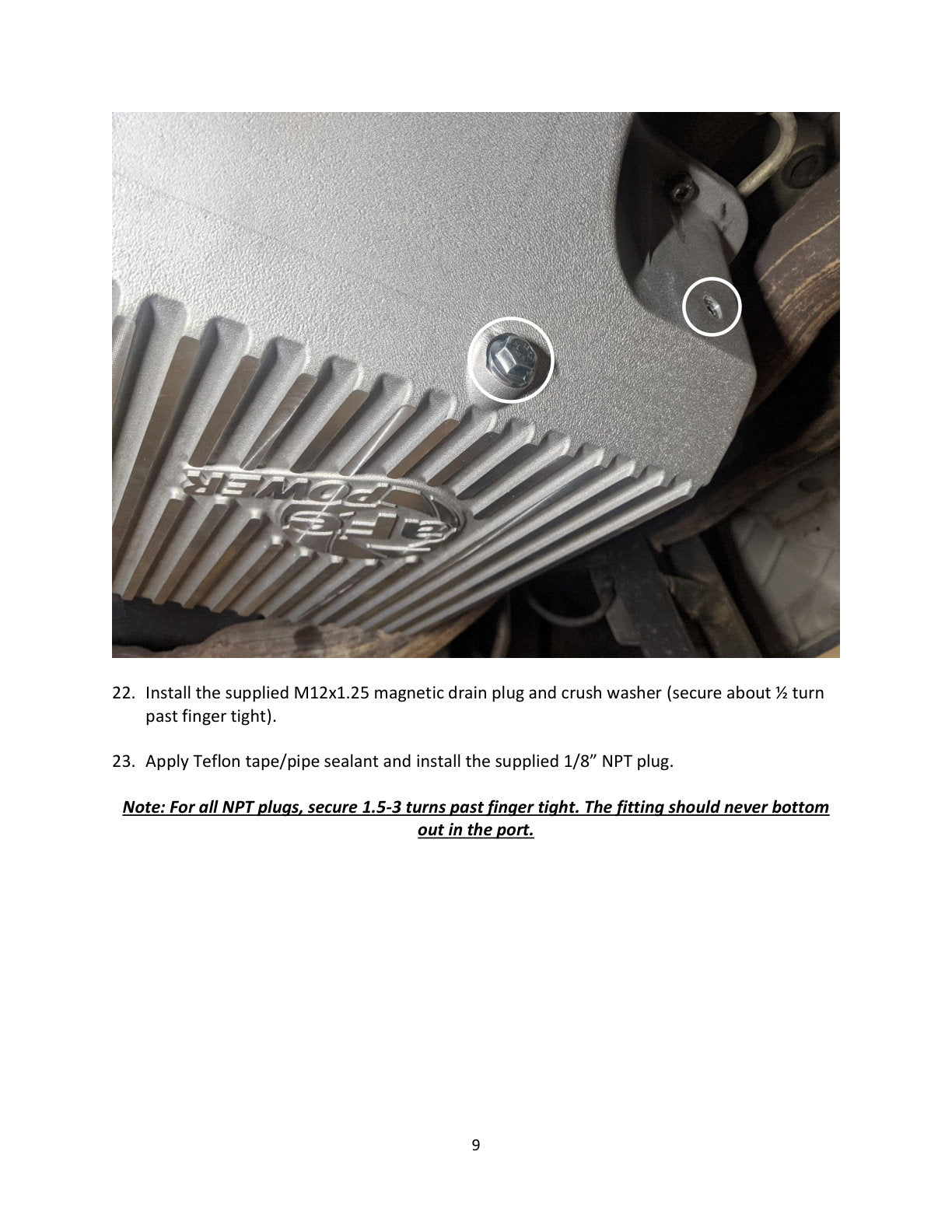

• Magnetic drain plug captures metal debris, helping maintain fluid cleanliness
• Integrated 1/8" NPT port allows for temperature sensor installation

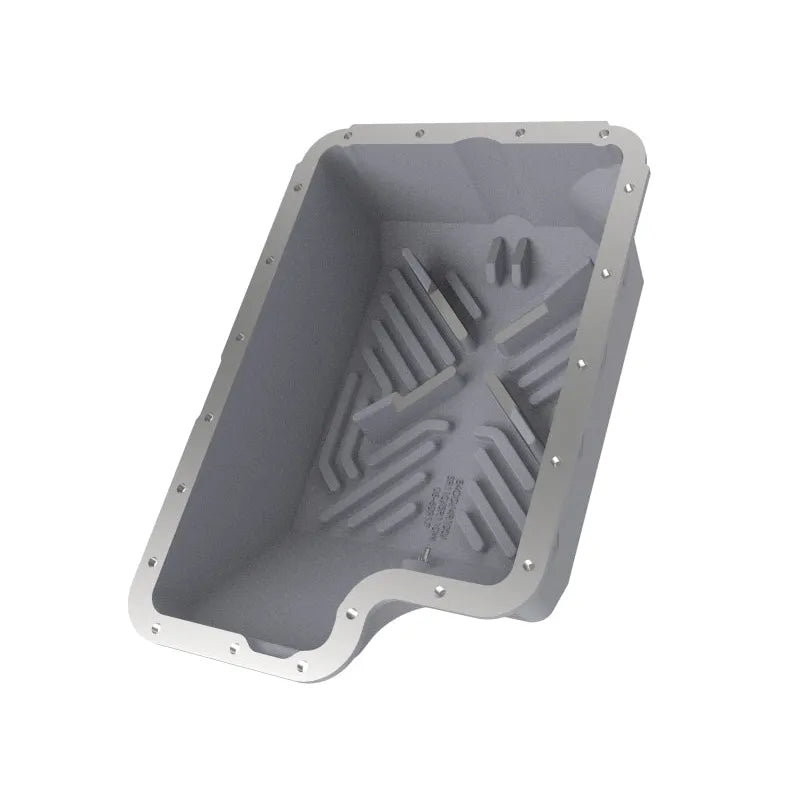

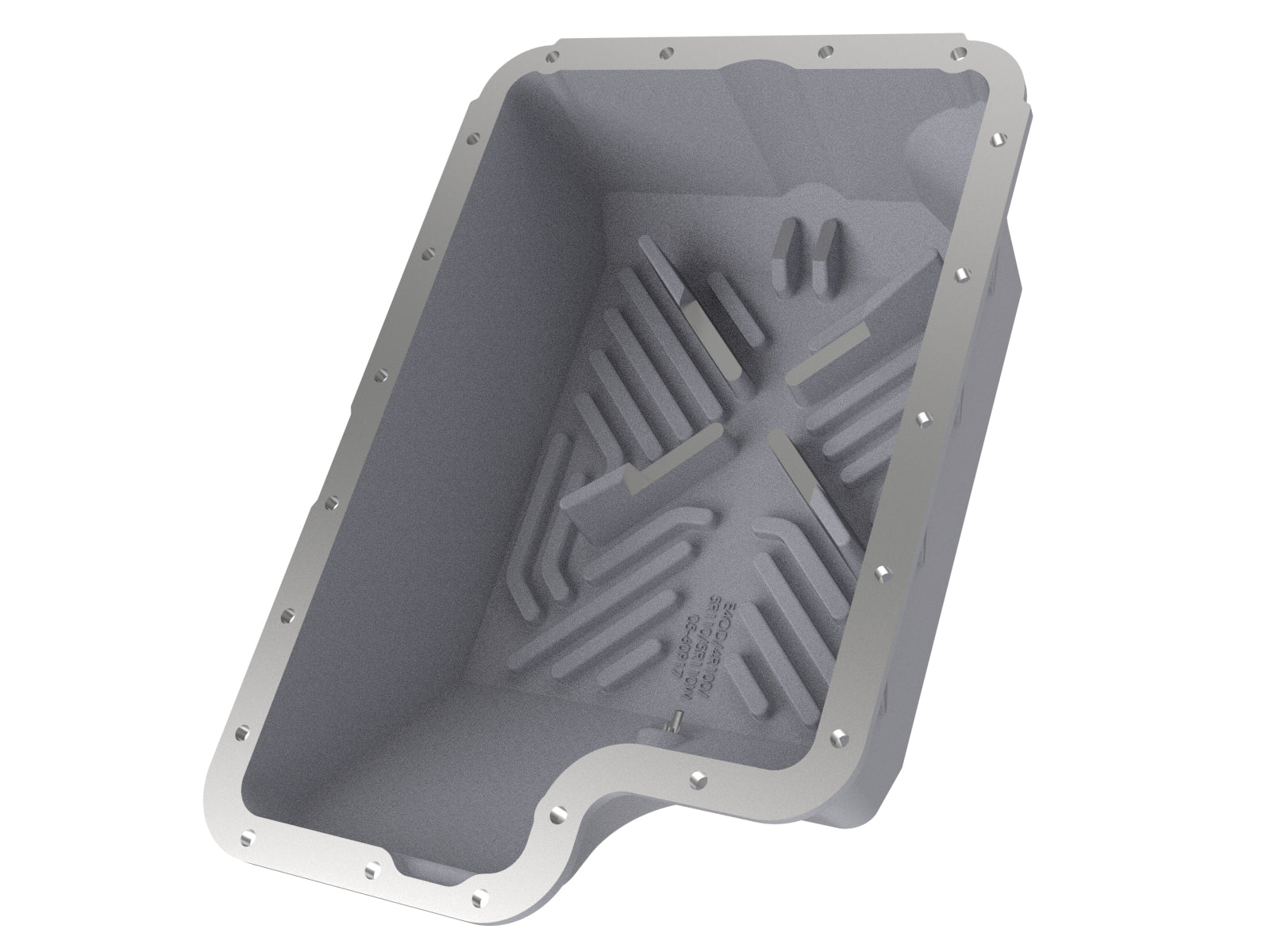

• Built-in internal and external fins transfer heat from transmission fluid to the outside air
• Designed specifically for 2003–2010 Ford diesel trucks with V8 6.0L/6.4L engines

Construction & Design

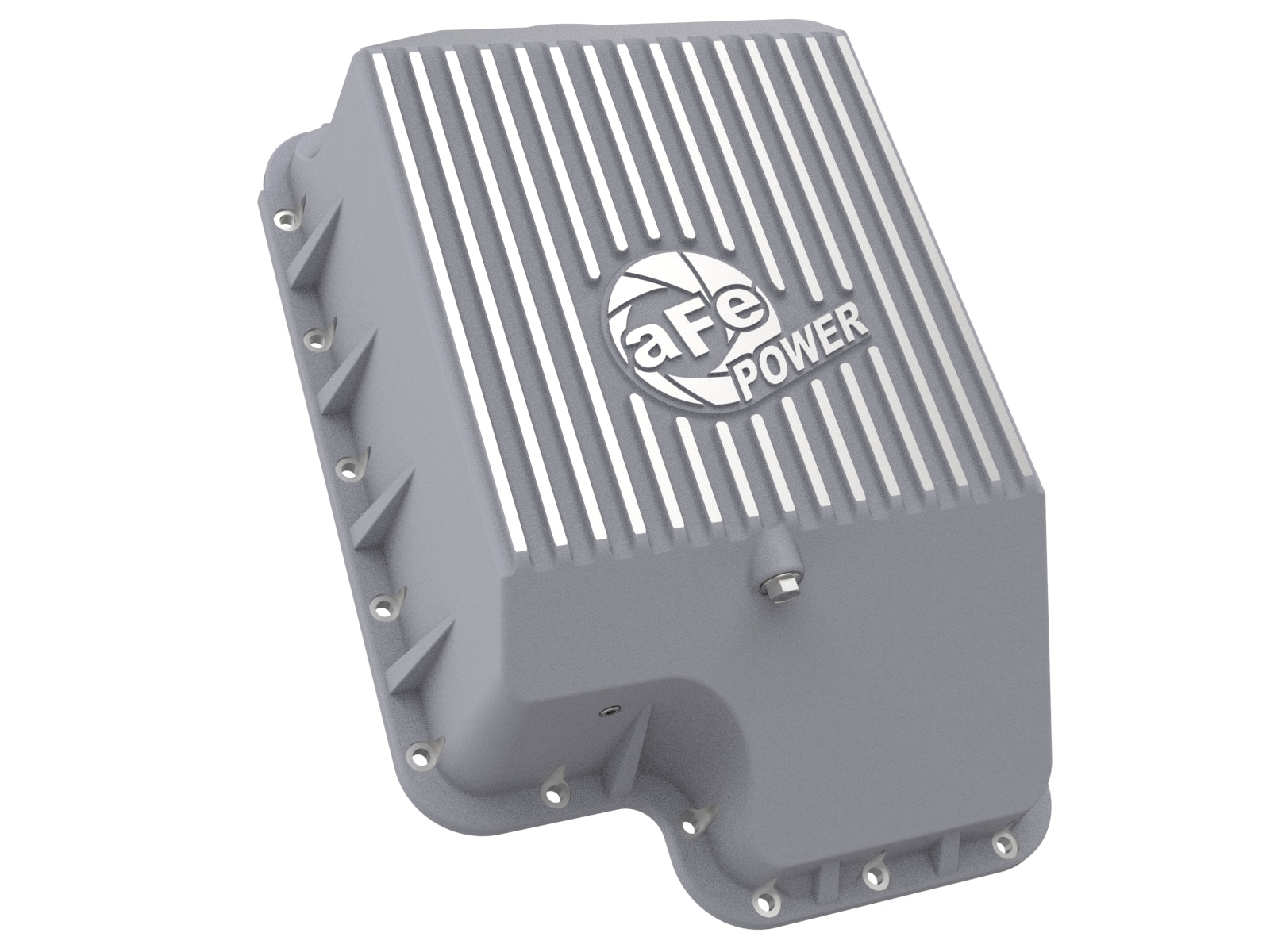

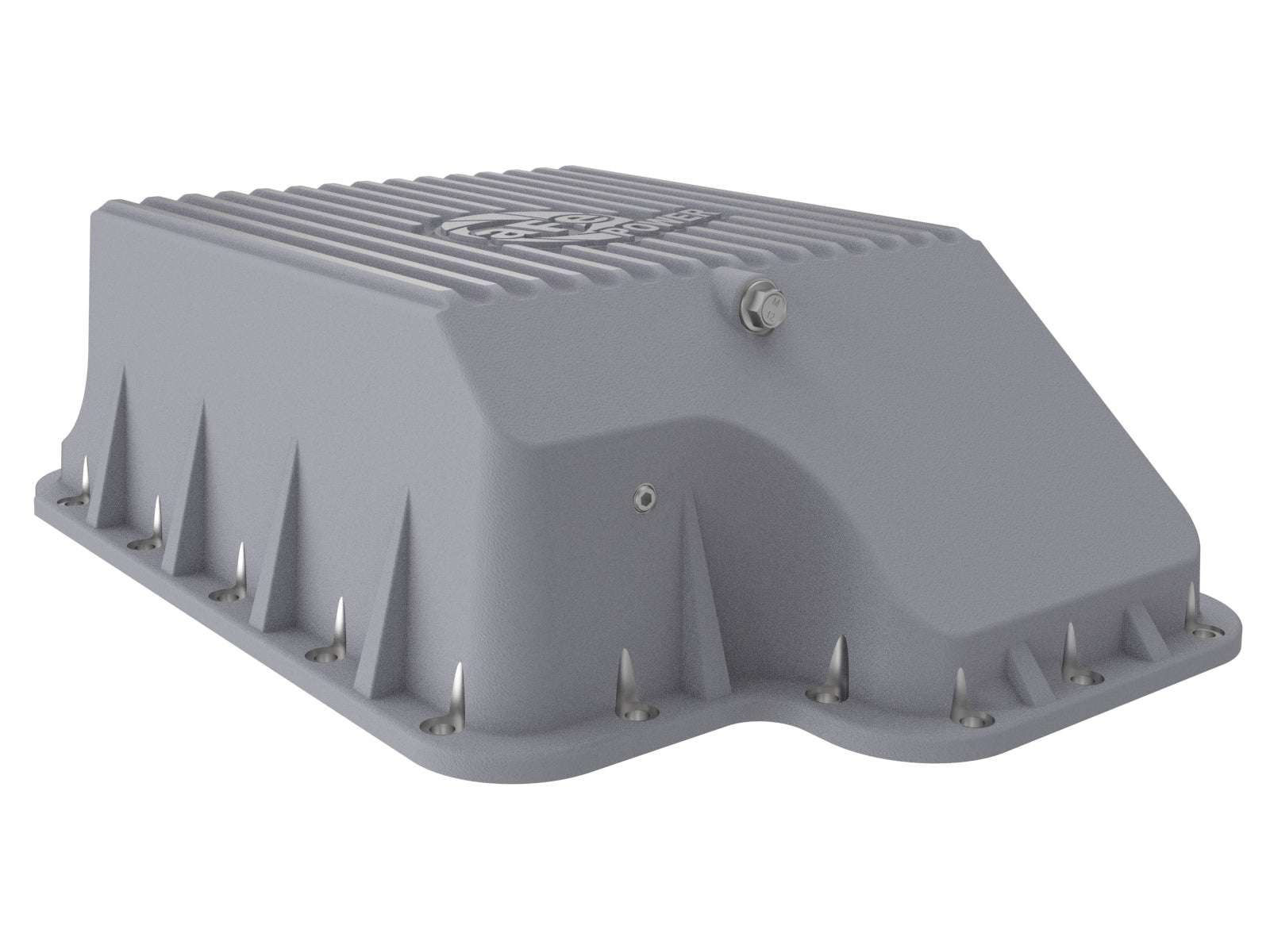

This transmission pan features a die-cast A380 aluminum construction, known for its strength, lightweight properties, and excellent heat transfer capabilities. Reinforced ribs are strategically placed to prevent warping and ensure long-lasting performance, even under high-stress conditions. The internal and external fins are designed to maximize heat dissipation, helping maintain optimal transmission fluid temperatures during extended driving or towing.

Installation & Fitment

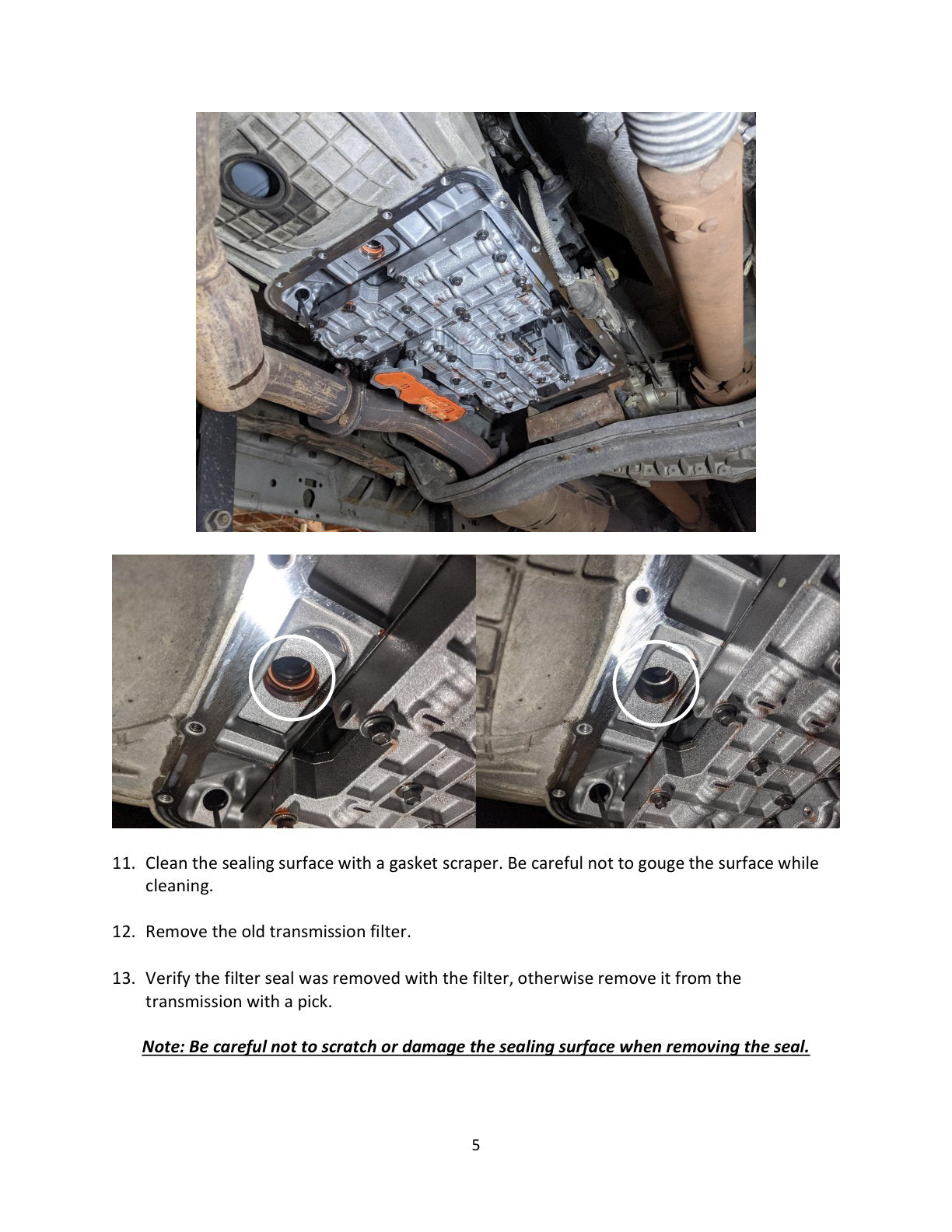

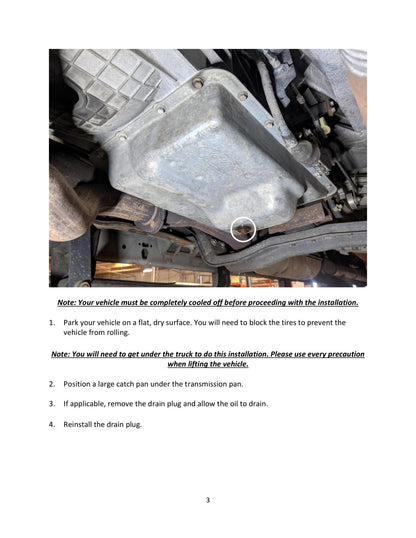

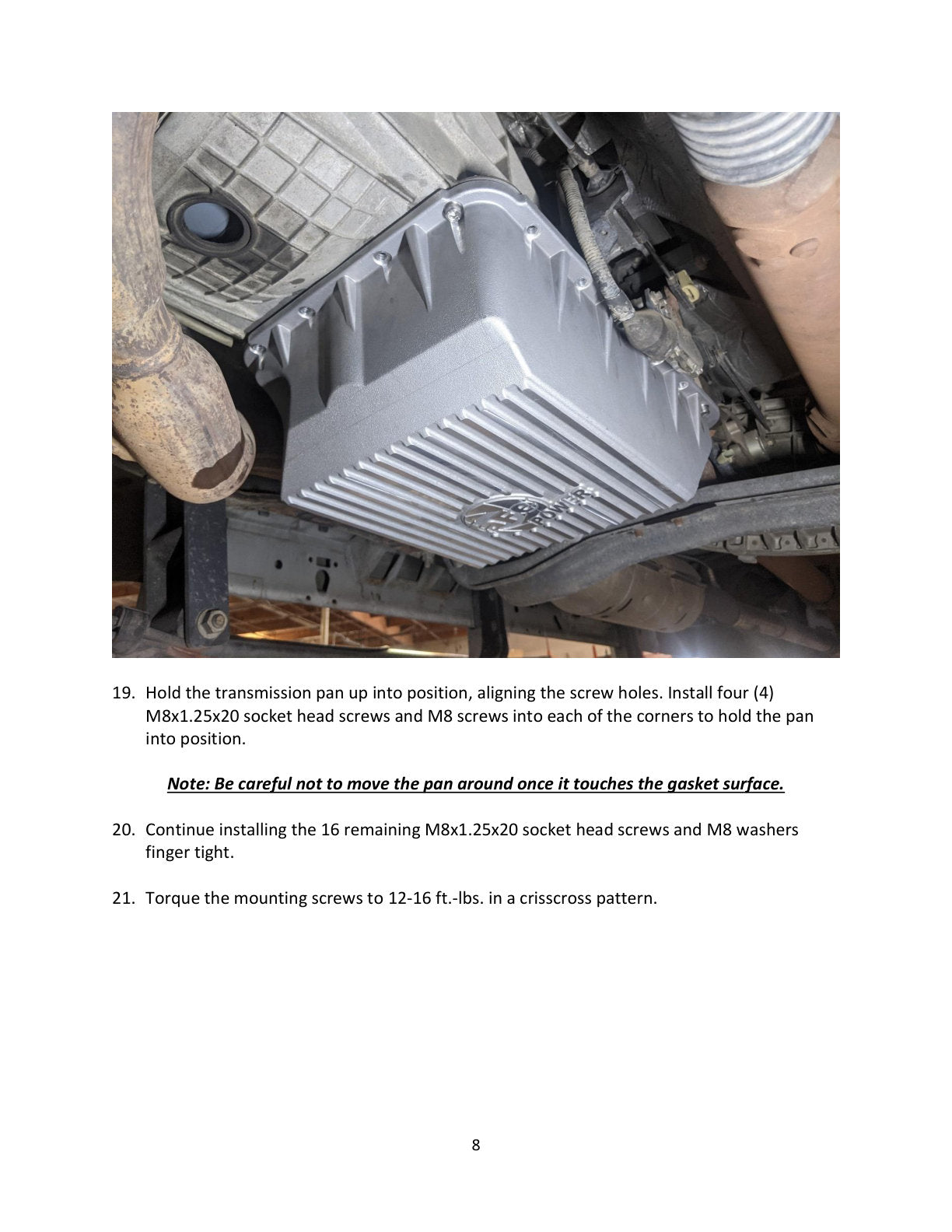

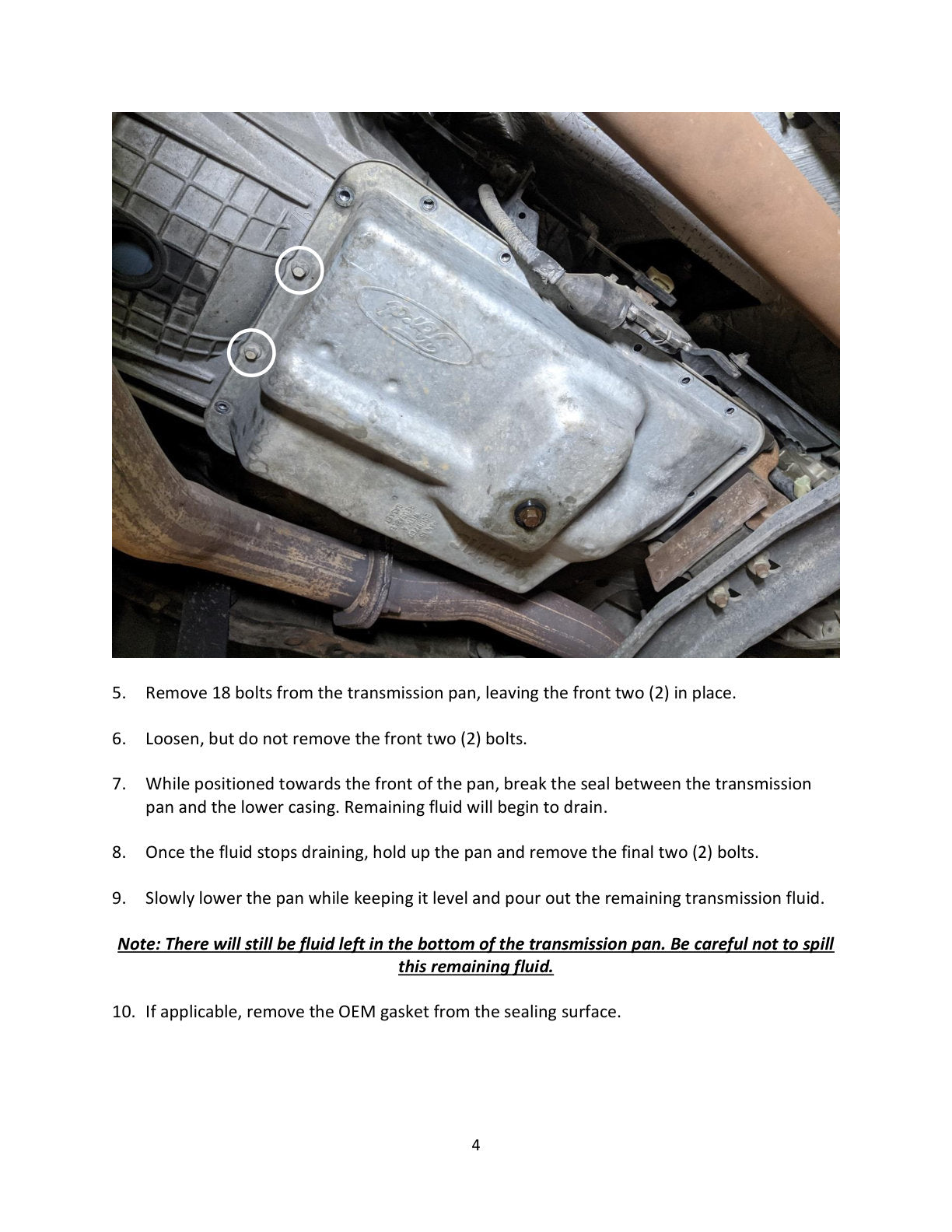

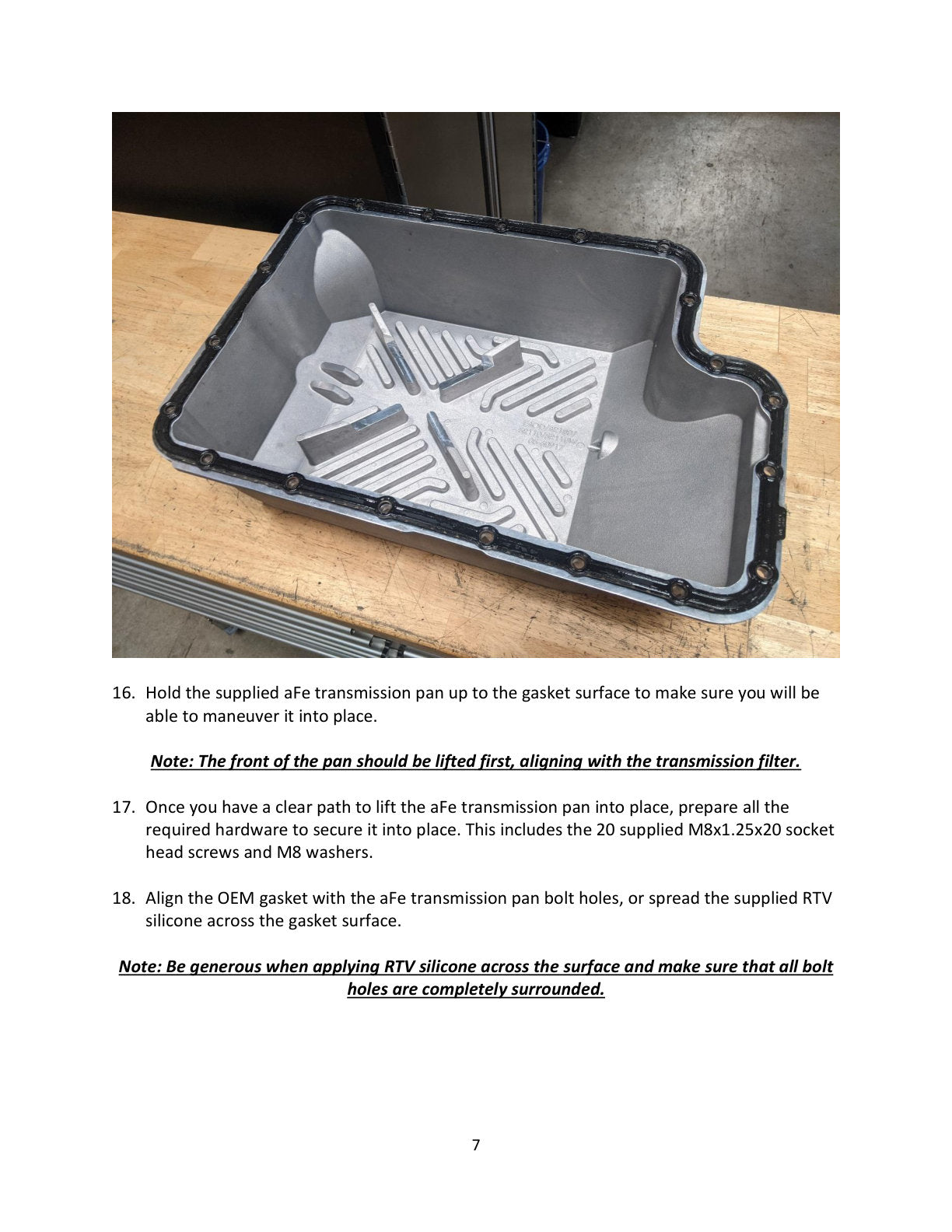

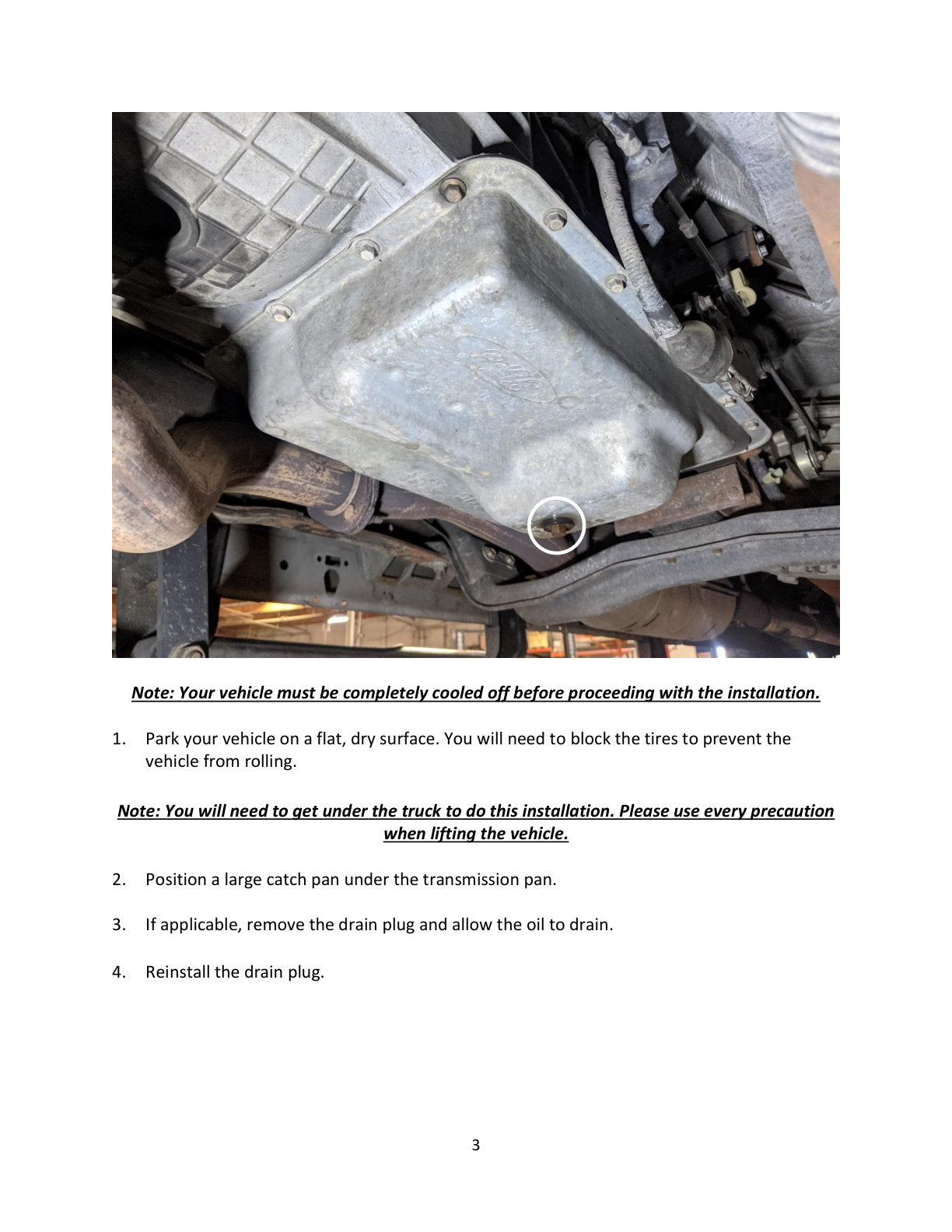

Installation involves replacing the factory transmission pan with this upgraded unit, providing a straightforward bolt-on upgrade. Proper sealing and torque specifications should be followed to ensure leak-free operation. The pan’s design is tailored to fit 2003–2010 Ford diesel trucks with V8 6.0L or 6.4L engines, making it a direct replacement for OEM parts.

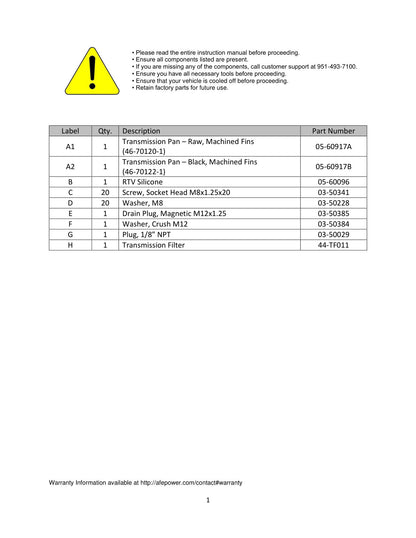

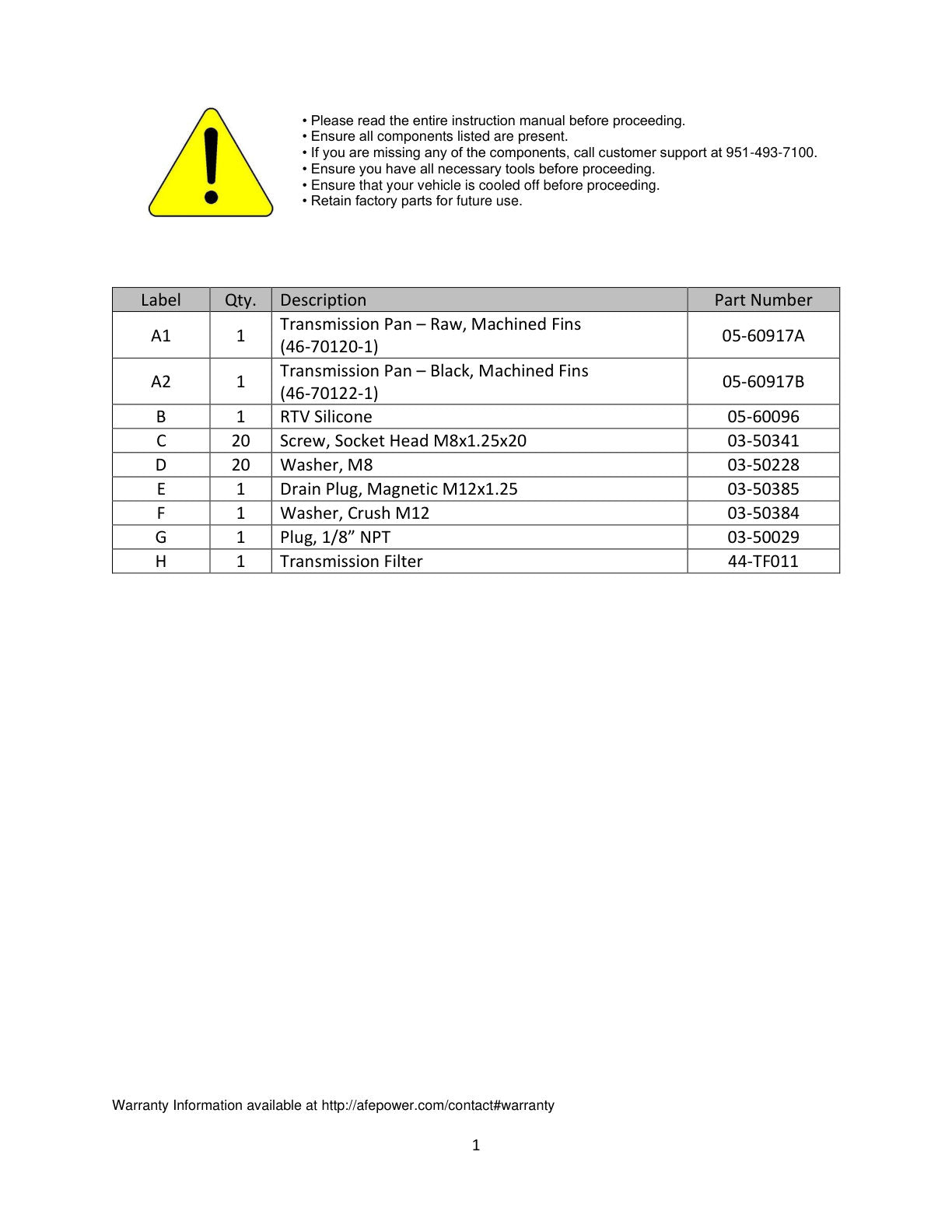

What’s Included

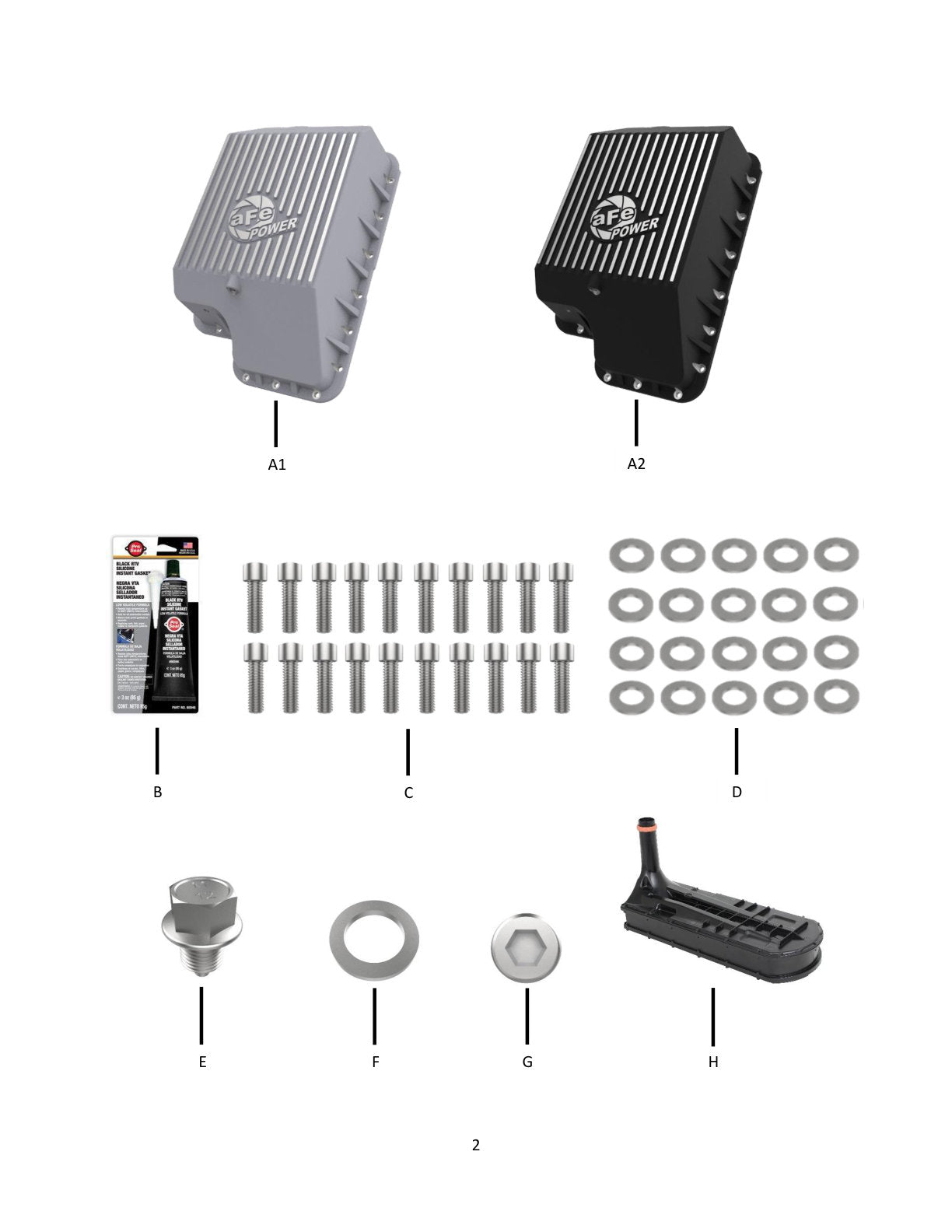

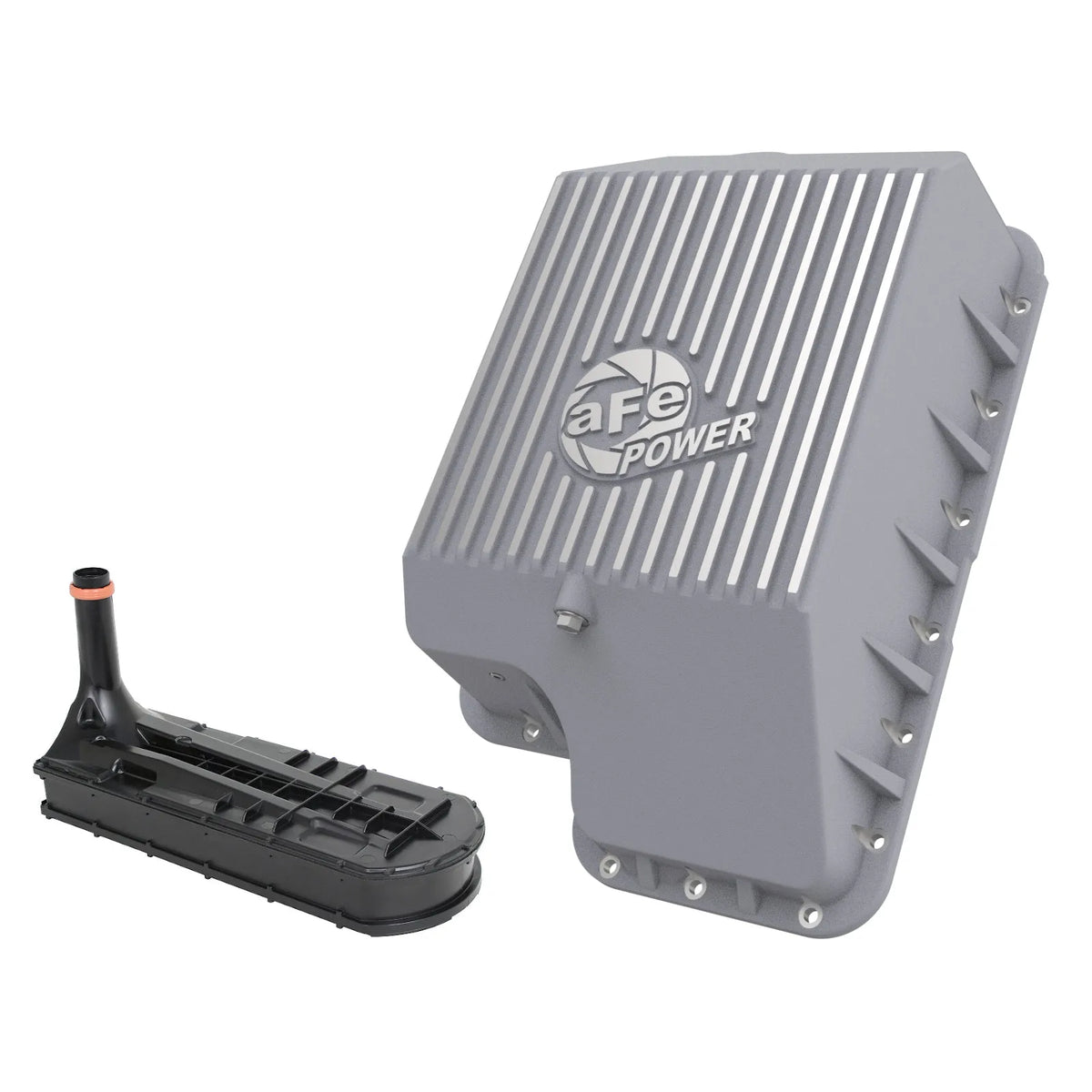

The package includes the aFe deep transmission pan with integrated fins, magnetic drain plug, and the necessary hardware for installation. The 1/8" NPT port is pre-installed for easy sensor hookup, allowing you to monitor transmission temperature accurately.

Ideal For

This transmission pan is perfect for diesel truck owners who regularly tow, haul heavy loads, or operate in demanding environments. It supports enhanced cooling, increased fluid capacity, and overall transmission health, making it an excellent upgrade for extending the service life of your vehicle’s transmission.
