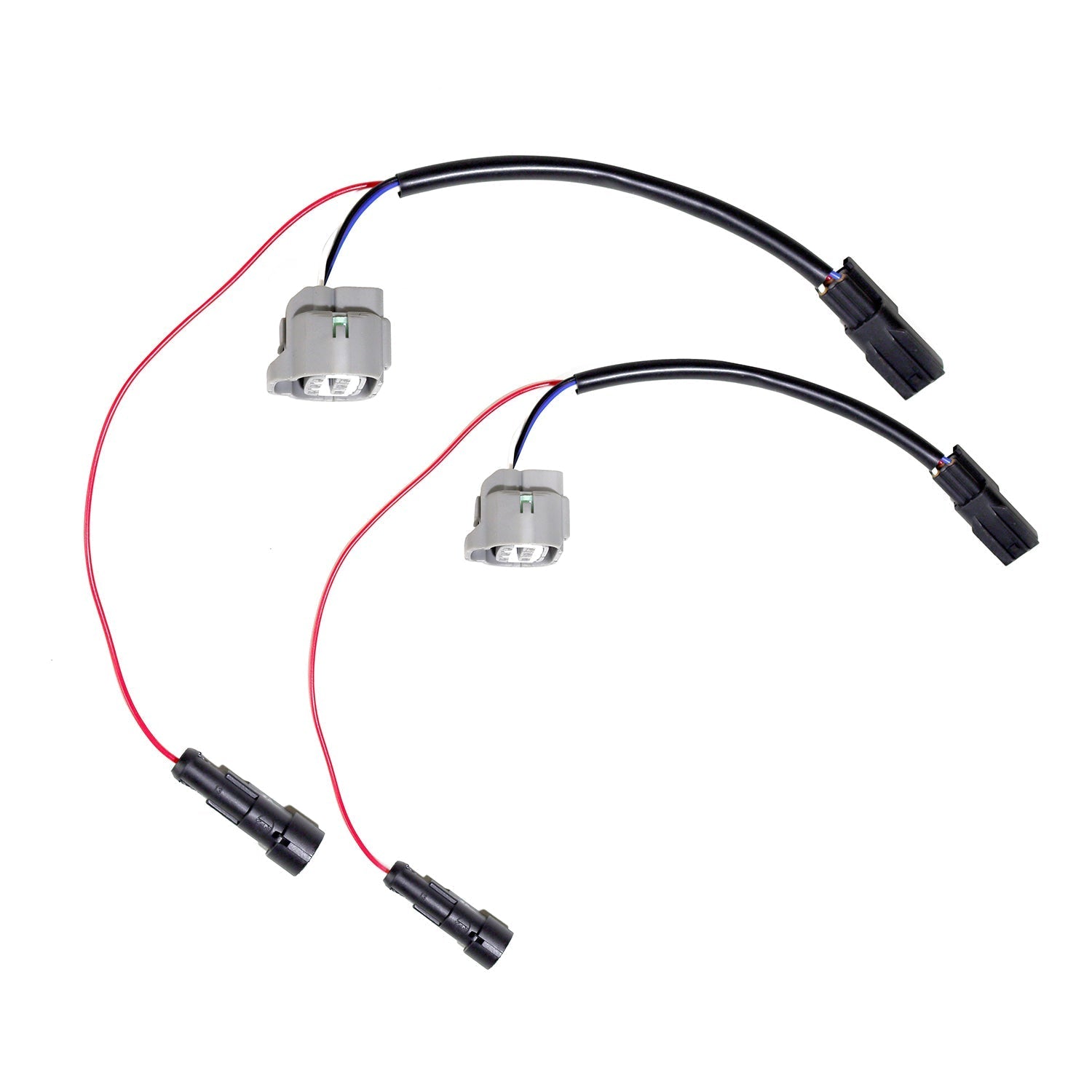

AlphaRex Wiring Adapter for Headlight Assembly

2022–2024 Toyota RAV4 Low Trim / LED Projector Headlights Compatibility

Part #: 810032

Overview

The AlphaRex Wiring Adapter for Headlight Assembly is a specially designed electrical converter that simplifies the installation of aftermarket headlights on your Toyota RAV4, specifically for models from 2022 to 2024 with low trim stock LED projector headlights. If you're upgrading your vehicle's lighting system to enhance style, visibility, or functionality, this adapter ensures a seamless connection between your factory wiring and AlphaRex NOVA-Series headlights.

Designed with both enthusiasts and daily drivers in mind, this wiring adapter helps you achieve a clean, professional look without the hassle of complex wiring modifications. It is an essential accessory for those looking to upgrade to AlphaRex's high-quality LED projector headlights, whether for improved illumination, modern aesthetics, or both. With this adapter, you'll get a straightforward installation process that preserves your vehicle's original wiring integrity while supporting the advanced features of your new headlights.

Key Features

The AlphaRex Wiring Adapter is engineered with precision to ensure compatibility and reliable performance. Its key features include:

• Custom-designed for 22-24 Toyota RAV4 low trim models equipped with stock LED projector headlights featuring decorative trim and halogen turn signals.
• Manufactured with high-quality, durable materials that resist heat, vibration, and corrosion, ensuring long-lasting performance in various driving conditions.
• Plug-and-play design that eliminates the need for cutting or splicing, making installation quick and straightforward for both professionals and DIY enthusiasts.
• Maintains factory wiring integrity, preventing electrical issues and ensuring the proper operation of your vehicle's lighting system.
• Compatible with AlphaRex NOVA-Series headlights, allowing for a sleek, modern upgrade that enhances your vehicle's appearance and visibility.
• Supports the integration of LED projector headlights with existing halogen turn signals, providing a seamless transition and reliable operation.
• Designed to work with the factory wiring harness, preserving original vehicle functions and ensuring compliance with safety standards.
• Includes all necessary connectors and adapters for a complete installation, reducing the need for additional components or modifications.

Construction & Design

The AlphaRex Wiring Adapter is built with precision-molded connectors and high-grade wiring to ensure a secure, reliable connection. Its compact design allows it to fit neatly within the headlight assembly area, avoiding clutter and interference with other engine bay components. The adapter features weather-resistant insulation and robust connectors to withstand exposure to moisture, dirt, and temperature fluctuations, ensuring consistent performance over time.

Manufactured with attention to detail, this adapter is engineered to match the electrical specifications of the Toyota RAV4's factory wiring, providing a perfect fit and function. Its plug-and-play nature means no cutting or splicing is required, preserving your vehicle's original wiring harness and making future upgrades or repairs easier.

Installation & Fitment

The AlphaRex Wiring Adapter is designed for a straightforward, bolt-on installation. Simply connect the adapter to your vehicle's factory wiring harness and the AlphaRex NOVA-Series headlights. No cutting, drilling, or complex wiring modifications are necessary. The included connectors ensure a secure fit, and the process typically takes less than an hour, making it accessible for both professional installers and DIY enthusiasts.

It is recommended to disconnect the vehicle's battery before beginning installation to prevent electrical issues. Follow the included instructions for proper connection and testing to ensure all lights operate correctly before reassembling the headlight assembly.

What's Included

• AlphaRex Wiring Adapter for Headlight Assembly
• All necessary connectors and adapters for a complete installation
• Installation instructions

Ideal For

• Owners upgrading their Toyota RAV4 low trim headlights to aftermarket LED projector units
• Enthusiasts seeking a clean, professional headlight upgrade without electrical issues
• DIYers and professional installers looking for a reliable, plug-and-play wiring solution
• Those wanting to preserve factory wiring integrity while enhancing vehicle appearance and visibility
