ARP Wheel Stud Kits | 1996-2005 Chevrolet Corvette (100-7731)

Chevrolet Corvette C5 Long 1/2in Wheel Stud Kit by ARP

The World Leader in Fastener Technology has just released two new 1/2” wheel stud conversion kits for Chevrolet Corvette C5 applications. ARP wheel studs are manufactured from premium grade heat treated 8740 chrome moly steel, nominally rated at 200,000 psi tensile strength and cadmium plated for extra durability.

These studs are able to easily handle the tremendous acceleration shock loads and lateral forces found in racing applications. Available in both 1.950” UHL (short) and 2.675” UHL (long) and packaged in five-piece packs.

Features

• Knurl Diameter : 0.509˝
• UHL : 2.675˝
• Knurl Length : 0.300˝
• Nose Length : 0.300˝
• Thread Size : 1/2-20
• Wheel Stud Hole Size - Cast Iron/Steel Hub : 0.493˝ - 0.503˝
• Cast Iron/Steel Hub Drill Bit Size : (actual dim.) 1/2˝ (0.500˝)
• Wheel Stud Hole Size - Aluminum Hub : 0.493˝ - 0.499˝
• Aluminum Hub Drill Bit Size (actual dim.) : 12.5mm* (0.492˝)

Benefits

• Easily handles tremendous acceleration shock loads and lateral forces

Applications

• 1996 - 2005 Chevrolet Corvette (C5)

What's In The Box?

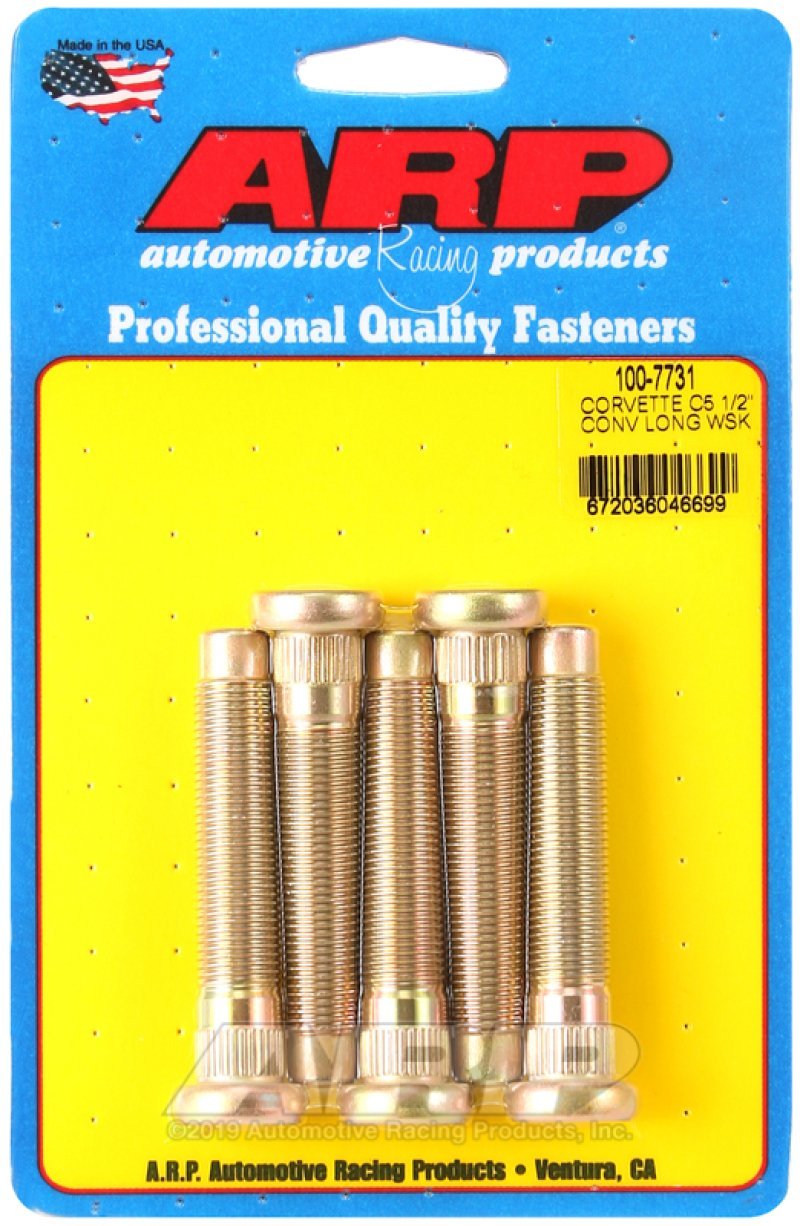

• 5 - Wheel Studs

Warranty

• Manufacturers Standard Warranty
