• AST Suspension 5100 Series Coilovers (Excludes Front/Rear Top Mounts) (True Coilover) - 1990-1992 Volkswagen Golf GTI 2.0 16V (MK2/1G)
1 1

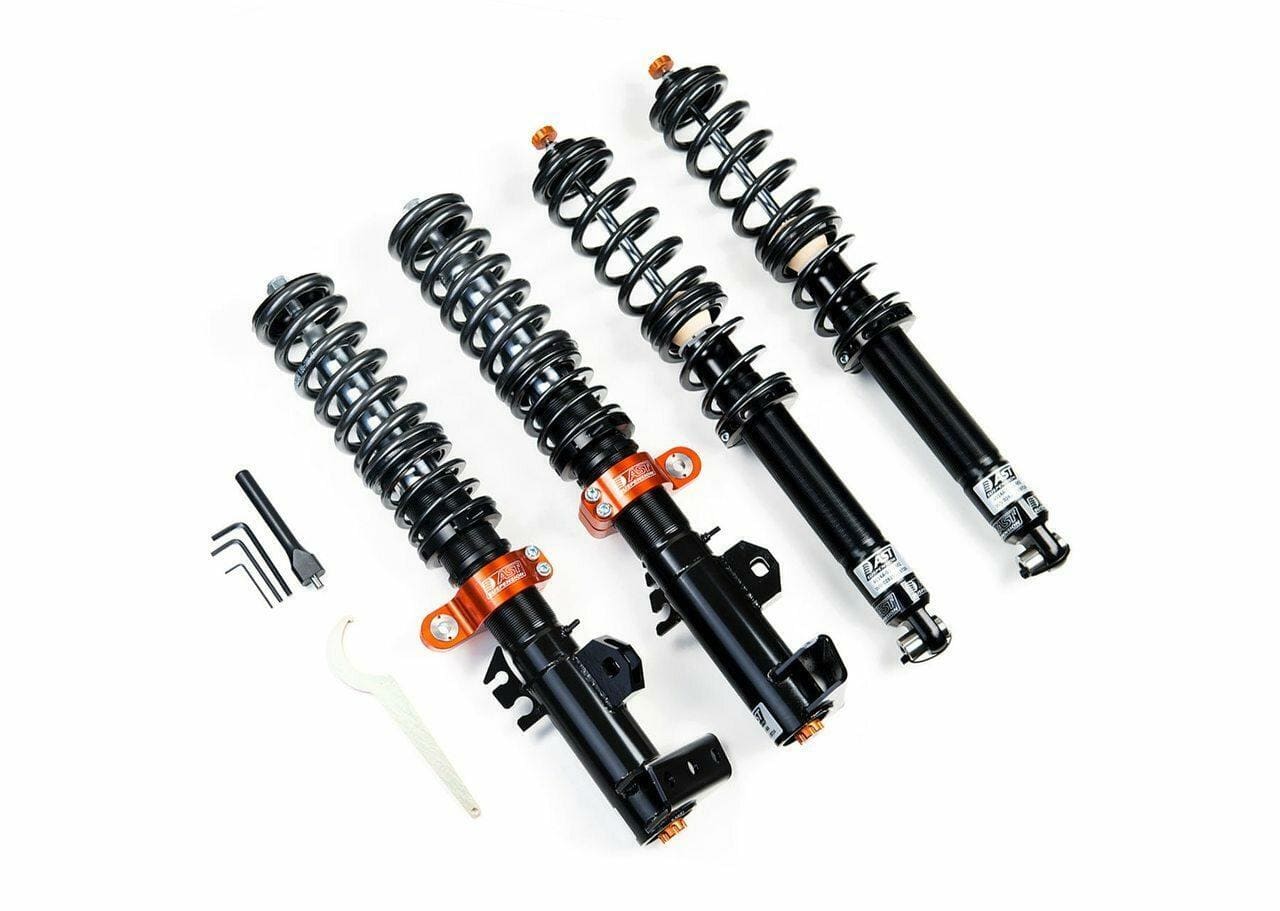

AST 5100 Series Coilovers VW Golf MK2/1G 90-92 | 2.0 16V (ACU-V1302S)

AST 5100 Series Coilovers VW Golf MK2/1G 90-92 | 2.0 16V (ACU-V1302S)

ACU-V1302S

Out of stock

$3,050.00 USD
$3,660.00 USD $3,050.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST 5100 Series Coilovers for the Volkswagen Golf MK2/1G (1990-1992) are high-performance shock absorbers featuring inverted, upside-down technology. Designed to enhance suspension dynamics, these coilovers deliver increased strength and durability compared to standard twin-tube designs. The inverted damper construction improves suspension geometry under heavy lateral and braking forces, making them ideal for both street and track use. Built with race-proven technology, these coilovers provide superior handling, stability, and responsiveness. The adjustable rebound feature allows for fine-tuning of damping characteristics, ensuring optimal performance tailored to driving conditions and preferences.

Specifically engineered for the 1990-1992 VW Golf MK2/1G with the 2.0 16V engine, these coilovers serve as a direct upgrade or replacement for the factory suspension components. They are suitable for enthusiasts seeking improved cornering, reduced body roll, and enhanced ride quality on both daily drivers and performance-oriented setups. Installation is straightforward, with bolt-on compatibility for the specified model years. The kit includes the shock absorbers and necessary mounting hardware, providing a comprehensive suspension upgrade. These coilovers are ideal for drivers looking to maximize handling capabilities on the street or track.

Overview

The 5100 Series shock absorbers for the 1990-1992 Volkswagen Golf GTI 2.0 16V (MK2/1G) utilize inverted / upside down technology. The inverted design is race proven technology and produces an extremely strong damper, providing better suspension geometry under heavy lateral and braking loads as seen in a road and track environment.

The 5100 Series shock absorbers give your car a better performance than the standard twin tube design. With the 5100 Series suspension you can adjust rebound with one knob. The adjust platform allows you to adjust the ride height of your car. AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height.

How a Monotube design works?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

What is a rebound adjustment?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

Features

  • Floating piston design with high pressure nitrogen means no cavitation around the piston.
  • 14mm diameter internal shaft.
  • 44.5 mm diameter shaft struts, inverted.
  • Steel cylinder body shocks, inverted.
  • High end, track ready suspension.
  • Rebound adjustable ('Singles').
  • Low friction seal.
  • Adjuster knobs permanently mounted on the dampers.
  • Designed to use OEM top mounts.
  • Rubber bushings for 'eye' shock mounts.
  • Includes springs.
  • Rebuildable.
  • Optional spherical top mounts.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Optional custom valving.
Specifications
  • Part Number: ACU-V1302S
  • Product: AST 5100 Series
  • Adjustment: 1 Way
  • System: Coil Over
  • Product Note: True Coilover
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Bracket McPherson strut / Rear: Eye 2 pin strut
  • Model Years: 1990-1992
  • Make: Volkswagen
  • Model: Golf
  • Chassis: MK2/1G
  • Spring Kit: Included
  • Top Mounts: Front / Rear Optional (If Available)
  • Optional 1 Front Top Mounts: Not Available
  • Optional 2 Front Top Mounts: Not Available
  • Optional Rear Top Mounts: Not Available
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: Works with OE top mounts.
Vehicle Fitment
  • 1990 Volkswagen Golf GTI 2.0 16V (MK2/1G)
  • 1991 Volkswagen Golf GTI 2.0 16V (MK2/1G)
  • 1992 Volkswagen Golf GTI 2.0 16V (MK2/1G)
