• AST Suspension 5100 Series Coilovers (Includes Front/Rear Top Mounts) (True Coilover) - 2006-2012 Porsche 911 3.8 Turbo 4WD (997)
1 1

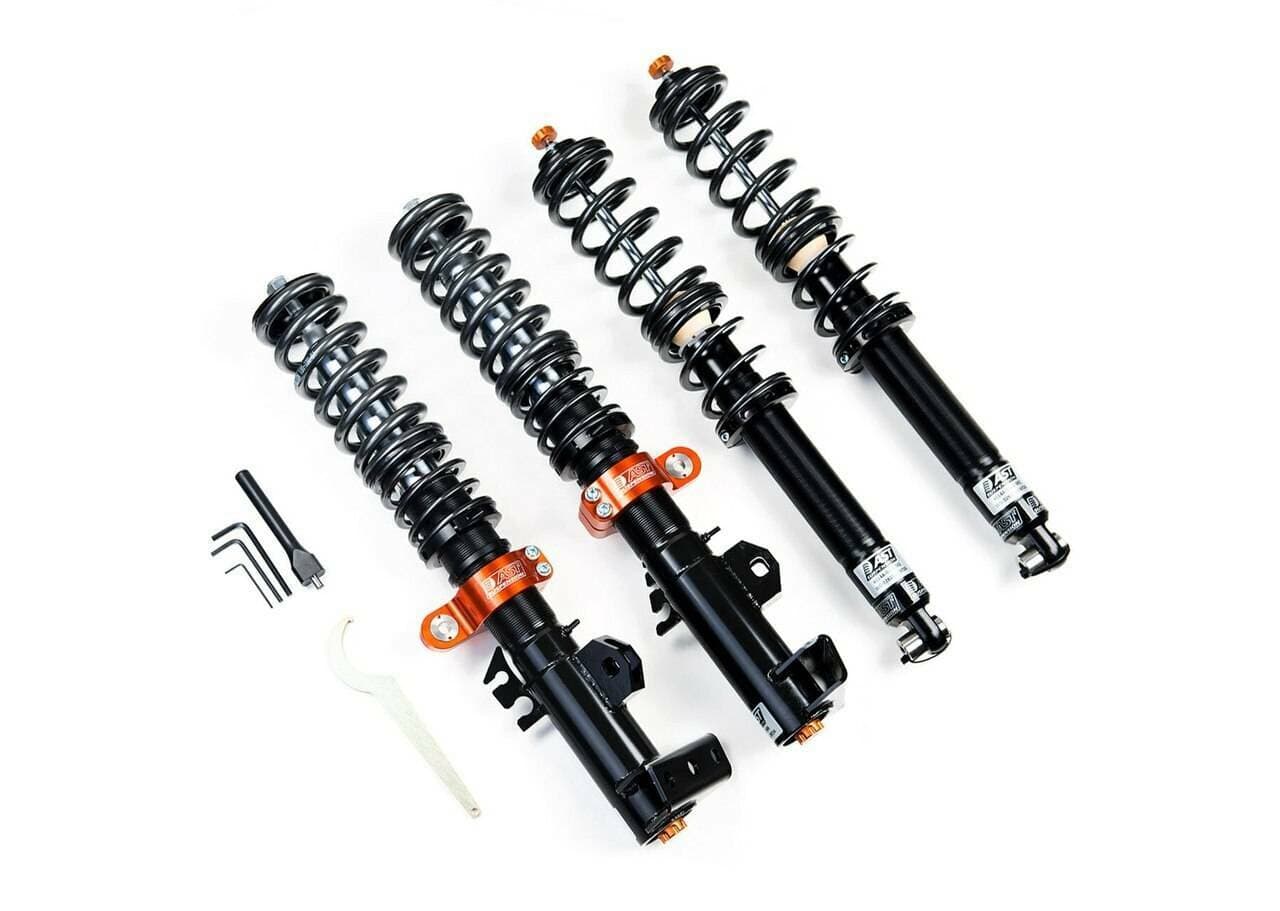

AST 5100 Series Coilovers 997 911 Turbo 4WD (ACC-P2204S)

AST 5100 Series Coilovers 997 911 Turbo 4WD (ACC-P2204S)

ACC-P2204S

Out of stock

$5,958.33 USD
$7,150.00 USD $5,958.33 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST 5100 Series Coilovers for the Porsche 911 3.8 Turbo 4WD (997) are high-performance suspension components designed to enhance handling and stability. Featuring inverted, upside-down damper technology, these coilovers are race-proven and deliver superior strength and durability compared to standard twin-tube designs. The adjustable rebound feature allows for precise tuning to optimize ride quality and cornering performance, making them ideal for both street and track use. Constructed with high-quality materials, these coilovers provide improved suspension geometry under heavy lateral and braking loads, ensuring consistent performance in demanding driving conditions.

Designed to fit 2006-2012 Porsche 911 3.8 Turbo 4WD models, these coilovers serve as a direct upgrade for stock suspension systems. They are suitable for enthusiasts seeking enhanced handling, reduced body roll, and customizable ride height. Installation is typically bolt-on, with the kit including shock absorbers and necessary mounting hardware. These coilovers are perfect for track days, spirited driving, or aggressive street use, offering a significant upgrade in suspension performance and driver confidence.

Overview

The 5100 Series shock absorbers for the 2006-2012 Porsche 911 3.8 Turbo 4WD (997) utilize inverted / upside down technology. The inverted design is race proven technology and produces an extremely strong damper, providing better suspension geometry under heavy lateral and braking loads as seen in a road and track environment.

The 5100 Series shock absorbers give your car a better performance than the standard twin tube design. With the 5100 Series suspension you can adjust rebound with one knob. The adjust platform allows you to adjust the ride height of your car. AST suspension shock bodies are specially designed to keep maximum stroke, even with a lower ride height.

How a Monotube design works?

Monotube design is essential for performance. The oil and nitrogen are separated by a floating piston, and allows the use of a larger piston, increasing the damper performance and sensitivity felt by the driver, all this added together produces more grip, gives more control and driver feedback from your vehicle.

What is a rebound adjustment?

Rebound controls the rate of extension of your shock absorber. By changing the rebound you can directly change the characteristics of the vehicle.

Features

  • Floating piston design with high pressure nitrogen means no cavitation around the piston.
  • 14mm diameter internal shaft.
  • 44.5 mm diameter shaft struts, inverted.
  • Steel cylinder body shocks, inverted.
  • High end, track ready suspension.
  • Rebound adjustable ('Singles').
  • Low friction seal.
  • Adjuster knobs permanently mounted on the dampers.
  • Designed to use OEM top mounts.
  • Rubber bushings for 'eye' shock mounts.
  • Includes springs.
  • Rebuildable.
  • Optional spherical top mounts.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Optional custom valving.
Specifications
  • Part Number: ACC-P2204S
  • Product: AST 5100 Series
  • Adjustment: 1 Way
  • System: Coil Over
  • Product Note: True Coilover
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Clamp McPherson strut / Rear: Fork 2 pin strut
  • Model Years: 2006-2012
  • Make: Porsche
  • Model: 911
  • Chassis: 997
  • Spring Kit: Included
  • Top Mounts: Front / Rear Included
  • Front Top Mounts: TMA-P08-A1-20F - Camber adjustable
  • Optional Front Top Mounts: TMA-P12-B1-20F - Solid top mounts (no camber adjustment)
  • Rear Top Mounts: TMA-P11-B1-30R - Solid top mounts (no camber adjustment)
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: Works with OE top mounts.
Vehicle Fitment
  • 2006 Porsche 911 3.8 Turbo 4WD (997)
  • 2007 Porsche 911 3.8 Turbo 4WD (997)
  • 2008 Porsche 911 3.8 Turbo 4WD (997)
  • 2009 Porsche 911 3.8 Turbo 4WD (997)
  • 2010 Porsche 911 3.8 Turbo 4WD (997)
  • 2011 Porsche 911 3.8 Turbo 4WD (997)
  • 2012 Porsche 911 3.8 Turbo 4WD (997)
View full details
