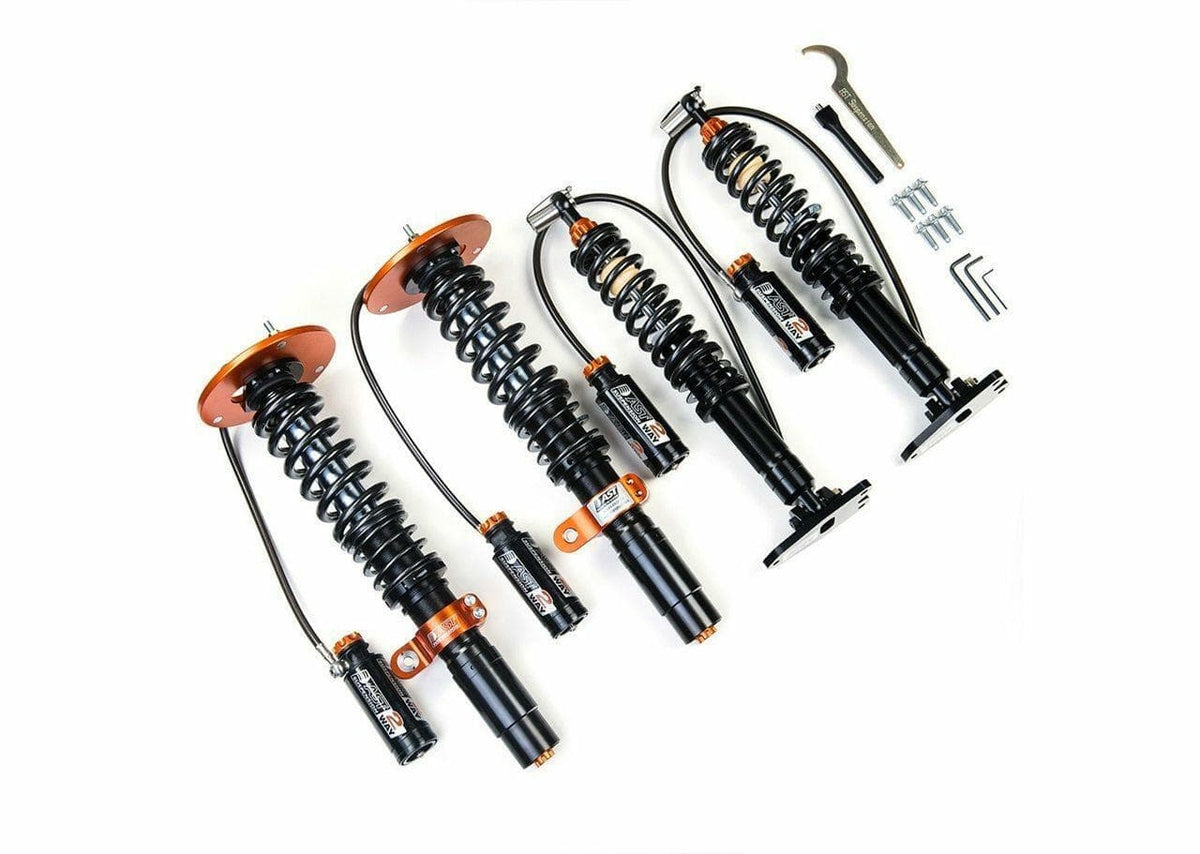

AST Suspension 5200 Series Coilovers - 1984-1991 BMW 3 Series 323i (E30)

AST Suspension 5200 Series Coilovers - 1984-1991 BMW 3 Series 323i (E30)

RIV-B1501S

Out of stock

$7,016.67 USD
$8,420.00 USD $7,016.67 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST 5200 Series Coilovers for the 1984-1991 BMW 3 Series 323i (E30) are high-performance suspension components designed for precise handling and customization. These coilovers feature 2-way adjustable shock absorbers that allow users to fine-tune compression and rebound settings independently, providing optimal control for street or track use. Built upon the technology of competition-grade 3-way adjustable shocks, the 5200 series offers quick and straightforward setup, thanks to an evolved compression adjuster inspired by the American Grand-Am series. Constructed with durable materials, these coilovers are engineered to enhance vehicle stability, cornering, and overall ride quality, making them suitable for enthusiasts seeking a versatile suspension upgrade.

Designed specifically for the E30 chassis from 1984 to 1991, these coilovers are a direct bolt-on upgrade for the BMW 3 Series 323i. They are ideal for track days, spirited driving, or improved street performance, offering adjustable ride height and damping characteristics. The kit includes the necessary shock absorbers and mounting hardware for a seamless installation. Compatibility is optimized for models with the specified chassis and engine configuration, ensuring reliable performance and durability. These coilovers provide a customizable suspension solution for drivers aiming to improve handling dynamics and vehicle responsiveness.

Overview

The 5200 Series for the 1984-1991 BMW 3 Series 323i (E30) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.

The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.

The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.

Features

  • High end, track ready suspension that is totally streetable.
  • Fully upgradeable to 5300 spec.
  • Rebound and Compression Adjustable (Doubles), with a remote reservoir.
  • Remote reservoirs allow additional travel and heat dissipation.
  • 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style.
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully service and rebuildable.
  • Revalvable for specific characteristics.
Specifications
  • Part Number: RIV-B1501S
  • Product: AST 5200 Series
  • Adjustment: 2 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 70% / Rear = 30%
  • Strut/Shock Type: Front: Uses OEM spindles / Rear: Eye 2 pin strut
  • Model Years: 1984-1991
  • Make: BMW
  • Model: 3 Series
  • Chassis: E30
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Included
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: Original front hubs needed before start of production.
Vehicle Fitment
  • 1984 BMW 3 Series 323i (E30)
  • 1985 BMW 3 Series 323i (E30)
  • 1986 BMW 3 Series 323i (E30)
  • 1987 BMW 3 Series 323i (E30)
  • 1988 BMW 3 Series 323i (E30)
  • 1989 BMW 3 Series 323i (E30)
  • 1990 BMW 3 Series 323i (E30)
  • 1991 BMW 3 Series 323i (E30)
