AST Suspension 5200 Series Coilovers - 1989 Porsche 944 2.7 (Type 2)

AST Suspension 5200 Series Coilovers - 1989 Porsche 944 2.7 (Type 2)

RIV-P2013S

Out of stock

$5,658.33 USD
$6,790.00 USD $5,658.33 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

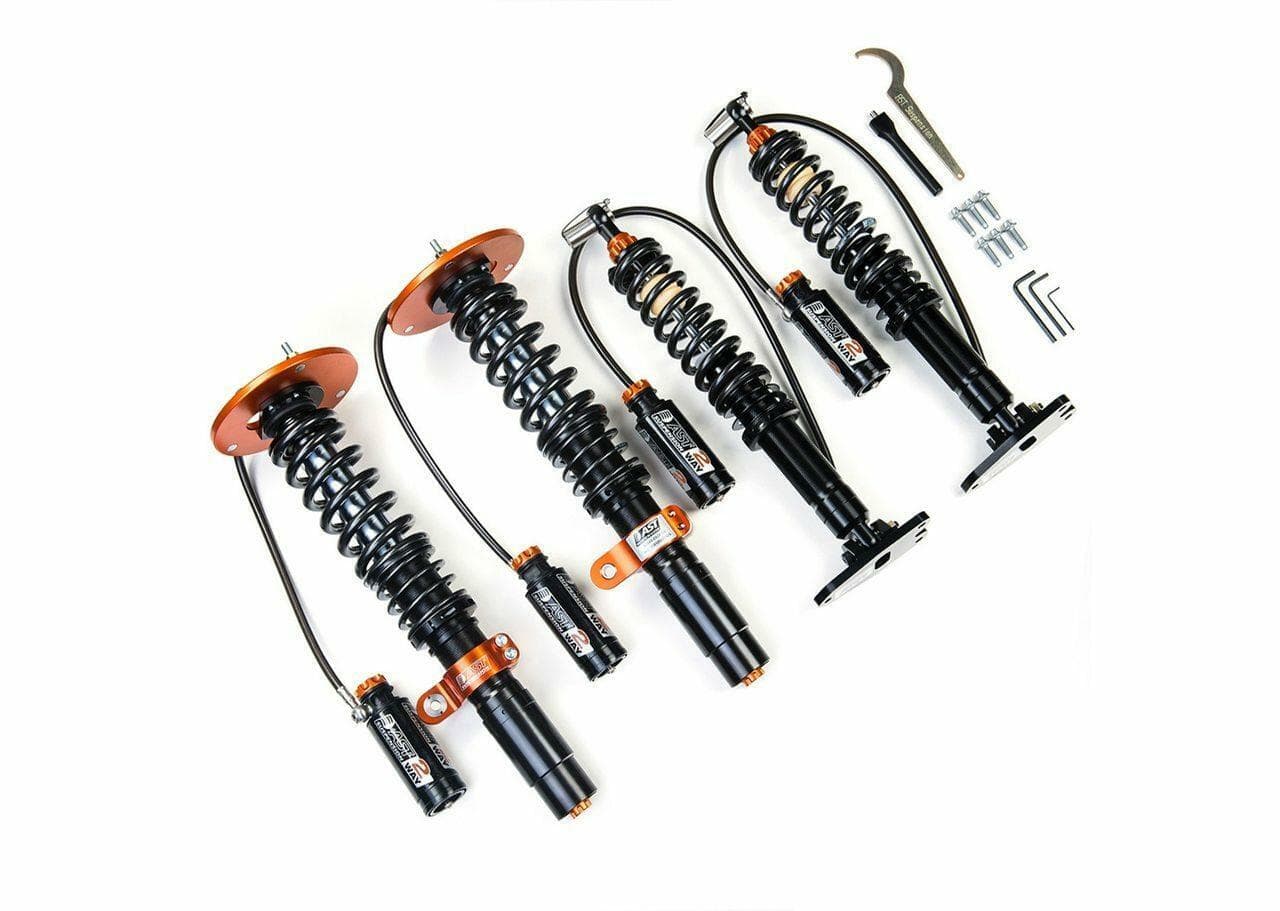

The AST Suspension 5200 Series Coilovers for the 1989 Porsche 944 2.7 (Type 2) are high-performance shock absorbers designed for precise handling and adjustable ride dynamics. These 2-way adjustable coilovers feature compression and rebound settings, allowing for tailored suspension tuning to suit various driving conditions. Built upon competition-grade technology, the shocks incorporate an advanced compression adjuster inspired by the American Grand-Am series, enabling quick and easy setup. The design emphasizes durability and performance, providing improved stability, cornering, and ride quality for enthusiasts seeking a track-ready or street-oriented suspension upgrade.

Specifically engineered for the 1989 Porsche 944 2.7 (Type 2), these coilovers are a direct bolt-on replacement that fit the original chassis and suspension geometry. They are ideal for track days, spirited driving, or street use, offering adjustable damping to optimize handling and comfort. The kit includes the necessary shock units with adjustable features, ensuring a customizable setup. Suitable for enthusiasts aiming to enhance their vehicle’s performance, these coilovers deliver a combination of precision tuning and reliable construction for demanding driving environments.

Overview

The 5200 Series for the 1989 Porsche 944 2.7 (Type 2) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.

The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.

The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.

Features

  • High end, track ready suspension that is totally streetable.
  • Fully upgradeable to 5300 spec.
  • Rebound and Compression Adjustable (Doubles), with a remote reservoir.
  • Remote reservoirs allow additional travel and heat dissipation.
  • 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style.
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully service and rebuildable.
  • Revalvable for specific characteristics.
Specifications
  • Part Number: RIV-P2013S
  • Product: AST 5200 Series
  • Adjustment: 2 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Bracket McPherson strut / Rear: Eye 2 eye strut
  • Model Years: 1989
  • Make: Porsche
  • Model: 944
  • Chassis: Type 2
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Not available (Eye to Eye)
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 1989 Porsche 944 2.7 (Type 2)
