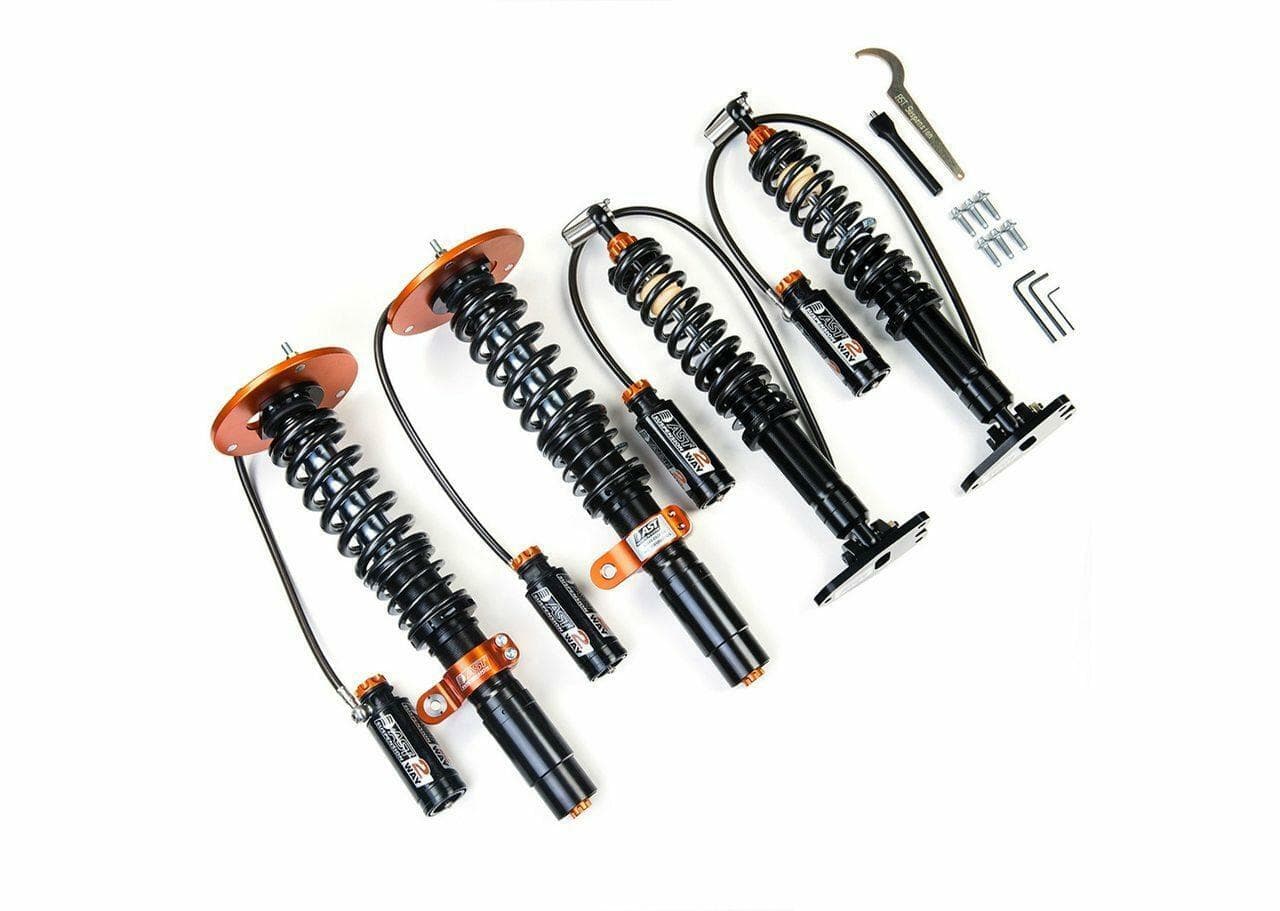

AST Suspension 5200 Series Coilovers - 1990-1993 BMW 3 Series 316i Coupe/Sedan (E36)

AST Suspension 5200 Series Coilovers - 1990-1993 BMW 3 Series 316i Coupe/Sedan (E36)

RIV-B1002S

Out of stock

$6,100.00 USD
$7,320.00 USD $6,100.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST Suspension 5200 Series Coilovers for the 1990-1993 BMW 3 Series 316i Coupe and Sedan (E36) are high-performance, adjustable shock absorbers designed for enthusiasts seeking precise handling and customization. These 2-way adjustable coilovers allow independent tuning of compression and rebound damping, enabling optimal setup for street or track use. Built upon competition-grade technology, the shocks feature a compression adjuster evolved from those used in the American Grand-Am series, ensuring quick and straightforward adjustments. The design emphasizes durability and performance, providing improved stability, reduced body roll, and enhanced ride quality for a variety of driving conditions.

Compatible with 1990-1993 BMW 3 Series models, including coupe and sedan variants with the E36 chassis, these coilovers are intended for drivers who want a customizable suspension upgrade. They serve as direct replacements for stock shocks, offering a significant upgrade in handling dynamics. Installation is straightforward for those familiar with coilover setups, and the kit includes the necessary components for a complete upgrade. Ideal for street, track, or spirited driving, these coilovers deliver adjustable performance to meet diverse driving demands and improve overall vehicle responsiveness.

Overview

The 5200 Series for the 1990-1993 BMW 3 Series 316i Coupe/Sedan (E36) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.

The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.

The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.

Features

  • High end, track ready suspension that is totally streetable.
  • Fully upgradeable to 5300 spec.
  • Rebound and Compression Adjustable (Doubles), with a remote reservoir.
  • Remote reservoirs allow additional travel and heat dissipation.
  • 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style.
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully service and rebuildable.
  • Revalvable for specific characteristics.
Specifications
  • Part Number: RIV-B1002S
  • Product: AST 5200 Series
  • Adjustment: 2 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: McPherson strut / Rear: Eye 2 pin strut
  • Model Years: 1990-1993
  • Make: BMW
  • Model: 3 Series
  • Chassis: E36
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Included
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 1990 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1991 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1992 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1993 BMW 3 Series 316i Coupe/Sedan (E36)
