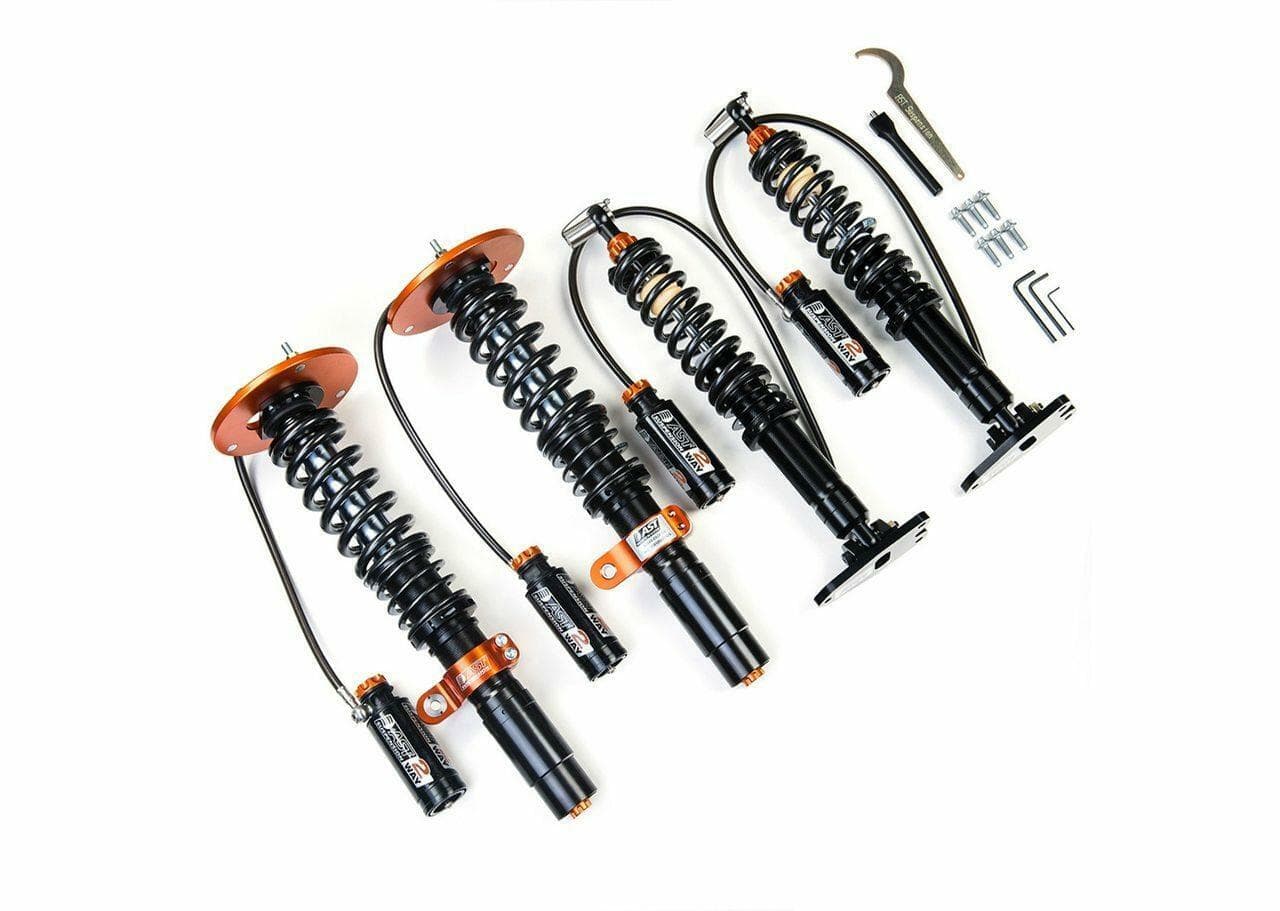

AST Suspension 5200 Series Coilovers - 1993-1999 BMW 3 Series 316i Coupe/Sedan (E36)

AST Suspension 5200 Series Coilovers - 1993-1999 BMW 3 Series 316i Coupe/Sedan (E36)

RIV-B1002S

Out of stock

$6,100.00 USD
$7,320.00 USD $6,100.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST Suspension 5200 Series Coilovers for the 1993-1999 BMW 3 Series E36 models are high-performance, 2-way adjustable shock absorbers designed for enthusiasts seeking precise handling and customization. These coilovers feature compression and rebound adjustments, allowing users to fine-tune suspension settings for optimal performance on street or track. Built upon the technology used in professional racing, the design incorporates an evolved compression adjuster inspired by the American Grand-Am series, ensuring quick and straightforward setup. The shock absorbers are engineered for durability and consistent performance, providing improved stability, cornering, and ride quality.

Compatible with 1993-1999 BMW 3 Series models including the 316i Coupe and Sedan, these coilovers are a direct bolt-on upgrade for enhanced suspension control. They are suitable for street, track, or spirited driving, offering adjustable damping to suit various driving conditions. Installation involves replacing factory components with these coilovers, which include the shock absorbers with adjustable features. Designed for performance-oriented drivers, the AST 5200 Series coilovers deliver a customizable ride experience, improving handling dynamics and vehicle responsiveness.

Overview

The 5200 Series for the 1993-1999 BMW 3 Series 316i Coupe/Sedan (E36) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.

The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.

The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.

Features

  • High end, track ready suspension that is totally streetable.
  • Fully upgradeable to 5300 spec.
  • Rebound and Compression Adjustable (Doubles), with a remote reservoir.
  • Remote reservoirs allow additional travel and heat dissipation.
  • 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style.
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully service and rebuildable.
  • Revalvable for specific characteristics.
Specifications
  • Part Number: RIV-B1002S
  • Product: AST 5200 Series
  • Adjustment: 2 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: McPherson strut / Rear: Eye 2 pin strut
  • Model Years: 1993-1999
  • Make: BMW
  • Model: 3 Series
  • Chassis: E36
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Included
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 1993 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1994 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1995 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1996 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1997 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1998 BMW 3 Series 316i Coupe/Sedan (E36)
  • 1999 BMW 3 Series 316i Coupe/Sedan (E36)
