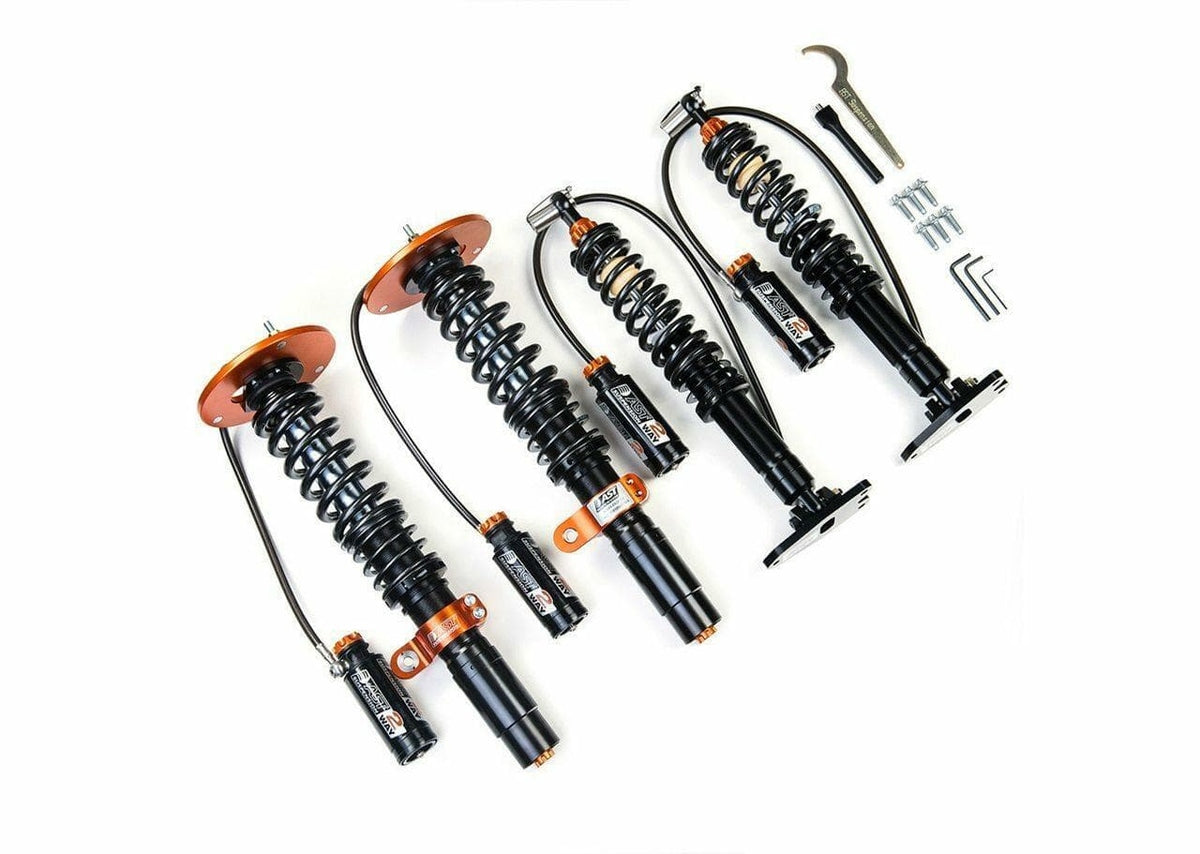

AST Suspension 5200 Series Coilovers - 2007-2012 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)

AST Suspension 5200 Series Coilovers - 2007-2012 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)

RIV-P2209S

Out of stock

$8,900.00 USD
$10,680.00 USD $8,900.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST Suspension 5200 Series Coilovers for the 2007-2012 Porsche 911 GT2 and GT3 models are high-performance, 2-way adjustable shock absorbers designed for track and street use. Built upon competition-grade technology, these coilovers feature independent compression and rebound adjustments, allowing precise tuning for optimal handling and stability. The compression adjuster is an evolution of the design used in the American Grand-Am series, ensuring quick and straightforward setup. Crafted with durable materials, these coilovers deliver improved ride quality, enhanced cornering, and superior responsiveness, making them ideal for enthusiasts seeking a balance of performance and adjustability.

Designed specifically for 2007-2012 Porsche 911 GT2 and GT3 3.6/3.8 2WD models, these coilovers are a direct replacement for stock suspension components. They are suitable for both street and track applications, providing adjustable ride height and damping settings to suit various driving conditions. Installation is a bolt-on process, offering a seamless upgrade for performance-oriented drivers. The kit includes the shock absorbers with adjustable features, enabling precise suspension tuning for improved handling, cornering grip, and overall vehicle control.

Overview

The 5200 Series for the 2007-2012 Porsche 911 GT2/GT3 3.6/3.8 2WD (997) are 2-way adjustable shock absorbers which are based upon competition 3-way adjustable shock absorbers. The 5200 shock absorbers are adjustable in compression and rebound.

The design of the compression adjuster is an evolution of the compression adjuster we provided for the American Grand-Am series for the last few years. The 5200 shock absorbers were designed to achieve a quick and easy set up, allowing separate adjustment of compression and rebound.

The 5200 Series AST uses an external canister. Throughout testing and competitions, the 5200 has been praised for its performance and capabilities, surpassing other major, more expensive brands and setting a new standard of 2 way damper. Its no surprise that the 5200 is fast becoming a favorite damper amongst race teams and track day enthusiasts world wide.

Features

  • High end, track ready suspension that is totally streetable.
  • Fully upgradeable to 5300 spec.
  • Rebound and Compression Adjustable (Doubles), with a remote reservoir.
  • Remote reservoirs allow additional travel and heat dissipation.
  • 44.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style.
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) coated shafts.
  • Optional DDP (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully service and rebuildable.
  • Revalvable for specific characteristics.
Specifications
  • Part Number: RIV-P2209S
  • Product: AST 5200 Series
  • Adjustment: 2 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Clamp McPherson strut / Rear: Fork 2 pin strut
  • Model Years: 2007-2012
  • Make: Porsche
  • Model: 911
  • Chassis: 997
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Included
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? Front QDC included
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 2007 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)
  • 2008 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)
  • 2009 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)
  • 2010 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)
  • 2011 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)
  • 2012 Porsche 911 GT2/GT3 3.6/3.8 2WD (997)
