AST Suspension 5300 Series Coilovers - 1987-1991 Porsche 944 2.5 S (Type 2)

AST Suspension 5300 Series Coilovers - 1987-1991 Porsche 944 2.5 S (Type 2)

RAC-P2013S

Out of stock

$6,033.33 USD
$7,240.00 USD $6,033.33 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

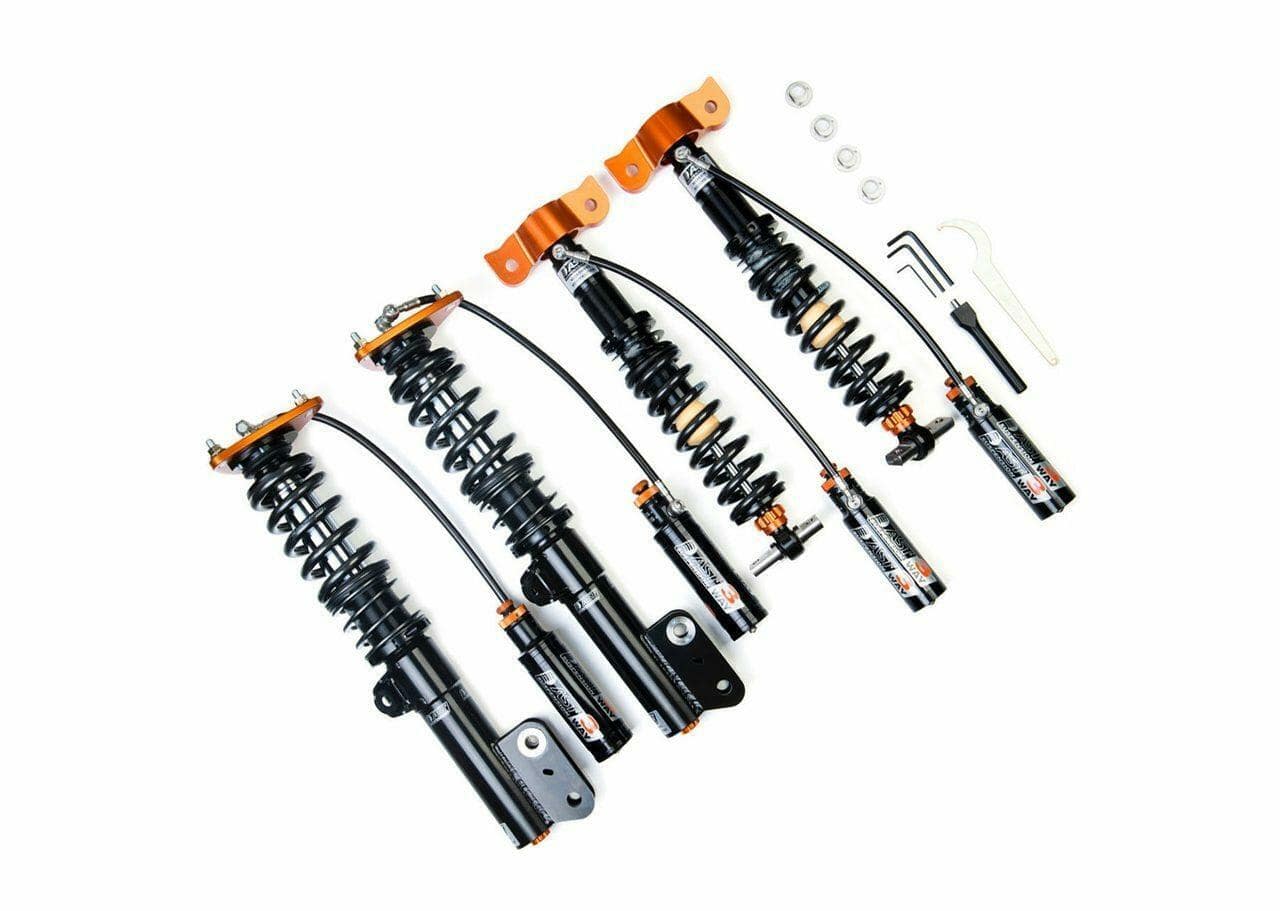

The AST Suspension 5300 Series Coilovers are high-performance, competition-grade shock absorbers designed specifically for the 1987-1991 Porsche 944 2.5 S (Type 2). Engineered for track use, these coilovers feature a 3-way adjustable system that allows precise tuning of rebound, high-speed compression, and low-speed compression. The rebound adjustment offers 12 positions, while the high-speed compression also provides 12 settings, and the low-speed compression has 14 positions. All adjustments are made via external canisters, enabling independent control for optimal handling and stability. Constructed with durable materials, these coilovers deliver superior performance, responsiveness, and durability under demanding conditions, making them ideal for serious track enthusiasts and competitive racing.

Designed to fit 1987-1991 Porsche 944 2.5 S (Type 2) models, these coilovers are a direct upgrade for stock suspension components. They are suitable for track days, racing, or high-performance street driving, offering adjustable ride height and damping characteristics to suit various driving styles and conditions. Installation is a bolt-on process, compatible with the original chassis and suspension mounting points. The kit includes the coilover units with external canisters for compression adjustments, providing comprehensive suspension tuning capabilities. These coilovers are perfect for drivers seeking enhanced handling, reduced body roll, and improved cornering performance on both street and track environments.

Overview

For the best performance on the track, AST Suspension designed the Competition 3-way adjustable series to fit the 1987-1991 Porsche 944 2.5 S (Type 2) The 5300 Series shock absorbers are rebound adjustable in 12 positions on the strut.

The high speed compression is adjustable in 12 positions and the low speed compression is adjustable in 14 positions. Both compression adjustments are made using an external canister. All adjusters work completely independent.

Many years of technical knowledge, testing and experience has been refined, fettled and brought together to create a perfect balance between the choice of springs and the corresponding damping characteristics. This makes it a versatile product for every customer. The 5300 series shock absorbers are the best solution for every race team. Once installed, the AST shock absorbers are easy to setup, highly reliable and require low maintenance during the season because of the high grade of materials used.

All of this together makes the 5300 series shock absorbers a championship winning damper, over and over again. The AST 5300 Suspension is worldwide renowned for its performance at every level.

Features

  • High end, track ready suspension.
  • Rebound, Low & Hi Speed Compression Adjustable ('Triples'), with a remote reservoir.
  • Remote reservoirs allow additional travel, heat dissipation and oil/nitrogen gas capacity.
  • 4.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) 44.5mm inverted shafts.
  • Optional DDP piston (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully serviceable and rebuildable.
  • Revalveable for specific characteristics.
Specifications
  • Part Number: RAC-P2013S
  • Product: AST 5300 Series
  • Adjustment: 3 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Bracket McPherson strut / Rear: Eye 2 eye strut
  • Model Years: 1987-1991
  • Make: Porsche
  • Model: 944
  • Chassis: Type 2
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Not available (Eye to Eye)
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 1987 Porsche 944 2.5 S (Type 2)
  • 1988 Porsche 944 2.5 S (Type 2)
  • 1989 Porsche 944 2.5 S (Type 2)
  • 1990 Porsche 944 2.5 S (Type 2)
  • 1991 Porsche 944 2.5 S (Type 2)
