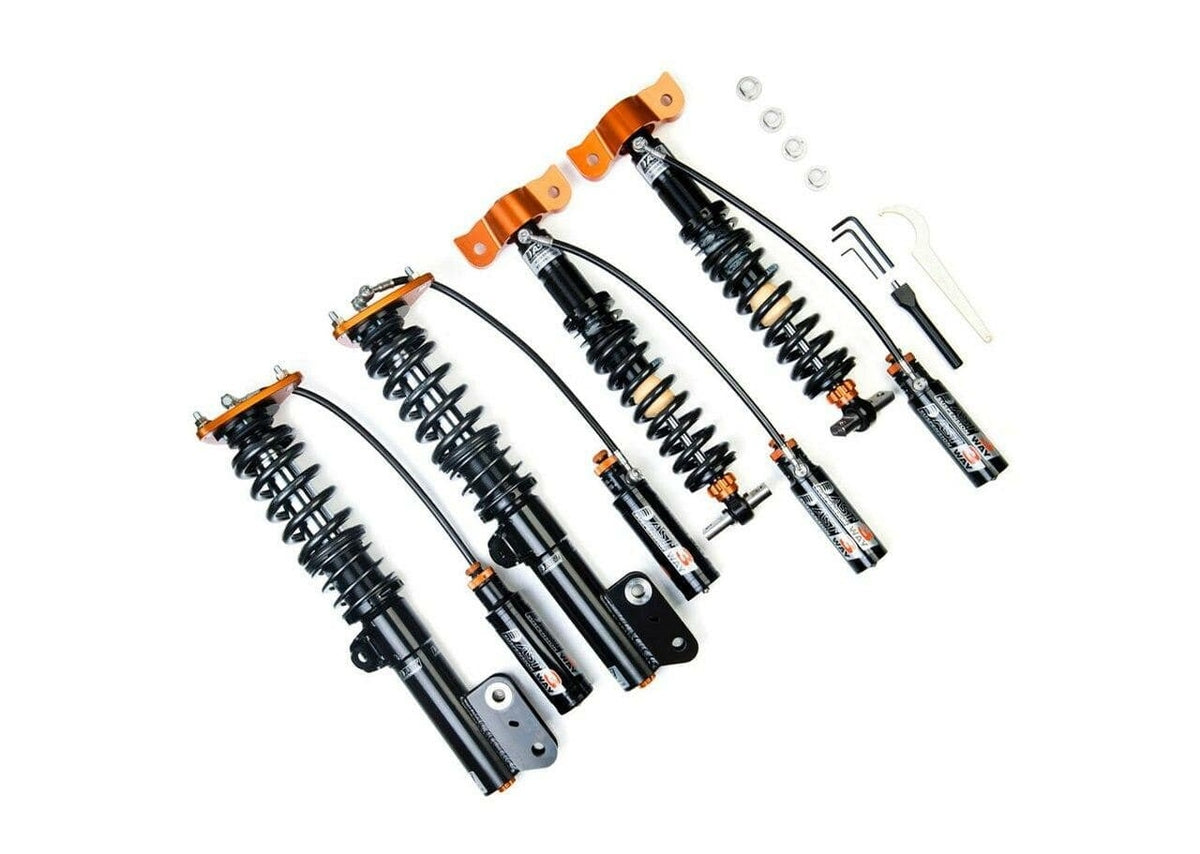

• AST Suspension 5300 Series Coilovers - 1995-2000 Honda Civic 1.4 (MA8)
1 1

AST Suspension 5300 Series Coilovers - 1995-2000 Honda Civic 1.4 (MA8)

AST Suspension 5300 Series Coilovers - 1995-2000 Honda Civic 1.4 (MA8)

RAC-H1005S

Out of stock

$6,008.33 USD
$7,210.00 USD $6,008.33 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST Suspension 5300 Series Coilovers are high-performance, competition-grade suspension components designed specifically for the 1995-2000 Honda Civic 1.4 (MA8). These coilovers feature a 3-way adjustable damping system, allowing precise tuning for optimal track performance. The shock absorbers are equipped with rebound adjustment in 12 positions, high-speed compression adjustment in 12 positions, and low-speed compression adjustment in 14 positions, all accessible via external canisters. This independent adjustment capability provides enthusiasts with extensive control over ride characteristics, enhancing handling, stability, and responsiveness. Constructed with durable materials and engineered for precision, these coilovers deliver consistent performance under demanding conditions, making them ideal for competitive racing or serious track days.

Designed for 1995-2000 Honda Civic models with the MA8 chassis code, these coilovers are a direct bolt-on upgrade for stock suspension systems. They are intended for track use, offering adjustable damping to suit various driving styles and conditions. Installation involves replacing the factory struts with these coilovers, which include all necessary components for a straightforward setup. The independent adjusters allow for tailored tuning, whether for aggressive cornering or smooth street driving. Suitable for enthusiasts seeking maximum performance, these coilovers improve handling dynamics and allow for precise suspension setup to meet specific track or street requirements.

Overview

For the best performance on the track, AST Suspension designed the Competition 3-way adjustable series to fit the 1995-2000 Honda Civic 1.4 (MA8) The 5300 Series shock absorbers are rebound adjustable in 12 positions on the strut.

The high speed compression is adjustable in 12 positions and the low speed compression is adjustable in 14 positions. Both compression adjustments are made using an external canister. All adjusters work completely independent.

Many years of technical knowledge, testing and experience has been refined, fettled and brought together to create a perfect balance between the choice of springs and the corresponding damping characteristics. This makes it a versatile product for every customer. The 5300 series shock absorbers are the best solution for every race team. Once installed, the AST shock absorbers are easy to setup, highly reliable and require low maintenance during the season because of the high grade of materials used.

All of this together makes the 5300 series shock absorbers a championship winning damper, over and over again. The AST 5300 Suspension is worldwide renowned for its performance at every level.

Features

  • High end, track ready suspension.
  • Rebound, Low & Hi Speed Compression Adjustable ('Triples'), with a remote reservoir.
  • Remote reservoirs allow additional travel, heat dissipation and oil/nitrogen gas capacity.
  • 4.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) 44.5mm inverted shafts.
  • Optional DDP piston (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully serviceable and rebuildable.
  • Revalveable for specific characteristics.
Specifications
  • Part Number: RAC-H1005S
  • Product: AST 5300 Series
  • Adjustment: 3 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 50% / Rear = 50%
  • Strut/Shock Type: Front: Double Wishbone strut / Rear: Double Wishbone strut
  • Model Years: 1995-2000
  • Make: Honda
  • Model: Civic
  • Chassis: MA8
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Included
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 1995 Honda Civic 1.4 (MA8)
  • 1996 Honda Civic 1.4 (MA8)
  • 1997 Honda Civic 1.4 (MA8)
  • 1998 Honda Civic 1.4 (MA8)
  • 1999 Honda Civic 1.4 (MA8)
  • 2000 Honda Civic 1.4 (MA8)
