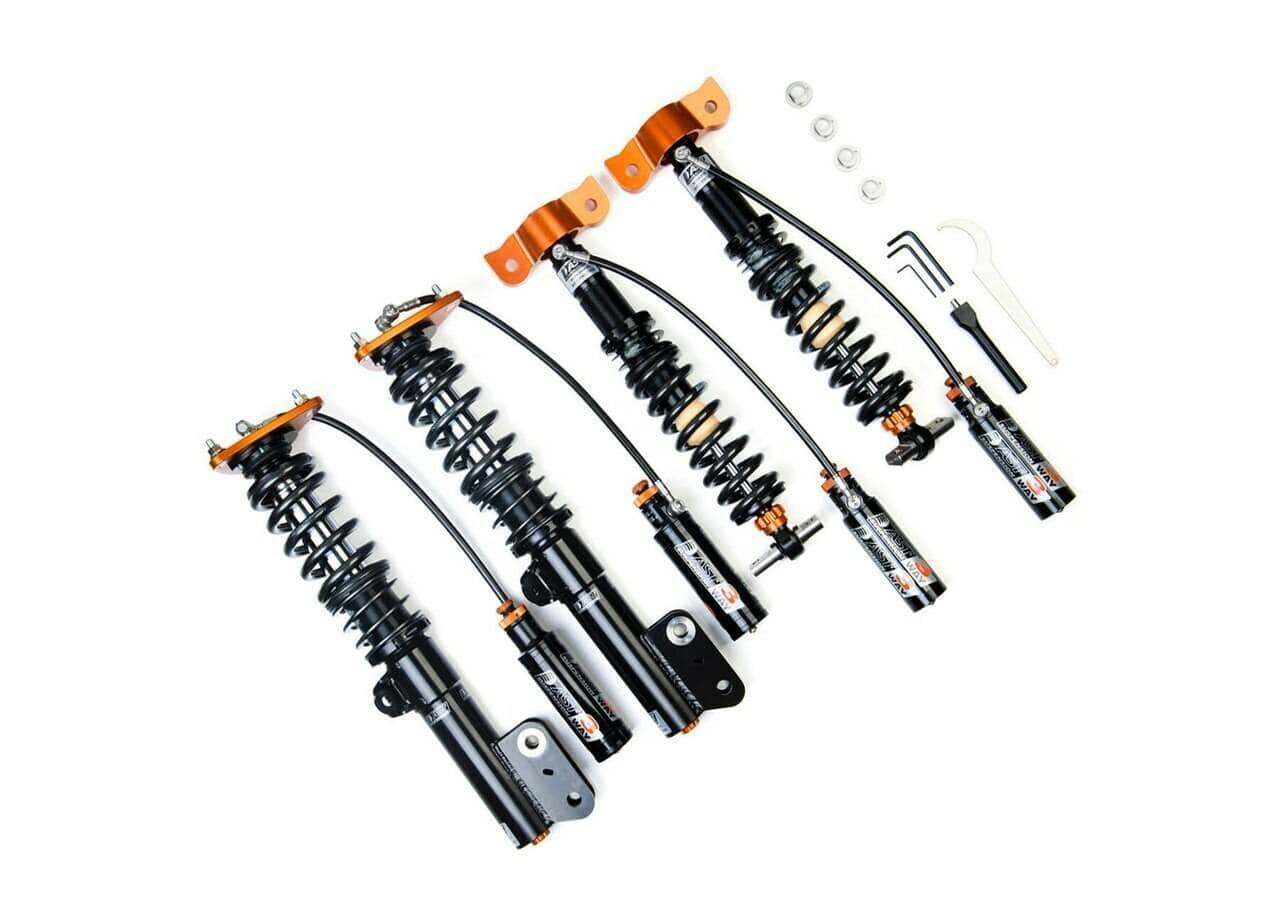

• AST Suspension 5300 Series Coilovers - 1997-2005 Porsche 911 C2 2WD (996)
1 1

AST Suspension 5300 Series Coilovers - 1997-2005 Porsche 911 C2 2WD (996)

AST Suspension 5300 Series Coilovers - 1997-2005 Porsche 911 C2 2WD (996)

RAC-P2211S

Out of stock

$8,641.67 USD
$10,370.00 USD $8,641.67 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST 5300 Series Coilovers are high-performance suspension components designed specifically for the 1997-2005 Porsche 911 Carrera 2 (996). These coilovers are engineered for track use, featuring fully adjustable rebound, high-speed compression, and low-speed compression settings. The rebound adjustment offers 12 positions, while the high-speed compression has 12 positions and the low-speed compression has 14 positions, all accessible via external canisters. Each adjustment functions independently, allowing precise tuning for optimal handling and stability. Constructed with durable materials and advanced engineering, these coilovers deliver improved responsiveness, reduced body roll, and enhanced cornering performance, making them ideal for enthusiasts seeking a competitive edge on the track.

Designed to fit 1997-2005 Porsche 911 Carrera 2 (996) models, these coilovers are a direct upgrade for the factory suspension. They are suitable for track days, spirited driving, or performance tuning, providing a customizable ride height and damping setup. Installation involves replacing the stock shocks with these coilovers, which are engineered for bolt-on compatibility. The kit includes the necessary coilover units with external canisters for compression adjustments. These coilovers are compatible with various chassis codes within the specified year range and are intended for drivers seeking precise suspension tuning for high-performance driving scenarios.

Overview

For the best performance on the track, AST Suspension designed the Competition 3-way adjustable series to fit the 1997-2005 Porsche 911 C2 2WD (996) The 5300 Series shock absorbers are rebound adjustable in 12 positions on the strut.

The high speed compression is adjustable in 12 positions and the low speed compression is adjustable in 14 positions. Both compression adjustments are made using an external canister. All adjusters work completely independent.

Many years of technical knowledge, testing and experience has been refined, fettled and brought together to create a perfect balance between the choice of springs and the corresponding damping characteristics. This makes it a versatile product for every customer. The 5300 series shock absorbers are the best solution for every race team. Once installed, the AST shock absorbers are easy to setup, highly reliable and require low maintenance during the season because of the high grade of materials used.

All of this together makes the 5300 series shock absorbers a championship winning damper, over and over again. The AST 5300 Suspension is worldwide renowned for its performance at every level.

Features

  • High end, track ready suspension.
  • Rebound, Low & Hi Speed Compression Adjustable ('Triples'), with a remote reservoir.
  • Remote reservoirs allow additional travel, heat dissipation and oil/nitrogen gas capacity.
  • 4.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) 44.5mm inverted shafts.
  • Optional DDP piston (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully serviceable and rebuildable.
  • Revalveable for specific characteristics.
Specifications
  • Part Number: RAC-P2211S
  • Product: AST 5300 Series
  • Adjustment: 3 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 60% / Rear = 40%
  • Strut/Shock Type: Front: Clamp McPherson strut / Rear: Eye 2 pin strut
  • Model Years: 1997-2005
  • Make: Porsche
  • Model: 911
  • Chassis: 996
  • Spring Kit: Included
  • Front Top Mounts: Included
  • Rear Top Mounts: Included
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? Front QDC included
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 1997 Porsche 911 C2 2WD (996)
  • 1998 Porsche 911 C2 2WD (996)
  • 1999 Porsche 911 C2 2WD (996)
  • 2000 Porsche 911 C2 2WD (996)
  • 2001 Porsche 911 C2 2WD (996)
  • 2002 Porsche 911 C2 2WD (996)
  • 2003 Porsche 911 C2 2WD (996)
  • 2004 Porsche 911 C2 2WD (996)
  • 2005 Porsche 911 C2 2WD (996)
