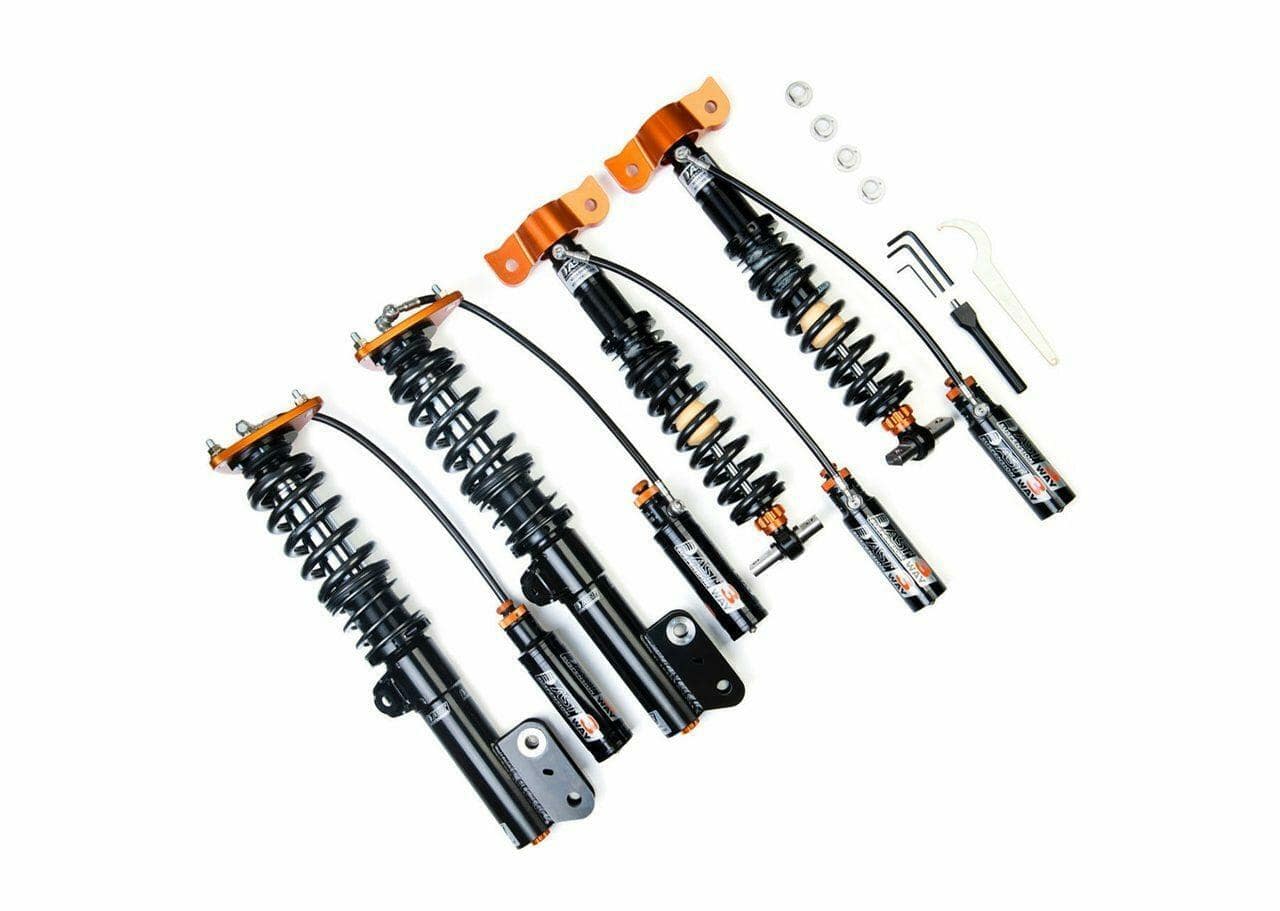

AST Suspension 5300 Series Coilovers - 2001-2011 Lotus Elise (S2)

AST Suspension 5300 Series Coilovers - 2001-2011 Lotus Elise (S2)

RAC-L1102S

Out of stock

$4,500.00 USD
$5,400.00 USD $4,500.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AST Suspension 5300 Series Coilovers for the 2001-2011 Lotus Elise (S2) are high-performance suspension components designed for track enthusiasts and demanding drivers. These coilovers feature a fully adjustable setup, including rebound adjustment in 12 positions, high-speed compression in 12 positions, and low-speed compression in 14 positions, all accessible via external canisters. The independent adjustment of each parameter allows for precise tuning to optimize handling, stability, and ride quality under various driving conditions. Constructed with durable materials and engineered for competitive performance, these coilovers deliver improved cornering, reduced body roll, and enhanced responsiveness, making them ideal for track days and spirited driving.

Designed specifically for the 2001-2011 Lotus Elise (S2), these coilovers are a direct bolt-on upgrade that replaces the stock suspension components. They are suitable for both street and track use, providing a customizable ride height and damping setup to suit individual preferences. The kit includes the necessary coilover units with adjustable canisters, enabling comprehensive suspension tuning. Compatibility is limited to the specified model years and chassis, ensuring optimal fitment and performance. Whether for competitive racing or high-performance street driving, these AST coilovers offer a versatile and reliable suspension upgrade.

Overview

For the best performance on the track, AST Suspension designed the Competition 3-way adjustable series to fit the 2001-2011 Lotus Elise (S2) The 5300 Series shock absorbers are rebound adjustable in 12 positions on the strut.

The high speed compression is adjustable in 12 positions and the low speed compression is adjustable in 14 positions. Both compression adjustments are made using an external canister. All adjusters work completely independent.

Many years of technical knowledge, testing and experience has been refined, fettled and brought together to create a perfect balance between the choice of springs and the corresponding damping characteristics. This makes it a versatile product for every customer. The 5300 series shock absorbers are the best solution for every race team. Once installed, the AST shock absorbers are easy to setup, highly reliable and require low maintenance during the season because of the high grade of materials used.

All of this together makes the 5300 series shock absorbers a championship winning damper, over and over again. The AST 5300 Suspension is worldwide renowned for its performance at every level.

Features

  • High end, track ready suspension.
  • Rebound, Low & Hi Speed Compression Adjustable ('Triples'), with a remote reservoir.
  • Remote reservoirs allow additional travel, heat dissipation and oil/nitrogen gas capacity.
  • 4.5mm diameter shaft struts are inverted and offer exceptional strength, which in turn reduces geometry change under corner and braking monoevers.
  • Aluminum cylinder, threaded body shocks, factory mounting style
  • New low friction seal on all AST dampers.
  • Spherical lower eye shock mounts.
  • Reservoir with hose or piggyback (piggyback examples: 2008 STI; BMW E36 rears).
  • Spherical upper shock mount assemblies.
  • Synthetic hydraulic fluid.
  • Optional DLC (diamond like carbon) 44.5mm inverted shafts.
  • Optional DDP piston (double digressive piston).
    • Double Digressive Pistons are recommended for use on the non-driven wheels.
    • 4WD/FWD vehicles: DD pistons for both rear axle struts/shocks.
    • RWD vehicles: DD pistons for both front axle struts/shocks.
  • Fully serviceable and rebuildable.
  • Revalveable for specific characteristics.
Specifications
  • Part Number: RAC-L1102S
  • Product: AST 5300 Series
  • Adjustment: 3 Way
  • System: Coil Over
  • Front/Rear Ratio: Front = 50% / Rear = 50%
  • Strut/Shock Type: Front: Double Wishbone strut / Rear: Double Wishbone strut
  • Model Years: 2001-2011
  • Make: Lotus
  • Model: Elise
  • Chassis: S2
  • Spring Kit: Included
  • Front Top Mounts: Not available (Eye to Eye)
  • Rear Top Mounts: Not available (Eye to Eye)
  • Adjustable Front Droplinks Available? No
  • Adjustable Front Droplinks Required? No
  • Adjustable Rear Droplinks Available? No
  • Adjustable Rear Droplinks Required? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • DLC Coated Shafts Included? No
  • DLC Coated Shafts Available? Yes
  • QDC Included? No
  • TUV Approved?
  • Comments: -
Vehicle Fitment
  • 2001 Lotus Elise (S2)
  • 2002 Lotus Elise (S2)
  • 2003 Lotus Elise (S2)
  • 2004 Lotus Elise (S2)
  • 2005 Lotus Elise (S2)
  • 2006 Lotus Elise (S2)
  • 2007 Lotus Elise (S2)
  • 2008 Lotus Elise (S2)
  • 2009 Lotus Elise (S2)
  • 2010 Lotus Elise (S2)
  • 2011 Lotus Elise (S2)
