AutoMeter American Muscle

2010–2025 All Vehicles with 12V or 16V Negative Ground Electrical Systems

Part #: 1294

Overview

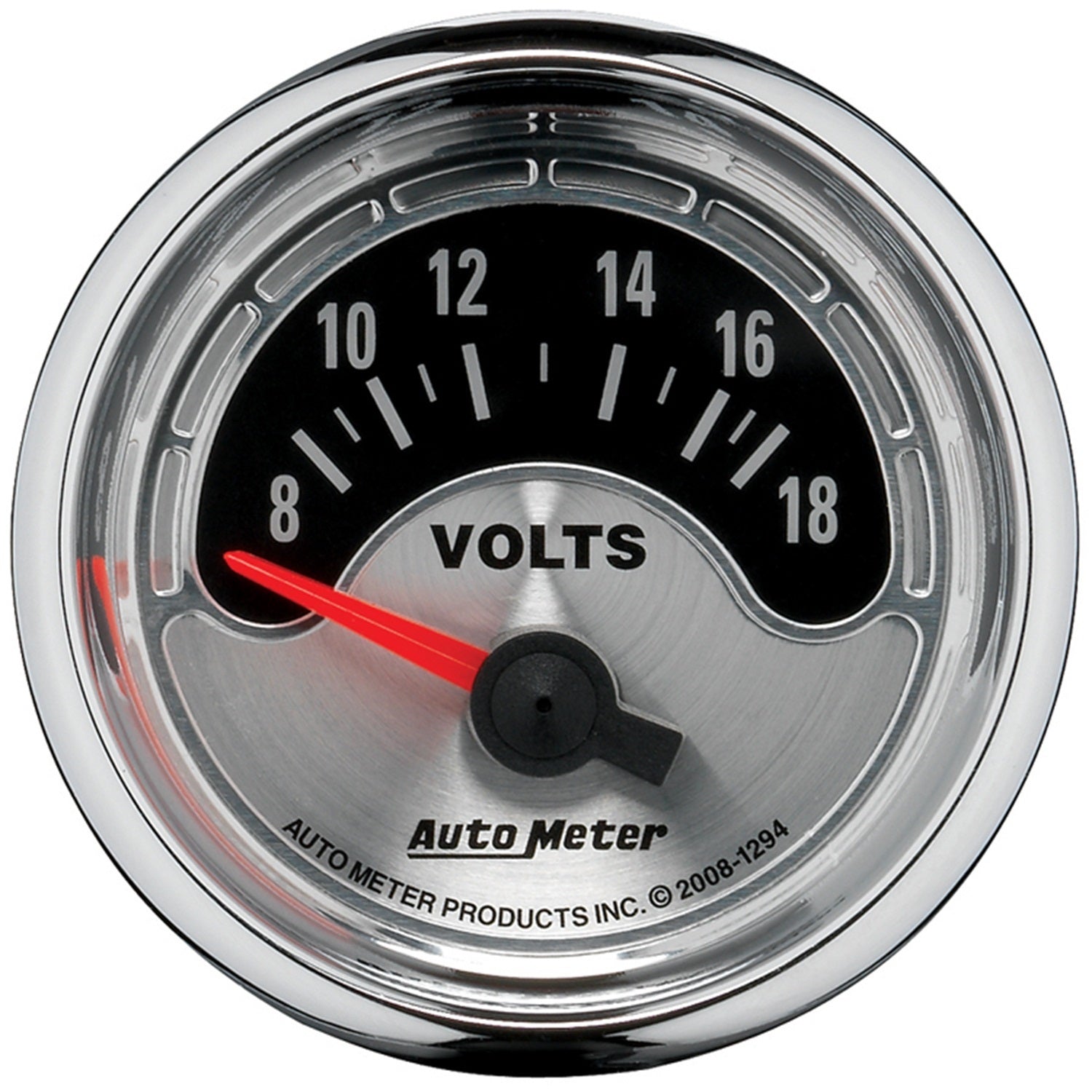

The AutoMeter American Muscle 52mm Short Sweep Electric 18V Voltmeter Gauge is designed to provide precise and reliable monitoring of your vehicle's electrical system. Whether you're a street enthusiast, a performance racer, or a daily driver, maintaining optimal electrical health is crucial for ensuring your vehicle runs smoothly and avoiding unexpected breakdowns. This voltmeter offers a straightforward way to keep an eye on your voltage levels, helping you detect potential electrical issues before they become serious problems.

Featuring a patented air core meter movement, this gauge delivers category-defining accuracy across a voltage range of 8 to 18 volts. Its compact 52mm size fits seamlessly into your dashboard or gauge pod, providing clear and easy-to-read readings at a glance. Designed for ease of installation and dependable performance, the AutoMeter American Muscle voltmeter is an essential addition for anyone looking to safeguard their vehicle's electrical system while adding a classic, performance-oriented look to their interior.

Key Features

The AutoMeter American Muscle Volt Gauge is packed with features that make it a top choice for automotive enthusiasts:

• Patented air core meter movement ensures precise and consistent voltage readings, with no mechanical damping or needle flutter.
• Operates accurately across a wide voltage range of 8 to 18 volts, making it compatible with nearly all street and race vehicles with negative ground electrical systems.
• Short sweep design provides quick, responsive readings, allowing you to monitor your electrical system in real-time.
• Built with high-quality materials and a durable construction to withstand the rigors of racing and daily driving environments.
• Classic American muscle styling complements vintage and modern vehicles alike, adding a performance-oriented aesthetic to your dashboard.
• Simple installation process with standard 52mm size fits most gauge pods and mounting locations.
• Compatible with 12V and 16V systems, making it versatile for a wide range of vehicle configurations.
• Designed to help prevent electrical failures, battery drain, and alternator issues by providing early warning signs through accurate voltage monitoring.
• Backlit display ensures visibility in all lighting conditions, enhancing safety and convenience during night driving.

Construction & Design

The AutoMeter American Muscle voltmeter features a robust and reliable design built to last. Its core component is a patented air core movement, which eliminates the need for traditional coil-based mechanisms, resulting in a more accurate and responsive gauge. The housing is crafted from high-quality materials that resist vibration and temperature fluctuations, ensuring consistent performance over time. The compact 52mm diameter allows for flexible installation options, whether in a custom dash, gauge pod, or OEM location.

The gauge's face is designed with clear, easy-to-read markings and a classic styling that complements American muscle cars and performance vehicles. The backlit illumination enhances visibility during nighttime driving, providing a crisp display that can be read at a glance. Its simple yet durable construction makes it suitable for both street use and racing applications, where reliability and precision are paramount.

Performance & Sound

While primarily a monitoring instrument, the AutoMeter American Muscle voltmeter provides instant and accurate readings of your vehicle's electrical system, helping you maintain optimal voltage levels. Proper voltage management supports better engine performance, longer battery life, and overall electrical system health. Its quick response time ensures you can detect fluctuations or drops in voltage immediately, allowing for prompt troubleshooting or adjustments.

Installation & Fitment

Installing the AutoMeter American Muscle voltmeter is straightforward and designed for a bolt-on experience. It fits standard 52mm gauge openings, making it compatible with most aftermarket gauge pods and dash panels. No cutting or complex wiring is required beyond connecting the power and ground wires, which are clearly labeled for easy installation. The gauge is powered by your vehicle's electrical system and does not require any tuning or modifications to your vehicle's wiring harness.

• Simple plug-and-play installation with standard 52mm mounting hardware.
• Requires connection to a switched 12V or 16V power source and ground.
• No additional tuning or calibration needed for accurate readings.

With its durable construction, precise measurement, and classic styling, the AutoMeter American Muscle voltmeter is an excellent choice for automotive enthusiasts who want to keep their electrical system in check while enhancing their vehicle's interior aesthetic.

What's Included

• AutoMeter American Muscle 52mm Short Sweep Electric Volt Gauge
• Installation hardware and mounting bracket
• Wiring harness with power and ground connections
• User manual and installation instructions

Ideal For

• Performance car owners seeking reliable electrical monitoring
• Muscle car enthusiasts restoring or customizing American vehicles
• Daily drivers who want to prevent electrical failures
• Race car teams requiring precise voltage readings under demanding conditions

Emissions Note

This product is designed for off-road and racing use only and may not be legal for street use in all jurisdictions. Please check local regulations before installation.
