AutoMeter Auto Meter Gauge Quad 5in 240E-33F Elec Old Tyme Black (1710)

AutoMeter Auto Meter Gauge Quad 5in 240E-33F Elec Old Tyme Black (1710)

1710

Out of stock

$244.73 USD
$285.45 USD $244.73 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

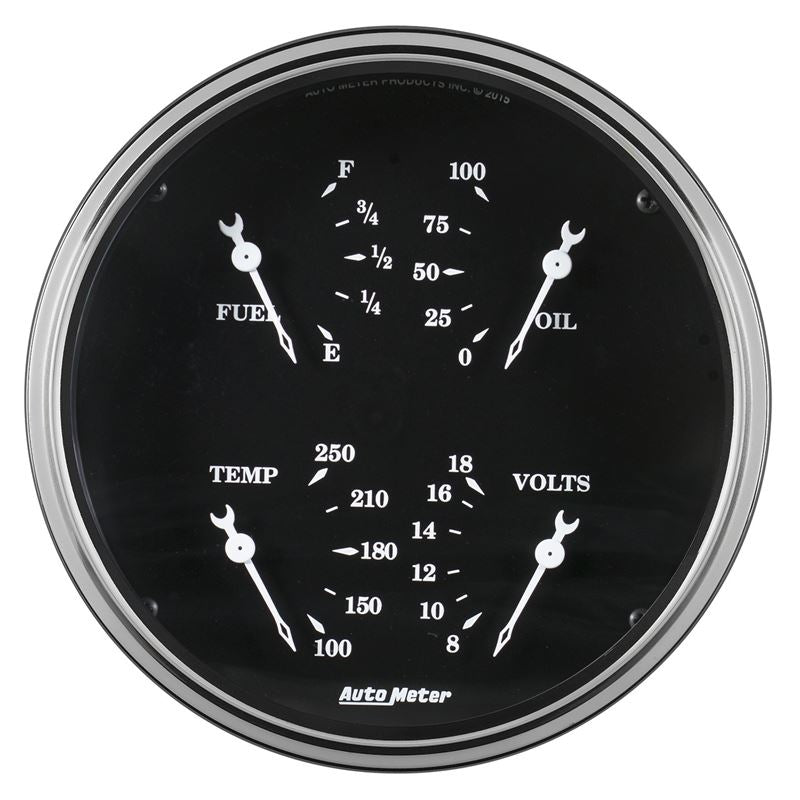

The AutoMeter Auto Meter Gauge Quad 5in 240E-33F is a compact, multi-function electrical gauge cluster designed to optimize limited dashboard space while maintaining a clean, professional appearance. Featuring individual air core meter movements for each function, this quad gauge provides precise and reliable readings essential for performance monitoring. It includes a single-wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender, ensuring accurate data collection. The voltmeter is calibrated to read from 8 to 18 volts on negative ground electrical systems, and the fuel level gauge operates within a resistance range of 240 ohms (empty) to 33 ohms (full). Constructed with a classic Old Tyme Black face and a 5-inch diameter, this gauge cluster combines durability with a vintage aesthetic.

Designed for installation in various vehicles, the AutoMeter Quad Gauge is suitable for a wide range of applications requiring comprehensive engine monitoring. It is compatible with most 12-volt negative ground systems and serves as a direct replacement or upgrade for existing gauge clusters. Ideal for street, track, or custom builds, this gauge set allows for easy installation with included sensors and wiring. Its compact design makes it suitable for tight dashboard spaces, providing essential real-time data for performance tuning and vehicle diagnostics. The kit includes the necessary sensors and mounting hardware for straightforward setup.

Overview

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).

Features:

  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
  • Gauge kit includes 1/8in NPT pressure sender, 1/4in NPT adapter, 1/8in NPT temperature sender, 3/8in and 1/2in NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Traditional incandescent lighting illuminates around the perimeter of the dial
