AutoMeter Braided Stainless Steel Line

6ft Length -3AN and 1/8in NPTF Fittings

Part #: 3236

Overview

The AutoMeter Braided Stainless Steel Line is a versatile and durable fluid transfer solution designed for high-performance automotive applications. Whether you're customizing your fuel system, oil lines, or other fluid connections, this 6-foot braided stainless steel hose provides a reliable and flexible option that withstands demanding conditions. Built with quality and precision, it caters to enthusiasts and professionals seeking a robust, leak-resistant, and temperature-resistant line for their vehicle.

Ideal for performance cars, race vehicles, or custom builds, this braided line ensures secure fluid transfer while maintaining excellent resistance to heat, pressure, and corrosion. Its construction helps support consistent fluid flow, reducing the risk of leaks or failures during spirited driving or extended use. With its high-pressure rating, it is suitable for various high-performance fluid systems, providing peace of mind and long-lasting durability.

Key Features

AutoMeter's braided stainless steel line offers several key features that make it a top choice for automotive fluid transfer needs:

• Constructed with PTFE-lined hose, providing excellent chemical resistance and low friction for smooth fluid flow.
• Stainless steel braid (Type 304) enhances durability, abrasion resistance, and heat shielding, ensuring longevity in harsh environments.
• Maximum operating pressure of 3000 PSI and burst pressure of 12,000 PSI, making it suitable for high-pressure fuel, oil, or coolant systems.
• Operating temperature range from -65°F to 450°F, capable of handling extreme engine bay temperatures.
• Includes a comprehensive set of fittings and adapters, such as 1/8" NPT female right angle, -3AN male, and various adapters, allowing versatile installation options.
• Designed for ease of installation with compatible fittings and pass-through grommet for firewall or chassis routing.
• Resistant to most automotive fluids, including fuel, oil, coolant, and more, ensuring reliable performance over time.
• Flexible yet sturdy construction facilitates routing through tight spaces without kinking or damage.
• Perfect for custom fuel lines, oil cooler lines, or other fluid transfer needs in high-performance or racing applications.

Construction & Design

The AutoMeter braided stainless steel line features a high-quality PTFE inner hose, which is known for its chemical inertness and low permeability. The PTFE lining ensures that fluids flow smoothly with minimal pressure drop, while resisting swelling or degradation from aggressive fluids. Surrounding the inner hose is a Type 304 stainless steel braid, which provides exceptional strength, abrasion resistance, and heat shielding. This combination results in a flexible, durable, and reliable hose capable of withstanding extreme conditions.

The fittings included are crafted from corrosion-resistant materials, with options such as 1/8" NPT female right angle and -3AN male fittings, allowing for secure, leak-proof connections. The fittings are designed for easy installation and compatibility with standard automotive fluid systems. The hose length of 6 feet offers ample flexibility for custom routing, and the pass-through grommet facilitates clean firewall or chassis pass-throughs, reducing the risk of chafing or damage.

Performance & Sound

This braided stainless steel line is engineered to support high-pressure fluid transfer with minimal flow restriction. Its construction ensures consistent performance under demanding conditions, making it suitable for high-performance and racing applications. While it does not produce any audible sound, its robust design helps prevent leaks and failures that could lead to operational issues or safety concerns.

Installation & Fitment

The AutoMeter braided stainless steel line is designed for straightforward, bolt-on installation. It uses standard fittings compatible with most automotive fluid systems, and the included adapters provide versatile connection options. No special tools or modifications are typically required, making it suitable for both professional installers and experienced DIY enthusiasts. The hose's flexibility allows it to be routed through tight spaces, and the high-quality fittings ensure a secure, leak-free connection.

• Includes all necessary fittings and adapters for a complete installation.
• Designed for high-pressure fluid systems such as fuel, oil, or coolant lines.
• No cutting, drilling, or special tuning required for installation.

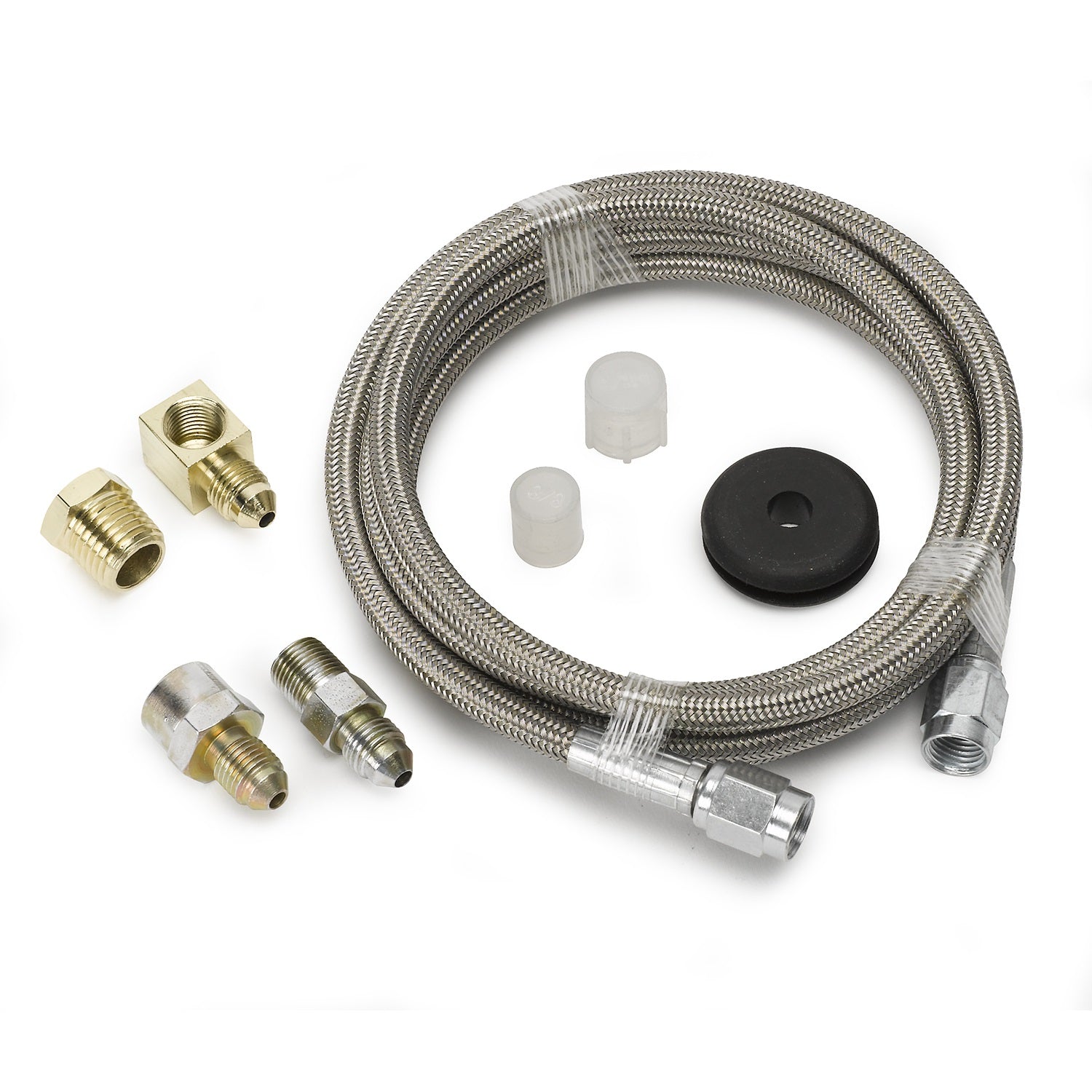

What's Included

• 6 feet of #3 braided stainless steel hose with PTFE lining
• Firewall pass-through grommet
• 1/8" NPT female right angle fitting
• -3AN male fitting
• -3AN male to 1/8" NPT male fitting
• -3AN male to 1/8" NPT female fitting
• 1/8" NPT to 1/4" NPT adapter bushing
• All necessary clamps and hardware for installation

Ideal For

• Performance car enthusiasts building custom fuel or oil systems
• Race vehicles requiring high-pressure, reliable fluid transfer lines
• Custom automotive projects demanding durable, high-temperature hoses
• Anyone needing a flexible, high-quality braided stainless steel line for fluid transfer

Emissions Note

This product is designed for use in high-performance and racing applications. It is not CARB-compliant and is intended for off-road or track use only. Please verify local regulations before installation on a street vehicle.
