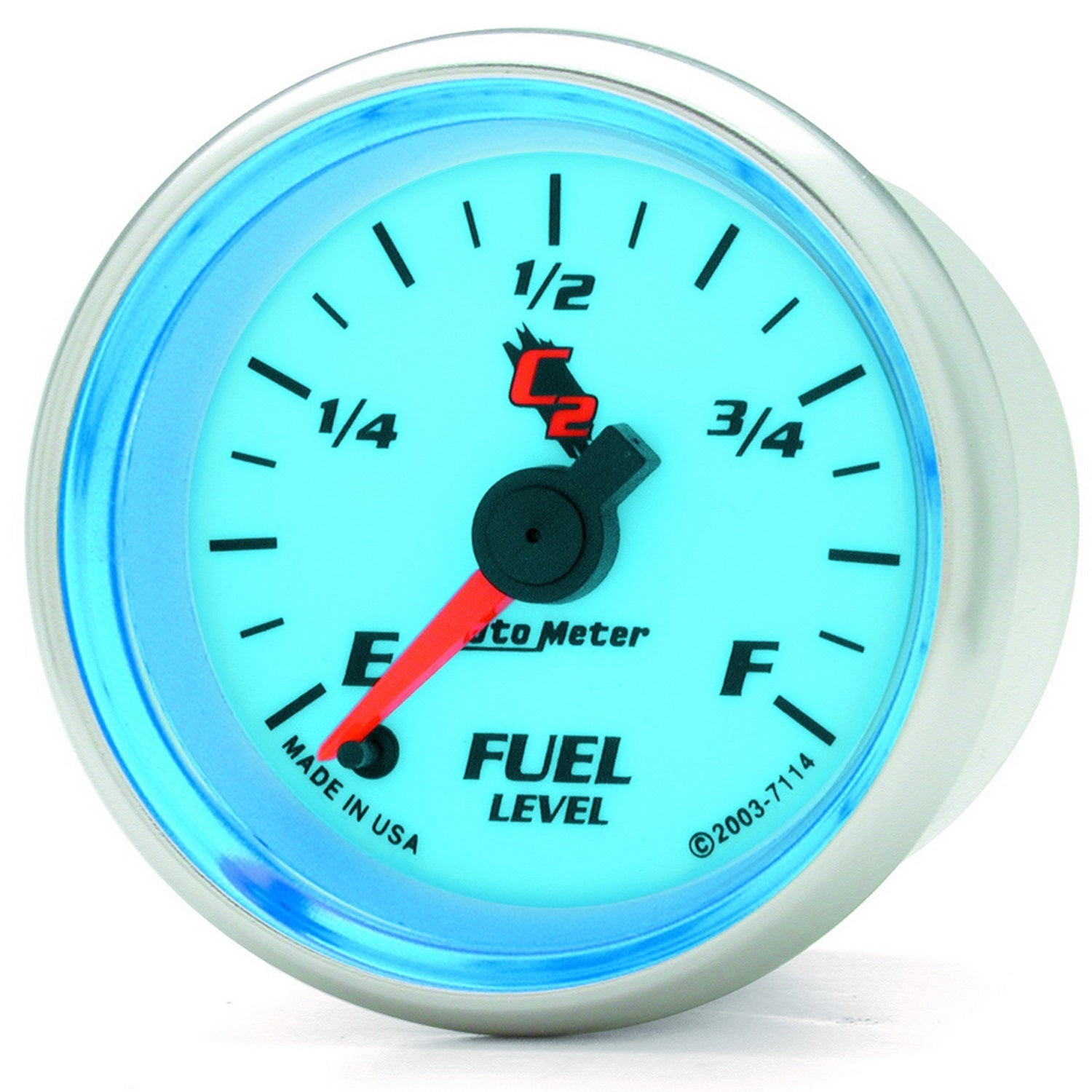

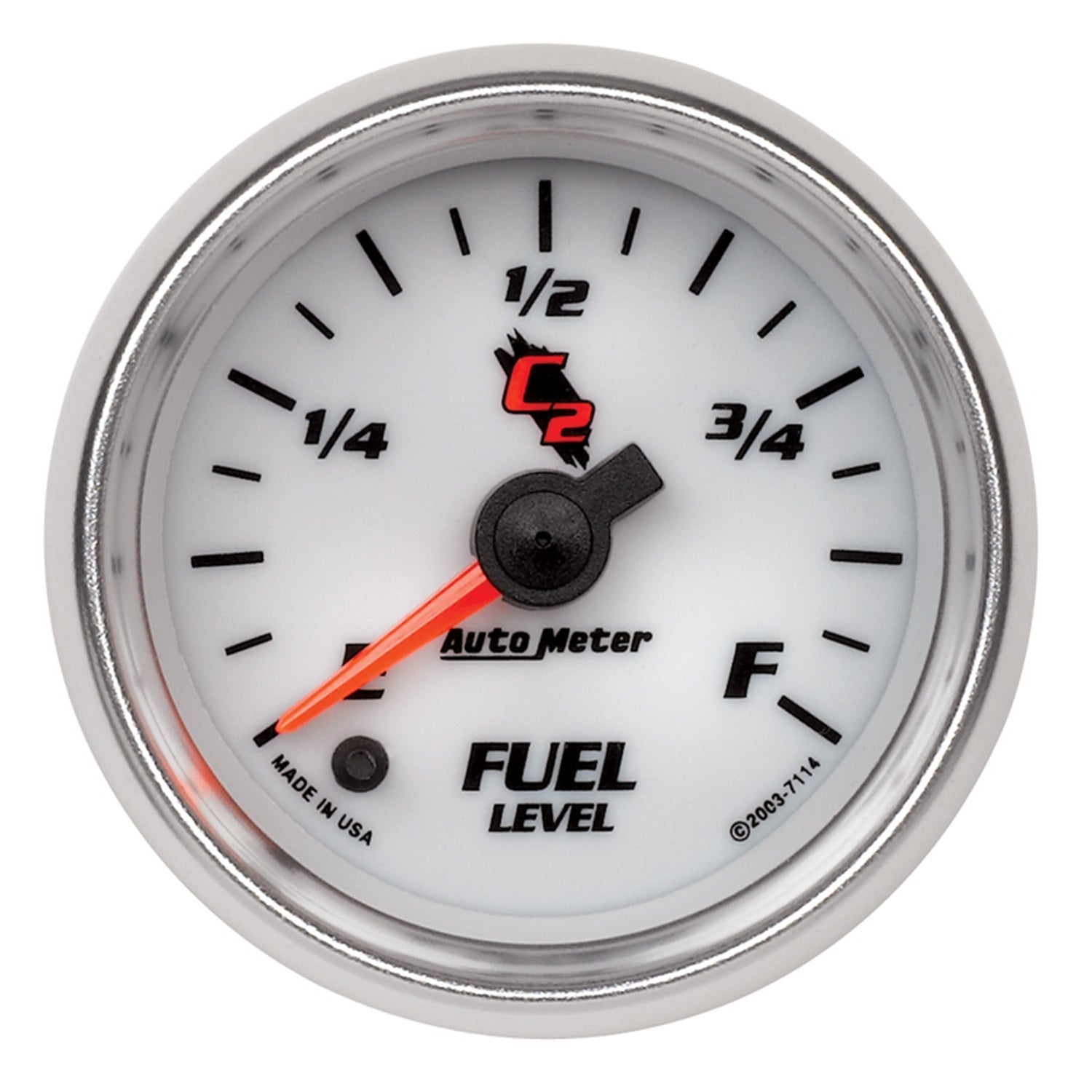

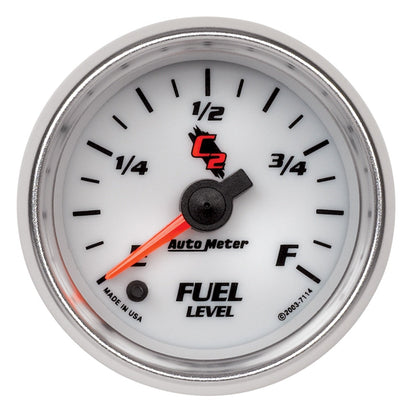

AutoMeter C2 52mm Electronic Programmable Empty to Full Fuel Level Gauge (7114)

AutoMeter C2 52mm Electronic Programmable Empty to Full Fuel Level Gauge (7114)

7114

Out of stock

$158.26 USD
$184.59 USD $158.26 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AutoMeter C2 52mm Electronic Programmable Fuel Level Gauge is a digital instrument designed to accurately monitor fuel levels in a vehicle. Featuring an electronic stepper motor, this gauge offers precise readings and easy configuration through its adjustable resistance range. It simplifies installation and calibration by providing seven factory-stored common configurations, ensuring compatibility with a wide variety of fuel sender units. For applications outside these presets, an innovative custom calibration mode allows users to tailor the gauge to their specific sender. Constructed with durable materials suitable for automotive environments, this gauge delivers reliable performance and clear visibility, making it an ideal upgrade for enthusiasts seeking accurate fuel monitoring.

Designed for 52mm diameter dashboards, the AutoMeter C2 fuel level gauge is suitable for a broad range of vehicles and applications. It is compatible with most fuel senders, thanks to its configurable resistance range, and is suitable for both street and track use. Installation involves straightforward wiring and calibration, with factory presets covering the majority of applications. The gauge does not include a fuel sender, so compatibility with existing senders should be verified. Whether used for daily driving or performance tuning, this programmable fuel level gauge provides precise, real-time fuel data, enhancing vehicle monitoring and driver confidence.

Overview

Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.

Features:

  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
  • Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up

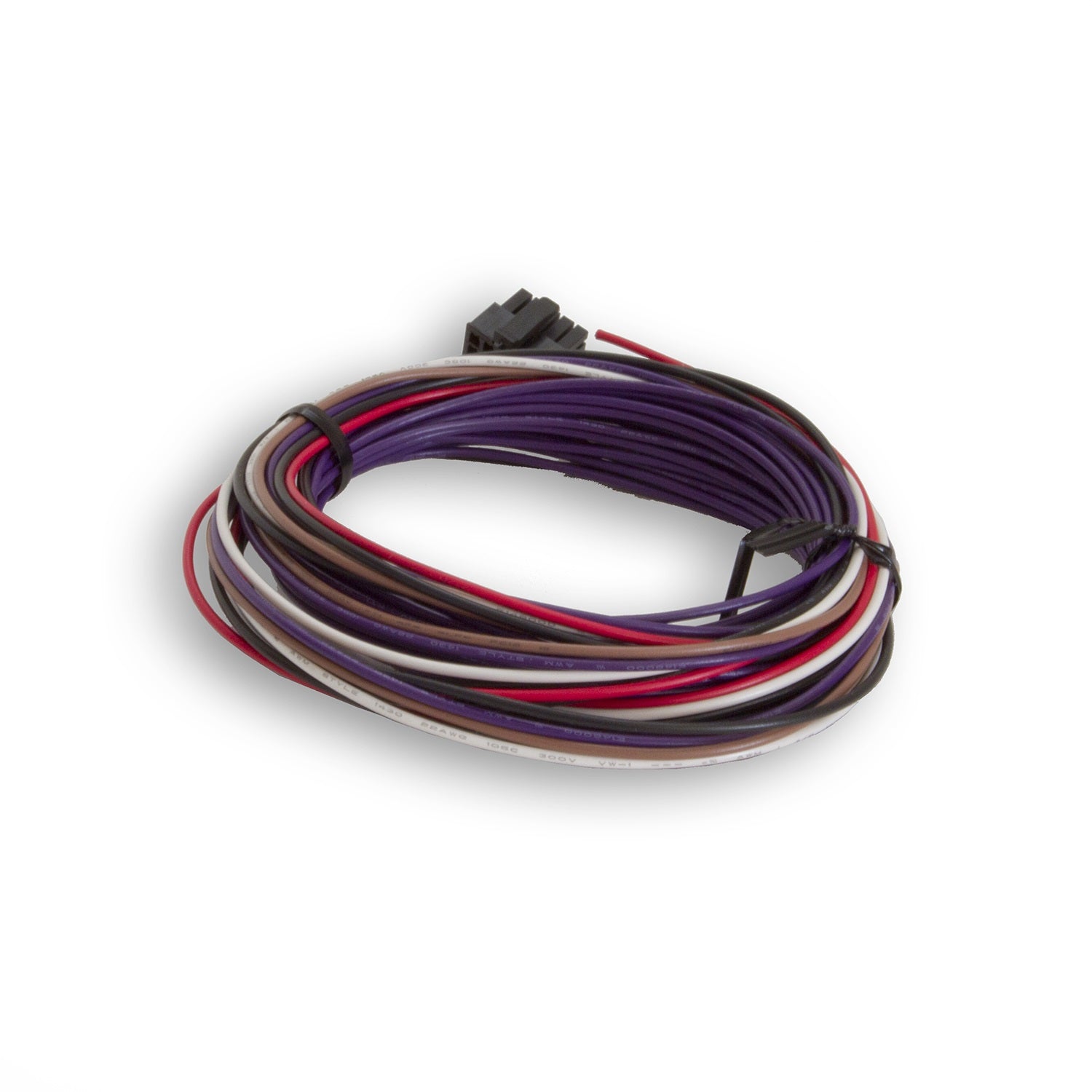

  • Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
  • Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
  • User definable resistance setting programmable anywhere between 0-280 ohms
