AutoMeter Electronic Multi-Purpose Gauge (1812)
AutoMeter Electronic Multi-Purpose Gauge (1812)
SKU:1812
Out of stock
Couldn't load pickup availability

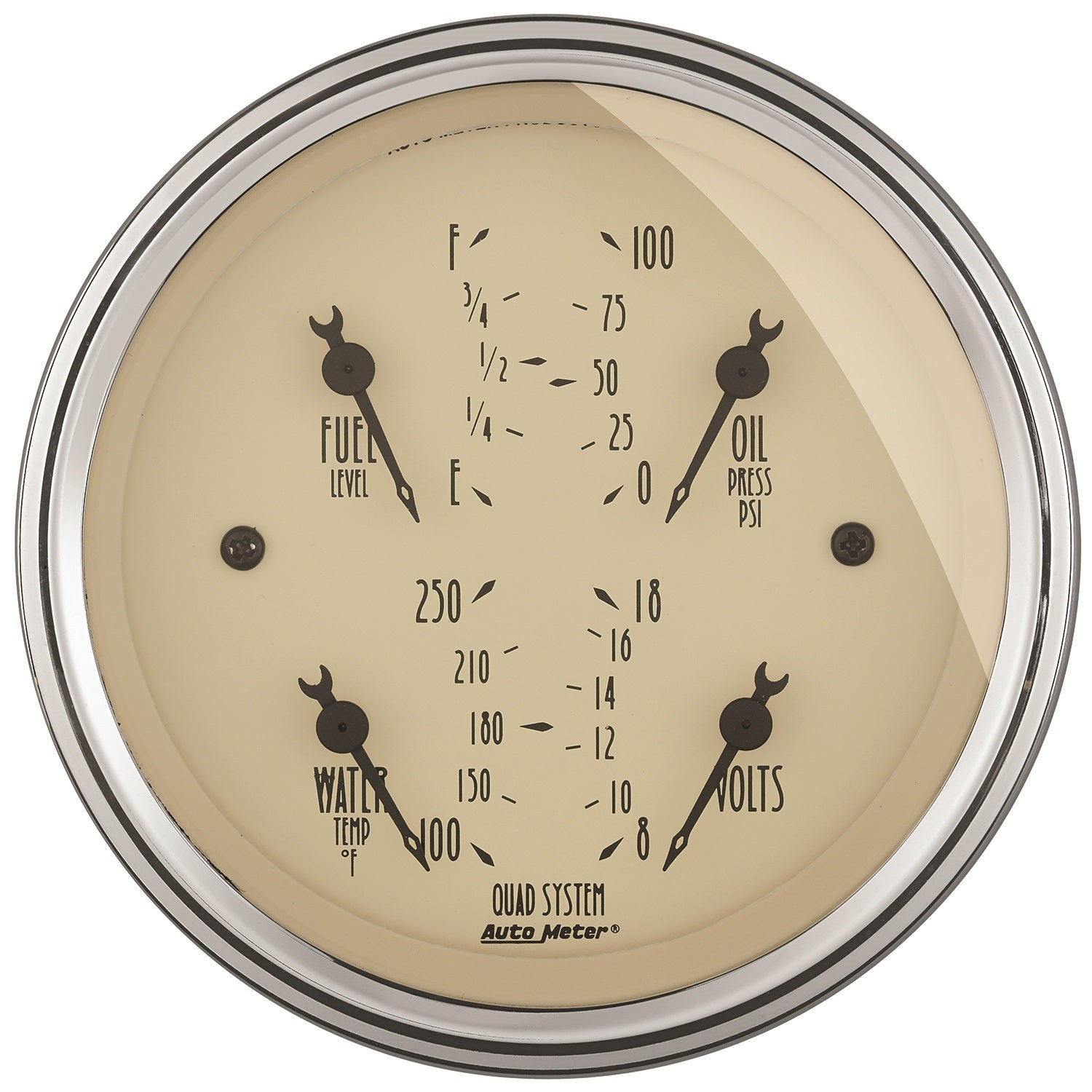

The AutoMeter Electronic Multi-Purpose Gauge (1812) is a versatile quad gauge designed to optimize limited dashboard space while maintaining a clean and professional appearance. Featuring individual air core meter movements for each function, this gauge offers high accuracy and durability suitable for demanding automotive applications. It includes a single-wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender, ensuring reliable readings. The voltmeter is calibrated to read from 8 to 18 volts on negative ground electrical systems, and the fuel level sensor operates within a resistance range of 240 ohms (empty) to 33 ohms (full). Constructed for precision and longevity, this gauge provides essential real-time data for performance monitoring.
Designed for installation in various vehicles with limited dashboard space, the AutoMeter quad gauge is ideal for street, track, or custom applications. It is compatible with a wide range of automotive electrical systems and serves as a direct replacement or upgrade for existing gauges. The kit includes the necessary sensors for temperature and oil pressure measurement, simplifying installation. Suitable for vehicles requiring compact, multi-function monitoring, this gauge enhances vehicle diagnostics and performance tracking without sacrificing space or style.
Share
Overview
Overview
Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).
Features:
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle

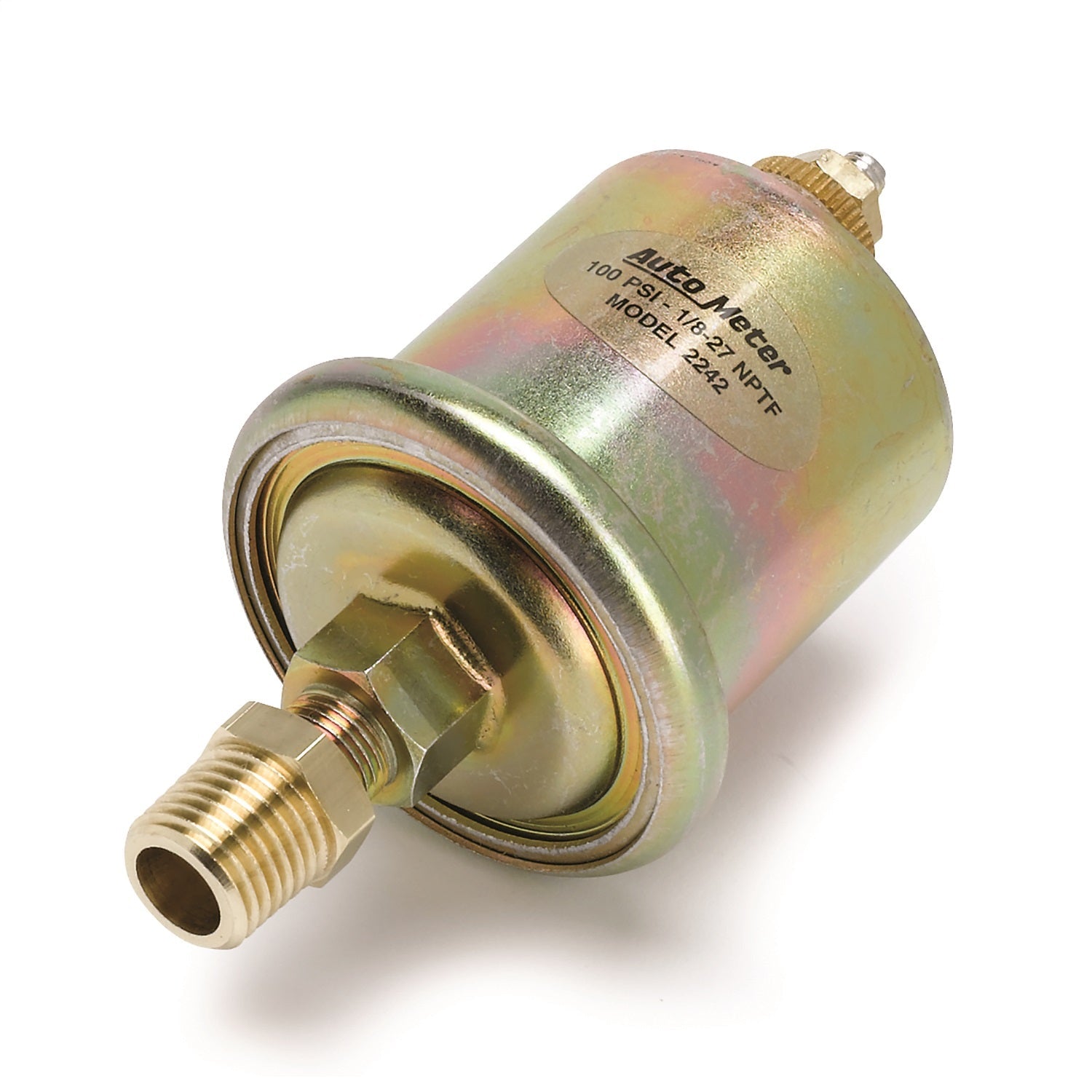

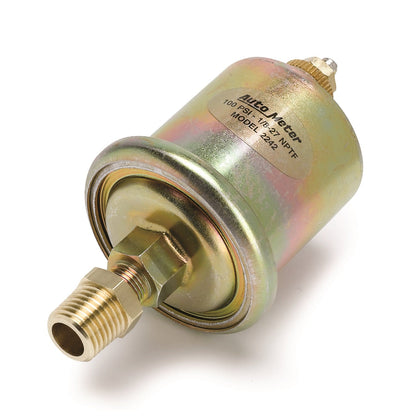

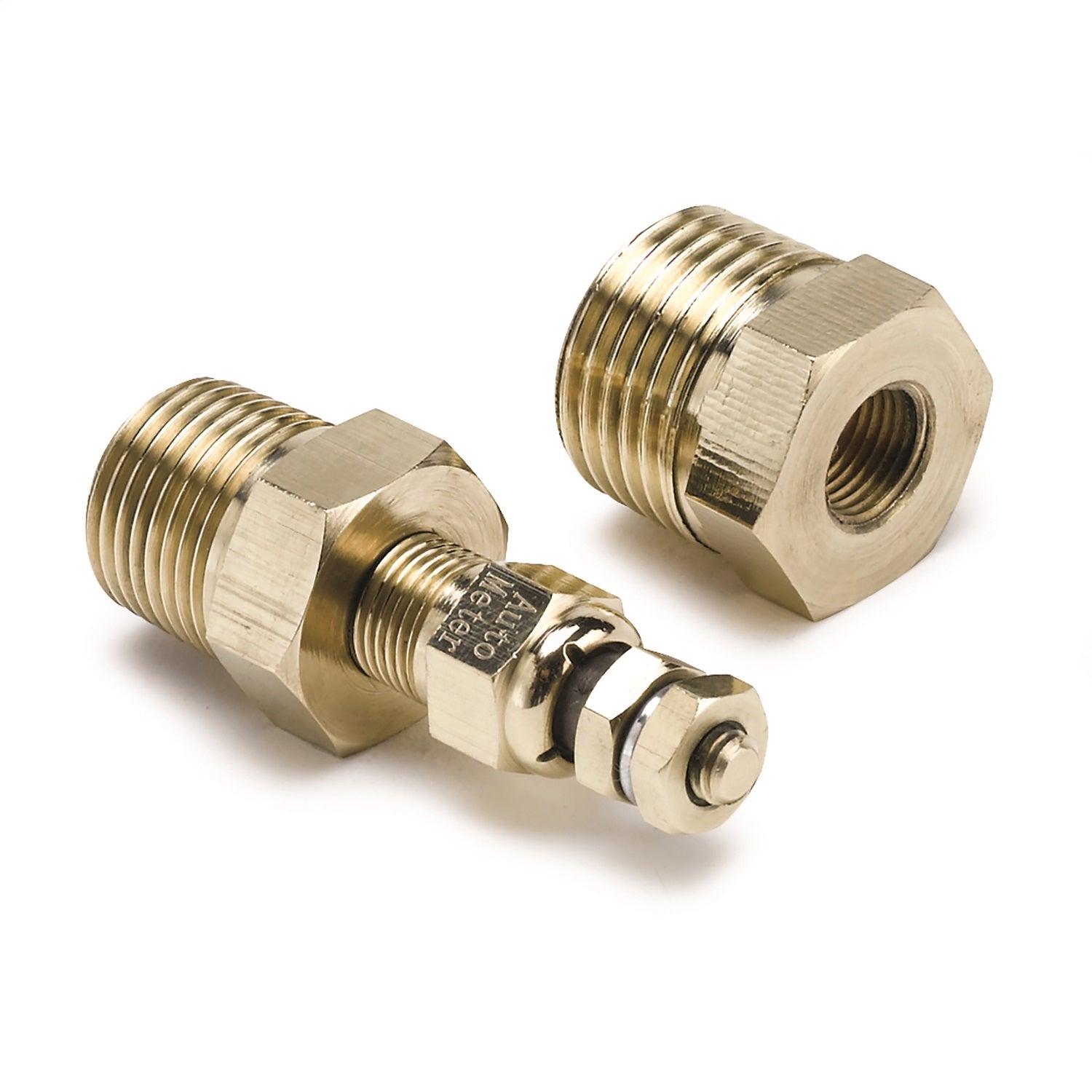

- Gauge kit includes 1/8in NPT pressure sender, 1/4in NPT adapter, 1/8in NPT temperature sender, 3/8in and 1/2in NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Traditional incandescent lighting illuminates around the perimeter of the dial
