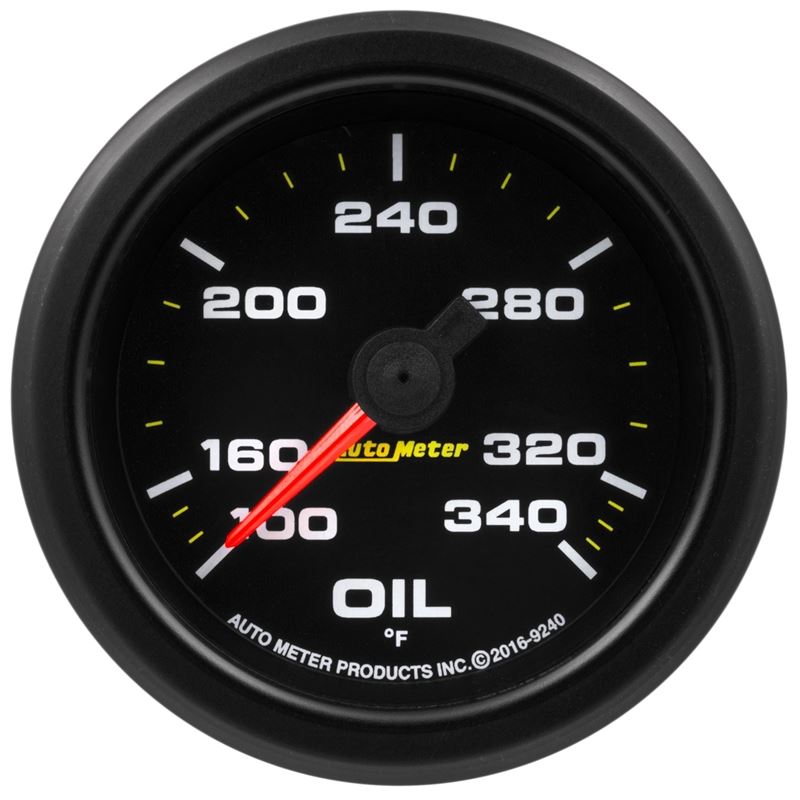

AutoMeter Engine Oil Temperature Gauge (9240)

AutoMeter Engine Oil Temperature Gauge (9240)

9240

Out of stock

$190.45 USD
$222.13 USD $190.45 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AutoMeter Engine Oil Temperature Gauge (9240) is a high-performance gauge designed to monitor engine oil temperature in the most demanding environments. Part of the Extreme Environment Series, this gauge features waterproof sealing and rugged construction to withstand harsh conditions. Accurate temperature readings are critical for optimal engine performance and longevity, helping users select appropriate oil weights and cooling strategies. Equipped with AutoMeter's advanced 1/8" NPT two-wire temperature transducer, the gauge ensures precise and reliable measurement, making it an essential tool for performance enthusiasts and professional tuners alike.

This gauge is suitable for a wide range of vehicles requiring precise oil temperature monitoring. It can be installed in various applications where engine temperature management is vital, including street, track, and off-road use. The gauge is designed for direct installation into compatible vehicles with standard NPT fittings, providing a straightforward upgrade or replacement for stock or aftermarket setups. Its durable construction and waterproof features make it ideal for environments exposed to moisture and vibration, ensuring consistent performance over time.

Overview

Designed For The Absolute Harshest Environments, The Autometer Extreme Environment Series Gauges Provide The Very Best In Waterproof Sealing. One Of The Single Most Important Factors In Determining How Your Engine Performs (And How Long It Performs Between Rebuilds) Is Proper Oil Temperature During Operation. Knowing Your Exact Temp Allows You To Make Sure Youve Got The Proper Oil Weight And Cooling Capacity. Using Autometers Advanced 1/8" Npt Two Wire Temperature Transducer, You Can Be Assured Of The Most Accurate Possible Readings Of The Life Blood Of Your Engine. The Advanced Digital Stepper Motor Drive Keeps Needle Movement Smooth And Precise. Preconfigured Warning Points Change The Gauges Led Illumination From White To Red, Allowing You To Concentrate On The Work At Hand Or Taking The Checkered Flag. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.

Features:

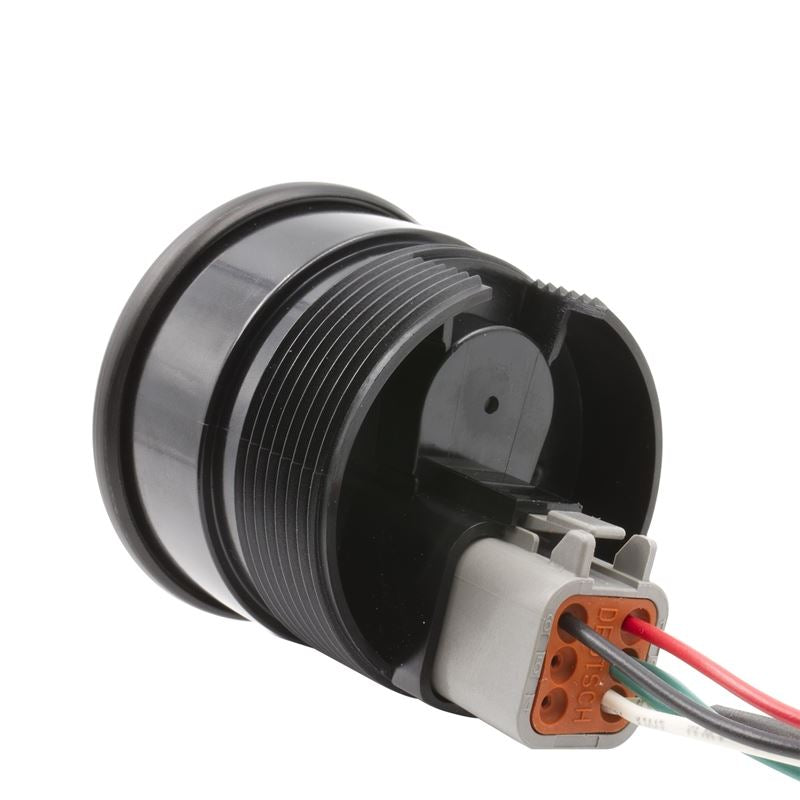

  • 6 pin DTM connector at gauge makes for a sealed connection
  • External momentary switch for control of brightness and peak recall
  • Preset backlight color change warning - 260 Degrees F
  • Stepper motor design with unique multi-scale dial derived from NASCAR tech for optimized resolution and accuracy in critical operating range
  • Ultra light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8in gauges, 60% lighter than Ultra-Lite 2-5/8in Mechanical, 25% lighter than Spek, 10% less than Elite
  • Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits
  • White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
