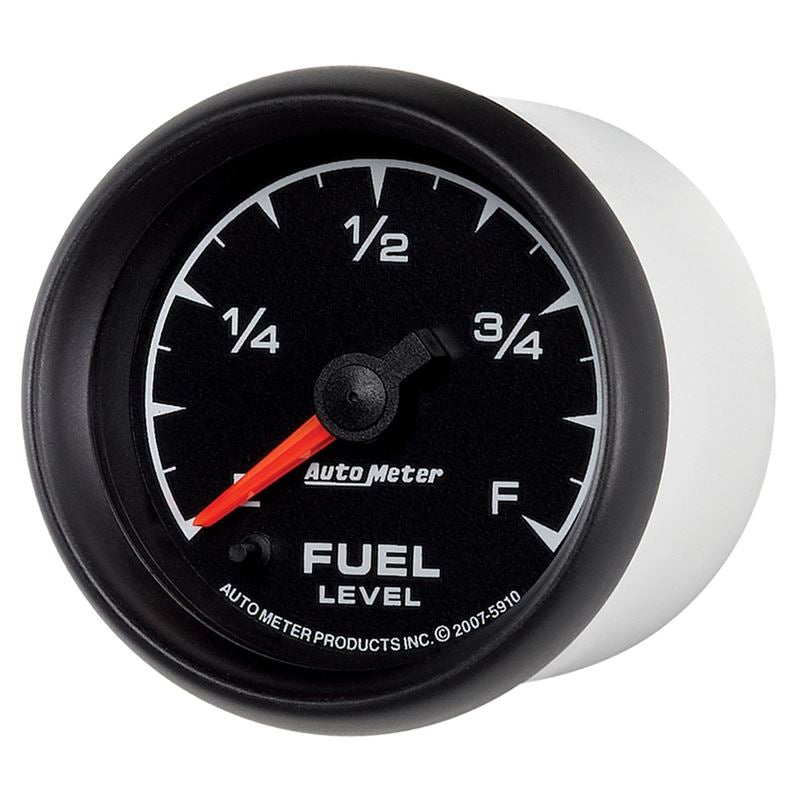

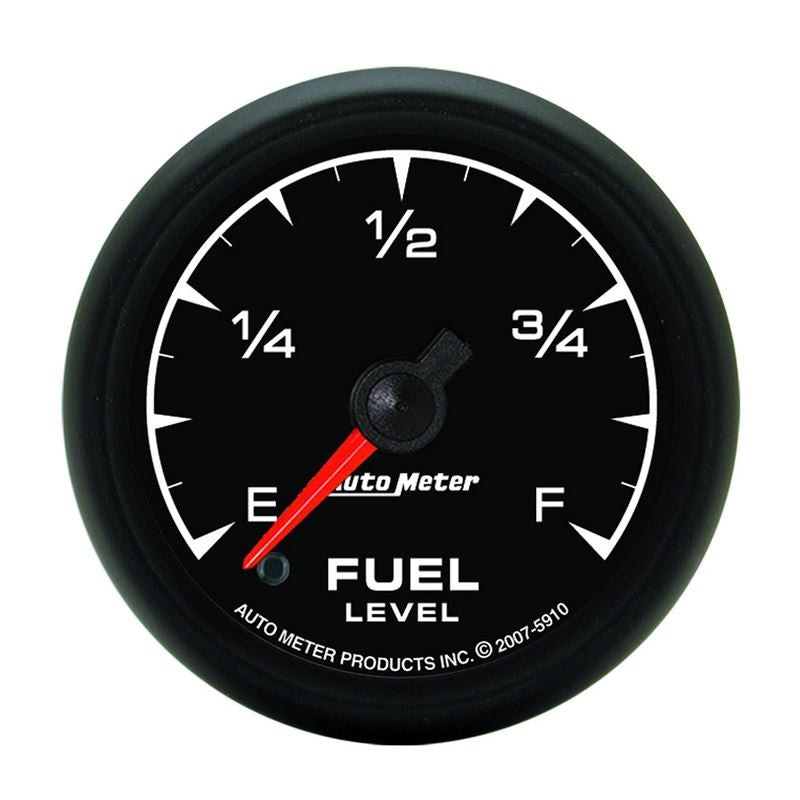

AutoMeter ES 2-1/16in 0-280 ohms Programmable Fuel Level Gauge (5910)

AutoMeter ES 2-1/16in 0-280 ohms Programmable Fuel Level Gauge (5910)

5910

Out of stock

$158.26 USD
$184.59 USD $158.26 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AutoMeter ES 2-1/16 inch 0-280 ohms Programmable Fuel Level Gauge is a digital stepper motor-based instrument designed to provide precise fuel level readings. Its primary function is to accurately monitor fuel levels across a wide range of applications, simplifying installation and calibration. The gauge features an easily configurable resistance range, allowing users to match it to their specific fuel sender. With seven common configurations stored in memory from the factory, it covers the majority of standard applications, ensuring quick setup and reliable performance. For custom or non-standard senders, an innovative calibration mode allows for precise adjustment, enhancing versatility. Constructed with durable materials suitable for automotive environments, this gauge offers consistent accuracy and long-term durability, making it an ideal upgrade for performance or restoration projects.

Designed for a variety of vehicles requiring 0-280 ohm fuel senders, the AutoMeter fuel level gauge fits 2-1/16 inch instrument panels. It is suitable for applications in street, track, or off-road vehicles where accurate fuel monitoring is essential. The gauge is a direct replacement for standard fuel level indicators, with straightforward installation and calibration procedures. It does not include a fuel sender but is compatible with most standard senders within the specified resistance range. The kit includes the gauge and necessary wiring, making it suitable for custom or factory installations. This programmable fuel level gauge is ideal for enthusiasts seeking precise fuel monitoring and reliable performance in demanding driving conditions.

Overview

Traditionally, Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory, The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges, An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms, Empty Or Full, To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application, There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.

Features:

  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
  • Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up
  • Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
  • Modern red LED through-the-dial lighting provides clear visibility during nighttime use
  • User definable resistance setting programmable anywhere between 0-280 ohms
