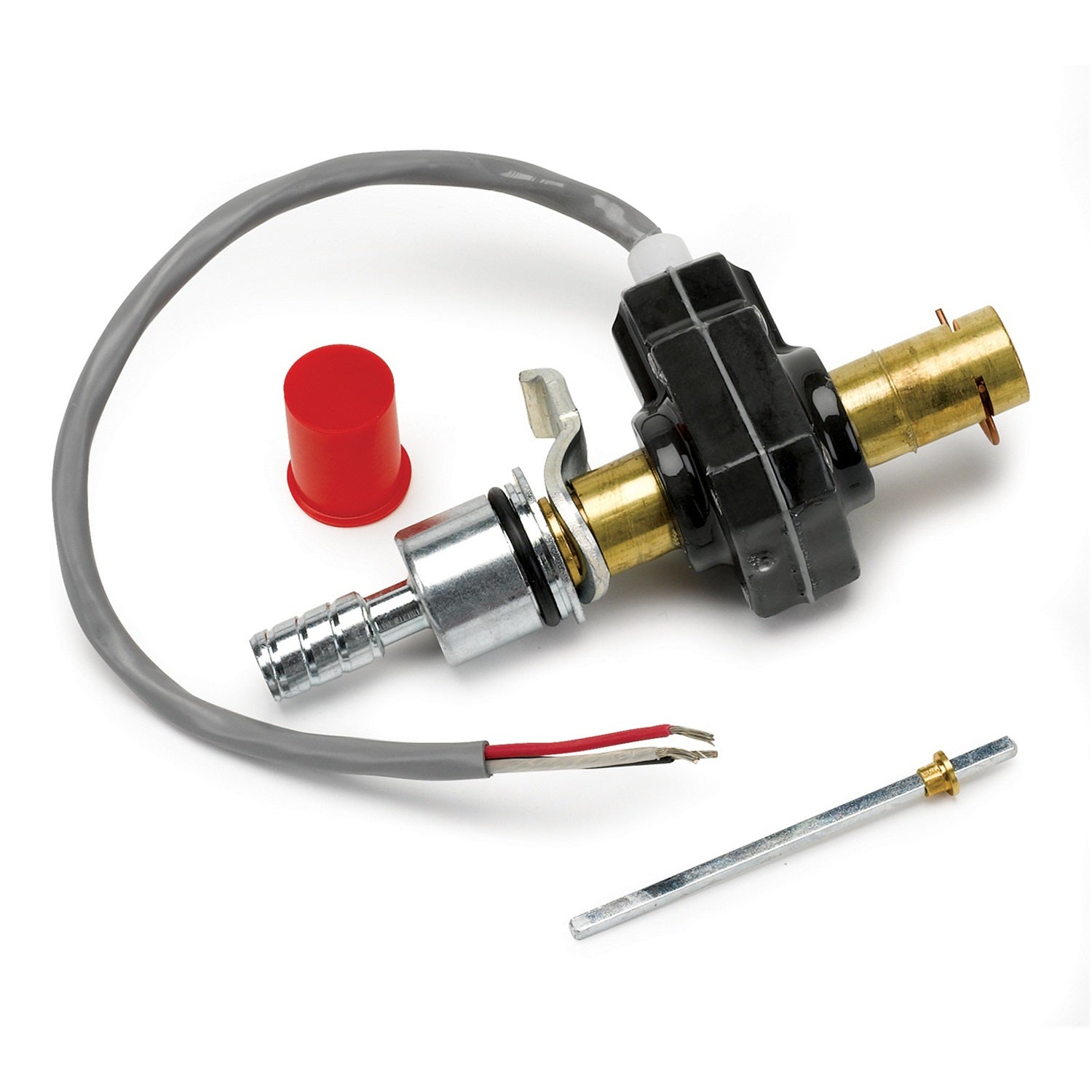

AutoMeter Ford Plug-in Hall Effect Speedometer Sender

2011–2025 Ford Vehicles with Mechanical Transmission Speed Sensors

Part #: 5292

Overview

The AutoMeter Ford Plug-in Hall Effect Speedometer Sender is a high-quality, precision-engineered sensor designed to convert mechanical speed signals into an electronic output compatible with modern digital speedometers and vehicle systems. Specifically crafted for Ford transmissions that originally utilize a plug-in style speedometer cable, this sensor provides a reliable and accurate electronic signal, ensuring your vehicle's speed readings are precise and consistent.

Ideal for enthusiasts and professionals restoring or upgrading Ford vehicles, this Hall Effect speed sensor offers a seamless integration into your transmission system. Whether you're restoring a classic or enhancing a performance build, this sensor helps support accurate speed data transmission, which is crucial for vehicle diagnostics, speedometer calibration, and advanced electronic control systems.

Key Features

This sensor incorporates advanced Hall Effect technology, which provides a highly reliable digital pulse output. Built using the latest manufacturing techniques, it ensures durability and long-term performance under demanding conditions. The sensor outputs a 16 pulse per revolution square wave signal at 12 volts, making it compatible with a wide range of vehicle ECUs and aftermarket gauges.

• Engineered for Ford transmissions originally designed for mechanical cable speedometers, providing a plug-in electrical solution.
• Utilizes Hall Effect technology for precise, contactless sensing, reducing wear and increasing lifespan.
• Outputs a 16 pulse per revolution square wave signal, suitable for accurate speed measurement and vehicle diagnostics.
• Includes a pass-through connection point, allowing integration with other vehicle accessories such as cruise control systems that still require a mechanical connection.
• Designed to support seamless installation without modifications to the transmission or vehicle wiring harness.
• Built with high-quality materials to withstand automotive environments, including vibration, heat, and moisture.
• Compatible with a variety of Ford models from 2011 to 2025, ensuring broad application across many vehicles.

Construction & Design

The AutoMeter Ford Plug-in Hall Effect Speedometer Sender features a robust, compact design with a durable housing that protects the internal electronics from harsh engine bay conditions. The sensor's housing is engineered for easy plug-in installation, matching the factory connectors for a secure and reliable connection. Its internal Hall Effect sensing element is mounted on a precision circuit board, ensuring accurate pulse generation with minimal signal noise.

The sensor's design emphasizes longevity and consistent performance, with a focus on reducing electrical interference and mechanical wear. The pass-through connection point is integrated to facilitate wiring simplicity and to support auxiliary vehicle functions that depend on mechanical speed signals.

Performance & Sound

While this sensor does not directly influence vehicle sound or performance metrics, it plays a vital role in ensuring accurate speed readings, which can improve overall vehicle operation and diagnostics. Its precise pulse output supports better integration with electronic control modules, leading to more reliable speed data for engine management, cruise control, and other systems.

Installation & Fitment

The AutoMeter Ford Plug-in Hall Effect Speedometer Sender is designed for straightforward, bolt-on installation. It connects directly to the transmission's existing plug-in port, eliminating the need for complex wiring modifications or mechanical alterations. No cutting, drilling, or tuning is required, making it an ideal upgrade for both DIY enthusiasts and professional installers.

• Simply plug the sensor into the transmission's speed sensor port.
• Connect the pass-through wiring to support additional accessories like cruise control.
• Ensure the vehicle's electrical system is powered off during installation for safety.

Once installed, the sensor provides a clean, reliable electronic signal that enhances the accuracy of your vehicle's speedometer and related systems.

What's Included

• AutoMeter Ford Plug-in Hall Effect Speedometer Sender (5292)
• Installation instructions

Ideal For

• Ford vehicle owners restoring or upgrading their transmission systems from 2011 to 2025
• Performance enthusiasts seeking a reliable electronic speed sensor
• Professionals performing vehicle diagnostics and electronic upgrades
• Restorers aiming for OEM-quality replacement parts

Emissions Note

This product is designed for use in vehicles that comply with applicable emissions regulations. Please verify compatibility with your specific vehicle model and local regulations before installation. This sensor is intended for off-road or racing use only if not certified for street use.
