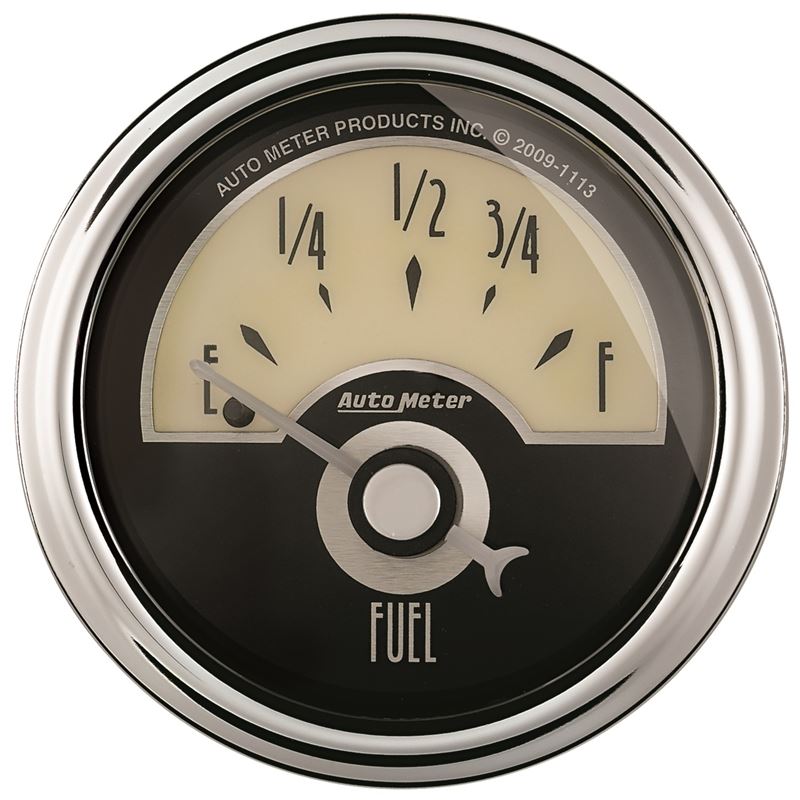

AutoMeter Fuel Level Gauge

Universal Fitment for Various Vehicles

Part #: 1104

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast who wants accurate and reliable fuel readings. Designed to provide precise fuel level measurements, this gauge helps you monitor your fuel tank's contents with confidence, whether you're on the street, at the track, or off-road. Its versatile resistance configurations make it compatible with a wide range of vehicles and fuel sending units, ensuring seamless integration into your dashboard.

Perfect for performance drivers, custom car builders, and daily commuters alike, this gauge offers a straightforward way to keep an eye on your fuel status. With its advanced air core meter movement and dampening features, it minimizes the effects of fuel slosh and provides steady, accurate readings even in challenging driving conditions. Enhance your vehicle's instrumentation with this high-quality, easy-to-install fuel level gauge from AutoMeter.

Key Features

AutoMeter's Fuel Level Gauge is engineered with precision and durability in mind, making it an excellent choice for both casual drivers and performance enthusiasts. Its key features include:

• Multiple resistance range configurations (0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, 240-33 Ohm) to match various factory and aftermarket fuel sending units.
• Patented air core meter movement that delivers accurate, linear readings across the entire fuel tank range.
• Extra dampening to reduce the effects of fuel slosh, ensuring stable and reliable fuel level indications.
• High-quality construction with a durable bezel and face designed for long-lasting performance in demanding environments.
• Easy wiring and installation, compatible with most vehicles' existing wiring harnesses and sending units.
• Clear, easy-to-read dial with a traditional analog display for quick fuel level assessment.
• Suitable for a variety of applications, including street, racing, and off-road vehicles.

Construction & Design

The AutoMeter Fuel Level Gauge features a robust construction built to withstand the rigors of daily driving and high-performance use. Its housing is crafted from durable materials that resist corrosion and vibration, ensuring longevity. The gauge's face is designed for maximum visibility, with high-contrast markings and a clear needle for quick readings at a glance.

The internal air core meter movement is a patented design that provides smooth, linear operation and excellent accuracy. The dampening system further enhances stability, making it ideal for vehicles that experience aggressive driving or rough terrain. The resistance configurations are carefully selected to match a broad spectrum of fuel sending units, simplifying installation and ensuring accurate readings across different vehicle makes and models.

Performance & Sound

While primarily a visual instrument, the AutoMeter Fuel Level Gauge offers dependable performance by accurately reflecting your fuel tank's contents. Its precise resistance matching and dampening technology help prevent false readings caused by fuel slosh or electrical interference. This ensures you always have a trustworthy fuel level indication, supporting your driving confidence and planning.

Installation & Fitment

The AutoMeter Fuel Level Gauge is designed for straightforward installation. It typically connects directly to your vehicle's existing fuel sending unit wiring, with minimal wiring required. The gauge can be mounted in standard gauge pods or custom panels, fitting seamlessly into your dashboard. No complex modifications or tuning are necessary, making it suitable for both DIY enthusiasts and professional installers.

• Plug-and-play wiring compatible with most vehicles' existing fuel sender wiring.
• No cutting, drilling, or special tuning required for proper operation.
• Mounts securely in standard gauge openings or custom panels for a clean, professional look.

What's Included

• AutoMeter Fuel Level Gauge (1104)
• Installation instructions
• All necessary mounting hardware and wiring connectors

Ideal For

• Performance and street vehicles requiring accurate fuel monitoring
• Custom car builders and restorers
• Off-road vehicles where fuel slosh can affect readings
• Enthusiasts seeking reliable, easy-to-install instrumentation

Emissions Note

This product is designed for use in vehicles that comply with local emissions regulations. Please verify compatibility with your vehicle's specifications before installation. For off-road or race applications, ensure compliance with applicable laws and regulations.
