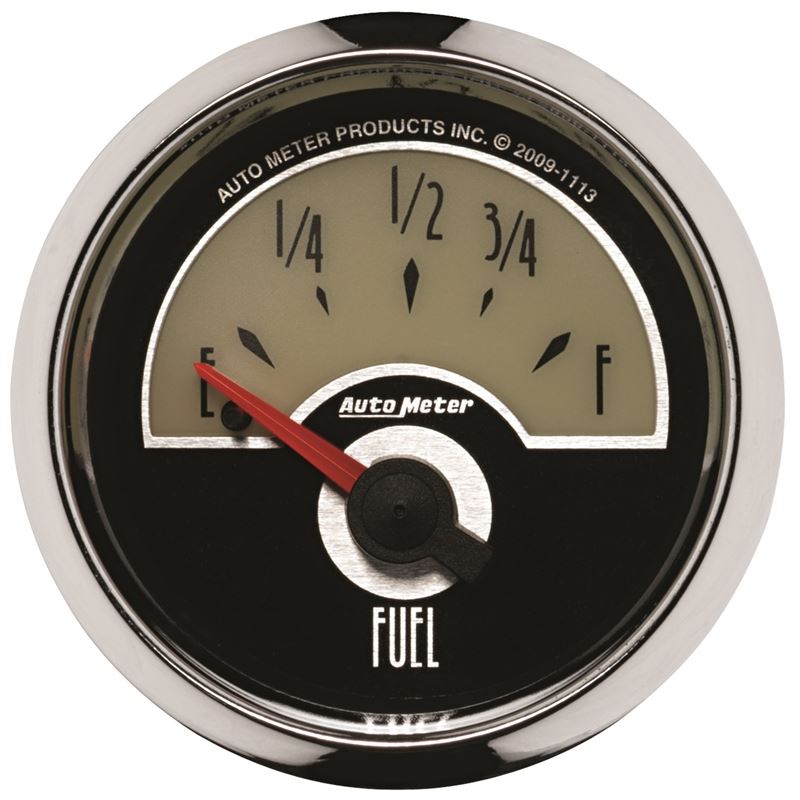

AutoMeter Fuel Level Gauge

Universal Fitment for Various Vehicles

Part #: 1113

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast looking to monitor their fuel levels accurately. Designed to provide precise readings regardless of your vehicle's make or model, this gauge helps you keep track of your fuel consumption and tank status with confidence. Whether you're a daily driver, a performance enthusiast, or involved in racing applications, this gauge offers reliable performance and easy installation.

With its versatile resistance configurations, the AutoMeter Fuel Level Gauge is compatible with a wide range of fuel sending units, making it an ideal choice for custom builds, restorations, or upgrades. Its robust construction and innovative dampening system ensure consistent readings even during aggressive driving or fuel slosh in non-baffled tanks. This gauge is a practical addition to your dashboard, providing vital information to optimize your driving experience and prevent unexpected fuel shortages.

Key Features

The AutoMeter Fuel Level Gauge incorporates several advanced features designed to enhance your vehicle's instrumentation system:

• Multiple Resistance Range Configurations: Available in five different resistance settings—0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, and 240-33 Ohm—allowing seamless integration with various factory and aftermarket fuel sending units.
• Patented Air Core Meter Movement: Utilizes a patented air core movement that provides smooth, accurate needle movement and reduces mechanical wear over time.
• Enhanced Dampening System: Extra dampening helps combat fuel slosh effects in non-baffled tanks, ensuring stable and reliable readings during spirited driving or racing conditions.
• Corrosion-Resistant Construction: Built with high-quality materials to withstand harsh engine bay environments, ensuring long-lasting performance.
• Easy Installation: Designed for straightforward mounting and wiring, compatible with most vehicles without extensive modifications.
• Clear, Readable Display: Features a bright, easy-to-read dial with precise markings for quick fuel level assessment at a glance.
• Universal Compatibility: Suitable for a broad range of vehicles, including classic cars, trucks, and modern performance builds.

Construction & Design

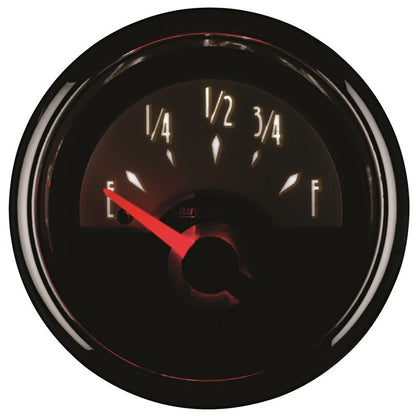

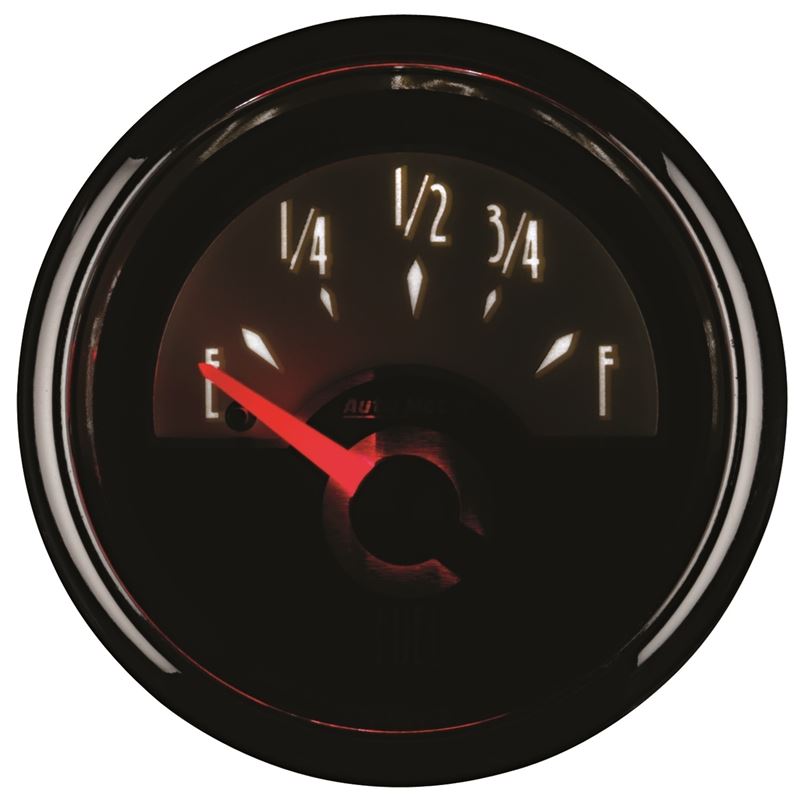

The AutoMeter Fuel Level Gauge features a durable, high-quality housing crafted from corrosion-resistant materials to withstand the rigors of daily driving and racing environments. Its precision-engineered air core meter movement ensures accurate and responsive needle behavior, even under challenging conditions. The gauge's design incorporates a sleek, professional appearance with a clear, illuminated dial for visibility in low-light conditions.

The multiple resistance configurations are achieved through internal circuitry adjustments, allowing you to match the gauge precisely to your vehicle's fuel sending unit. The installation process is simplified by its universal design, with standard mounting hardware and wiring connectors included, making it accessible for both novice and experienced installers.

Performance & Reliability

Designed to deliver consistent and accurate fuel level readings, the AutoMeter Fuel Level Gauge helps you avoid running out of fuel unexpectedly. Its dampening system minimizes the effects of fuel slosh, providing stable readings during high-performance driving or sharp turns. The gauge's compatibility with various resistance ranges ensures reliable operation across different vehicle makes and models, making it a versatile choice for custom and stock applications alike.

Installation & Fitment

The AutoMeter Fuel Level Gauge is a bolt-on replacement that requires minimal wiring and mounting effort. It connects directly to your vehicle's existing fuel sending unit, with the resistance range configured to match your specific setup. No cutting, drilling, or extensive modifications are typically necessary, and detailed instructions are included to facilitate a smooth installation process. For optimal performance, ensure that your fuel sender's resistance matches one of the available configurations.

• Simple plug-and-play installation
• Compatible with most fuel sending units with matching resistance
• No additional tuning or calibration required

What's Included

• AutoMeter Fuel Level Gauge
• Wiring harness and connectors
• Mounting hardware
• Installation instructions

Ideal For

• Performance enthusiasts seeking accurate fuel monitoring
• Restoration projects requiring reliable instrumentation
• Custom builds and modifications where compatibility is key
• Any vehicle owner wanting a durable, easy-to-read fuel gauge

Emissions Note

This product is designed for off-road, racing, or show use only and may not be legal for street use in all jurisdictions. Please verify local regulations before installation.
