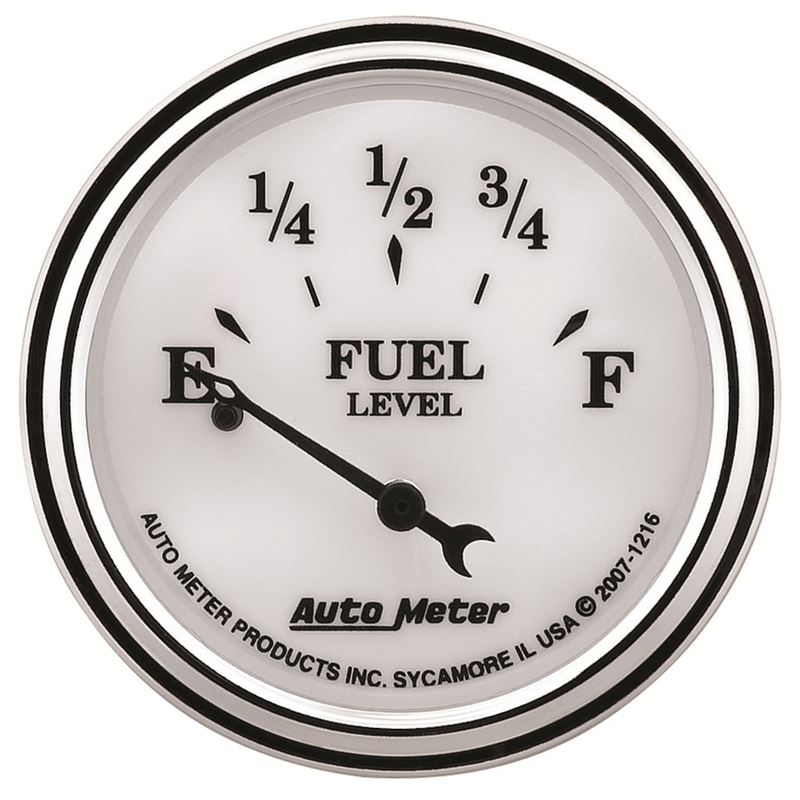

AutoMeter Fuel Level Gauge

Applicable for various vehicles with compatible fuel sending units

Part #: 1216

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast looking to monitor their vehicle's fuel status accurately. Designed to provide reliable readings, this gauge helps you keep track of your fuel levels, ensuring you never run out unexpectedly during spirited drives or long trips. Whether you're a daily driver, a performance enthusiast, or involved in motorsports, this gauge offers the precision and durability needed for demanding driving conditions.

With its versatile resistance range configurations, the AutoMeter Fuel Level Gauge is compatible with a wide variety of fuel sending units found in different vehicle makes and models. Its user-friendly design makes installation straightforward, allowing you to upgrade your dashboard with confidence. By providing clear, real-time fuel level data, this gauge enhances your driving experience and helps support your vehicle's overall reliability and performance.

Key Features

The AutoMeter Fuel Level Gauge incorporates several advanced features designed to deliver accurate and consistent readings:

• Multiple Resistance Range Configurations: Available in 0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, and 240-33 Ohm options, allowing compatibility with a wide array of factory and aftermarket fuel sending units.
• Patented Air Core Meter Movement: Utilizes a patented air core movement with extra dampening to minimize the effects of fuel slosh in non-baffled tanks, ensuring stable and precise readings even during aggressive driving.
• Durable Construction: Built with high-quality materials to withstand harsh engine bay conditions, including heat, vibration, and moisture.
• Easy Integration: Designed for straightforward installation with standard electrical connections, making it suitable for both novice and experienced installers.
• Enhanced Visibility: Features a clear, easy-to-read dial with a high-contrast display for quick fuel level assessment at a glance.
• Versatile Application: Suitable for a variety of vehicles, from classic cars to modern performance machines, thanks to its adjustable resistance configurations.

Construction & Design

The AutoMeter Fuel Level Gauge features a robust housing crafted from durable materials that resist corrosion and environmental wear. Its precision-engineered air core meter movement provides smooth needle operation and reduces the impact of fuel slosh, which can cause erratic readings in non-baffled tanks. The gauge's face is designed for maximum visibility, with a high-contrast dial and clear markings for easy reading under various lighting conditions.

The electrical connections are designed for secure, plug-and-play installation, with compatibility across multiple resistance ranges. This flexibility ensures that you can tailor the gauge to your specific vehicle's fuel sending unit, providing accurate and reliable data every time you start your engine.

Performance & Sound

The AutoMeter Fuel Level Gauge does not produce any audible sound but offers precise visual feedback on your fuel status. Its dampened air core movement ensures stable needle movement, even during aggressive driving or cornering, giving you confidence in the readings. The gauge's design minimizes electrical noise and vibration, contributing to a clean, professional look and reliable performance.

Installation & Fitment

Installing the AutoMeter Fuel Level Gauge is a straightforward process that typically involves connecting the gauge to your vehicle's existing fuel sending unit wiring. No cutting, drilling, or complex modifications are required in most applications. The gauge is designed to mount easily into standard dashboard openings, providing a clean and professional appearance. For optimal performance, ensure that the resistance range matches your vehicle's fuel sender specifications, which can be verified through your vehicle's service manual or existing wiring.

• Plug-and-play installation with standard electrical connectors
• No cutting, drilling, or tuning required in most cases
• Compatible with factory and aftermarket fuel sending units

What's Included

• AutoMeter Fuel Level Gauge (1216)
• Installation instructions
• All necessary mounting hardware and connectors

Ideal For

• Performance and street enthusiasts seeking accurate fuel monitoring
• Classic car restorers upgrading their dashboards
• Motorsport competitors requiring reliable fuel level data during events
• Anyone looking to improve their vehicle's instrumentation for better driving confidence

Emissions Note

This product is designed for use in vehicles where it is legally permitted. Please verify compatibility with your local regulations before installation. The AutoMeter Fuel Level Gauge is intended for off-road, racing, or show use only in certain jurisdictions and may not be street-legal in all areas.
