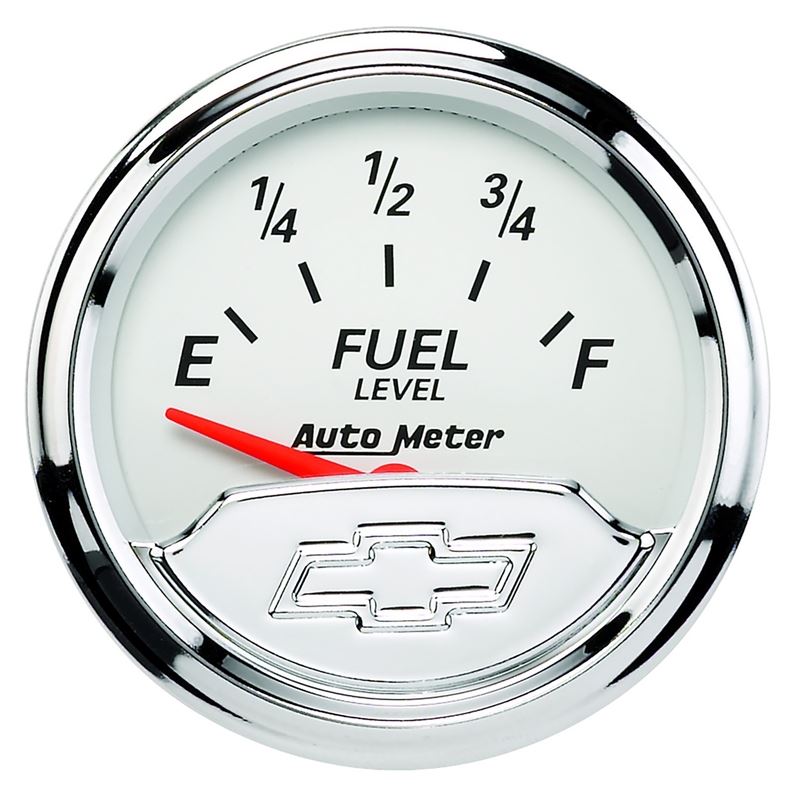

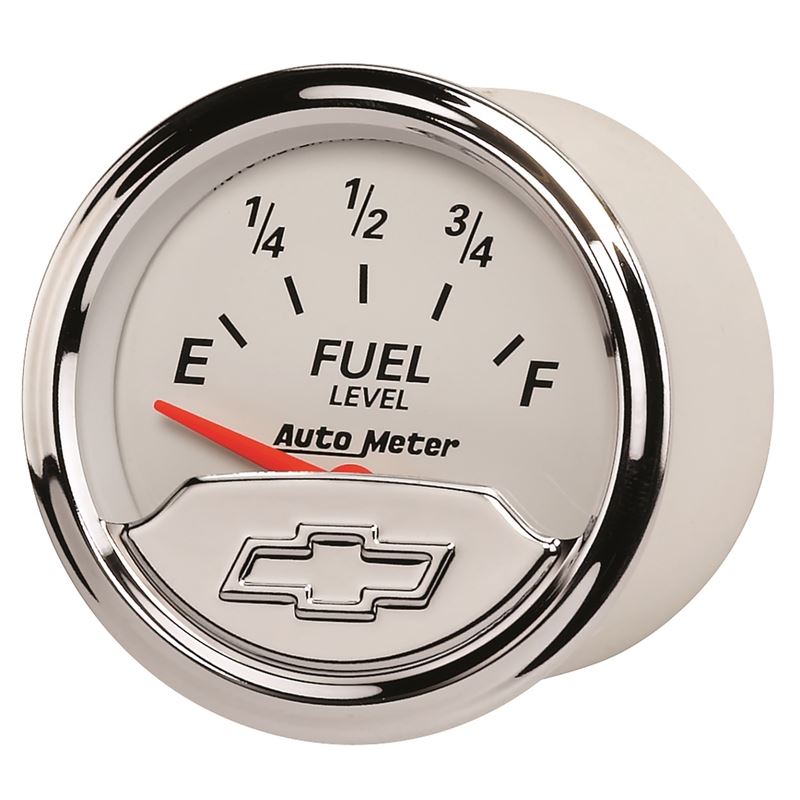

AutoMeter Fuel Level Gauge

2010–2025 Universal Fit for Automotive Fuel Tanks

Part #: 1317-00408

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast looking to monitor their vehicle's fuel status accurately. Designed with precision and reliability in mind, this gauge provides real-time fuel level readings, helping you stay informed and avoid running out of fuel unexpectedly. Whether you're a daily driver, a performance enthusiast, or involved in motorsports, this gauge offers the confidence and clarity you need to optimize your vehicle's operation.

Built to integrate seamlessly into your dashboard, the AutoMeter Fuel Level Gauge ensures easy installation and consistent performance. Its versatile resistance range configurations make it compatible with a wide variety of fuel sending units, providing accurate readings across different vehicle makes and models. This gauge is perfect for custom builds, restorations, or upgrading your existing instrumentation for enhanced accuracy and style.

Key Features

The AutoMeter Fuel Level Gauge boasts several advanced features designed to deliver precise and dependable fuel monitoring:

• Multiple Resistance Range Configurations: Offers five different resistance settings—0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, and 240-33 Ohm—to match your existing fuel sending unit, ensuring compatibility across various vehicle makes and models.
• Patented Air Core Meter Movement: Utilizes a patented air core movement with extra dampening to minimize the effects of fuel slosh in non-baffled tanks, providing stable and accurate readings even during spirited driving or cornering.
• High-Quality Construction: Built with durable materials to withstand the rigors of automotive environments, ensuring long-lasting performance and reliability.
• Easy Integration: Designed for straightforward installation with standard electrical connections, making it suitable for both professional installers and DIY enthusiasts.
• Clear and Readable Display: Features a high-contrast dial with easy-to-read markings, allowing quick assessment of fuel levels at a glance.
• Versatile Application: Suitable for a wide range of vehicles, including classic cars, hot rods, race cars, and custom builds, thanks to its universal fitment and adjustable resistance settings.

Construction & Design

The AutoMeter Fuel Level Gauge is constructed with precision-engineered components to ensure durability and accuracy. Its housing is made from high-quality materials resistant to vibration, heat, and corrosion, making it ideal for demanding automotive environments. The internal air core movement is specially designed to dampen fuel slosh effects, providing stable readings regardless of driving conditions. The gauge's face features a clear, easy-to-read dial with distinct markings, ensuring visibility in all lighting conditions. Its compact design allows for flexible mounting options, seamlessly integrating into your dashboard or custom instrument panel.

Performance & Sound

This fuel gauge is engineered to deliver consistent and accurate readings, helping you manage your fuel consumption effectively. Its resistance configuration flexibility ensures compatibility with various fuel sending units, providing reliable data across different vehicle setups. While primarily focused on accurate fuel level monitoring, the gauge's design minimizes needle jitter and provides a smooth, responsive indication of fuel status, enhancing your driving experience.

Installation & Fitment

The AutoMeter Fuel Level Gauge is a bolt-in replacement for many standard dashboard gauges, requiring minimal wiring and no cutting or drilling in most applications. Its universal fitment and adjustable resistance settings make installation straightforward for both professional technicians and DIY enthusiasts. The gauge connects directly to your vehicle's fuel sending unit and power source, providing a clean and secure installation. No special tuning or calibration is typically needed beyond selecting the appropriate resistance range for your vehicle's sender.

• Simple wiring harness connects to existing fuel sending unit and power supply
• No cutting, drilling, or complex modifications required in most cases
• Suitable for a wide range of vehicles with compatible resistance ranges

What's Included

• AutoMeter Fuel Level Gauge
• Installation instructions
• Wiring harness and mounting hardware

Ideal For

• Performance and street car enthusiasts
• Custom builds and restorations
• Race cars requiring precise fuel monitoring
• Anyone seeking a reliable, easy-to-install fuel gauge upgrade

Emissions Note

This product is designed for off-road or racing use only and may not be legal for street use in all jurisdictions. Please check local regulations before installation.
