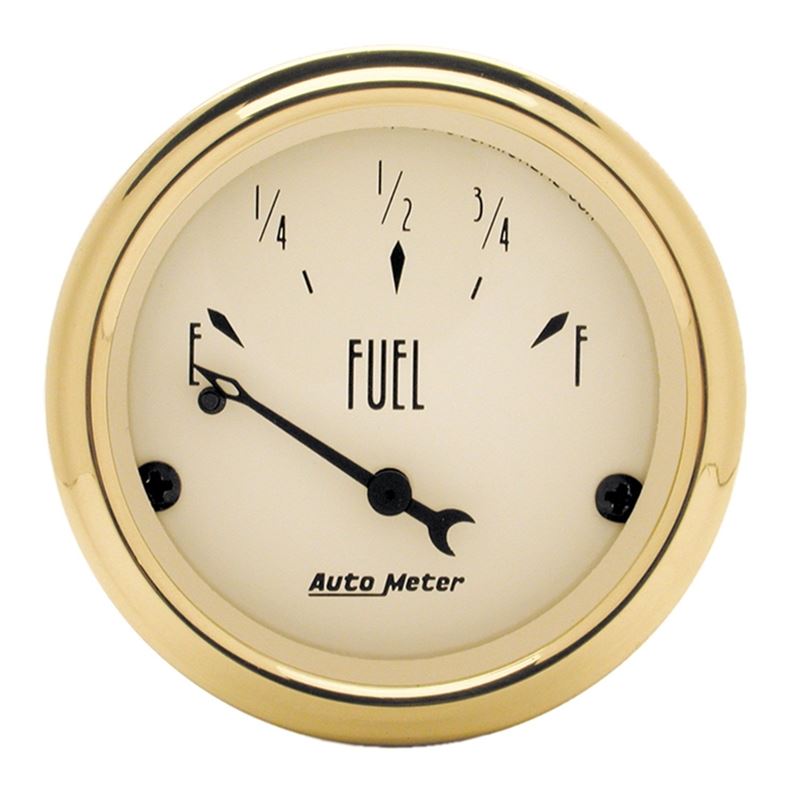

AutoMeter Fuel Level Gauge

Compatible with a variety of resistance ranges for accurate fuel level readings

Part #: 1504

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast looking to monitor their vehicle's fuel status with precision and reliability. Designed to seamlessly integrate into your dashboard, this gauge provides real-time fuel level readings, helping you stay informed during daily driving, spirited runs, or long-distance trips. Whether you're upgrading your stock dashboard or building a custom gauge cluster, the AutoMeter Fuel Level Gauge offers a straightforward and dependable solution.

Ideal for performance-oriented drivers and custom car builders, this gauge ensures you have accurate fuel data regardless of your vehicle's make or model. Its versatile resistance configurations make it compatible with a wide range of fuel sending units, eliminating the need for complex wiring modifications. With this gauge, you'll get peace of mind knowing your fuel levels are always within reach, helping you plan your trips and avoid unexpected fuel shortages.

Key Features

The AutoMeter Fuel Level Gauge is engineered with precision and durability in mind, featuring advanced technology and high-quality materials to deliver consistent performance. Here are some of its standout features:

• Multiple Resistance Range Configurations: Available in five different resistance settings—0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, and 240-33 Ohm—allowing compatibility with a broad spectrum of OEM and aftermarket fuel sending units.
• Air Core Meter Movement: Utilizes a patented air core movement with enhanced dampening to minimize the effects of fuel slosh in non-baffled tanks, ensuring stable and accurate readings even during aggressive driving.
• High-Visibility Display: Features a clear, easy-to-read dial with a precise needle movement, providing quick fuel level assessment at a glance.
• Robust Construction: Built with durable materials designed to withstand the rigors of automotive environments, including vibration, temperature fluctuations, and exposure to fuel vapors.
• Simple Installation: Designed for straightforward mounting and wiring, making it accessible for both professional installers and DIY enthusiasts.

Construction & Design

The AutoMeter Fuel Level Gauge boasts a high-quality, corrosion-resistant housing that protects the internal components from environmental factors. Its precision-machined dial and needle ensure accurate and responsive readings. The air core meter movement is a patented design that provides smooth needle motion and reduces the effects of fuel slosh, making it ideal for both street and track use. The gauge's compact size allows for flexible installation options, fitting seamlessly into most dashboard configurations.

Performance & Sound

While primarily a visual instrument, the AutoMeter Fuel Level Gauge is engineered to deliver consistent and reliable readings, helping you maintain optimal vehicle operation. Its dampened air core movement prevents erratic needle swings caused by fuel slosh, providing stable data during spirited driving or acceleration. The gauge's design ensures long-term durability and dependable performance, making it a valuable addition to any custom or stock dashboard.

Installation & Fitment

Installing the AutoMeter Fuel Level Gauge is a straightforward process that typically involves connecting the wiring harness to your vehicle's fuel sending unit and power source. The gauge is designed to mount easily into standard gauge pods or custom panels. No additional modifications or tuning are required, and the multiple resistance configurations ensure compatibility with most fuel sending units without the need for additional adapters. Basic electrical knowledge is recommended for proper installation.

• Plug-and-play wiring with compatible resistance settings
• Mounting into standard gauge openings or custom panels
• No cutting, drilling, or tuning necessary for most applications

What's Included

• AutoMeter Fuel Level Gauge (1504)
• Wiring harness with resistance configuration options
• Mounting hardware and instructions

Ideal For

• Performance enthusiasts and racers seeking accurate fuel monitoring
• Custom car builders and restorers upgrading dashboards
• Daily drivers requiring reliable fuel level data
• Anyone looking to enhance their vehicle's instrumentation with quality gauges

Emissions Note

This product is designed for use in compliance with applicable emissions regulations. Please verify compatibility with local laws before installation. For off-road or racing use only in some jurisdictions.
