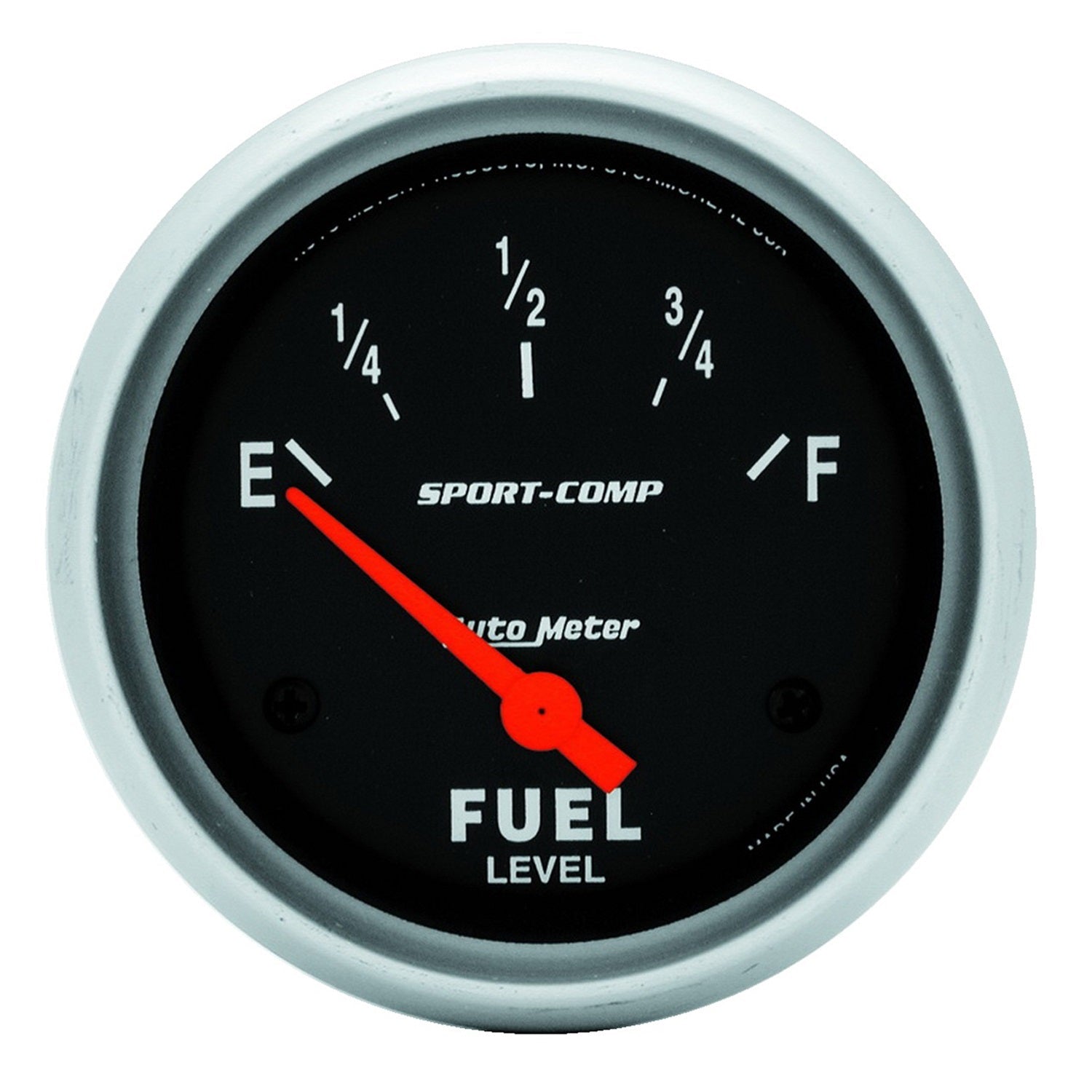

AutoMeter Fuel Level Gauge

Universal Fit for Various Vehicles

Part #: 3514

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast who wants accurate and reliable fuel monitoring. Designed to provide precise readings across a variety of vehicle setups, this gauge helps you keep track of your fuel levels with confidence. Whether you're a daily driver, a performance enthusiast, or involved in racing applications, this gauge offers the versatility and accuracy needed to optimize your vehicle's fuel management.

Featuring multiple resistance range configurations, the AutoMeter Fuel Level Gauge is compatible with a wide array of fuel sending units, making installation straightforward regardless of your vehicle's make or model. Its robust construction and advanced air core meter movement ensure smooth, dampened needle movement, reducing the effects of fuel slosh in non-baffled tanks and providing steady, easy-to-read measurements at a glance. This gauge is an excellent addition to your dashboard, giving you the information you need to make informed driving decisions and avoid running out of fuel unexpectedly.

Key Features

The AutoMeter Fuel Level Gauge is built with a focus on accuracy, durability, and ease of installation. Its key features include:

• Multiple resistance range configurations (0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, 240-33 Ohm) to match various factory and aftermarket fuel sending units.
• Patented air core meter movement that provides precise readings with extra dampening to combat fuel slosh effects.
• Universal compatibility with a wide range of vehicles and fuel systems, simplifying installation for different makes and models.
• High-quality construction designed to withstand the rigors of daily driving and racing environments.
• Clear, easy-to-read dial with a durable lens for long-lasting visibility.
• Simple wiring and installation process, making it accessible for both professional installers and DIY enthusiasts.
• Designed to improve your vehicle's dashboard functionality by providing accurate fuel level information.

Construction & Design

The AutoMeter Fuel Level Gauge features a rugged, high-quality housing constructed from durable materials that resist corrosion and vibration. Its precision air core meter movement is engineered for smooth needle operation and long-term reliability. The gauge's face is designed for maximum visibility, with clear markings and a robust lens that protects against dust and debris. The wiring connections are straightforward, with clearly labeled terminals to facilitate quick and secure installation. Overall, the design emphasizes durability, accuracy, and ease of use, making it suitable for both street and racing applications.

Performance & Sound

This gauge provides accurate fuel level readings across a variety of resistance configurations, ensuring compatibility with most fuel sending units. Its dampened needle movement minimizes fluctuations caused by fuel slosh, offering steady and reliable measurements. While it does not produce sound, its precise and responsive needle movement ensures you always know your fuel status without distraction.

Installation & Fitment

The AutoMeter Fuel Level Gauge is a universal, bolt-in instrument designed for easy installation. It connects directly to your vehicle's existing fuel sending unit wiring, with multiple resistance options available to match your setup. No cutting or drilling is typically required, and the gauge can be mounted in most standard gauge pods or dashboards. Basic wiring knowledge is recommended, but the process is straightforward, and detailed instructions are included to ensure a hassle-free installation.

• Compatible with a wide range of vehicles and fuel systems
• No cutting, drilling, or special tuning required for installation
• Easy wiring with clearly labeled terminals

What's Included

• AutoMeter Fuel Level Gauge (3514)
• Installation instructions
• Wiring harness and necessary hardware

Ideal For

• Performance enthusiasts seeking accurate fuel monitoring
• Daily drivers who want reliable dashboard gauges
• Race car builders and tuners requiring precise fuel level readings
• Custom vehicle projects where compatibility and durability are priorities

Emissions Note

This product is designed for use in vehicles that comply with local emissions regulations. Please verify compatibility with your vehicle's legal requirements before installation. For off-road or race use only in certain jurisdictions, consult local laws regarding emissions compliance.
