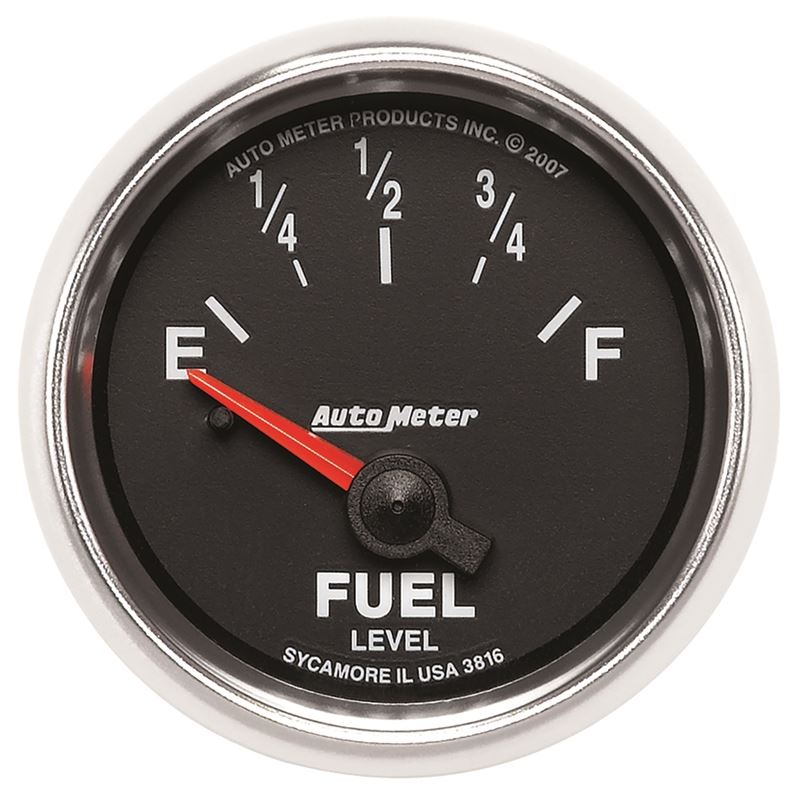

AutoMeter Fuel Level Gauge (3816)
AutoMeter Fuel Level Gauge (3816)
SKU:3816
Out of stock
Couldn't load pickup availability
The AutoMeter Fuel Level Gauge (Part #3816) is a high-precision instrument designed to monitor fuel levels accurately in performance and custom vehicles. Built with versatile resistance range configurations, this gauge ensures compatibility with a wide variety of fuel sending units. Its primary function is to provide real-time, reliable fuel level readings, helping drivers maintain optimal fuel management during spirited driving, racing, or daily commuting. Constructed for durability and precision, the gauge enhances dashboard functionality by delivering clear, accurate data essential for performance driving and vehicle monitoring.
This fuel level gauge is suitable for a broad range of vehicles, offering compatibility with various resistance ranges to match different fuel sending units. It is ideal for street, track, or custom applications where precise fuel monitoring is critical. The gauge is designed for easy installation as a direct replacement or upgrade to existing fuel gauges. It supports a variety of vehicle makes and models, ensuring reliable performance across different setups. The kit includes the gauge and necessary wiring for straightforward integration into your vehicle’s dashboard.
Share
Overview
Overview
AutoMeter Fuel Level Gauge
Compatible with a variety of resistance ranges for accurate fuel level readings
Part #: 3816
Overview
The AutoMeter Fuel Level Gauge is an essential instrument for any performance or custom vehicle dashboard. Designed to provide precise fuel level readings, this gauge ensures you stay informed about your fuel status during spirited driving, racing, or daily commuting. Its versatile resistance range configurations make it compatible with a wide variety of fuel sending units, making it a reliable choice for both stock and modified setups.
Whether you're a car enthusiast looking to upgrade your dashboard or a professional builder seeking accurate fuel monitoring, this gauge offers a combination of durability, precision, and ease of installation. Its clear display and robust construction help you keep track of fuel levels with confidence, supporting your driving experience and vehicle reliability.
Key Features
AutoMeter's Fuel Level Gauge is engineered with several advanced features to ensure accurate and dependable performance:
- Multiple Resistance Range Configurations: Available in 0-90 Ohm (matching GM mid 60s to mid 90s fuel senders), 0-30 Ohm (early GM models), 73-10 Ohm (pre-90s Ford and Chrysler), 16-158 Ohm (later Ford models), and 240-33 Ohm (aftermarket senders like AutoMeter 3262), allowing compatibility with a wide range of vehicles and sender types.
- Patented Air Core Meter Movement: Utilizes a dampened air core movement that resists fuel slosh effects, providing stable and accurate readings even in non-baffled or racing fuel tanks.
- Easy Integration: Designed for straightforward installation with existing fuel sender wiring, reducing setup time and complexity.
- Durable Construction: Built with high-quality materials to withstand harsh engine bay conditions, including heat, vibration, and moisture.
- Clear, Readable Display: Features a bright, easy-to-read dial with precise markings for quick fuel level assessment at a glance.
- Versatile Application: Suitable for street, race, and off-road vehicles where reliable fuel monitoring is critical.
Construction & Design
The AutoMeter Fuel Level Gauge features a rugged, high-quality housing designed to endure the demanding conditions of automotive environments. Its air core meter movement is a patented technology that provides dampening to minimize the effects of fuel slosh, ensuring consistent readings regardless of vehicle motion or tank orientation. The gauge's face is designed for maximum visibility, with high-contrast markings and a bright pointer for easy reading in all lighting conditions.
The internal circuitry and components are carefully engineered to match various resistance ranges, making this gauge highly adaptable. Its compact, lightweight design allows for flexible installation options, whether in a custom dash or OEM location.
Performance & Sound
While primarily a visual instrument, the AutoMeter Fuel Level Gauge offers reliable and accurate readings that support your driving confidence. Its dampened movement ensures stable display even during aggressive driving or sharp turns, preventing false readings caused by fuel slosh. This stability helps you make informed decisions about fuel management, especially during extended drives or racing events.
Installation & Fitment
The AutoMeter Fuel Level Gauge is designed for easy bolt-on installation. It connects directly to your vehicle's existing fuel sender wiring, with no need for complex modifications or additional tuning. The gauge can be mounted in a standard 2-1/16" (52mm) gauge pod or custom panel, fitting seamlessly into most dashboard setups. No cutting, drilling, or special tuning is required, making it suitable for both novice and experienced installers.
- Simple wiring to existing fuel sender circuit
- Compatible with a variety of resistance ranges for different vehicle makes and models
- Mounting hardware included for secure installation
What's Included
- AutoMeter Fuel Level Gauge (3816)
- Mounting hardware and brackets
- Wiring instructions and documentation
Ideal For
- Performance enthusiasts upgrading their dashboards
- Race cars requiring accurate fuel monitoring
- Custom vehicle builds and restorations
- Off-road vehicles where fuel management is critical
Emissions Note
This product is designed for automotive use and does not impact emissions. Please verify compatibility with your local regulations before installation.
