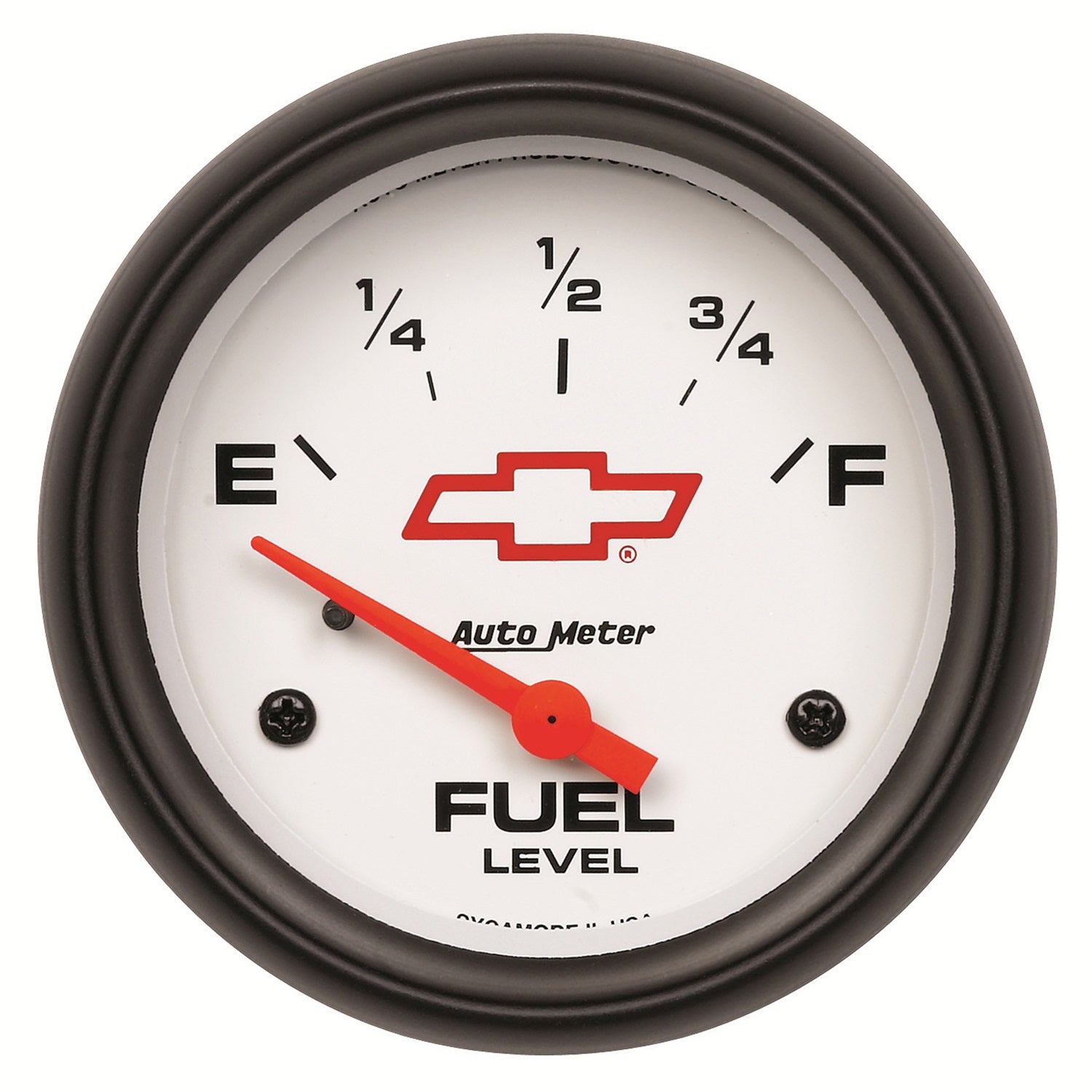

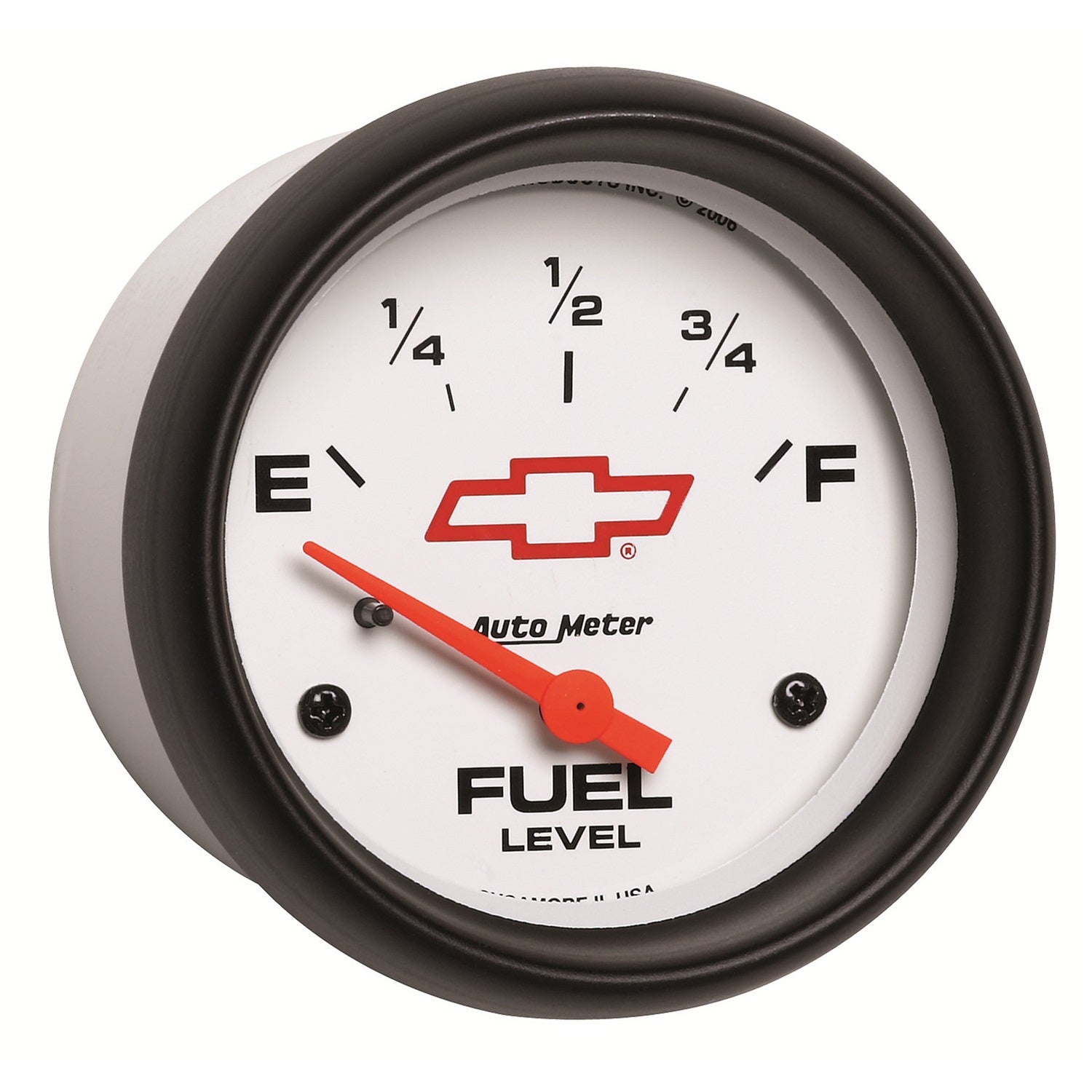

AutoMeter Fuel Level Gauge (5814-00406)
AutoMeter Fuel Level Gauge (5814-00406)
SKU:5814-00406
Out of stock
Couldn't load pickup availability
The AutoMeter Fuel Level Gauge is a universal instrument designed to accurately monitor a vehicle's fuel status. Built with reliable components, this gauge provides precise readings to help drivers manage fuel consumption effectively. Its versatile design makes it suitable for a wide range of vehicles and applications, ensuring consistent performance in various driving conditions. The gauge is crafted to deliver durability and clear visibility, making it an essential tool for enthusiasts who prioritize accurate fuel monitoring. Whether used in daily driving, performance tuning, or motorsports, this fuel level gauge offers dependable functionality to optimize vehicle operation.
Compatible with vehicles from 2010 to 2025, the AutoMeter Fuel Level Gauge fits a broad spectrum of makes and models. It serves as a direct replacement or upgrade for existing fuel gauges, providing an easy installation process. This universal gauge is ideal for street, track, or off-road use, ensuring drivers always have an accurate reading of their fuel levels. The kit includes the necessary components for installation, and its design supports reliable performance in demanding environments. This gauge is perfect for enthusiasts seeking precise fuel management and enhanced vehicle monitoring.
Share
Overview
Overview
AutoMeter Fuel Level Gauge
2010–2025 Universal Fuel Level Gauge
Part #: 5814-00406
Overview
The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast looking to monitor their vehicle's fuel status accurately. Designed for a wide range of vehicles and applications, this gauge provides reliable readings to help you manage your fuel consumption effectively. Whether you're a daily driver, a performance enthusiast, or involved in motorsports, this gauge ensures you stay informed about your fuel levels at all times.
Featuring a versatile resistance range configuration, the AutoMeter Fuel Level Gauge is compatible with various fuel sending units, making installation straightforward across different vehicle makes and models. Its precise air core meter movement offers smooth, accurate readings, while the extra dampening helps minimize the effects of fuel slosh in non-baffled tanks, providing stable and dependable data during spirited driving or racing conditions.
Key Features
The AutoMeter Fuel Level Gauge incorporates several advanced features designed to enhance your vehicle's instrumentation system:
- Multiple Resistance Range Configurations: Available in 0-90 Ohm (matching GM mid 60s to mid 90s), 0-30 Ohm (early GM models), 73-10 Ohm (pre-90s Ford and Chrysler), 16-158 Ohm (later Ford models), and 240-33 Ohm (aftermarket senders like AutoMeter 3262), ensuring compatibility with a broad spectrum of fuel sending units.
- Patented Air Core Meter Movement: Provides precise and responsive fuel level readings with minimal needle jitter, even during vehicle movement or acceleration.
- Enhanced Dampening System: Designed to combat fuel slosh effects in non-baffled tanks, maintaining stable and accurate display under dynamic driving conditions.
- High-Quality Construction: Built with durable materials to withstand the harsh environment of the engine bay and dashboard, ensuring long-lasting performance.
- Easy Installation: Compatible with standard gauge mounting and wiring setups, making it suitable for both novice and experienced installers.
- Clear, Readable Display: Features a high-contrast dial with easy-to-read markings, allowing quick assessment of fuel levels at a glance.
Construction & Design
The AutoMeter Fuel Level Gauge is crafted with precision-engineered components to ensure durability and accuracy. Its housing is made from high-quality materials resistant to heat and vibration, while the internal air core movement is designed for smooth operation and longevity. The gauge's design emphasizes ease of installation, with standardized connections and compatibility with various vehicle wiring systems. Its compact form factor allows seamless integration into your dashboard, providing a clean and professional appearance.
Performance & Sound
This gauge offers highly accurate fuel level readings across a wide resistance range, ensuring you always know your fuel status. Its dampening system minimizes needle oscillations caused by fuel slosh, providing stable and reliable data during aggressive driving or cornering. While primarily a visual instrument, the gauge's precise movement and clear display contribute to a confident driving experience, especially in performance or racing environments.
Installation & Fitment
The AutoMeter Fuel Level Gauge is designed as a direct-fit replacement for standard gauge openings in most dashboards. It connects easily to your vehicle's existing fuel sending unit wiring, with no need for complex modifications. The gauge's wiring harness and mounting hardware are included, and installation typically requires only basic tools. No cutting, drilling, or tuning is necessary, making it a straightforward upgrade for your vehicle's instrumentation system.
- Plug-and-play installation with compatible wiring harnesses
- Standard 2-1/16" (52mm) diameter gauge fitting
- Suitable for a wide range of vehicle makes and models
What's Included
- AutoMeter Fuel Level Gauge (model 5814-00406)
- Wiring harness
- Mounting hardware and instructions
Ideal For
- Performance enthusiasts seeking accurate fuel monitoring
- Motorsport competitors requiring reliable fuel level data
- Custom dashboard builds and restorations
- Everyday drivers who want peace of mind about fuel status
Emissions Note
This product is designed for off-road or racing use only and may not be legal for street use in all jurisdictions. Please check local regulations before installation.
