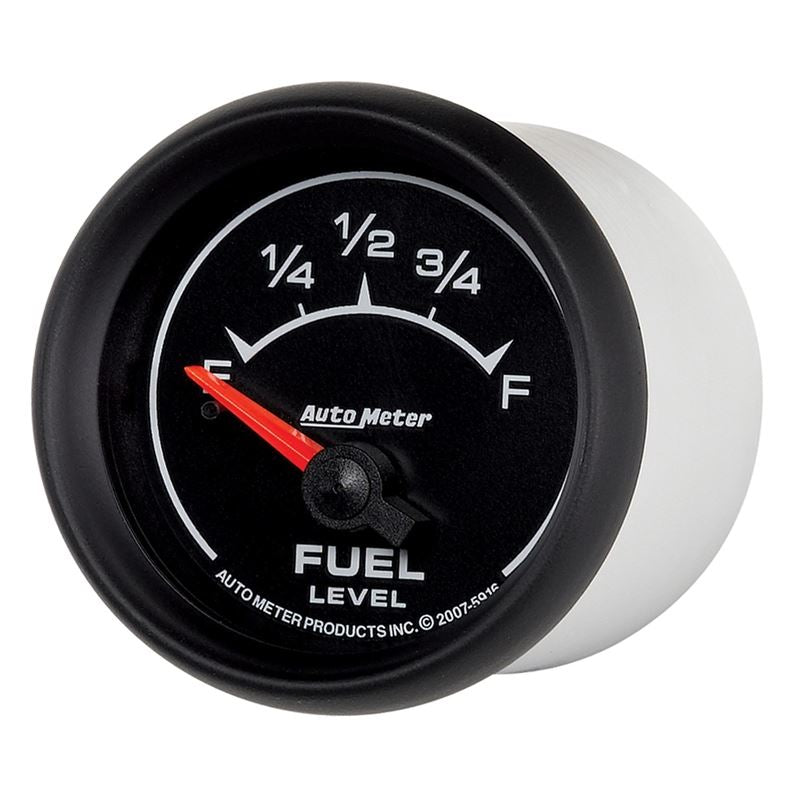

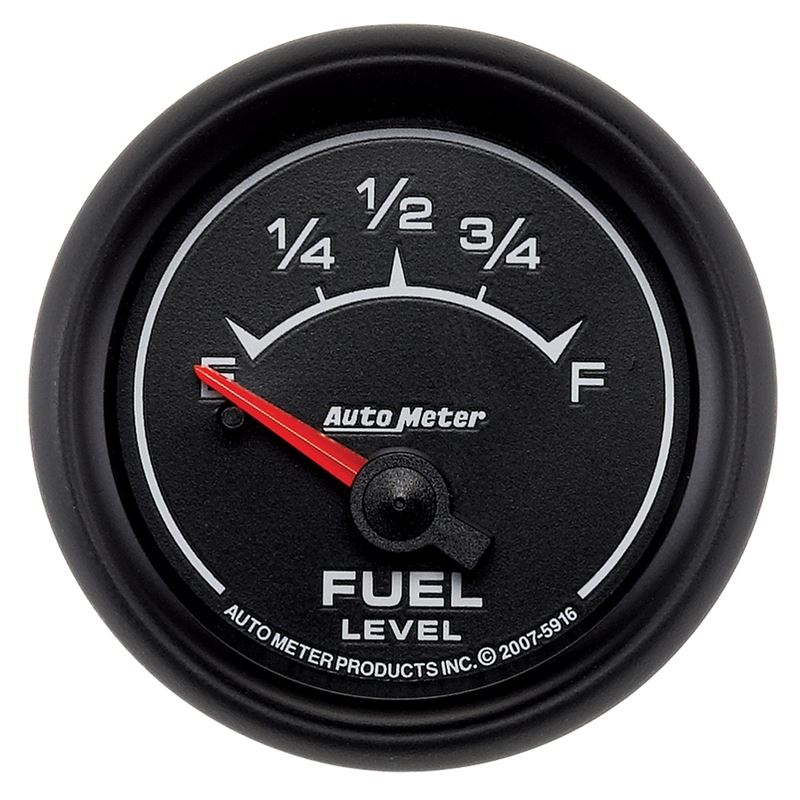

AutoMeter Fuel Level Gauge

Compatible with a variety of fuel sending units, suitable for most vehicles

Part #: 5916

Overview

The AutoMeter Fuel Level Gauge is an essential instrument for any automotive enthusiast looking to monitor their vehicle's fuel status accurately. Designed to provide reliable readings, this gauge helps you keep track of your fuel levels with precision, ensuring you never run out unexpectedly. Whether you're a daily driver, a performance enthusiast, or involved in racing applications, this gauge offers the clarity and dependability you need for confident driving.

Built with versatility in mind, the AutoMeter Fuel Level Gauge accommodates a wide range of fuel sending units, making it compatible with many vehicle makes and models. Its straightforward installation and clear display make it an excellent upgrade for your dashboard, providing real-time fuel data at a glance. This gauge is perfect for those who want to enhance their vehicle's instrumentation with a high-quality, accurate fuel level indicator.

Key Features

The AutoMeter Fuel Level Gauge incorporates several advanced features designed to improve your driving experience and ensure durability:

• Multiple Resistance Range Configurations: The gauge offers five different resistance settings—0-90 Ohm, 0-30 Ohm, 73-10 Ohm, 16-158 Ohm, and 240-33 Ohm—allowing compatibility with a wide variety of factory and aftermarket fuel sending units.
• Patented Air Core Meter Movement: This innovative movement provides smooth, accurate needle movement and receives extra dampening to minimize the effects of fuel slosh in non-baffled tanks, ensuring stable readings even during spirited driving or on rough terrain.
• High-Quality Construction: Crafted with durable materials to withstand the rigors of automotive environments, ensuring long-lasting performance.
• Easy Integration: Designed for straightforward installation with standard automotive wiring, making it accessible for both professional installers and DIY enthusiasts.
• Clear, Readable Display: The gauge features a bright, easy-to-read dial with precise markings, allowing quick assessment of fuel levels under various lighting conditions.
• Versatile Application: Suitable for a broad range of vehicles, including classic cars, hot rods, race cars, and custom builds, thanks to its adjustable resistance settings.

Construction & Design

The AutoMeter Fuel Level Gauge boasts a robust construction featuring a high-quality, corrosion-resistant housing that protects the internal components from environmental factors. Its air core meter movement is engineered for accuracy and longevity, providing consistent readings over time. The gauge's face is designed with high-contrast markings and a bright needle, ensuring visibility in all lighting conditions. Its compact size and standard mounting options make it easy to install in most dashboard configurations, seamlessly integrating with your vehicle's interior.

Performance & Sound

While primarily a visual instrument, the AutoMeter Fuel Level Gauge is engineered for reliable performance, offering precise readings that help you manage your fuel consumption effectively. Its dampened movement reduces needle jitter caused by fuel slosh, providing stable and accurate data during dynamic driving scenarios. This gauge does not produce sound but enhances your vehicle's instrumentation with its dependable operation.

Installation & Fitment

Installing the AutoMeter Fuel Level Gauge is a straightforward process that typically involves connecting the gauge to your vehicle's existing fuel sending unit wiring. No cutting, drilling, or complex modifications are required in most cases. The gauge is designed for a direct bolt-in fitment into standard gauge panels or custom dashboards. For optimal performance, ensure that your fuel sender's resistance matches one of the available configurations. Basic automotive wiring skills are recommended, but detailed instructions are included to assist with the installation process.

• Connect the gauge's wiring harness to your vehicle's fuel sender wiring
• Mount the gauge in a suitable dashboard location using the provided hardware
• Verify compatibility with your fuel sender's resistance range

Once installed, you'll enjoy accurate fuel level readings that help you plan your trips and avoid running out of fuel unexpectedly.

What's Included

• AutoMeter Fuel Level Gauge (Model 5916)
• Wiring harness and connectors
• Mounting hardware and brackets
• Installation instructions

Ideal For

• Performance and racing enthusiasts seeking accurate fuel monitoring
• Classic car restorers upgrading their dashboard instrumentation
• Hot rod and custom vehicle builders
• Daily drivers wanting reliable fuel level data

Emissions Note

This product is designed for off-road or racing use only and may not be legal for street use in all jurisdictions. Please verify local regulations before installation.
