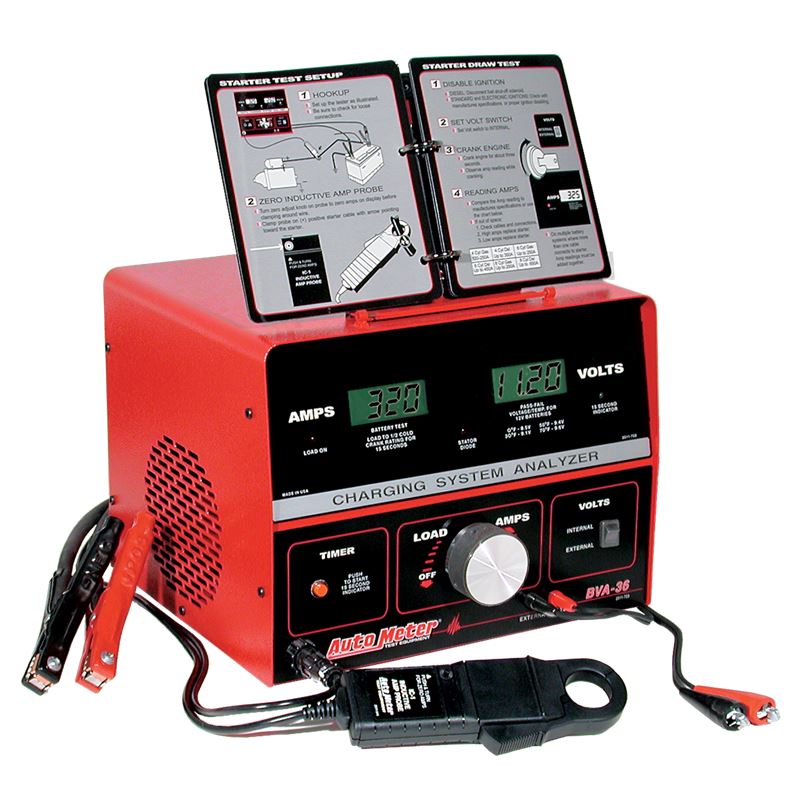

AutoMeter HD Charging System Analyzer

2010–2025 Automotive and Heavy-Duty Vehicles / BVA-36/2

Part #: BVA-36/2

Overview

The AutoMeter HD Charging System Analyzer is a robust and versatile testing device designed for both automotive and heavy-duty applications. Whether you're a professional technician, a fleet operator, or an enthusiast working on trucks, buses, or passenger vehicles, this analyzer provides accurate and reliable diagnostics of your vehicle's charging system. Its heavy-duty construction and advanced features make it an essential tool for ensuring optimal battery performance and electrical system health.

With the ability to handle high current loads and provide precise measurements, this analyzer helps you quickly identify issues related to batteries, alternators, and wiring. Its user-friendly design and clear instructions make it suitable for both experienced technicians and those new to electrical diagnostics. By using this analyzer, you'll get a comprehensive understanding of your vehicle's charging capacity, helping to prevent breakdowns and extend battery life.

Key Features

The AutoMeter HD Charging System Analyzer incorporates several advanced features tailored for demanding environments and accurate diagnostics:

• Heavy-duty carbon pile load tester capable of applying up to 800 amps, simulating real-world electrical loads to assess system performance under stress.
• Compatible with both 6V and 12V batteries, ensuring versatility across a wide range of vehicles and equipment.
• Digital auto-ranging voltmeter provides precise voltage readings, allowing for quick assessment of battery and system health.
• Field-detachable external volt leads and inductive amp clamp facilitate flexible testing setups and ease of use in various workshop configurations.
• Incorporates an easy-to-read flip chart with instructions mounted on top of the unit, enabling quick reference and reducing testing time.
• Designed with durable materials to withstand heavy-duty environments, ensuring longevity and consistent performance.
• Compact and portable design allows for easy transport and on-site diagnostics, making it ideal for mobile service technicians and fleet maintenance.
• Intuitive interface and straightforward operation streamline testing procedures, saving time and reducing errors.
• Includes safety features to protect both the operator and the vehicle's electrical system during testing.

Construction & Design

The AutoMeter HD Charging System Analyzer features a rugged construction built to withstand the rigors of professional workshop environments. Its heavy-duty casing protects sensitive electronic components from dust, moisture, and mechanical impacts. The carbon pile load device is engineered for consistent performance, providing a stable and adjustable load for accurate testing.

The digital voltmeter is calibrated for high precision, ensuring reliable readings across a wide voltage range. The detachable external leads and inductive clamp are designed for ease of use, allowing technicians to perform tests without cumbersome wiring or repositioning. The flip chart instructions are mounted securely on top of the unit, offering quick guidance during diagnostics. Overall, the design emphasizes durability, ease of operation, and versatility, making it a dependable tool for heavy-duty electrical testing.

Performance & Sound

While specific performance numbers such as load capacity or measurement accuracy are not provided, this analyzer is built to deliver consistent and precise diagnostics of your vehicle's charging system. Its high-current carbon pile load simulates real-world electrical demands, enabling you to evaluate system performance under load conditions. The digital voltmeter ensures accurate voltage readings, helping you identify weak batteries or failing alternators quickly. Its robust construction and reliable components make it suitable for demanding environments where dependable performance is critical.

Installation & Fitment

The AutoMeter HD Charging System Analyzer is a portable testing device that requires no installation or permanent setup. Simply position the unit on a stable surface, connect the external volt leads and inductive amp clamp to the vehicle's battery and electrical system, and follow the straightforward instructions. No cutting, drilling, or complex wiring is necessary, making it ideal for quick diagnostics in a workshop, service call, or fleet maintenance setting.

• Plug-and-play operation with external leads and clamps for flexible testing.
• No special tools or modifications required to perform system diagnostics.

What's Included

• Heavy-duty charging system analyzer unit with built-in flip chart instructions
• External volt leads
• Inductive amp clamp
• Power cord
• User manual and quick reference guide

Ideal For

• Automotive technicians performing electrical diagnostics
• Heavy-duty fleet maintenance and repair
• Performance enthusiasts testing high-capacity batteries and alternators
• Mobile service providers needing reliable on-site testing equipment

Emissions Note

This product is designed for diagnostic use only and does not impact vehicle emissions. It is suitable for use in all regions and complies with standard safety and performance requirements for electrical testing equipment.
