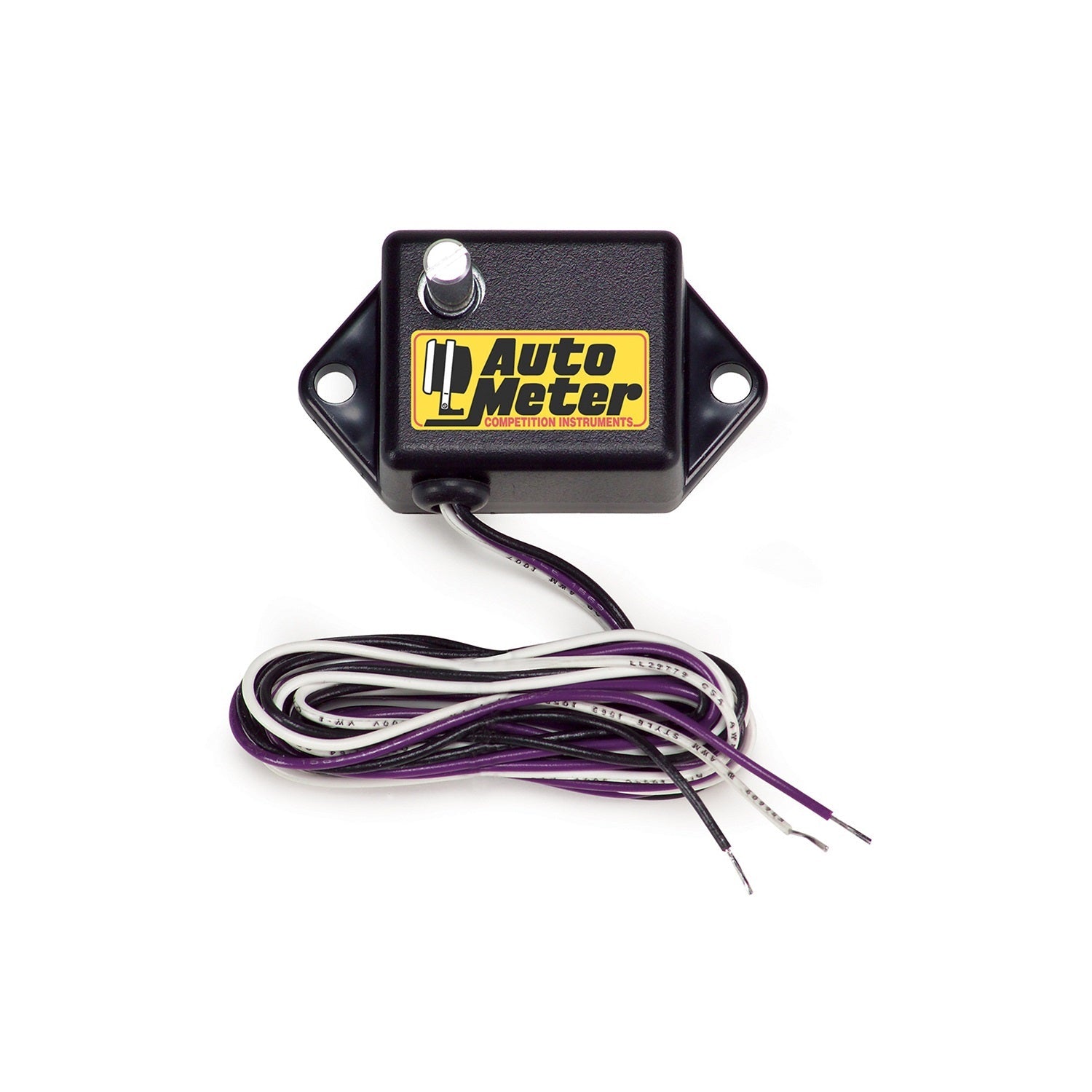

AutoMeter LED Lighting Dimmer

Universal Compatibility / Automotive Accessories 9114

Part #: 9114

Overview

The AutoMeter LED Lighting Dimmer is a compact, versatile module designed to give you precise control over the brightness of your LED gauges and lighting accessories. Perfect for automotive enthusiasts who want to customize their interior lighting, this dimmer allows for isolated adjustment independent of your vehicle's OEM dash controls. Whether you're upgrading your dashboard, installing aftermarket gauges, or enhancing your vehicle's interior ambiance, this dimmer provides a simple and effective solution.

Designed with ease of use and durability in mind, the AutoMeter LED Lighting Dimmer supports up to six instruments, making it ideal for multi-gauge setups or custom lighting configurations. Its compact size ensures it fits neatly into tight spaces, while its robust construction guarantees reliable performance over time. With this dimmer, you'll get smooth, flicker-free dimming control, allowing you to set the perfect lighting level for day or night driving.

Key Features

The AutoMeter LED Lighting Dimmer incorporates several advanced features to enhance your automotive lighting experience:

• Compact, lightweight design with dimensions of 2.380 inches x 1.250 inches x 0.750 inches, making it easy to install in tight spaces.
• Supports up to six LED instruments or lighting components, providing centralized control for multiple gauges or accessories.
• Separate, isolated dimming control that does not interfere with your vehicle's OEM dash lighting, ensuring seamless integration.
• Features a 0.250-inch control shaft for easy manual adjustment; knob not included, allowing for custom knob selection or integration.
• Includes a 4-foot wiring harness for straightforward installation, reducing setup time and complexity.
• Utilizes two mounting holes spaced 2 inches on center with 0.187-inch diameter, enabling secure attachment to your vehicle's interior panels or dashboard.
• Constructed with a durable black composite case that withstands the rigors of automotive environments.
• Designed to support LED lighting technology, ensuring compatibility with modern, energy-efficient gauges and accessories.
• Supports smooth dimming transitions, helping you achieve the perfect lighting ambiance for any driving condition.

Construction & Design

The AutoMeter LED Lighting Dimmer features a sturdy black composite case that provides excellent durability and heat resistance. Its compact profile makes it suitable for installation in various locations within your vehicle's interior. The internal circuitry is engineered for reliable, flicker-free operation, ensuring consistent dimming performance across all supported LED gauges and accessories.

The module's design emphasizes ease of installation, with two pre-drilled mounting holes and a 4-foot wiring harness that simplifies wiring connections. The control shaft, measuring 0.250 inches in diameter, allows for manual adjustment, giving you tactile control over your lighting levels. Its isolated design ensures that your vehicle's OEM dash lighting remains unaffected, providing a clean and professional-looking installation.

Performance & Sound

While primarily a control module, the AutoMeter LED Lighting Dimmer enhances your vehicle's interior lighting experience by providing precise, adjustable brightness levels. Its flicker-free operation ensures stable illumination, and the support for multiple LED instruments allows for a cohesive, customized dashboard setup. The dimmer's smooth transition capabilities help create a comfortable and visually appealing environment inside your vehicle.

Installation & Fitment

The AutoMeter LED Lighting Dimmer is designed for straightforward, bolt-on installation. Its compact size and included wiring harness make it easy to integrate into your vehicle's existing electrical system. The two mounting holes allow for secure attachment to dashboards, panels, or other interior surfaces. No cutting, drilling, or complex wiring is required beyond the included harness, and the module's design ensures compatibility with most LED gauges and lighting accessories.

• Simply connect the wiring harness to your LED lighting system and mount the dimmer in a convenient location.
• Adjust the brightness manually using the control shaft to achieve your desired lighting level.
• No additional tuning or calibration is necessary for optimal operation.

What's Included

• AutoMeter LED Lighting Dimmer module
• 4-foot wiring harness
• Mounting hardware (two mounting holes with 0.187-inch diameter)

Ideal For

• Automotive enthusiasts upgrading or customizing interior lighting
• Owners installing multiple LED gauges or lighting accessories
• Those seeking precise, isolated dimming control for their vehicle's lighting system
• Professionals and DIYers looking for a reliable, compact dimmer module

Emissions Note

This product is a vehicle accessory and does not impact emissions or require any emissions compliance considerations.
