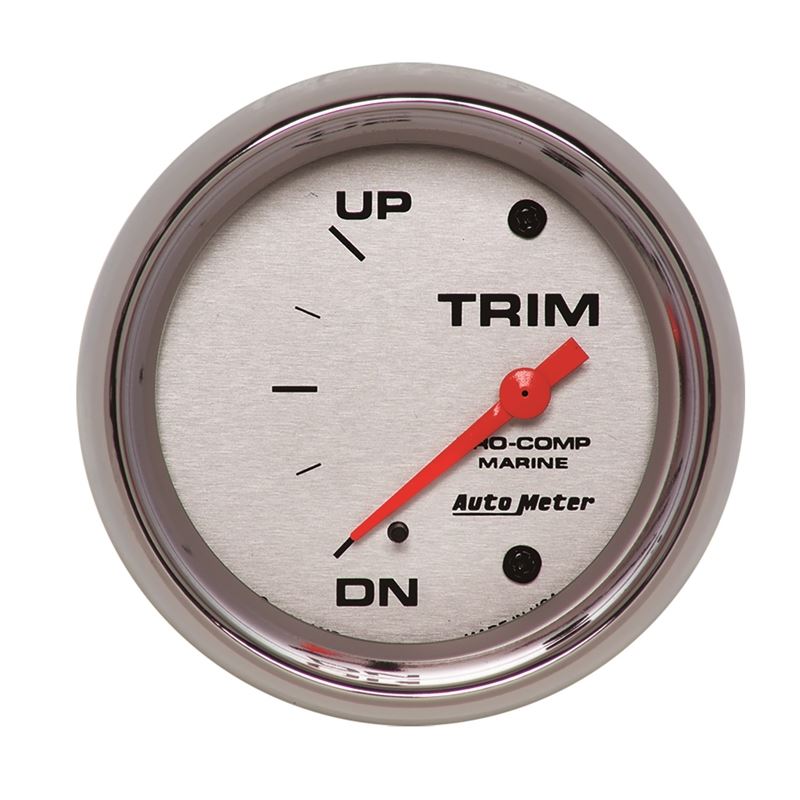

AutoMeter Marine Chrome Gauge 2-5/8in Electric Trim Level Gauge 0OHM Down - 90OHM Up (200767-35)

AutoMeter Marine Chrome Gauge 2-5/8in Electric Trim Level Gauge 0OHM Down - 90OHM Up (200767-35)

200767-35

Out of stock

$79.69 USD
$92.95 USD $79.69 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The AutoMeter Marine Chrome Gauge 2-5/8 inch Electric Trim Level Gauge is designed to provide precise measurement of the boat's trim angle, which is crucial for optimal watercraft performance and handling. This gauge features a 0-90 ohm electrical signal range, allowing accurate monitoring of the outdrive or propeller position relative to the hull. Constructed with a durable chrome bezel and a clear, easy-to-read dial, it offers both aesthetic appeal and reliable functionality. The gauge helps boaters fine-tune trim settings to improve speed, fuel efficiency, comfort, and control, especially during varying water conditions and maneuvering situations.

This electric trim level gauge is suitable for a wide range of marine applications where accurate trim measurement is essential. It can be installed on various boat models, providing real-time feedback to optimize performance. The gauge is compatible with systems that utilize a 0-90 ohm signal, making it versatile for different outdrive configurations. Designed for straightforward installation, it serves as a direct replacement or upgrade for existing trim gauges. Ideal for both recreational and performance boats, this gauge enhances control and safety during operation by delivering precise trim angle readings.

Overview

The" attitude" of a boat in the water can be controlled to a large extent by" trimming" the outdrive/propeller unit in relation to the stern of the boat. As the drive is trimmed up,the prop exerts more force downward,causing the bow to lift out of the water. As the drive is trimmed down,the force is exerted more in line with the boat hull,resulting in the bow riding lower in the water. Depending on a given trim angle,you can see increased or decreased speed,fuel economy,comfort and control at a given prop RPM. The trim gauge connects to a resistance based sender in the pivot of the outdrive. This functions much like the sender in a gas tank,with the gauge measuring resistance of the sender from totally down/in to totally up/out. This allows the operator to adjust for conditions and load quickly and easily.

Features:

  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Works with 0 Ohm Down/90 Ohm Up trim level sending unit
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial
